Forum Discussion

TJ_Vreugdenhil's avatar
TJ_Vreugdenhil
Icon for Cirrus rankCirrus
Nov 13, 2017

TMG to F5 APM Logoff URI

Hey - The Microsoft TMG had a Logoff URI that is appended. How does that convert to the F5 APM. There is a logout URI in the respective policy but it will not take this. Do I need some HTTP forms to handle this, and how do I go about doing it.

"?Cmd=logoff"

application delivery
BIG-IP Access Policy Manager (APM)
  • Stanislas_Piro2's avatar
    Stanislas_Piro2
    Icon for Cumulonimbus rankCumulonimbus
    Nov 14, 2017

    Hi,



    can you explain what you want?



    to logout Access session, you must request /vdesk/hangup.php3

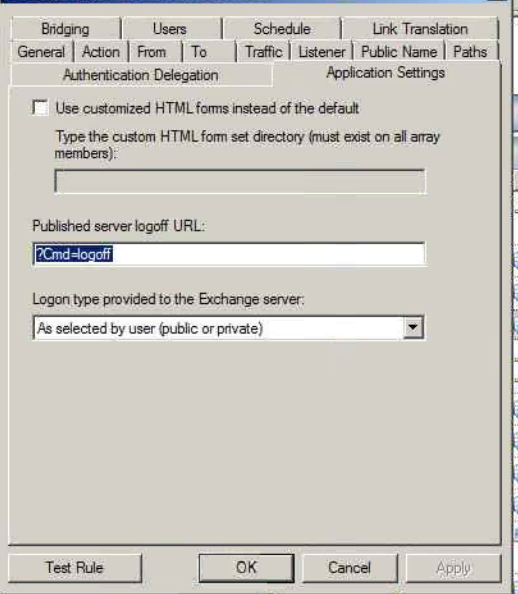

    to match the same as screenshot, you can use following code:



    when ACCESS_ACL_ALLOWED {
    if {[URI::query [HTTP::uri] "Cmd"] equals "logoff"} {
        ACCESS::respond 302 noserver Location "/vdesk/hangup.php3"
        event disable
        TCP::close
        return
    }
}
  • TJ_Vreugdenhil's avatar
    TJ_Vreugdenhil
    Icon for Cirrus rankCirrus
    Nov 14, 2017

    Hi Stanislas - Thanks for the response!

    Yes, we just want to convert the TMG functionality above to the APM.

    Would the iRule below not work better? Wouldn't we want to use

    "ACCESS::session remove"
    as well. Perhaps these two irules are accomplishing the same thing?

    when HTTP_REQUEST {
    if {[URI::query [HTTP::uri] "Cmd"] equals "logoff"} {
        ACCESS::session remove
        HTTP::respond 302 Location "https://[HTTP::host]/vdesk/hangup.php3"
        }
}
    • Stanislas_Piro2's avatar
      Stanislas_Piro2
      Icon for Cumulonimbus rankCumulonimbus
      Nov 14, 2017

      The two changes you did are useless



      • when session hit /vdesk/hangup.php3 URI, the session immediately closes.
      • Never use absolute URL if on the same service (same scheme and same hostname). prefer relative URL like I did.



        it makes more work on reverse proxy if rewriting is required



        even ASM detect absolute URL on the same service as a potential violation.
