Select persistence based on URL path

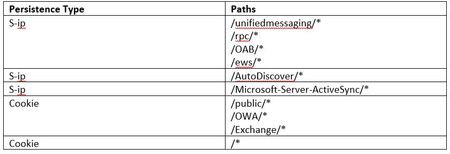

Hi team, we have a requirement to publish exchange(about 8 backend servers) via F5, and do persistence base on the URL path typed in the browser by user. for example a attached image please. Is t...
application delivery
LTM
Only1masterbla1's avatar
Only1masterbla1
Icon for Cirrus rankCirrus
Jun 26, 2018

Check sample iRule: https://devcentral.f5.com/Wiki/Default.aspx?Page=persist&NS=iRules



Code
Select different persistence methods by HTTP URI

when HTTP_REQUEST {



Check the requested URI switch -glob [HTTP::uri] { "/path1/* - "/path2/* { Request was for an IIS URI so select the pool and set a pool-specific cookie pool iis_pool persist cookie insert iis_persist 0 } default { Request was for an iPlanet URI so select the pool and source address persistence with a /24 source mask pool iplanet_pool persist source_addr 255.255.255.0 0 } } }
