restrict OWA APM by using AD security groups

I have a working Exchange 2013 OWA APM configuration. I would like to add the ability to restrict OWA by using Active Directory security groups. "EXCH_OWA" is the name of the distribution list.

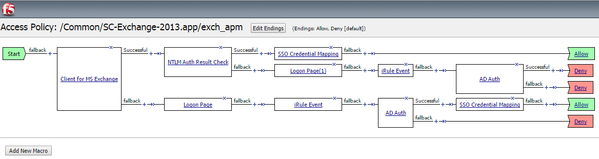

Below is my VPE.



BIG-IP Access Policy Manager (APM)
microsoft
security

4 Replies

  • mikeshimkus_111's avatar
    mikeshimkus_111
    Historic F5 Account
    Dec 31, 2014

    Grayson is correct. Also, since you're using the iApp, you could choose the option to "restrict EAC access by group membership", disable strictness on the iApp, and modify the EAC URL check and AD query policy events to match /owa and EXCH_OWA instead.



  • TJ_Vreugdenhil's avatar
    TJ_Vreugdenhil
    Icon for Cirrus rankCirrus
    Mar 11, 2015

    This worked great for user attribute. However, do you guys know how to match on a AD Security Group in the APM instead of just a user attribute?



    Thanks!



    • Grayson_149410's avatar
      Grayson_149410
      Icon for Nimbostratus rankNimbostratus
      Mar 11, 2015
      Can you give some more info on what you are trying to do? Not sure I understand and fill like some details are missing.
  • TJ_Vreugdenhil's avatar
    TJ_Vreugdenhil
    Icon for Cirrus rankCirrus
    Mar 11, 2015

    For example this is how it looks in AD:





    VDI-regionA



    VDI-regionB



    But then running a APM debug I don't see these Security Group names above, all I see is the user attributes - example: CN=VDI_TEST,OU=VDI Groups,OU=Security Groups | CN=VDI Support



    These user attributes are more global and not a specific as the user groups in the image above.



    Thanks!
