CirrostratusRDP with Forwarding VIP and DNAT
Hi Guys,
Trying this lab out in my lab but it just fails.

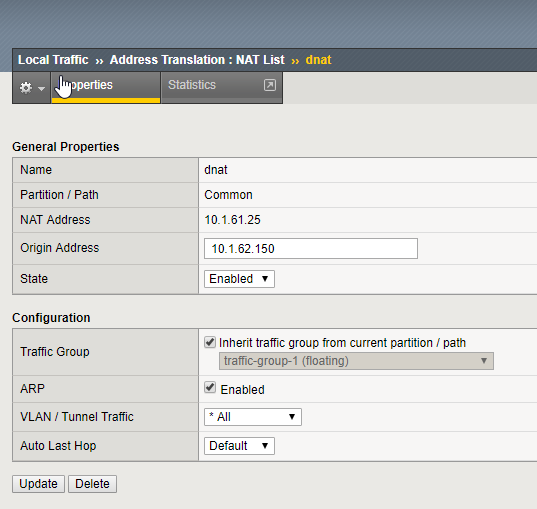

With this NAT rule.
Is this the right way to use NAT.

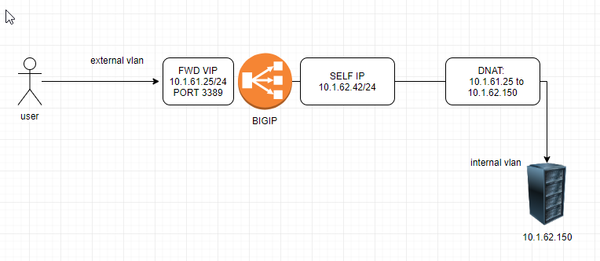

The user with hit the 10.1.61.25:3389.
4 Replies
David_MTook this pcap and see RST from f5 VIP to the client.
rob_carrCirrocumulus
In BIG-IP LTM, Virtual Servers and NATs are listeners, and only one can handle a specific connection.
Why not use a standard virtual server, which does destination address by default, with your RDG as the only member of the pool?
If you really need to do DNAT, you could use an iRule or AFM NAT rules to make the transformation.
- David_M
Actually I just want to try how this NAT works, this is just for study.
So if NATs are listeners how will we make sure the traffic hits the NAT on the BIGIP?
Just configure the NAT and not the VS?
Will that just itself just pass the traffic to the RDP server after NAT and we dont even need the forwarding VIP for it?
