one-armed with one vlan

Question

how can we implement one-armed solution with only on vlan between F5 and our gateway router.

m_afifi · Answer

Hi Mostafa,&nbsp;This can be implemented by using one VLAN and a default route in the BIGIP.&nbsp;You will have to configure F5 BIGIP with self IPs in the same vlan and create a default route pointing to your router.&nbsp;In case your back-end servers (pools members)  in a different VLAN the F5 will reach these servers via the router. Otherwise, if your back-end servers are in the same VLAN make sure to use SNAT or make the F5 floating IP as the back-end servers Gateway.&nbsp;I hope this helps.&nbsp;Best Regards.&nbsp;&nbsp;

m_afifi · Answer

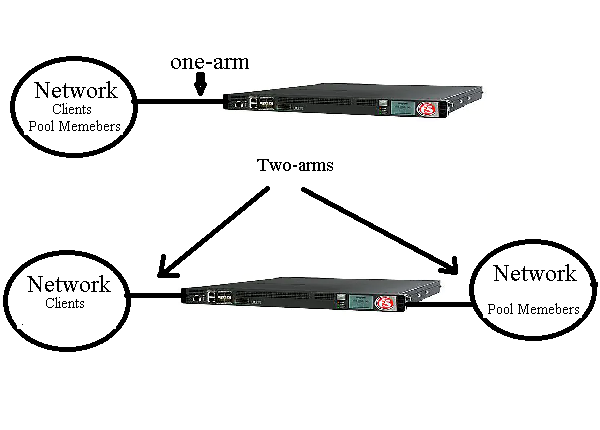

Hi Mostafa,&nbsp;Typically, one-armed is when the communications between BIGIP and clients , and the communications between BIGIP and pools members using the same VLAN. &nbsp;And two-armed is when you use defferent VLANs i.e. different self-IPs, one VLAN for the communications between BIGIP and clients , and the other VLAN for the communications between BIGIP and pools members.&nbsp;See below:&nbsp;I hope that helps.  &nbsp;Regards.

mostafa_elsayed · Answer

so kindly explain what is different between one-Armed and two-Armed design

Forum Discussion

one-armed with one vlan

3 Replies
