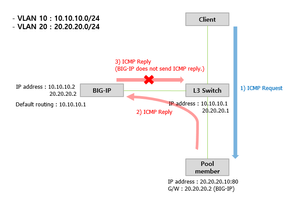

In nPath configuration, BIG-IP does not send ICMP reply to the L3 switch.

Hi KaiTT ,

> you should change your configuration little bit , use one of two scenarios :

1.  Change the default gateway for "20.20.20.1" instead of using Bigip self-ip as a gateway , and configure
   ( SNAT automap or SNAT pool ).
   by this scenario , ICMP traffic should go through L3 swith without forward it to Big-ip
   All of this with respect to your routes.
2. Configure a fast layer 4 virtual server on your Big-ip and do not assign tcp profile to it , allow all protocols.
   After creating it , go to virtual address and configure "echo-reply = disabled " not "always"
   like below :


in this scenario , ICMP traffic should go through Bigip to server 20.20.20.10 and return back to F5 big-ip " its gateway"

> you only need to adjust your traffic flow , I recommend to do the first scenatio , using SNAT is very useful , so try it.

Regards.
