Http Redriect Loop

So you are using a single Virtual for HTTP and HTTPS? If that's the case you'll need identify the HTTP traffic and only redirect that. As things stand you are redirecting even the HTTPS.

when HTTP_REQUEST {
 if { [TCP::local_port] == 80 } {
   HTTP::redirect "https://[HTTP::host][HTTP::uri]"
 }
}

It's still looping. Can see firefox still spin.

I have ssl cert from Go Daddy. I put on F5. What else setting i need to do? Do i need define SSL Profile (client) on http? or on https?

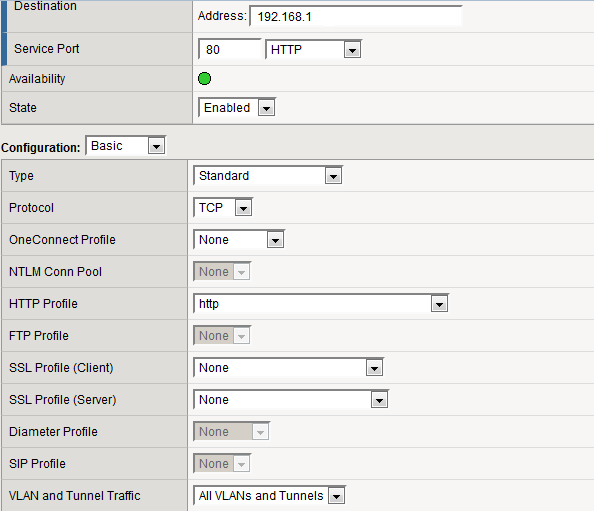

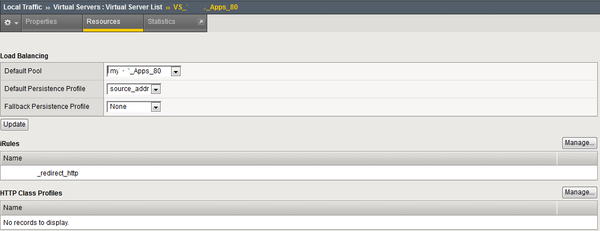

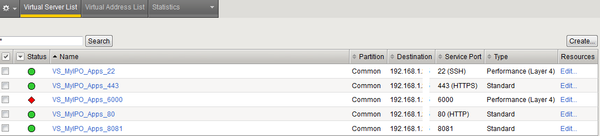

I'm assuming, based on the screen shot, that you actually do have separate VIPs for each port. In that case, you should ONLY apply the redirect rule to the port 80 VIP. On the port 443 VIP, create and apply a client SSL profile with your GoDaddy cert.

I already do what you suggested but browser still loop. Any idea what wrong? Do i need put cert from Go Daddy on apache server?

What happens if you go directly to the port 443 VIP? Is it all browsers or just FireFox? Is the apache server also listening on port 443?

Apache listen only port 80. It just on firefox. Chrome don't have any problem. But our client use firefox.

Internet Explorer version 11 also same. It's loop. On login page our client have set check session. Before this, our client don't have any problem. But after renew certificate, all problem come.

What happens if you go directly to the port 443 VIP? Same issue? Given that the apache server is listening on port 80, you definitely don't need to put the cert there. What indication do you have that it's looping (making repeated requests) and not just failing the SSL negotiation?

Yes, w have same issue when using port 443 VIP. Spinning indicator keep showing and browser keep refresh.
