Help to configure -- Cookie based authentication

Hi All,

We have a specific requirement for one application at xyz company and I need assistance to shed some light on how to move forward with this requirement.

The application is internally developed by XYZ application team and runs on iPad.

Currently, the application is configured on LTM and the authentication happens on the backend server. Similar to any other application, once it is lunched the user enters his credentials (username & password) for login. After login, there are some links (buttons) which point to other applications and these applications are configured with LTM/APM on the same F5 device. Our target is to have sort of SSO, meaning that after initial login the user should have the ability to open/access the other applications without entering the credentials again.

Need help in configuring cookie based authentication. I have referred link text but not much help.

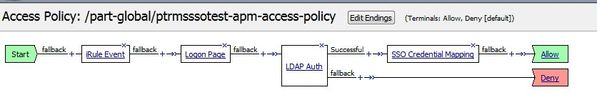

My requirement is whenever specific cookie is POSTed , it should get authentication.Below is my VPE which i have configured. .



If a cookie is sent it should get authenticated else login page will be prompted. But here when i use this irule event. login page doesnt come nor cookie based authentication is happening. Anybody who has made similar configuration, kindly share steps to achieve this, being struggling for quite a time for solution.



Code
when CLIENT_ACCEPTED {
set authinsck 0
set forceauth 1
set ckname login-ptrms
set ckpass xyz@1234
set ckvalue 12345
set ckdomain xyz.com.qa
set asid [AUTH::start pam default_ldap]
}
when HTTP_REQUEST {
if {[HTTP::cookie exists $ckname]} {
    HTTP::cookie decrypt $ckname $ckpass 128
    if {[HTTP::cookie value $ckname] eq $ckvalue} {
        set forceauth 0
    }
    HTTP::cookie remove $ckname
}

Code
    if {$forceauth eq 1} {
    AUTH::username_credential $asid [HTTP::username]
    AUTH::password_credential $asid [HTTP::password]
    AUTH::authenticate $asid
    HTTP::collect
}

}

when HTTP_RESPONSE {
if {$authinsck eq 1} {
    HTTP::cookie insert name $ckname value $ckvalue path / domain $ckdomain
    HTTP::cookie secure $ckname enable
    HTTP::cookie encrypt $ckname $ckpass 128
}

}
when AUTH_SUCCESS {
  if {$asid eq [AUTH::last_event_session_id]} {
    set authinsck 1
    HTTP::release
  }
}
