Help in understanding working of IP forwarding virtual server

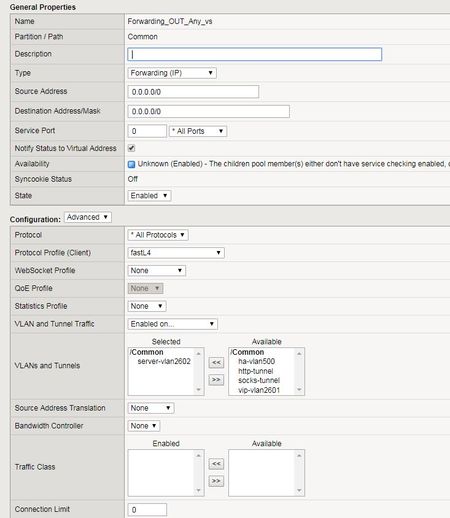

  Please find the attached screenshot of IP forwarding virtual server configuration. Need help in understanding the working of this.   My understanding: All IPs' belonging to VLAN 2602 wou...
application delivery
LTM
RaghavendraSY's avatar
RaghavendraSY
Icon for Altostratus rankAltostratus
May 17, 2018

Forwarding (IP): Specifies a virtual server like other virtual servers, except that the virtual server has no pool members to load balance. The virtual server simply forwards the packet directly to the destination IP address specified in the client request.



You can have multiple IP forwarding virtual servers with different route domains.
