Customize APM Policy Message box with image

In previous BigIP versions I could customize the messagebox.inc file and add an image. Is this still possible in v15.1.4? Or is there now another option for customizing the Message Box window in a...
BIG-IP Access Policy Manager (APM)
security
  • Niels_van_Sluis's avatar
    Niels_van_Sluis
    Nov 24, 2021

    Try this:



Niels_van_Sluis's avatar
Niels_van_Sluis
Icon for MVP rankMVP

Yes, there is another option. Add the image you want to display to the Webtop Hosted Content.

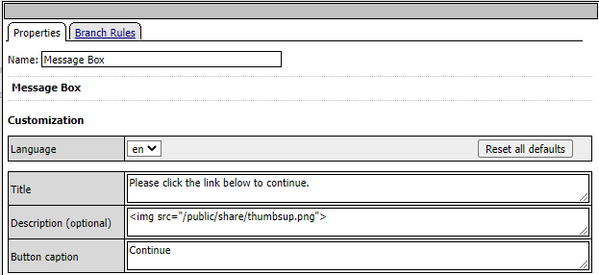

This image can be used in the MessageBox agent. You can add HTML to the description.

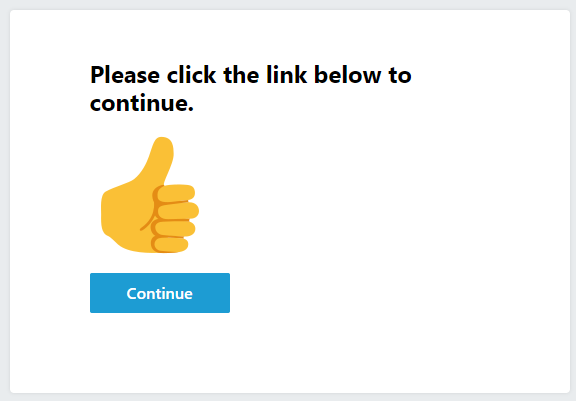

And here the result.



The-messenger's avatar
The-messenger
Icon for Cirrostratus rankCirrostratus
Nov 24, 2021

Excellent, I thought we might be able to use html code, but didn't try the description box. Thanks!

Now is it possible to center the "Continue" text. I've tried html and CSS code, also tried using the same img src=, I just get the text of whatever I enter.

  • Niels_van_Sluis's avatar
    Niels_van_Sluis
    Icon for MVP rankMVP
    Nov 24, 2021

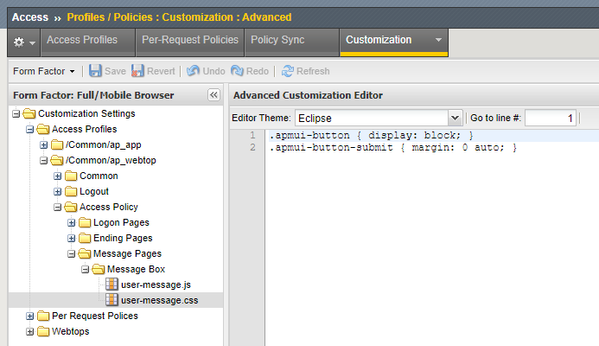

    Try this:



  • The-messenger's avatar
    The-messenger
    Icon for Cirrostratus rankCirrostratus
    Nov 24, 2021

    Thanks this got me what I need. And your reply in the other thread - didn't realize I had started 2 on this, thank you - helped also. It would be nice if we had more documentation, I'll ask my SE. But, good idea using developer mode to see the better context.



    Really appreciate the help!
