CPU load while no traffic is passing BIGIP

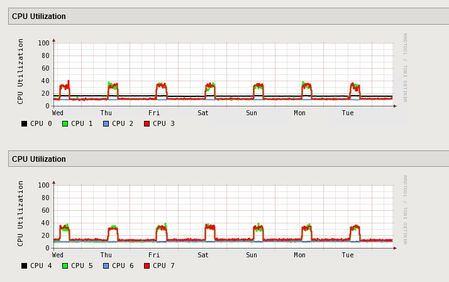

Hi all,   Take a look at the graph below. This is the 7 day overview of the CPU load on a i4600 cluster BIGIP with LTM, APM, ASM and AFM provisioned. But for now only LTM is configured with about ...
application delivery
LTM
TMSH
Jinshu's avatar
Jinshu
Icon for Cirrus rankCirrus
Nov 08, 2017

It's hard to explain without analysing the system. I have seen this when ASM running the back-end Analytics or datasync.



Also it looks like your odd number CPU is going up because it is used by Control plane rather data. there should be a datasync process that runs each day which will run up the CPU and does use Java. It should not impact traffic, however.



https://support.f5.com/csp/article/K16469



https://support.f5.com/csp/article/K15003



Hope this helps.
