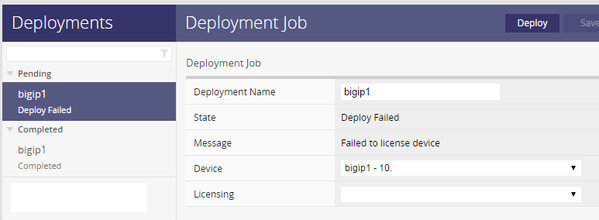

Hi, I've set up a License Pool (F5-BIG-VEP1-25M25V13) on my BIG-IQ 4.6 (Centralized Management), to provide LTM licensing to my new machines, which I'm deploying on vCloud. So, what I'm doing is: 1 - I deploy the new LTM image on a vCloud VDC and configure it with a management address. This without using BIG-IQ. 2 - I discover that new LTM on BIG-IQ. 3 - I go to "License Device" using the license from the pool I've created before, but I get an error: Deploy failed, Failed to license device: I don't see any further information on the log file, which I'm not sure if its /var/log/ltm, like LTM devices, or it is somewhere else on BIG-IQ. Any ideas? Thanks in advance, Luis.

The main log file for BIG-IQ is /var/log/restjavad.0.log. There should be more information on the failure there.

Thank you Kyle. I do see much more information there. I'm think that both LTM and BIG-IQ must have Internet access to activate the license (right now, they don't have access), so I'm allowing them to reach Internet and see what happens. I'll let you know.

That should not be the case. One of the purposes of license pools is to be able to give licenses to devices that do not have internet capabilities.

BIG-IQ: how to license a LTM VE device

18 Replies

Kyle_Oliver
Employee
Jan 28, 2016
The main log file for BIG-IQ is /var/log/restjavad.0.log. There should be more information on the failure there.
- COMMS-CORE_1795
  Nimbostratus
  Jan 28, 2016
  Thank you Kyle. I do see much more information there. I'm think that both LTM and BIG-IQ must have Internet access to activate the license (right now, they don't have access), so I'm allowing them to reach Internet and see what happens. I'll let you know.
- Kyle_Oliver
  Employee
  Jan 28, 2016
  That should not be the case. One of the purposes of license pools is to be able to give licenses to devices that do not have internet capabilities.
- COMMS-CORE_1795
  Nimbostratus
  Jan 28, 2016
  You're right. Just tried to license with BIG-IQ and LTM reaching Internet. Same issue :(
Kyle_Oliver_519
Historic F5 Account
Jan 28, 2016
The main log file for BIG-IQ is /var/log/restjavad.0.log. There should be more information on the failure there.
- COMMS-CORE_1795
  Nimbostratus
  Jan 28, 2016
  Thank you Kyle. I do see much more information there. I'm think that both LTM and BIG-IQ must have Internet access to activate the license (right now, they don't have access), so I'm allowing them to reach Internet and see what happens. I'll let you know.
- Kyle_Oliver_519
  Historic F5 Account
  Jan 28, 2016
  That should not be the case. One of the purposes of license pools is to be able to give licenses to devices that do not have internet capabilities.
- COMMS-CORE_1795
  Nimbostratus
  Jan 28, 2016
  You're right. Just tried to license with BIG-IQ and LTM reaching Internet. Same issue :(
Customer_Kyle_2
Nimbostratus
Jan 28, 2016
What version of BIG-IP are you trying to license? What error messages are shown in the restjavad log of the BIG-IQ and the BIG-IP?

Is the rest framework up to date between the BIG-IQ and the BIG-IP?
- COMMS-CORE_1795
  Nimbostratus
  Jan 28, 2016
  LTM versión 11.6.0. This is the error: [WARNING][2019][28 Jan 2016 17:46:26 UTC][RegKeyUpdater][checkedCompleted] Device 10.36.209.17 didn't have a registration key. [I][2061][28 Jan 2016 17:46:46 UTC][8100/cm/autodeploy/jobs JobsWorker][onPatchCompleted] Job 1afd4c70-dd66-473e-bb2d-ae11a47f313d started by user admin [I][2063][28 Jan 2016 17:46:46 UTC][LicenseTask][licenseDeviceFromGenericPool] Installing pool license grant to device '/mgmt/shared/resolver/device-groups/cm-autodeploy-group-manager-autodeployment/devices/0ae7e9b2-ef50-4e09-9e00-b34e11636dc5' using 'http://localhost:8100/cm/shared/licensing/pools/b876a3b7-1d6d-43a1-bee2-3b2575be6578/members' [WARNING][2069][28 Jan 2016 17:46:46 UTC][8100/cm/shared/licensing/pool-activation PoolLicenseActivationWorker][patchFailed] java.lang.IllegalArgumentException: Unparseable license format at com.f5.rest.workers.em.license.PoolLicenseUtils.makeLicenseBlob(PoolLicenseUtils.java:189) at com.f5.rest.workers.em.license.PoolLicenseUtils.createDeviceLicense(PoolLicenseUtils.java:129) at com.f5.rest.workers.em.license.PoolLicenseActivationWorker$7.completed(PoolLicenseActivationWorker.java:311) at com.f5.rest.workers.em.license.PoolLicenseActivationWorker$7.completed(PoolLicenseActivationWorker.java:300) at com.f5.rest.common.RestOperation.complete(RestOperation.java:1808) at com.f5.rest.common.ApacheAsyncRequestSender.handleRequestCompleted(ApacheAsyncRequestSender.java:147) at com.f5.rest.common.ApacheAsyncRequestSender$1.completed(ApacheAsyncRequestSender.java:91) at com.f5.rest.common.ApacheAsyncRequestSender$1.completed(ApacheAsyncRequestSender.java:87) at org.apache.http.concurrent.BasicFuture.completed(BasicFuture.java:119) at org.apache.http.impl.nio.client.DefaultClientExchangeHandlerImpl.responseCompleted(DefaultClientExchangeHandlerImpl.java:177) at org.apache.http.nio.protocol.HttpAsyncRequestExecutor.processResponse(HttpAsyncRequestExecutor.java:412) at org.apache.http.nio.protocol.HttpAsyncRequestExecutor.inputReady(HttpAsyncRequestExecutor.java:305) at org.apache.http.impl.nio.client.InternalRequestExecutor.inputReady(InternalRequestExecutor.java:83) at org.apache.http.impl.nio.DefaultNHttpClientConnection.consumeInput(DefaultNHttpClientConnection.java:267) at org.apache.http.impl.nio.client.InternalIODispatch.onInputReady(InternalIODispatch.java:81) at org.apache.http.impl.nio.client.InternalIODispatch.onInputReady(InternalIODispatch.java:39) at org.apache.http.impl.nio.reactor.AbstractIODispatch.inputReady(AbstractIODispatch.java:123) at org.apache.http.impl.nio.reactor.BaseIOReactor.readable(BaseIOReactor.java:164) at org.apache.http.impl.nio.reactor.AbstractIOReactor.processEvent(AbstractIOReactor.java:339) at org.apache.http.impl.nio.reactor.AbstractIOReactor.processEvents(AbstractIOReactor.java:317) at org.apache.http.impl.nio.reactor.AbstractIOReactor.execute(AbstractIOReactor.java:278) at org.apache.http.impl.nio.reactor.BaseIOReactor.execute(BaseIOReactor.java:106) at org.apache.http.impl.nio.reactor.AbstractMultiworkerIOReactor$Worker.run(AbstractMultiworkerIOReactor.java:590) at java.lang.Thread.run(Thread.java:745) When I discover the LTM device, I check the "update framework" item, so I guess it's up to date.
Kyle_Oliver_519
Historic F5 Account
Jan 28, 2016
It looks like a bug. Please open a support case.
- COMMS-CORE_1795
  Nimbostratus
  Jan 28, 2016
  I forgot to mention that I'm currently working with a 45-days license, but I guess that should be no problem either... I will tell the issue to my F5 contact to see if I can get support with this license. Thank you very much, Kyle.
- Frank_Guo_26543
  Nimbostratus
  May 24, 2016
  Hi COMMS-CORE,, I got exact the same issue with my BIG IQ v4.6, BIG IP LTM VE is v12.1. May I know if you got this issue solved or it is just a bug in 4.6 code? Thanks a lot!
- Kyle_Oliver_519
  Historic F5 Account
  May 24, 2016
  This bug is fixed in the forthcoming 5.0 release
Kyle_Oliver
Employee
Jan 28, 2016
It looks like a bug. Please open a support case.
- COMMS-CORE_1795
  Nimbostratus
  Jan 28, 2016
  I forgot to mention that I'm currently working with a 45-days license, but I guess that should be no problem either... I will tell the issue to my F5 contact to see if I can get support with this license. Thank you very much, Kyle.
- Frank_Guo_26543
  Nimbostratus
  May 24, 2016
  Hi COMMS-CORE,, I got exact the same issue with my BIG IQ v4.6, BIG IP LTM VE is v12.1. May I know if you got this issue solved or it is just a bug in 4.6 code? Thanks a lot!
- Kyle_Oliver
  Employee
  May 24, 2016
  This bug is fixed in the forthcoming 5.0 release
