CirrusBIG-IP DNS with LTM integration
Hi all

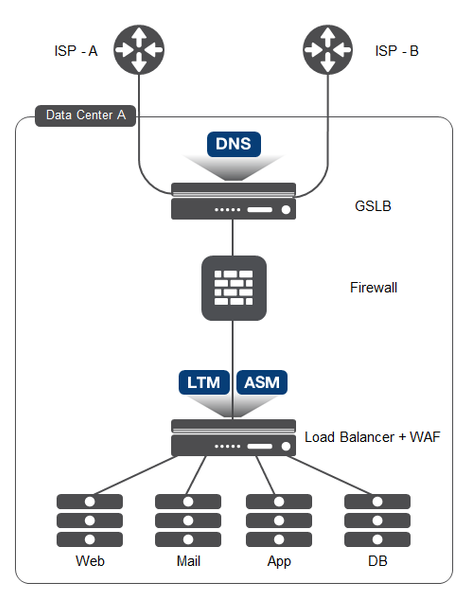

i am planing to install some BIG-IP DNS with LTM-ASM as shown in the picture below ,
since the BIG-IP DNS can be linked to the LTM to have a full view of what happening in the back end , my question is this toplogy is conform to best practices , and more important since the VS created on the LTM will be visible on the DNS , how to deal with IP , public or private ?
hope i were clear
thanks
5 Replies
Lee_SutcliffeNacreous
You can certainly use private IP addressing on the LTM, I for one would prefer this design. iQuery messages are exchanged using self IP addresses of each F5 device, these are used to provide status information, metrics etc on the downstream LTMs.
The only question you need to ask, regarding public IP addressing is if your DNS/GTM listeners are public IP addresses or private. Using public is simpler, however it it totally possible to use private addressing as there exists the capability to define the NAT IP when configuring your system.
nitass_89166Noctilucent
talking about iQuery with the BIG-IP DNS and the LTM , the GIB-IP DNS wil see the VS configured on the LTM with their private IPs whiche are unusable for DNS answers which take me to create VS on DNS pointing to VS on LTM as nodes
you do not have to.
K14707: Configuring BIG-IP DNS server objects for BIG-IP devices that reside behind a firewall NAT
https://support.f5.com/csp/article/K14707- Azzeddine_S
thanks to all , the global picture is getting clearer :)
- nitass
Employee
talking about iQuery with the BIG-IP DNS and the LTM , the GIB-IP DNS wil see the VS configured on the LTM with their private IPs whiche are unusable for DNS answers which take me to create VS on DNS pointing to VS on LTM as nodes
you do not have to.
K14707: Configuring BIG-IP DNS server objects for BIG-IP devices that reside behind a firewall NAT
https://support.f5.com/csp/article/K14707- Azzeddine_S
thanks to all , the global picture is getting clearer :)
