About IPsec Interface

Hello, When I was building IPsec Interface  I found that I could not select the option I wanted... But I've obviously put this option up .... Why can't I select it in " Tunnels : Profi...
application delivery
young19918's avatar
young19918
Icon for Cirrus rankCirrus

Paulius ,

Thanks for your reply.

After I changed the order ,I still can't choose...



Paulius's avatar
Paulius
Icon for MVP rankMVP
May 19, 2023

young19918 Can you provide the rest of the associated configuration for this IPsec VPN? From my understanding the following is all that should be configured, assuming you have done all the prerequisits such as a self-IP.

1. Create a forwarding virtual server for IPsec. This should listen on destination 0.0.0.0/0, all ports, all protocols, and all vlans and tunnels
2. Create an IKE peer
3. Create an IPsec policy
4. Create an IPsec traffic selector. Make sure this one is above the default.

The following article might help you in this configuration.

https://techdocs.f5.com/kb/en-us/products/big-ip_ltm/manuals/product/bigip-tmos-tunnels-ipsec-13-0-0/10.html

  • young19918's avatar
    young19918
    Icon for Cirrus rankCirrus
    May 24, 2023

    Hi Paulius ,

    Yes, I have already configured.

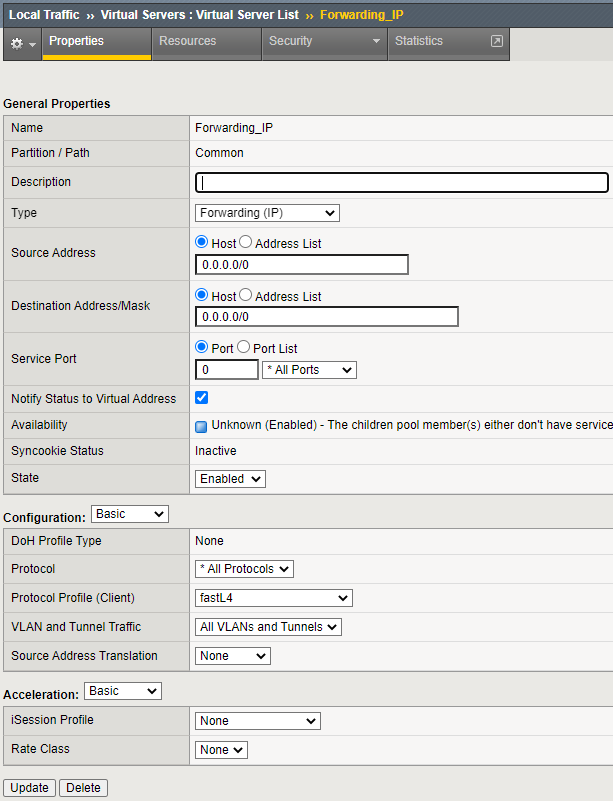

    1.  Forwarding_IP

    2. IKE peer

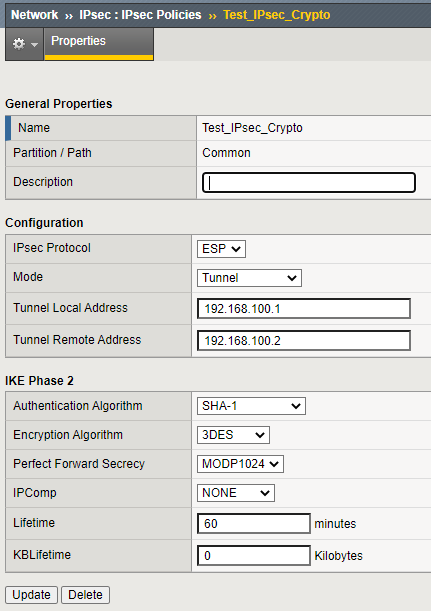

    3. Ipsec policy

    4. IPsec traffic selector





    • Paulius's avatar
      Paulius
      Icon for MVP rankMVP
      May 24, 2023

      young19918 And nothing is showing up in any of your VPN related logs on the F5?
