VMware Cloud for AWS - BIG-IP in Single-Site, Hybrid, and Multi-Cloud Deployments
Introduction This is article 2 of 2. The aim is to provide useful information for planning a VMC/multi-cloud deployment, for example when creating an HLD (High Level Design) document. For information about VMC and relevant aspects for BIG-IP please see the previous article VMware Cloud for AWS - Networking and High Availability. VMC uses NSX-T for networking but currently AWS only allows a single Tier-1 Gateway hence limiting the networking topologies possible. In this blog post we describe a suggested topology for BIG-IP in VMC for AWS. This baseline arrangement can be used in the multi-cloud sample topology exposed. A mention to VMware’s HCX migration tool is also done. BIG-IP in a single site Out of the 4 topologies described In the F5 BIG-IP deployment guide for NSX-T the customers are currently constrained to Topology D which uses SNAT by default. This topology is shown in the next diagram. In this sample topology, we create a typical 3-tier architecture with Frontend (External Service), Application (Internal Service) and Database tiers. Notice that the Database Tier is configured as “Disconnected” to provide an additional layer of secure by means of controlling the access through a VIP in the BIG-IP. The above topology can be expanded with multiple BIG-IP Scale-N clusters. This would allow isolation between the different Business Units or departments, each one with their own BIG-IP Scale-N cluster. Out of scope of this blog but worth to remind is that in these multi-cluster BIG-IP deployments (in a single or multiple sites) BIG-IQ can be used for global visibility across sites and centralized management. Using EC2 workloads From the point of view of the BIP-IPs, VMC is just another routing environment where it can also access EC2 workloads. These workloads can be dynamically incorporated in BIG-IP’s configuration by means of using AS3’s Service Discovery feature. Moreover, reachability of the VMs is the same either from VMC to VPC or vice versa. The same applies to the Internet access. This opens the following dilemmas: Where to place the BIG-IPs? Where to place the Internet Gateway? There is no definitive answer. We can choose whether we want each functionality in the AWS VPC or in the VMC side. This is shown in the next figure. The decision should consider the following aspects: At time of this writing, using an AWS IGW instead of an IGW via VMC has the possibility of using ELBs which provides Advanced Shield capabilities. The cost will depend where we have more traffic and where we have more compute resources. Using HCX VMware's HCX covers several migration-related use cases including Disaster Recovery. HCX's Network Extension capability permits keeping the same IP and MAC addresses during a VM migration. This minimizes service disruption and is transparent to all devices including BIG-IP. Furthermore, HCX doesn’t mandate how the services are exposed externally therefore GSLB is always a valid option and will provide greater flexibility compared to a plain routing option. BIG-IP in Multi-cloud Multi-cloud allows for many use cases, as a consequence, many designs are possible. Ultimately the design will be highly dependent on the applications and on the databases, which most of the times require replication across sites. From the point of BIG-IP there are very few restrictions. Next we will describe two multi-cloud scenarios: A hybrid design focused in local data retention implemented with a single site plus cloud bursting. A generic multi-cloud design that can be applied to any public cloud or private data centers. Single site with cloud bursting design The topology to be described next is suitable for smaller deployments or when data must be stored on-premises, usually because of data retention policies or regulations. This can be observed in the next figure where the DB Tier is not stretched to the Public Cloud. In this architecture the On-premises data center is stretched to a public cloud when load conditions require increasing the compute needs. In this scenario Internet access is kept in the On-premises data center. It requires the use of a high performance Direct Connect link with low latency. This is usually within the metropolitan area of the On-premises facility. This Direct Connect circuit needs to be established once and its capacity increased ahead of the peak periods. Some housing vendors allow to change circuit’s capacity programmatically. When compute changes dynamically, it is a perfect fit for F5’s Service Discovery feature of AS3, automatically populating the pools with the added or removed computing instances. Please check the clouddocs.f5.com site for this and other automation options. Generic multi-Cloud design In general, F5 recommends Global Server Load Balancing (GSLB) for multi-cloud because it has the following benefits: cross-cloud vendor, name based/high degree of control, stickiness and IP intelligence.GSLB is available by F5 in two form factors: Software as a Service (SaaS) with F5 Cloud Services’ DNS LB service and Self-managed with F5 BIG-IP’s DNS module. Designs depend on the applications and on databases. Inter-site dependencies play a crucial role. This guide recommends following the next design principles to minimize cost and maximize reliability while keeping simplicity in mind: Typically, ADCs like BIG-IP deal with Frontend-tier and App-tier servers which should not have to talk with peers in other sites. These tiers have the most throughput and latency demands so inter-site communication should be avoided. Otherwise, this could incur in uneven performance and increased and unnecessary costs. Identify strictly necessary inter-site dependencies. The typical case is DB replication which has much less throughput demands. Also, latency is a lesser issue because replication often happens asynchronously. There are other very relevant sources of inter-site traffic such as Automation, VM migration and data-store replication (for example a repository of images). VMware’s HCX traffic fits in this category. The first two items in this list deal with traffic that is generated upon client requests (blue arrows in the figure below). On the other hand, the third item is a new category of traffic (orange arrows) that is not expected to have dependencies when handling an ongoing customer request. Another characteristic of this traffic is that its traffic demands will greatly depend on frequency of updates in the applications. Simpler sites are easier to manage, scale, and replicate. GSLB allows for distribution of workloads based on a site’s or a service’s load and capacity so it is perfectly fine to have differently sized data centers. The most important attribute is to have them architecturally equal. Automations that are cross-cloud vendor capable are advised. Using BIG-IP DNS and following the above guidelines we can create a cross-cloud vendor solution using GSLB. This is shown in the next figure. Probably the most remarkable aspect of the diagram are the network dependencies and demands which drive the design. In this diagram Inter-site dependency is reduced to the minimum, typically DB replication only. We can also see that there is additional inter-site traffic like the BIG-IP DNS iQuery (used for service discovery and health probing) but this traffic is different in nature because it is failure tolerant. In the design above, the DNS functionality is implemented in a standalone BIG-IPs because redundancy is accomplished by having an independent BIG-IP DNS at each site. Having this BIG-IP DNS separated from the BIG-IP Scale-N cluster that handles client traffic gives clarity in the diagram and more relevantly sets a clear demarcation of functions. If desired, the BIG-IP DNS functionality can be consolidated in the BIG-IP Scale-N cluster at each site. At extract cost, BIG-IP DNS could be placed in Internet exchanges. This allows: To be closer to the clients. This only slightly improves DNS performance since client’s local DNS resolvers usually reply from their DNS cache. To have a closer view to client’s network performance and reachability to the clouds. This is very relevant. At the end of the day all designs have their PROs and CONs and a balancing act has to be done. In any case simplicity should always be priority. With respect to this, BIG-IP DNS has very little constains and greatly simplifies any existing deployment by having automatic service discovery Conclusion BIG-IP integrates in VMC likewise in NSX-T by using routing. In the case of VMC on AWS at present there are limitations which inhibit using the same topologies than on the private clouds. BIG-IQ can be leveraged to simplify the management of multiple BIG-IPs in the same or multiple sites. GSLB is king for multi-cloud deployments. It is cross cloud vendor and provides greater flexibility and functionality over plain routed options. Multi-cloud is a wide topic and we refer to the F5 BIG-IP deployment guide for NSX-T for more detailed discussion on the topics described in this blog.1KViews1like1CommentVMware Cloud for AWS - Networking and High Availability

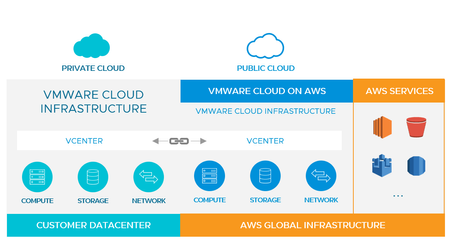

Introduction This is the first article in a series of two articles which aim to be useful when planning a VMware Cloud/multi-cloud deployment, for example when creating an HLD (High Level Design) document. This first article is about the relevant aspects of VMware Cloud for BIG-IP. The second article, VMware Cloud for AWS - BIG-IP in Single-Site, Hybrid, and Multi-Cloud Deployments, will cover several designs. VMware Cloud Overview Many public cloud providers offer VMware Cloud (aka VMC), all are based on the same set of technologies mainly vSphere, NSX-T networking and vSAN storage. It is important to check the requisites because not all providers provide the same features or are developed to the same level. At time of this writing AWS is VMware’s preferred public cloud provider. VMC on AWS is a managed service provided and billed by VMware. It has the additional features of having access to EC2 workloads, AWS services and flexible access to on-premises deployments (private clouds). VMware Cloud on AWS, networking and high availability A VMC on AWS deployment has its own VPC. From operations point of view, management is done through a vCenter and NSX-T management is performed with a constrained NSX manager web UI. This VPC can be seen from AWS’s console. For production environments VMC on AWS deployments should be configured as “stretched cluster” in which case the VMware components and customer workloads are in two AWS Availability Zones. BIG-IPs should be distributed among these Availability Zones. Thanks to NSX-T’s overlays, the segments spawn transparently across these two Availability Zones, greatly simplifying networking. From vCenter point of view each Availability zone is seen as a Fault Domain as it can be seen in the next picture. When deploying a VM you can choose an ESXi host in the desired Fault Domain/AWS AZ. In case of failure, the VM will stay in its original Fault Domain/AWS AZ if possible. Likewise all VMC implementations, VMC on AWS uses NSX-T for networking. VMC for AWS uses a prescriptive model with the following characteristics: Customer doesn’t have access to the Tier-0 Gateway. Only one Tier-1 Gateway is possible. This is called the Compute Gateway in VMC for AWS. Overlapping addresses within the VMC’s VPC are not possible. The Service Insertion feature is not available. No bundled Load Balancer: the native NSX-T LB is not available. These limits the possible topologies out of the 4 sample topologies described in the F5 BIG-IP deployment guide for NSX-T, customers are currently constrained to Topology D which uses SNAT by default. A detailed view of VMC on AWS networking can be seen in the next diagram. Given that at present VMC on AWS provides a single Tier-1 Gateway If a customer wanted to have a replica of an existing private cloud design it would require a separate SDDC per existing Tier-1 Gateway in the private cloud with the corresponding increase of cost. A redesign collapsing several Tier-1 Gateways of the private cloud into one Tier-1 Gateway in VMC on AWS will be needed. Conclusion VMC on AWS is an enabler on the multi-cloud journey by minimizing the need to adapt existing know-how and existing automations used in the private clouds. Being a managed solution makes it even easier for going to the public clouds. At present VMC on AWS greatly limits the possible topologies compared to a private cloud of VMware with NSX-T. This is mainly because of only allowing a single Tier-1 Gateway per SDDC. Once this limitation is removed designs used in private and VMC on AWS clouds will be more homogeneous.962Views1like0Comments
