series-ssl-orchestrator-advanced-use-cases
24 TopicsWAFaaS with SSL Orchestrator
Introduction Note: This article applies to SSL Orchestrator versions prior to 11.0. If using version 11.0 refer to the articleHERE This use case allows you to insert F5 WAF functionality as a Service in the SSL Orchestrator inspection zone. WAFaaS is the ability to insert ASM profiles into the SSL Orchestrator Service Chain for Inbound Topologies.This configuration is specific to a WAF policy running on the SSL Orchestrator device.WAF and SSL Orchestrator consume significant CPU cycles so care should be given when deploying both together.It is also possible to deploy WAF as a service on a separate BIG-IP device, in which case you’d simply configure an inline transparent proxy service.The ability to insert F5’s WAF into the Service Chain presents a significant customer benefit. This guide assumes you already have WAF/ASM profile(s) configured, licensed and provisioned on BIG-IP and wish to add this functionality to an Inbound Topology.In order to run WAF and SSL Orchestrator on the same device you will need an LTM license with SSL Orchestrator as an add-on option.You cannot add a WAF license to an SSL Orchestrator stand-alone license. SSL Orchestrator does not directly support inserting F5 WAF policies into the Service Chain.However, the F5 platform is flexible enough to handle many custom use cases.In this case, the ICAP service configuration exposes a framework that is useful for any number of specialized patterns, including adding a WAF policy to an SSLO service chain.We will configure an ICAP Service and attach the WAF policy to it. Steps: Create ICAP Service Disable Strictness on the Service Disable TCP monitor for the ICAP Pool ICAP Adapt profiles removed from the Virtual Server Application Security Policy enabled and a Policy assigned under Security Step #1: Create ICAP Service Note: These instructions assume an SSL Orchestrator Topology and Service Chain are already deployed and working properly.These instructions simply add WAFaaS to the existing Service Chain.It is entirely possible to create the WAFaaS during the initial Topology creation, in which case you would create the service during the workflow, then make the necessary changes after the topology has been created. From the SSL Orchestrator Guided Configuration click Services then Add Scroll to the bottom, select Generic ICAP Service and click Add Give it a name, WAFaaS in this example For ICAP Devices click Add on the right Enter an IP Address, 198.19.97.1 in this example and click Done. Note:the IP address you use does not have to be the one above.It’s just a local, non-routable address used as a placeholder in the service definition.This IP address will not be used. IP addresses 198.19.97.0 to 198.19.97.255 are owned by network benchmark tests and located in private networks. Scroll to the bottom and click Save & Next. The next screen is the Services Chain List.Click the name of the Service Chain you wish to add WAF functionality to, ssloSC_ServiceChain in this example. Note: The order of the Services in the Selected column is the order in which SSL Orchestrator will pass decrypted data to the device.This can be an important consideration if you want some devices to see, or not see, the actions taken by the WAF Service. Select the WAFaaS Service and click the right arrow to move it to Selected.Click Save. Click Save & Next Click Deploy You should receive a Success message Step #2: Disable Strictness on the Service From the SSL Orchestrator Configuration screen select Services.Click the padlock to Unprotect Configuration. Note:Disabling Strictness on the ICAP Service is needed to modify it and attach the WAFaaS policy.Strictness must remain disabled on this service and disabling strictness on the service has no effect on any other part of the SSL Orchestrator configuration. Click OK to Unprotect the Configuration Step #3: Disable tcp monitor for the ICAP Pool From Local Traffic select Pools > Pool List Select the WAFaaS Pool Under Active Health Monitors select tcp and click >> to move it to Available.This removes the Pool’s Monitor because otherwise it would be marked as down or unavailable. Click Update Note:The Health Monitor needs to be removed because there is no actual ICAP service to monitor. Step #4: ICAP Adapt profiles removed from the Virtual Server From Local Traffic select Virtual Servers > Virtual Server List Locate the WAFaaS ICAP service that ends in “-t-4”virtual server and select it Set the Request Adapt Profile and Response Adapt Profile to None to disable the default ICAP Profiles Click Update Step #5: Application Security Policy enabled and a Policy assigned under Security For the WAFaaS-t-4 Virtual Server click the Security tab Set Application Security Policy to Enabled Select the Security Policy you wish to use.Click Update when done Note: In specific versions of SSL Orchestrator there is one extra configuration item that needs to be modified. This is NOT required in other versions. If this change is made, when performing an upgrade it is not necessarily required to back out this change. Required versions: SSLO version 5.9.15 available on TMOS 14.1.4 SSLO versions 6.0-6.5 available on TMOX 15.0.x Navigate to “Local Traffic››Profiles : Other : Service” Select the Service profile named “ssloS_WAFaaS-service” Change the “Type” from “ICAP” to “F5 Module” Conclusion The configuration is now complete.Using the WAFaaS this way is functionally the same as using it by itself.There are no known limitations to this configuration.2.1KViews5likes9CommentsAutomating SSL Orchestrator in AWS with the help of Ansible and Terraform
Overview Learn how to automate the deployment of SSL Orchestrator in Amazon Web Services. This article is based on the automation templates available here: https://github.com/f5devcentral/sslo-cloud-templates This will deploy SSL Orchestrator with an L3 Inbound Topology and two L3 Services in a Service Chain. Follow the instructions here: lab-instructions-aws.md A demo video of this article is available below Steps Performed: Install the Container Environment Clone the Repository Subscribe to EC2 Instances Export your AWS Credentials Copy the Terraform variables file and update the values Deploy the Terraform configuration Build the SSL Orchestrator Topology using Ansible Deploy the Ansible Configuration Check the results Launch the development container environment Restart the container and attach to the console: Clone the Repository Subscribe to EC2 Instances From a web browser client - subscribe to the following EC2 instances: https://aws.amazon.com/marketplace/pp?sku=5e92658b-3fa7-42c1-9a9b-569f009582df https://aws.amazon.com/marketplace/pp?sku=78b1d030-4c7d-4ade-b8e6-f8dc86941303 https://aws.amazon.com/marketplace/pp?sku=a133064f-76e1-4d8a-aa3d-26ef12e6b95a Export your AWS Credentials From inside your development environment - export the AWS credentials export AWS_ACCESS_KEY_ID="your-aws-access-key-id" export AWS_SECRET_ACCESS_KEY="your-aws-secret-access-key" export AWS_SESSION_TOKEN="your-aws-session-token" Copy the Terraform variables file and update the values From the terraform-aws-sslo folder - Copy the includedterraform.tfvars.examplefile toterraform.tfvarsand update the values It should look like this: Deploy the Terraform Configuration From inside your development environment - deploy the Terraform configuration terraform init terraform validate terraform plan terraform apply -auto-approve Build the SSL Orchestrator Topology using Ansible Edit the ansible.cfg file and add the two lines at the bottom: [defaults] host_key_checking = False retry_files_enabled = False inventory = ./inventory/hosts library = ./library roles_path = ./roles collections_paths = ./collection [galaxy] server = https://old-galaxy.ansible.com cd ansible ansible-galaxy collection install f5networks.f5_modules f5networks.f5_bigip -f Deploy the Ansible Configuration Deploy an Ansible config using the variables file that was created by the accompanying Terraform. This will create an inbound layer 3 SSL Orchestrator topology. From the 'ansible' folder: cp ../terraform-aws-sslo/ansible_vars.yaml . ansible-playbook -e @ansible_vars.yaml playbooks/config-sslo-inbound-l3-complete.yaml Check the Results Login to the BIG-IP GUI and verify SSL Orchestrator has been configured and deployed Conclusion You're done! These templates and configuration files can be cusomized by you and re-used for future SSL Orchestrator deployments in AWS.1.4KViews3likes0CommentsSSL Orchestrator Advanced Use Cases: Outbound SNAT Persistence
Introduction F5 BIG-IP is synonymous with "flexibility". You likely have few other devices in your architecture that provide the breadth of capabilities that come native with the BIG-IP platform. And for each and every BIG-IP product module, the opportunities to expand functionality are almost limitless. In this article series we examine the flexibility options of the F5 SSL Orchestrator in a set of "advanced" use cases. If you haven't noticed, the world has been steadily moving toward encrypted communications. Everything from web, email, voice, video, chat, and IoT is now wrapped in TLS, and that's a good thing. The problem is, malware - that thing that creates havoc in your organization, that exfiltrates personnel records to the Dark Web - isn't stopped by encryption. TLS 1.3 and multi-factor authentication don't eradicate malware. The only reasonable way to defend against it is to catch it in the act, and an entire industry of security products are designed for just this task. But ironically, encryption makes this hard. You can't protect against what you can't see. F5 SSL Orchestrator simplifies traffic decryption and malware inspection, and dynamically orchestrates traffic to your security stack. But it does much more than that. SSL Orchestrator is built on top of F5's BIG-IP platform, and as stated earlier, is abound with flexibility. SSL Orchestrator Use Case: Outbound SNAT Persistence It may not be the most obvious thing to think about persistence in the vein of outbound traffic. We are all groomed to accept that any given load balancer can handle persistence (or "affinity", or "stickiness") to backend servers. This is an important characteristic for sure. But in an outbound scenario, you don't load balance remote servers, so why on Earth would you need persistence? Well, I'm glad you asked. There indeed happens to be a somewhat unique, albeit infrequent use case where two different servers need to persist on YOUR IP address. The classic example is a site that requires federated authentication, where the service provider (SP) generates a token (perhaps a SAML auth request) and inside of that request the SP has embedded the client IP. The client receives this message and is redirected to the IdP to authenticate. But in this case the client is talking to the outside world through a forward proxy, and outbound source NAT (SNAT) could be required in this environment. That means there's a potential that the client IP address as seen from the two remote servers could be different. So if the IdP needs to verify the client IP based on what's embedded in the authentication request token, that could possibly fail. The good news here is that federated authentication doesn't normally require client IP verification, and there aren't many other similar use cases, but it can happen. The F5 BIG-IP, as with ANY proxy server, load balancer, or ADC device, clearly supports server affinity, and in a highly flexible way. But, as with ANY proxy server, load balancer, or ADC device, that doesn't apply to SNAT addresses. Nevertheless, the F5 BIG-IP can be configured to do this, which is exactly what this article is about. We're going to flex some BIG-IP muscle to derive a unique and innovative way to enable outbound SNAT persistence. What we're basically talking about is ensuring that a single internal client persists a single outbound SNAT IP address, when and where needed, and as long as possible. It's important to note here that we're not really talking about persistence in the same way you think about load balanced server affinity. With affinity, you're stapling a single (remote) client "session" to a single load balanced server. With SNAT persistence, you're stapling a single outbound SNAT IP to a single internal client so that all remote servers see that same source address. Same-same but different-different. To do this we'll need a SNAT pool and an iRule. We need the SNAT pool to define the SNAT addresses we can use. And since SNAT pools don't provide a persistence option like regular pools do, we'll use an iRule to provide the stickiness. It's also worth noting here, again since we're not really talking about load balancing stickiness, that the IP persistence mechanism in the iRule may not (likely will not) evenly distribute the IPs in the SNAT pool. Your best bet is to provide as many SNAT pool IPs as possible and reasonable. The good news here is that, because you're using a BIG-IP, you can define exactly how you assert that IP stickiness. In most cases, you'll probably just want to persist on the internal client IP, but you could also persist on: Client source address and remote server port Client source address and remote destination addresses Client source, day of the week, the year+month+day % mod 2, a hash of the word-of-the-day...and hopefully you get the idea. Lot's of options. To make this work, let's start with the SNAT pool. Navigate to Local Traffic -> Address Translation -> SNAT Pool List in the BIG-IP and click Create. In the Member List section, add as many SNAT IPs as you can afford. Remember, these are going to be IPs on your outbound VLAN, so in the same subnet as your outbound VLAN self-IP. Figure: SNAT pool list You don't need to assign the SNAT pool to anything directly. The iRule will handle that. And now onto the iRule. Navigate to Local Traffic -> iRules -> iRule List in the BIG-IP, and click Create. Copy the following into the iRule editor: when RULE_INIT { ## This iRule should be applied to your SSLO intercaption rule ending with in-t-4. catch { unset -nocomplain static::snat_ips } ## For each SNAT IP needed define the IP versus dynamically looking it up. ## These need to be in the real SNAT pool as well so ARP works. set static::snat_ips(1) 10.1.20.50 set static::snat_ips(2) 10.1.20.51 set static::snat_ips(3) 10.1.20.52 set static::snat_ips(4) 10.1.20.53 set static::snat_ips(5) 10.1.20.54 ## Set to how many SNAT IPs were added set static::array_size 5 } when CLIENT_ACCEPTED priority 100 { ## Select and uncomment only ONE of the below SNAT persistence options ## Persist SNAT based on client address only snat $static::snat_ips([expr {[crc32 [IP::client_addr]] % $static::array_size}]) ## Persist SNAT based on client address and remote port #snat $static::snat_ips([expr {[crc32 [IP::client_addr] [TCP::remote_port]] % $static::array_size}]) ## Persist SNAT based on client address and remote address #snat $static::snat_ips([expr {[crc32 [IP::client_addr] [IP::local_addr]] % $static::array_size}]) } Let's take a moment to explain what this iRule is actually doing, and it is fairly straightforward. In RULE_INIT, which fires ONCE when you update the iRule, the members of the defined SNAT pool are read into an array. Then a second static variable is created to store the size of the array. These values are stored as static, global variables. In CLIENT_ACCEPTED we set a priority of 100 to control the order of execution under SSL Orchestrator as there is already a CLIENT_ACCEPTED iRule event on the topology (we want our new event to run first). Below that you're provided with three choices for persistence: persist on source IP only, source IP and destination port, or source IP and destination IP. You'll want to uncomment only ONE of these. Each basically performs a quick CRC hash on the selected value, then calculates a modulus based on the array size. This returns a number within the size of the array, that is then applied as the index to the array to extract one of the array values. This calculation is always the same for the same input value(s), so effectively persisting on that value. The selected SNAT IP is then fed to the 'snat' command, and there you have it. As stated, you're probably only going to need the source-only persistence option. Using either of the others will pin a SNAT IP to a client IP and protocol port (ex. client IP:443 or client IP:80), or pin a SNAT IP to a specific host (ex. client IP:www.example.com), respectively. At the end of the day, you can insert any reasonable expression that will result in the selection of one of the values in the SNAT pool array, so the sky is really the limit here. The last step is easiest of all. You need to attach this iRule to your SSL Orchestrator topology. To do that. navigate to SSL Orchestrator -> Configuration in the UI, select the Interception Rules tab, and click to edit the respective outbound interception rule. Scroll to the bottom of this page, and under Resources, add the new iRule to the Selected column. The order doesn't matter. Click Deploy to complete the change, and you're done. You can do a packet capture on your outbound VLAN to see what is happening. tcpdump -lnni [outbound vlan] host 93.184.216.34 And then access https://www.example.com to test. For your IP address you should see a consistent outgoing SNAT IP. If you have access to a Linux client, you can add multiple IP addresses to an interface and test with each: ifconfig eth0:1 10.1.10.51 ifconfig eth0:2 10.1.10.52 ifconfig eth0:3 10.1.10.53 ifconfig eth0:4 10.1.10.54 ifconfig eth0:5 10.1.10.55 curl -vk https://www.example.com --interface 10.1.10.51 curl -vk https://www.example.com --interface 10.1.10.52 curl -vk https://www.example.com --interface 10.1.10.53 curl -vk https://www.example.com --interface 10.1.10.54 curl -vk https://www.example.com --interface 10.1.10.55 And again there you have it. In just a few steps you've been able to enable outbound SNAT persistence, and along the way you have hopefully recognized the immense flexibility at your command.1.9KViews1like5CommentsSSL Orchestrator Advanced Use Cases: Client Certificate Constrained Delegation (C3D) Support
Introduction F5 BIG-IP is synonymous with "flexibility". You likely have few other devices in your architecture that provide the breadth of capabilities that come native with the BIG-IP platform. And for each and every BIG-IP product module, the opportunities to expand functionality are almost limitless. In this article series we examine the flexibility options of the F5 SSL Orchestrator in a set of "advanced" use cases. If you haven't noticed, the world has been steadily moving toward encrypted communications. Everything from web, email, voice, video, chat, and IoT is now wrapped in TLS, and that's a good thing. The problem is, malware - that thing that creates havoc in your organization, that exfiltrates personnel records to the Dark Web - isn't stopped by encryption. TLS 1.3 and multi-factor authentication don't eradicate malware. The only reasonable way to defend against it is to catch it in the act, and an entire industry of security products are designed for just this task. But ironically, encryption makes this hard. You can't protect against what you can't see. F5 SSL Orchestrator simplifies traffic decryption and malware inspection, and dynamically orchestrates traffic to your security stack. But it does much more than that. SSL Orchestrator is built on top of F5's BIG-IP platform, and as stated earlier, is abound with flexibility. SSL Orchestrator Use Case: Client Certificate Constrained Delegation (C3D) Using certificates to authenticate is one of the oldest and most reliable forms of authentication. While not every application supports modern federated access or multi-factor schemes, you'll be hard-pressed to find something that doesn't minimally support authentication over TLS with certificates. And coupled with hardware tokens like smart cards, certificates can enable one of the most secure multi-factor methods available. But certificate-based authentication has always presented a unique challenge to security architectures. Certificate "mutual TLS" authentication requires an end-to-end TLS handshake. When a server indicates a requirement for the client to submit its certificate, the client must send both its certificate, and a digitally-signed hash value. This hash value is signed (i.e. encrypted) with the client's private key. Should a device between the client and server attempt to decrypt and re-encrypt, it would be unable to satisfy the server's authentication request by virtue of not having access to the client's private key (to create the signed hash). This makes encrypted malware inspection complicated, often requiring a total bypass of inspection to sites that require mutual TLS authentication. Fortunately, F5 has an elegant solution to this challenge in the form of Client Certificate Constrained Delegation, affectionally referred to as "C3D". The concept is reasonably straightforward. In very much the same way that SSL forward proxy re-issues a remote server certificate to local clients, C3D can re-issue a remote client certificate to local servers. A local server can continue to enforce secure mutual TLS authentication, while allowing the BIG-IP to explicitly decrypt and re-encrypt in the middle. This presents an immediate advantage in basic load balancing, where access to the unencrypted data allows the BIG-IP greater control over persistence. In the absence of this, persistence would typically be limited to IP address affinity. But of course, access to the unencrypted data also allows the content to be scanned for malicious malware. C3D actually takes this concept of certificate re-signing to a higher level though. The "constrained delegation" portion of the name implies a characteristic much like Kerberos constrained delegation, where (arbitrary) attributes can be inserted into the re-signed token, like the PAC attributes in a Kerberos ticket, to inform the server about the client. Servers for their part can then simply filter on client certificates issued by the BIG-IP (to prevent direct access), and consume any additional attributes in the certificate to understand how better to handle the client. With C3D you can maintain strong mutual TLS authentication all the way through to your servers, while allowing the BIG-IP to more effectively manage availability. And combined with SSL Orchestrator, C3D can enable decryption and inspection of content for malware inspection. This article describes how to configure SSL Orchestrator to enable C3D for inbound decrypted inspection. Arguably, most of what follows is the C3D configuration itself, as the integration with SSL Orchestrator is pretty simple. Note that Client Certificate Constrained Delegation (C3D) is included with Local Traffic Manager (LTM) 13.0 and beyond, but for integration with SSL Orchestrator you should be running 14.1 or later.To learn more about C3D, please see the following resources: K14065425: Configuring Client Certificate Constrained Delegation (C3D):https://support.f5.com/csp/article/K14065425 Manual Chapter: SSL Traffic Management:https://techdocs.f5.com/en-us/bigip-15-1-0/big-ip-system-ssl-administration/ssl-traffic-management.html#GUID-B4D2529E-D1B0-4FE2-8C7F-C3774ADE1ED2 SSL::c3d iRule reference - not required to use C3D, but adds powerful functionalityhttps://clouddocs.f5.com/api/irules/SSL__c3d.html The integration of C3D with SSL Orchestrator involves effectively replacing the client and server SSL profiles that the SSL Orchestrator topology creates, with C3D SSL profiles. This is done programmatically with an iRule, so no "non-strict" customization is required at the topology. Also note that an inbound (reverse proxy) SSL Orchestrator topology will take the form of a "gateway mode" deployment (a routed path to multiple applications), or "application mode" deployment (a single application instance hosted at the BIG-IP). See section 2.5 of the SSL Orchestrator deployment guide for a deeper examination of gateway and application modes: https://clouddocs.f5.com/sslo-deployment-guide/ The C3D integration is only applicable to application mode deployments. Configuration C3D itself involves the creation of client and server SSL profiles: Create a new Client SSL profile: Configuration Certificate Key Chain: public-facing server certificate and private key. This will be the certificate and key presented to the client on inbound request. It will likely be the same certificate and key defined in the SSL Orchestrator inbound topology. Client Authentication Client Certificate: require Trusted Certificate Authorities: bundle that can validate client certificate. This is a certificate bundle used to verify the client's certificate, and will contain all of the client certificate issuer CAs. Advertised Certificate Authorities: optional CA hints bundle. Not expressly required, but this certificate bundle is forwarded to the client during the TLS handshake to "hint" at the correct certificate, based on issuer. Client Certificate Constrained Delegation Client Certificate Constrained Delegation: Enabled Client Fallback Certificate (new in 15.1): option to select a default client certificate if client does not send one. This option was introduced in 15.1 and provides the means to select an alternate (local) certificate if the client does not present one. The primary use case here might be to select a "template" certificate, and use an iRule function to insert arbitrary attributes. OCSP: optional client certificate revocation control. This option defines an OCSP revocation provider for the client certificate. Unknown OCSP Response Control (new in 15.1): determines what happens when OCSP returns Unknown. If an OCSP revocation provider is selected, this option defines what to do if the response to the OCSP query is "unknown". Create a new Server SSL profile: Configuration Certificate: default.crt. The certificate and key here are used as "templates" for the re-signed client certificate. Key: default.key Client Certificate Configuration Delegation Client Certificate Constrained Delegation: Enabled CA Certificate: local forging CA cert. This is the CA certificate used to re-sign the client certificate. This CA must be trusted by the local servers. CA Key: local forging CA key CA Passphrase: optional CA passphrase Certificate Extensions: extensions from the real client cert to be included in the forged cert. This is the list of certificate extensions to be copied from the original certificate to the re-issued certificate. Custom Extension: additional extensions to copy to forged cert from real cert (OID). This option allows you to insert additional extensions to be copied, as OID values. Additional considerations: Under normal conditions, the F5 and backend server attempt to resume existing SSL sessions, whereby the server doesn’t send a Certificate Request message. The effect is that all connections to the backend server use the same forged client cert. There are two ways to get around this: Set a zero-length cache value in the server SSL profile, or Set server authentication frequency to ‘always’ in the server SSL profile CA certificate considerations: A valid signing CA certificate should possess the following attributes. While it can work in some limited scenarios, a self-signed server certificate is generally not an adequate option for the signing CA. keyUsage: certificate extension containing "keyCertSign" and "digitalSignature" attributes basicConstraints: certificate extension containing "CA = true" (for Yes), marked as "Critical" With the client and server SSL profiles built, the C3D configuration is basically done. To integrate with an inbound SSL Orchestrator topology, create a simple iRule and add it to the topology's Interception Rule configuration. Modify the SSL profile paths below to reflect the profiles you created earlier. ### Modify the SSL profile paths below to match real C3D SSL profiles when CLIENT_ACCEPTED priority 250 { ## set clientssl set cmd1 "SSL::profile /Common/c3d-clientssl" ; eval $cmd1 } when SERVER_CONNECTED priority 250 { ## set serverssl SSL::profile "/Common/c3d-serverssl" } In the SSL Orchestrator UI, either from topology workflow, or directly from the corresponding Interception Rule configuration, add the above iRule and deploy. The above iRule programmatically overrides the SSL profiles applied to the Interception Rule (virtual server), effectively enabling C3D support. At this point, the virtual server will request a client certificate, perform revocation checks if defined, and then mint a local copy of the client certificate to pass to the backend server. Optionally, you can insert additional certificate attributes via the server SSL profile configuration, or more dynamically through additional iRule logic: ### Added in 15.1 - allows you to send a forged cert to the server ### irrespective of the client side authentication (ex. APM SSO), ### and insert arbitrary values when SERVERSSL_SERVERCERT { ### The following options allow you to override/replace a submitted ### client cert. For example, a minted client certificate can be sent ### to the server irrespective of the client side authentication method. ### This certificate "template" could be defined locally in the iRule ### (Base64-encoded), pulled from an iFile, or some other certificate source. # set cert1 [b64decode "LS0tLS1a67f7e226f..."] # set cert1 [ifile get template-cert] ### In order to use a template cert, it must first be converted to DER format # SSL::c3d cert [X509::pem2der $cert1] ### Insert arbitrary attributes (OID:value) SSL::c3d extension 1.3.6.1.4.1.3375.3.1 "TEST" } If you've configured the above, a server behind SSL Orchestrator that requires mutual TLS authentication can receive minted client certificates from external users, and SSL Orchestrator can explicitly decrypt and pass traffic to the set of malware inspection tools. You can look at the certificate sent to the server by injecting a tcpdump packet between the BIG-IP and server, then open in Wireshark. tcpdump -lnni [VLAN] -Xs0 -w capture.pcap [additional filters] Finally, you might be asking what to do with certificate attributes injected by C3D, and really it depends on what the server can support. The below is a basic example in an Apache config file to block a client certificate that doesn't contain your defined attribute. <Directory /> SSLRequire "HTTP/%h" in PeerExtList("1.3.6.1.4.1.3375.3.1") RewriteEngine on RewriteCond %{SSL::SSL_CLIENT_VERIFY} !=SUCCESS RewriteRule .? - [F] ErrorDocument 403 "Delegation to SPN HTTP/%h failed. Please pass a valid client certificate" </Directory> And there you have it. In just a few steps you've configured your SSL Orchestrator to integrate with Client Certificate Constrained Delegation to support mutual TLS authentication, and along the way you have hopefully recognized the immense flexibility at your command. Updates As of F5 BIG-IP 16.1.3, there are some new C3D capabilities: C3D has been updated to encode and return the commonName (CN) found in the client certificate subject field in printableString format if possible, otherwise the value will be encoded as UTF8. C3D has been updated to support inserting a subject commonName (CN) via 'SSL::c3d subject commonName' command: when CLIENTSSL_HANDSHAKE { if {[SSL::cert count] > 0} { SSL::c3d subject commonName [X509::subject [SSL::cert 0] commonName] } } C3D has been updated to support inserting a Subject Alternative Name (SAN) via 'SSL::c3d extention SAN' command: when CLIENTSSL_HANDSHAKE { SSL::c3d extension SAN "DNS:*.test-client.com, IP:1.1.1.1" } C3D has been updated to add the Authority Key Identifier (AKI) extension to the client certificate if the CA certificate has a Subject Key Identifier (SKI) extension. Another interesting use case is copying the real client certificate Subject Key Identifier (SKI) to the minted client certificate. By default, the minted client certificate will not contain an SKI value, but it's easy to configure C3D to copy the origin cert's SKI by modifying the C3D server SSL profile. In the "Custom extension" field of the C3D section, add 2.5.29.14 as an available extension. As of F5 BIG-IP 17.1.0 (SSL Orchestrator 11.0), C3D has been integrated natively.Now, for a deployed Inbound topology, the C3D SSL profiles are listed in the Protocol Settings section of the Interception Rules tab. You can replace the client and server SSL profiles created by SSL Orchestrator, with C3D SSL profiles in the Interception Rules tab to support C3D. The C3D support is now extended to both Gateway and Application modes.3.2KViews2likes2CommentsSSL Orchestrator Advanced Use Cases: Integrating SOCKS Proxy

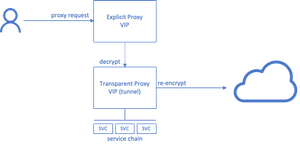

Introduction When we talk about security, and in particular, malware defenses, we spend a lot of time focusing on the capabilities of a product or an entire security stack. We want to know what types of malware a solution covers to get a sense of how effective that solution is. But beyond that, and something that’s not always obvious, is exactly how a solution “sees” the traffic. Now I’m not talking about decryption. Clearly that needs to happen somewhere in the stack for the malware solutions to actually be useful. What I’m referring to though is how traffic actually gets TO the security stack. For an Internet-facing web application that’s usually obvious – it’s routed to an IP address, it's TCP-based, it's wrapped in TLS encryption, and it's application layer HTTP. Client browsers send a request that’s routed across the Internet, arriving at a firewall, and then transported internally to a web server, maybe passing through a load balancer, proxy server, WAF and/or DDoS solution to get there. In any case, this describes a common “reverse proxy” scenario. But this is not the ONLY way that malware security solutions are employed. For example, in an enterprise scenario, it is just as important to apply defenses to the outbound flow for traffic leaving the network to the Internet (or perhaps other business units). But in a forward proxy, the how isn’t always as obvious. To get traffic to the security stack, SSL Orchestrator natively supports inbound and outbound flows, layer 3 (standard routing), layer 2 (bump-in-the-wire), and explicit HTTP proxy. You can also turn on WCCP, BGP, OSPF and others to enable dynamic routing, and WPAD and Proxy PAC files to enable dynamic proxying. You can deploy SSL Orchestrator inline of the traffic flow, or “on-a-stick”. You can even deploy SSL Orchestrator as a load balanced solution for greater scale, using another BIG-IP or even ECMP*. Truth be told, most other TLS visibility products only handle a small subset of those just listed. But there is something I subtly didn’t mention. SSL Orchestrator supports explicit proxy for HTTP/HTTPS traffic. An explicit proxy is a type of proxy that the client is aware of and must target directly. The proxy creates a TCP connection to another server behind the firewall on the client’s behalf, usually employed when the client is not permitted to establish TCP connections to outside servers directly. This would be the proxy server settings in your browser configuration. The native HTTP explicit proxy support is fine for anything a browser needs to talk to, but there may be scenarios where a proxy server is required in an environment for other protocols. For that, the “Socket Secure” (SOCKS) protocol could be a reasonable option. SOCKS isn’t built into the SSL Orchestrator configuration, but BIG-IP has had it forever, and as you’ve no doubt heard me say a few times the flexibility of the BIG-IP platform prevails. In this article I’m going to show just how easy it is to enable a SOCKS proxy listener for SSL Orchestrator. Let’s go see what that looks like! SSL Orchestrator Use Case: Integrating SOCKS Proxy To start, it’s important to understand that SSL Orchestrator creates an HTTP explicit forward proxy with two virtual servers: The first is the actual proxy virtual server. This contains the IP address and port that the client will configure in its proxy settings. All proxied traffic from clients will enter through this virtual server. The second is the TCP tunnel virtual server. This is where SSL Orchestrator decryption and service chaining magic happens. This virtual server listens on an internal “tunnel” VLAN provided by the proxy virtual. Traffic enters through the proxy virtual and is forwarded (wrapped) through the TCP tunnel virtual. The TCP tunnel virtual server is basically identical to a transparent proxy, but that’s just listening internally for traffic. To create a SOCKS proxy implementation, we are simply going to: Create the SOCKS proxy virtual server configuration manually Create an SSL Orchestrator transparent proxy topology Add the internal proxy tunnel VLAN to the resulting transparent proxy virtual server(s) In the same way that the native HTTP explicit proxy works, traffic will enter the SOCKS proxy VIP and wrap around to the TCP tunnel (transparent proxy) virtual server that the SSL Orchestrator created for us. Licensing and Version Requirements The beauty here is that you simply need SSL Orchestrator to do this. The SOCKS proxy profile is a function of Local Traffic Manager, which is also included in the standalone SSL Orchestrator license. As for versions, your best bet is any SSL Orchestrator version 9.0 or higher. It will certainly work with earlier versions, but in those you’ll need to disable configuration strictness. Versions 9.0 and above remove this requirement. Configuring a SOCKS Proxy To build a SOCKS proxy virtual server, you’ll need a DNS resolver, TCP tunnel, SOCKS profile, and a virtual server: DNS resolver: In the BIG-IP UI, under Network – DNS Resolvers – DNS Resolver List, click Create. Give this DNS resolver a name and then click Finished. Now click to edit this resolver, move to the Forward Zones tab, and click Add. Name: enter a single period (“.”, without the quotes) Address: enter the IP address of a DNS nameserver Service Port: enter the listening port of that DNS nameserver (almost always 53) Click Add to complete. TCP tunnel: In the BIG-IP UI, under Network – Tunnels – Tunnel List, click Create. Give this tunnel a name. Profile: tcp-forward Click Finished to complete. SOCKS profile: In the BIG-IP UI, under Local Traffic – Profiles – Services – SOCKS, click Create. Give the SOCKS profile a name. Protocol Versions: select the required versions to support, usually just Socks5 DNS Resolver: select the previously created DNS resolver IPv6: enable this if IPv6 is required Route Domain: set this if a unique (non-zero) route domain is required Tunnel Name: select the previously create TCP tunnel Default Connect Handling: set to Deny Click Finished to complete SOCKS virtual server: In the BIG-IP UI, under Local Traffic – Virtual Servers – Virtual Server List, click Create. Give the virtual server a name. Source: 0.0.0.0/0 Destination Address/Mask: enter the proxy IP address that clients will access Service Port: enter the port for this SOCKS proxy instance SOCKS Profile: select the previously created SOCKS profile VLANs and Tunnels: select the client facing VLAN Source Address Translation: set to None Address Translation: set to enabled Port Translation: set to enabled Click Finished to complete. This is all that you really must do to create the SOCKS proxy configuration. The next step is to create the TCP tunnel virtual server(s), and for that, we’ll let SSL Orchestrator do the work. Configuring SSL Orchestrator You’re going to create an L3 Outbound SSL Orchestrator topology. This will minimally create one TCP forward proxy listener, but you also can create separate listeners for other StartTLS protocols (i.e., SMTP, IMAP, POP3, FTPS). In the interest of brevity, we won’t go through the entire topology configuration in detail. For deeper insights into all of the available settings, hop on over to the SSL Orchestrator deployment guide: https://clouddocs.f5.com/sslo-deployment-guide/. The following will serve as a skeleton for the full topology workflow. In the SSL Orchestrator UI, under Configuration, start a new topology configuration. Topology Properties: provide a name and select L3 Outbound. SSL Configurations: set your CA certificate key chain. Services List: create the security services Service Chain List: create the service chain(s) and attach the services as required Security Policy: adjust the security policy as required Interception Rule: select any VLAN (we will modify this later).Optionally select addition L7 Interception Rules for FTP, IMAP, POP3, and SMTP. Egress Settings: select SNAT as required, andselect gateway settings as required Review the settings and then deploy this configuration. If you’re on a version of SSL Orchestrator older than 9.0, you will need to disable strictness on the new topology. This is the little lock icon to the far right of the listed topology. Note that you’ll need to leave this unlocked, and any changes you make outside of the SSL Orchestrator configuration could be overwritten if you re-deploy the topology. In versions 9.0 and higher, the strictness lock has been removed, so you can freely make the required SOCKS proxy modifications. Once the SSL Orchestrator topology is deployed, head over to Local Traffic – Virtual Servers – Virtual Server List in the BIG-IP UI. You will potentially see a lot of new virtual servers here. Most will have names that correspond to the security services you created, prefixed with “ssloS_”. But you’re looking for virtual servers that are prefixed with “sslo_” and then the name of the topology you just created. For example, if you named the topology “test”, you would see a virtual server named “sslo_test-in-t-4”. This is the standard transparent proxy (TCP tunnel) virtual. If you opted to create the additional L7 interception rules, you’ll see separate virtual servers for each of these. Again, for example, “sslo_test-pop3-4”, would represent the POP3 tunnel listener. To enable the SOCKS proxy, edit each of these “sslo_” virtual servers and replace the existing selected VLAN with the TCP tunnel you created in the above SOCKS proxy configuration steps. That should be it. Configure a client to point to your SOCKS proxy and test. That traffic should arrive at the SOCKS proxy virtual server, and then wrap back through the respective TCP tunnel virtual. The SSL Orchestrator configuration on that tunnel will handle decryption and service chaining to the security stack. Testing your SOCKS Proxy Now, if you’re reading this article, you’re either the highly motivated, super inquisitive type, which is awesome by the way, and/or have a real need to implement a SOCKS proxy for your decrypted malware security stack. For the latter, you probably already have a set of tools that needs a proxy to get to the Internet, so you can use those to test. But if you don’t, I’ve taken the liberty to add a few below to get you started. Nothing fancy here, just some simple command line utilities to test your new SSL Orchestrator SOCKS proxy implementation. Let’s also assume for examples below that the SOCKS proxy is configured to listen at 10.1.10.150:2222. We’ll use the set of test services at rebex.net to try these out. When a password is required, it’s ‘password’. SSH: ssh -o ProxyCommand='nc -X5 -x 10.1.10.150:2222 %h %p' demo@test.rebex.net SFTP sftp -o ProxyCommand='nc -v -x10.1.10.150:2222 %h %p' demo@test.rebex.net HTTP and HTTPS curl -vk --socks5 10.1.10.150:2222 https://www.example.com FTP and FTPS (implicit) curl --socks5 10.1.10.150:2222 -1 -v --disable-epsv --ftp-skip-pasv-ip -u demo --ftp-ssl -k ftps://test.rebex.net:990/pub/example/readme.txt -o readme.txt Caveats As you can tell, we’re just swapping out the HTTP explicit proxy front end for a SOCKS proxy front end. This layer’s job is primarily to establish the client’s server-side TCP socket (on the client’s behalf), and then forward everything through the established tunnel. All of the SSL Orchestrator magic happens inside that tunnel. The SOCKS proxy itself does not introduce any new constraints. It’ll work with mostly any protocol that an SSL Orchestrator L3 Outbound topology will handle. The only significant caveats are: BIG-IP cannot decrypt outbound SSH (and SFTP). It can, however, be service chained. BIG-IP's FTP profile does not support passive mode FTP through a SOCKS proxy configuration. To get FTP traffic to flow, remove the FTP virtual server configuration from the SSL Orchestrator topology (sslo_xxxx-ftp-4). This removes the FTP profile and allows the use of SSL Orchestrator as a SOCKS proxy for FTP. Note also that for a standard explicit outbound SSL Orchestrator topology, passive FTP works correctly with the FTP virtual server and FTP profile. Active mode FTP is not supported in any outbound proxy configuration. Resources Below is a small list of resources to further your SSL Orchestrator and SOCKS proxy education: Not that you’ll need any of this to implement the above solution, but if you just want to get nerdy with details on how SOCKS works, try this: https://en.wikipedia.org/wiki/SOCKS. If you have any questions about setting up SSL Orchestrator, the official deployment guide is your friend: https://clouddocs.f5.com/sslo-deployment-guide/. To see a full list of test services available at rebex.net, see the following: https://test.rebex.net. Summary And there you have it. In just a few steps you’ve configured your SSL Orchestrator solution to work as a SOCKS proxy, and along the way you have hopefully recognized some of the immense flexibility at your command.4.2KViews1like4CommentsSSL Orchestrator Advanced Use Cases: DNS-over-HTTPS Detection
Introduction F5 BIG-IP is synonymous with "flexibility". You likely have few other devices in your architecture that provide the breadth of capabilities that come native with the BIG-IP platform. And for each and every BIG-IP product module, the opportunities to expand functionality are almost limitless. In this article series we examine the flexibility options of the F5 SSL Orchestrator in a set of "advanced" use cases. If you haven't noticed, the world has been steadily moving toward encrypted communications. Everything from web, email, voice, video, chat, and IoT is now wrapped in TLS, and that's a good thing. The problem is, malware - that thing that creates havoc in your organization, that exfiltrates personnel records to the Dark Web - isn't stopped by encryption. TLS 1.3 and multi-factor authentication don't eradicate malware. The only reasonable way to defend against it is to catch it in the act, and an entire industry of security products are designed for just this task. But ironically, encryption makes this hard. You can't protect against what you can't see. F5 SSL Orchestrator simplifies traffic decryption and malware inspection, and dynamically orchestrates traffic to your security stack. But it does much more than that. SSL Orchestrator is built on top of F5's BIG-IP platform, and as stated earlier, is abound with flexibility. Let us now explore one perspective of that flexibility and how SSL Orchestrator can be used to handle DNS-over-HTTPS and DNS-over-TLS. SSL Orchestrator Use Case: DNS-over-HTTPS and DNS-over-TLS Handling Despite the rapid evolution of Internet standards, and increasing amount of encryption, there's one aspect of our daily online world that hasn't really changed that much in its nearly 4 decades of breath. That of course is DNS. We don't tend to think about it often, which is probably why it hasn't evolved as much as other things, but it truly is the heart and backbone of everything we do online. That is, unless you want to memorize "2607:f8b0:400a:0804:0000:0000:0000:2004" as the way to get to Google, you had better have a working DNS. But DNS is inherently insecure. It's been shown to be vulnerable to all manner of attacks, and for the purposes of this discussion specifically, also exposes where you're going. That is, while the HTTP payload may be encrypted, there's still that (visible) DNS request that goes out first. That's not to say that there haven't been any improvements though. DNSSEC was developed to help secure DNS and prevent spoofing, but in the many years since its introduction it still isn't as widespread as we'd have hoped. DNS-over-HTTPS (DoH) and DNS-over-TLS (DoT) are more recent developments that focus mainly on the privacy aspect of DNS communications (or lack thereof). With DoH and DoT, clients and servers forego the typical DNS protocol request over UDP or TCP port 53 and embed the request inside an encrypted HTTPS or pure TLS connection. But...while that sounds pretty cool, there can be additional consequences to encrypting DNS, both good and bad: [Good] DoH and DoT can protect against ISPs that use your DNS information for targeted advertising. [Bad] DoH and DoT can effectively blind local DNS security and filtering controls. DNS monitoring is often an effective defense against spam and malware infections. [Bad] DoH and DoT providers are public services (ex. Cloudflare and Google), so while DNS is being protected from eavesdropping along the way, the providers have access to your DNS requests. The US National Security Agency (NSA) actually published a warning on this: https://media.defense.gov/2021/Jan/14/2002564889/-1/-1/0/CSI_ADOPTING_ENCRYPTED_DNS_U_OO_102904_21.P... The basic idea in this document is that while your DNS privacy is a good thing, encrypted DoH and DoT can also mask malware command-and-control. If you strictly follow the NSA guidance, you could either block DoH and/or DoT altogether, or force users to only use a local enterprise DoH resolver. If you don't have access to a local DoH resolver though, what else could you do? Well, I'm so glad you asked. DoH and DoT are of course encrypted, so unless you disable either protocol at the client, set up a local DoH resolver and force clients to it, or attempt to do encrypted analysis to find DoH traffic, you need to decrypt and inspect. And as it turns out, F5 has an elegant solution to do just that. In this blog post I am going to present a few solutions on how to handle these protocols through SSL Orchestrator decrypted analysis. The protocol implementations of DoH and DoT are a little different, so I will address them separately. Handling DNS-over-HTTPS For all intents and purposes, DoH looks and feels like normal HTTPS traffic. There are some semi-unique patterns you might be able to follow to infer that something is DoH rather than regular HTTPS (i.e., packet size, frequency), but it’s never going to be completely accurate. You could also potentially filter on the IP addresses of the known public DoH services, but that list is rather large and growing: https://github.com/curl/curl/wiki/DNS-over-HTTPS, and clients can ultimately choose the service they point to. If you’re serious about actually detecting DoH traffic with reasonable accuracy, then there’s no better way than through decrypted analysis. Now, once you've decrypted HTTPS and detected that it's DoH, there are a number of things you can do: Simply detect and block: there are actually three forms of DoH requests – Wireformat GET and POST, and JSON (detailed here:https://developers.cloudflare.com/1.1.1.1/dns-over-https), though the vast majority of clients use the Wireformat GET and POST methods. In any case, this option follows the NSA's first recommendation to simply detect and block DoH requests. A browser that receives a reject on a DoH request will natively revert to normal TCP/UDP DNS to allow your local DNS security tools to do what they do best. Detect and log: you may simply want to log that DoH is passing through your network, who's asking, and what they're asking for as an extension to your current DNS monitoring protocols. Detect and blackhole: also, as a possible extension to your current DNS protection protocols, you may need to block some DoH requests from happening. As mentioned earlier, if you simply block DoH, the client will revert to DNS. One of the best ways to block a DoH/DNS request is to provide a good but fake response instead, a technique called "blackholing". In this approach, you can flag specific hostnames (matching on URL categories) to provide a blackhole response. Let’s now look at each of the above options in turn. The first option is actually pretty straightforward. You just need to add the below iRule to an SSL Orchestrator outbound layer 3 topology*, on the “-in-t” TCP tunnel virtual server. On any decrypted HTTPS traffic, the iRule examines the HTTP request methods for the three signature DoH methods and sends a reject on a match. Easy peasy. when HTTP_REQUEST priority 750 { if { ( [HTTP::method] equals "GET" and [HTTP::header exists "accept"] and [HTTP::header "accept"] equals "application/dns-json" ) or \ ( [HTTP::method] equals "GET" and [HTTP::header exists "accept"] and [HTTP::header "accept"] equals "application/dns-message" ) or \ ( [HTTP::method] equals "POST" and [HTTP::header exists "content-type"] and [HTTP::header "content-type"] equals "application/dns-message" ) } { reject } } The second two options above are available in a single iRule here:https://github.com/f5devcentral/sslo-script-tools/tree/main/sslo-dns-over-https-detection. As with the previous, import the iRule to the BIG-IP, then associate that iRule with an SSL Orchestrator outbound layer 3 topology*. You'll need to make a few adjustments in the iRule to suit for your environment, and those are all presented as simple static variable assignments: static::LOCAL_LOG: enable or disable local Syslog logging (0 = off, 1 = on). static::HSL: enable or disable remote high-speed logging (0 = off, 1 = on). static::URLDB_LICENSED: set to 1 (on) if you've licensed and provisioned the subscription based URLDB, or 0 (off) if you have not and want to just use custom URL categories for DoH blackholing. static::BLACKHOLE_URLCAT: leave empty to disable or add a list of URL categories to search for URL-based DoH blackholing (ex. /Common/block-doh-urls) static::BLACKHOLE_RTYPE_A: enable or disable blackholing matched A record requests (0 = off, 1 = on). static::BLACKHOLE_RTYPE_AAAA: enable or disable blackholing matched AAAA record requests (0 = off, 1 = on). static::BLACKHOLE_RTYPE_TXT: enable or disable blackholing matched TXT record requests (0 = off, 1 = on). You can quickly test the solution by enabling DoH support in a browser. Please refer to the following instructions for each: https://developers.cloudflare.com/1.1.1.1/encryption/dns-over-https/encrypted-dns-browsers/. With the static::LOCAL_LOG value set to 1 (enabled), you can tail the BIG-IP LTM log (tail -f /var/log/ltm) and watch the DoH traffic flow across the SSL Orchestrator topology. 10.1.10.50:59804-104.18.42.171:443 :: DoH (WireFormat POST) Request: A:www.google.com 10.1.10.50:59804-104.18.42.171:443 :: DoH (WireFormat POST) Request: A:encrypted-tbn0.gstatic.com 10.1.10.50:59804-104.18.42.171:443 :: DoH (WireFormat POST) Request: A:fonts.gstatic.com 10.1.10.50:59812-104.18.42.171:443 :: DoH (WireFormat POST) Request: A:www.gstatic.com 10.1.10.50:59812-104.18.42.171:443 :: DoH (WireFormat POST) Request: A:id.google.com 10.1.10.50:59812-104.18.42.171:443 :: DoH (WireFormat POST) Request: A:play.google.com Handling DNS-over-TLS DNS-over-TLS (DoT) is essentially plain DNS wrapped in TLS. If you decrypt it, you’ll see a regular DNS request. DoT by standard, travels on TCP port 853, so that’s one very simple way to block DoT traffic, by just blocking that port. But if you wanted to actually log the DoT requests flowing through the BIG-IP, or blackhole some URLs, you again have to decrypt. The aforementioned DoH logging iRule can also handle DoT requests, inspecting any decrypted TCP:853 traffic: https://github.com/f5devcentral/sslo-script-tools/tree/main/sslo-dns-over-https-detection. The same static variable flags apply. Considering DoH/DoT proxy options I would be remiss in not mentioning options to actually proxy DoH and DoT traffic, and BIG-IP 16.1 introduced two new capabilities: DoH proxy – where the BIG-IP proxies client DoH requests to external DoH resources. You get to explicitly decrypt here, so you get another opportunity to log and control the DNS. DoH server – where the BIG-IP proxies client DoH requests to external TPC or UDP DNS resources. As with the proxy option, you get to decrypt the client’s DoH request. You can find out more about both of these capabilities here: https://support.f5.com/csp/article/K05451012 To proxy DoT to DoT, you simply need a TCP:853 virtual server with client and server SSL profiles. There are also various programmatic options to convert DoT to DNS, DNS to DoT, and DNS to DoH. But an important consideration here is that to proxy you would need clients to direct their DNS/DoT/DoH requests to your local resource. In some cases, you can do that through DHCP, or through enterprise browser policy management, but other than simply blocking outbound access to these protocols, it can be non-trivial to prevent clients from trying to use any of the external providers. That is specifically where decrypted analysis can be beneficial. Summary With an iRule and just a few configuration changes we have been able to implement a capability on top of SSL Orchestrator to log and actively control encrypted DNS. Decrypted inspection of DoH and DoT is just one of the many interesting benefits of and SSL Orchestrator solution. A demo of the above is available here:SSL Orchestrator Advanced Use Case: DNS over HTTPS * The iRules will also technically work for outbound layer 2 topologies.1.5KViews1like1CommentF5 BIG-IP SSL Orchestrator Configuration with Advanced WAFaaS
Introduction This use case allows you to insert F5 Advanced WAF functionality in SSL Orchestrator from the Service Catalog. This is a new feature in SSL Orchestrator version 11.0. Note:This article applies to SSL Orchestrator version 11.0 and newer. If using an older version refer to the article HERE Below is a video demonstration of this article: Click HERE for a Lightboard Lesson on F5 Advanced WAF. Advanced WAFaaS is the ability to insert F5 BIG-IP Advanced WAF profiles into the SSL Orchestrator Service Chain for Inbound Topologies. This service allows you to configure and deploy Advanced Web Application Firewall profiles through the SSL Orchestrator. This configuration is specific to a WAF policy running on the SSL Orchestrator device. It is also possible to deploy WAF on a separate BIG-IP device, in which case you’d simply configure an inline transparent proxy service. The ability to insert F5’s Advanced WAF into the Service Chain presents a significant customer benefit. Some examples of the benefits are: Consolidation of best-in-class advanced WAF capabilities with SSL Orchestrator’s dynamic, policy-based decrypted malware inspection and traffic steering. The Advanced WAF Service can be used for multiple SSL Orchestrator Topologies. Management of SSL Orchestrator and Advanced WAF on the same platform. Simplifies logging and troubleshooting. This guide assumes you already have SSL Orchestrator and F5 Advanced WAF licensed and provisioned on the BIG-IP and wish to add this functionality to an Inbound Topology. In order to run Advanced WAF and SSL Orchestrator on the same device you will need an Advanced Web Application Firewall (AWF) add-on license. Note: SSL Orchestrator 11.0 requires BIG-IP version 17.1.0 Configuration From the SSL Orchestrator Guided Configuration click Services then Add Select the F5 tab then double click on F5 Advanced WAF (On-Box) Give it a name, F5_AWAF in this example Click the down arrow next to Application Security Policy and select your Advanced WAF policy, Advanced-WAF-Policy in this example The Advanced WAF Policy protects your web applications from application attacks like SQL injection, cross-site scripting and a variety of other malicious attacks. You can also specify a DoS Protection and Bot Defense Profile. A DoS Protection profile will also protect your web applications from Denial of Service attacks. A Bot Defense Profile will protect your web applications from malicious bot attacks Select a Log Profile if desired. The logging of connections is important for visibility and forensics. Click Save & Next at the bottom Click Save & Next at the bottom Click Deploy Click OK to the Success message Add the Advanced WAF Service to the Service Chain by clicking the Service Chains tab then click on the name of the Service Chain, Service_Chain in this example Move the F5_WAF Service from Available to Selected Click Deploy when done If presented with the following warning, click OK Click OK to the Success message When done it should look like the following The configuration is now complete. Using the F5 Advanced WAFaaS this way is functionally the same as using it by itself. There are no known limitations to this configuration. Additional Information For more information on configuration of SSL Orchestrator refer to the Deployment Guides HERE Exporting/Importing WAFaaS policy To export an existing Advanced WAF policy navigate to Security > Application Security > click the name of the policy you wish to export Click Export then choose one of the supported formats like XML To import the Advanced WAF policy click Create > Import from the Policies List screen Example of Advanced WAF Policy creation A demo video of Advanced WAF Policy creation is available HERE Example of Advanced WAF Protection in action SQL Injection is a common web application attack that should be blocked by the Advanced WAF policy. Here is what a typical SQL Injection attack might look like as an HTTPS request: https://10.1.20.200/rest/products/search?q=qwert%27%29%29%20UNION%20SELECT%20id%2C%20email%2C%20password%2C%20%274%27%2C%20%275%27%2C%20%276%27%2C%20%277%27%2C%20%278%27%2C%20%279%27%20FROM%20Users-- This request should be blocked and the response will look like this: Here is an example of what the Log File should contain: Note: Both Advanced WAF and SSL Orchestrator are CPU-driven functions. This will need to be factored into capacity planning when deploying the two together.2.2KViews2likes0CommentsSSL Orchestrator Advanced Use Cases: Reducing Complexity with Internal Layered Architecture
Introduction Sir Isaac Newton said, "Truth is ever to be found in the simplicity, and not in the multiplicity and confusion of things". The world we live in is...complex. No getting around that. But at the very least, we should strive for simplicity where we can achieve it. As IT folk, we often find ourselves mired in the complexity of things until we lose sight of the big picture, the goal. How many times have you created an additional route table entry, or firewall exception, or virtual server, because the alternative meant having a deeper understanding of the existing (complex) architecture? Sure, sometimes it's unavoidable, but this article describes at least one way that you can achieve simplicity in your architecture. SSL Orchestrator sits as an inline point of presence in the network to decrypt, re-encrypt, and dynamically orchestrate that traffic to the security stack. You need rules to govern how to handle specific types of traffic, so you create security policy rules in the SSL Orchestrator configuration to describe and take action on these traffic patterns. It's definitely easy to create a multitude of traffic rules to match discrete conditions, but if you step back and look at the big picture, you may notice that the different traffic patterns basically all perform the same core actions. They allow or deny traffic, intercept or bypass TLS (decrypt/not-decrypt), and send to one or a few service chains. If you were to write down all of the combinations of these actions, you'd very likely discover a small subset of discrete "functions". As usual, F5 BIG-IP and SSL Orchestrator provide some innovative and unique ways to optimize this. And so in this article we will explore SSL Orchestrator topologies "as functions" to reduce complexity. Specifically, you can reduce the complexity of security policy rules, and in doing so, quite likely increase the performance of your SSL Orchestrator architecture. SSL Orchestrator Use Case: Reducing Complexity with Internal Layered Architectures The idea is simple. Instead of a single topology with a multitude of complex traffic pattern matching rules, create small atomic topologies as static functions and steer traffic to the topologies by virtue of "layered" traffic pattern matching. Granted, if your SSL Orchestrator configuration is already pretty simple, then please keep doing what you're doing. You've got this, Tiger. But if your environment is getting complex, and you're not quite convinced yet that topologies as functions is a good idea, here are a few additional benefits you'll get from this topology layering: Dynamic egress selection: topologies as functions can define different egress paths. Dynamic CA selection: topologies as functions can use different local issuing CAs for different traffic flows. Dynamic traffic bypass: certain types of traffic can be challenging to handle internally. For example, mutual TLS traffic can be bypassed globally with the "Bypass on client cert failure" option in the SSL configuration, but bypassing mutual TLS sites by hostname is more complex. A layered architecture can steer traffic (by SNI) through a bypass topology, with a service chain. More flexible pattern recognition: for all of its flexibility, SSL Orchestrator security policy rules cannot catch every possible use case. External traffic pattern recognition, via iRules or CPM (LTM policies) offer near infinite pattern matching options. You could, for example, steer traffic based on incoming tenant VLAN or route domain for multi-tenancy configurations. More flexible automation strategies: as iRules, data groups, and CPM policies are fully automate-able across many AnO platforms (ex. AS3, Ansible, Terraform, etc.), it becomes exceedingly easy to automate SSL Orchestrator traffic processing, and removes the need to manage individual topology security policy rules. Hopefully these benefits give you a pretty clear indication of the value in this architecture strategy. So without further ado, let's get started. Configuration Before we begin, I'd like to make note of the following caveats: While every effort has been made to simplify the layered architecture, there is still a small element of complexity. If you are at all averse to creating virtual servers or modifying iRules, then maybe this isn't for you. But as you are reading this in a forum dedicated to programmability, I'm guessing you the reader are ready for a challenge. This is a "field contributed" solution, so not officially supported by F5. This topology layering architecture is applicable to all modern versions of SSL Orchestrator, from 5.0 to 8.0. While topology layering can be used for inbound topologies, it is most appropriate for outbound. The configuration below also only describes the layer 3 implementation. But layer 2 layering is also possible. With this said, there are just a few core concepts to understand: Basic layered architecture configuration - how the pieces fit together The iRules - how traffic moves through the architecture Or the CPM policies - an alternative to iRules Note again that this is primarily useful in outbound topologies. Inbound topologies are typically more atomic on their own already. I will cover both transparent and explicit forward proxy configurations below. Basic layered architecture configuration A layered architecture takes advantage of a powerful feature of the BIG-IP called "VIP targeting". The idea is that one virtual server calls another with negligible latency between the two VIPs. The "external" virtual server is client-facing. The SSL Orchestrator topology virtual servers are thus "internal". Traffic enters the external VIP and traffic rules pass control to any of a number of internal "topology function" VIPs. You certainly don't have to use the iRule implementation presented here. You just need a client-facing virtual server with an iRule that VIP-targets to one or more SSL Orchestrator topologies. Each outbound topology is represented by a virtual server that includes the application server name. You can see these if you navigate to Local Traffic -> Virtual Servers in the BIG-IP UI. So then the most basic topology layering architecture might just look like this: when CLIENT_ACCEPTED { virtual "/Common/sslo_my_topology.app/sslo_my_topology-in-t-4" } This iRule doesn't do anything interesting, except get traffic flowing across your layered architecture. To be truly useful you'll want to include conditions and evaluations to steer different types of traffic to different topologies (as functions). As the majority of security policy rules are meant to define TLS traffic patterns, the provided iRules match on TLS traffic and pass any non-TLS traffic to a default (intercept/inspection) topology. These iRules are intended to simplify topology switching by moving all of the complexity of traffic pattern matching to a library iRule. You should then only need to modify the "switching" iRule to use the functions in the library, which all return Boolean true or false results. Here are the simple steps to create your layered architecture: Step 1: Build a set of "dummy" VLANs. A topology must be bound to a VLAN. But since the topologies in this architecture won't be listening on client-facing VLANs, you will need to create a separate VLAN for each topology you intend to create. A dummy VLAN is a VLAN with no interface assigned. In the BIG-IP UI, under Network -> VLANs, click Create. Give your VLAN a name and click Finished. It will ask you to confirm since you're not attaching an interface. Repeat this step by creating unique VLAN names for each topology you are planning to use. Step 2: Build a set of static topologies as functions. You'll want to create a normal "intercept" topology and a separate "bypass" topology, though you can create as many as you need to encompass the unique topology functions. Your intercept topology is configured as such: L3 outbound topology configuration, normal topology settings, SSL configuration, services, service chains No security policy rules - just the ALL rule with TLS intercept action (and service chain), and optionally remove the built-in Pinners rule Attach to a dummy VLAN (a VLAN with no assigned interfaces) Your bypass topology should then look like this: L3 outbound topology configuration, skip the SSL Configuration settings, optionally re-use services and service chains No security policy rules - just the ALL rule with TLS bypass action (and service chain) Attach to a separate dummy VLAN (a VLAN with no assigned interfaces) Note the name you use for each topology, as this will be called explicitly in the iRule. For example, if you name the topology "myTopology", that's the name you will use in each "call SSLOLIB::target" function (more on this in a moment) . If you look in the SSL Orchestrator UI, you will see that it prepends "sslo_" (ex. sslo_myTopology). Don't include the "sslo_" portion in the iRule. Step 3: Import the SSLOLIB iRule (attached here). Name it "SSLOLIB". This is the library rule, so no modifications are needed. The functions within (as described below) will return a true or false, so you can mix these together in your switching rule as needed. Step 4: Import the traffic switching iRule (attached here). You will modify this iRule as required, but the SSLOLIB library rule makes this very simple. Step 5: Create your external layered virtual server. This is the client-facing virtual server that will catch the user traffic and pass control to one of the internal SSL Orchestrator topology listeners. Type: Standard Source: 0.0.0.0/0 Destination: 0.0.0.0/0 Service Port: 0 Protocol: TCP VLAN: client-facing VLAN Address Translation: disabled Port Translation: disabled Default Persistence Profile: ssl iRule: the traffic switching iRule Note that the ssl persistence profile is enabled here to allow the iRules to handle client side SSL traffic without SSL profiles attached. Also make sure that Address and Port Translation are disabled before clicking Finished. Step 6: Modify the traffic switching iRule to meet your traffic matching requirements (see below). You have the basic layered architecture created. The only remaining step is to modify the traffic switching iRule as required, and that's pretty easy too. The iRules I'll repeat, there are near infinite options here. At the very least you need to VIP target from the external layered VIP to at least one of the SSL Orchestrator topology VIPs. The iRules provided here have been cultivated to make traffic selection and steering as easy as possible by pushing all of the pattern functions to a library iRule (SSLOLIB). The idea is that you will call a library function for a specific traffic pattern and if true, call a separate library function to steer that flow to the desired topology. All of the build instructions are contained inside the SSLOLIB iRule, with examples. SSLOLIB iRule: https://github.com/f5devcentral/sslo-script-tools/blob/main/internal-layered-architecture/transparent-proxy/SSLOLIB Switching iRule: https://github.com/f5devcentral/sslo-script-tools/blob/main/internal-layered-architecture/transparent-proxy/sslo-layering-rule The function to steer to a topology (SSLOLIB::target) has three parameters: <topology name>: this is the name of the desired topology. Use the basic topology name as defined in the SSL Orchestrator configuration (ex. "intercept"). ${sni}: this is static and should be left alone. It's used to convey the SNI information for logging. <message>: this is a message to send to the logs. In the examples, the message indicates the pattern matched (ex. "SRCIP"). Note, include an optional 'return' statement at the end to cancel any further matching. Without the 'return', the iRule will continue to process matches and settle on the value from the last evaluation. Example (sending to a topology named "bypass"): call SSLOLIB::target "bypass" ${sni} "DSTIP" ; return There are separate traffic matching functions for each pattern: SRCIP IP:<ip/subnet> SRCIP DG:<data group name> (address-type data group) SRCPORT PORT:<port/port-range> SRCPORT DG:<data group name> (integer-type data group) DSTIP IP:<ip/subnet> DSTIP DG:<data group name> (address-type data group) DSTPORT PORT:<port/port-range> DSTPORT DG:<data group name> (integer-type data group) SNI URL:<static url> SNI URLGLOB:<glob match url> (ends_with match) SNI CAT:<category name or list of categories> SNI DG:<data group name> (string-type data group) SNI DGGLOB:<data group name> (ends_with match) Examples: # SOURCE IP if { [call SSLOLIB::SRCIP IP:10.1.0.0/16] } { call SSLOLIB::target "bypass" ${sni} "SRCIP" ; return } if { [call SSLOLIB::SRCIP DG:my-srcip-dg] } { call SSLOLIB::target "bypass" ${sni} "SRCIP" ; return } # SOURCE PORT if { [call SSLOLIB::SRCPORT PORT:5000] } { call SSLOLIB::target "bypass" ${sni} "SRCPORT" ; return } if { [call SSLOLIB::SRCPORT PORT:1000-60000] } { call SSLOLIB::target "bypass" ${sni} "SRCPORT" ; return } # DESTINATION IP if { [call SSLOLIB::DSTIP IP:93.184.216.34] } { call SSLOLIB::target "bypass" ${sni} "DSTIP" ; return } if { [call SSLOLIB::DSTIP DG:my-destip-dg] } { call SSLOLIB::target "bypass" ${sni} "DSTIP" ; return } # DESTINATION PORT if { [call SSLOLIB::DSTPORT PORT:443] } { call SSLOLIB::target "bypass" ${sni} "DSTPORT" ; return } if { [call SSLOLIB::DSTPORT PORT:443-9999] } { call SSLOLIB::target "bypass" ${sni} "DSTPORT" ; return } # SNI URL match if { [call SSLOLIB::SNI URL:www.example.com] } { call SSLOLIB::target "bypass" ${sni} "SNIURLGLOB" ; return } if { [call SSLOLIB::SNI URLGLOB:.example.com] } { call SSLOLIB::target "bypass" ${sni} "SNIURLGLOB" ; return } # SNI CATEGORY match if { [call SSLOLIB::SNI CAT:$static::URLCAT_list] } { call SSLOLIB::target "bypass" ${sni} "SNICAT" ; return } if { [call SSLOLIB::SNI CAT:/Common/Government] } { call SSLOLIB::target "bypass" ${sni} "SNICAT" ; return } # SNI URL DATAGROUP match if { [call SSLOLIB::SNI DG:my-sni-dg] } { call SSLOLIB::target "bypass" ${sni} "SNIDGGLOB" ; return } if { [call SSLOLIB::SNI DGGLOB:my-sniglob-dg] } { call SSLOLIB::target "bypass" ${sni} "SNIDGGLOB" ; return } To combine these, you can use simple AND|OR logic. Example: if { ( [call SSLOLIB::DSTIP DG:my-destip-dg] ) and ( [call SSLOLIB::SRCIP DG:my-srcip-dg] ) } Finally, adjust the static configuration variables in the traffic switching iRule RULE_INIT event: ## User-defined: Default topology if no rules match (the topology name as defined in SSLO) set static::default_topology "intercept" ## User-defined: DEBUG logging flag (1=on, 0=off) set static::SSLODEBUG 0 ## User-defined: URL category list (create as many lists as required) set static::URLCAT_list { /Common/Financial_Data_and_Services /Common/Health_and_Medicine } CPM policies LTM policies (CPM) can work here too, but with the caveat that LTM policies do not support URL category lookups. You'll probably want to either keep the Pinners rule in your intercept topologies, or convert the Pinners URL category to a data group. A "url-to-dg-convert.sh" Bash script can do that for you. url-to-dg-convert.sh: https://github.com/f5devcentral/sslo-script-tools/blob/main/misc-tools/url-to-dg-convert.sh As with iRules, infinite options exist. But again for simplicity here is a good CPM configuration. For this you'll still need a "helper" iRule, but this requires minimal one-time updates. when RULE_INIT { ## Default SSLO topology if no rules match. Enter the name of the topology here set static::SSLO_DEFAULT "intercept" ## Debug flag set static::SSLODEBUG 0 } when CLIENT_ACCEPTED { ## Set default topology (if no rules match) virtual "/Common/sslo_${static::SSLO_DEFAULT}.app/sslo_${static::SSLO_DEFAULT}-in-t-4" } when CLIENTSSL_CLIENTHELLO { if { ( [POLICY::names matched] ne "" ) and ( [info exists ACTION] ) and ( ${ACTION} ne "" ) } { if { $static::SSLODEBUG } { log -noname local0. "SSLO Switch Log :: [IP::client_addr]:[TCP::client_port] -> [IP::local_addr]:[TCP::local_port] :: [POLICY::rules matched [POLICY::names matched]] :: Sending to $ACTION" } virtual "/Common/sslo_${ACTION}.app/sslo_${ACTION}-in-t-4" } } The only thing you need to do here is update the static::SSLO_DEFAULT variable to indicate the name of the default topology, for any traffic that does not match a traffic rule. For the comparable set of CPM rules, navigate to Local Traffic -> Policies in the BIG-IP UI and create a new CPM policy. Set the strategy as "Execute First matching rule", and give each rule a useful name as the iRule can send this name in the logs. For source IP matches, use the "TCP address" condition at ssl client hello time. For source port matches, use the "TCP port" condition at ssl client hello time. For destination IP matches the "TCP address" condition at ssl client hello time. Click on the Options icon and select "Local" and "External". For destination port matches the "TCP port" condition at ssl client hello time. Click on the Options icon and select "Local" and "External". For SNI matches, use the "SSL Extension server name" condition at ssl client hello time. For each of the conditions, add a simple "Set variable" action as ssl client hello time. Name the variable "ACTION" and give it the name of the desired topology. Apply the helper iRule and CPM policy to the external traffic steering virtual server. The "first" matching rule strategy is applied here, and all rules trigger on ssl client hello, so you can drag them around and re-order as necessary. Note again that all of the above only evaluates TLS traffic. Any non-TLS traffic will flow through the "default" topology that you identify in the iRule. It is possible to re-configure the above to evaluate HTTP traffic, but honestly the only significant use case here might be to allow or drop traffic at the policy. Layered architecture for an explicit forward proxy You can use the same logic to support an explicit proxy configuration. The only difference will be that the frontend layered virtual server will perform the explicit proxy functions. The backend SSL Orchestrator topologies will continue to be in layer 3 outbound (transparent proxy) mode. Normally SSL Orchestrator would build this for you, but it's pretty easy and I'll show you how. You could technically configure all of the SSL Orchestrator topologies as explicit proxies, and configure the client facing virtual server as a layer 3 pass-through, but that adds unnecessary complexity. If you also need to add explicit proxy authentication, that is done in the one frontend explicit proxy configuration. Use the settings below to create an explicit proxy LTM configuration. If not mentioned, settings can be left as defaults. Under SSL Orchestrator -> Configuration in the UI, click on the gear icon in the top right corner. This will expose the DNS resolver configuration. The easiest option here is to select "Local Forwarding Nameserver" and then enter the IP address of the local DNS service. Click "Save & Next" and then "Deploy" when you're done. Under Network -> Tunnels in the UI, click Create. This will create a TCP tunnel for the explicit proxy traffic. Profile: select tcp-forward Under Local Traffic -> Profiles -> Services -> HTTP in the UI, click Create. This will create the HTTP explicit proxy profile. Proxy Mode: Explicit Explicit Proxy: DNS Resolver: select the ssloGS-net-resolver Explicit Proxy: Tunnel Name: select the TCP tunnel created earlier Under Local Traffic -> Virtual Servers, click Create. This will create the client-facing explicit proxy virtual server. Type: Standard Source: 0.0.0.0/0 Destination: enter an IP the client can use to access the explicit proxy interface Service Port: enter the explicit proxy listener port (ex. 3128, 8080) HTTP Profile: HTTP explicit profile created earlier VLANs and Tunnel Traffic: set to "Enable on..." and select the client-facing VLAN Address Translation: enabled Port Translation: enabled Under Local Traffic -> Virtual Servers, click Create again. This will create the TCP tunnel virtual server. Type: Standard Source: 0.0.0.0/0 Destination: 0.0.0.0/0 Service Port: * VLANs and Tunnel Traffic: set to "Enable on..." and select the TCP tunnel created earlier Address Translation: disabled Port Translation: disabled iRule: select the SSLO switching iRule Default Persistence Profile: select ssl Note, make sure that Address and Port Translation are disabled before clicking Finished. Under Local Traffic -> iRules, click Create. This will create a small iRule for the explicit proxy VIP to forward non-HTTPS traffic through the TCP tunnel. Change "<name-of-TCP-tunnel-VIP>" to reflect the name of the TCP tunnel virtual server created in the previous step. when HTTP_REQUEST { virtual "/Common/<name-of-TCP-tunnel-VIP>" [HTTP::proxy addr] [HTTP::proxy port] } Add this new iRule to the explicit proxy virtual server. To test, point your explicit proxy client at the IP and port defined IP:port and give it a go. HTTP and HTTPS explicit proxy traffic arriving at the explicit proxy VIP will flow into the TCP tunnel VIP, where the SSLO switching rule will process traffic patterns and send to the appropriate backend SSL Orchestrator topology-as-function. Testing and Considerations Assuming you have the default topology defined in the switching iRule's RULE_INIT, and no traffic matching rules defined, all traffic from the client should pass effortlessly through that topology. If it does not, Ensure the named defined in the static::default_topology variable is the actual name of the topology, without the prepended "sslo_". Enable debug logging in the iRule and observe the LTM log (/var/log/ltm) for any anomalies. Worst case, remove the client facing VLAN from the frontend switching virtual server and attach it to one of your topologies, effectively bypassing the layered architecture. If traffic does not pass in this configuration, then it cannot in the layered architecture. You need to troubleshoot the SSL Orchestrator topology itself. Once you have that working, put the dummy VLAN back on the topology and add the client facing VLAN to the switching virtual server. Considerations The above provides a unique way to solve for complex architectures. There are however a few minor considerations: This is defined outside of SSL Orchestrator, so would not be included in the internal HA sync process. However, this architecture places very little administrative burden on the topologies directly. It is recommended that you create and sync all of the topologies first, then create the layered virtual server and iRules, and then manually sync the boxes. If you make any changes to the switching iRule (or CPM policy), that should not affect the topologies. You can initiate a manual BIG-IP HA sync to copy the changes to the peer. If upgrading to a new version of SSL Orchestrator (only), no additional changes are required. If upgrading to a new BIG-IP version, it is recommended to break HA (SSL Orchestrator 8.0 and below) before performing the upgrade. The external switching virtual server and iRules should migrate natively. Summary And there you have it. In just a few steps you've been able to reduce complexity and add capabilities, and along the way you have hopefully recognized the immense flexibility at your command.1.8KViews5likes2CommentsSSL Orchestrator Advanced Use Case: One-Armed Mode
Introduction A typical SSL Orchestrator deployment uses 4 network interfaces. Two are used for North/South connectivity and two are used for egress/ingress to/from Security Services. There may be circumstances where you need to deploy SSL Orchestrator with a limited number of interfaces. This guide walks you through configuration of SSL Orchestrator with only 3 interfaces. One interface will be used for North/South connectivity and two will be used for egress/ingress to/from Security Services. This guide assumes you have configured a vlan and Self IP on BIG-IP. A client computer on the same vlan is also required. Note: SSL Orchestrator has limited functionality when deployed this way. A single Security Service is used in this guide and this has not been thoroughly tested. Example Configuration BIG-IP version 16.1.2.1 SSL Orchestrator version 9.2.49 BIG-IP is configured with a single vlan for Inbound and Outbound traffic, Outbound_Vlan, with Self IP 10.1.20.100 A default route of 10.1.20.1 is also configured A client computer is configured with IP 10.1.20.101 and a Default Gateway of 10.1.20.100 Configuration of 2 Tagged interfaces for egress/ingress to/from Security Services will be covered next. BIG-IP Network configuration In this example the network settings will be configured outside of SSL Orchestrator though that is not required. From the BIG-IP GUI go to Network > VLANs > Create. Create a VLAN for Service1 Egress. In this example interface 1.2 is being used. Note that this is a TAGGED interface. When done it should look like this: Create a VLAN for Service1 Ingress. In this example interface 1.3 is being used. This must also be a Tagged interface. When done it should look like this: Next we’ll configure the Self IPs for these VLANs. Navigate to Self IPs under Network. Create 2 Self IPs like the following: Name IP Address Netmask VLAN Egress_Service1 10.0.0.1 255.255.255.0 Service_Egress Ingress_Service1 90.0.0.1 255.255.255.0 Service_Ingress When done it should look like this: BIG-IP SSL Orchestrator Configuration Steps From the Configuration Utility select SSL Orchestrator > Configuration. Scroll down and click Next. Give the Topology a Name, L3_Outbound in this example. Select the Protocol needed, TCP in this example. Select the IP Family, IPv4 in this example. Select the Topology type, L3 Outbound in this example. Note: L3 Inbound is also compatible with One-Armed Mode. Click Save & Next at the bottom of the page. For SSL Configurations you will need to specify the CA Certificate Key Chain. In this example we used subrsa.f5labs.com. Click Save & Next at the bottom of the page. Click Save & Next at the bottom of the page. Configure the two L3 Services Click the Add Service button Select the Inline L3 tab then double-click the Generic Inline Layer 3 Service. Note: a Generic Inline Layer 3 device is used in this example but any Layer 3 device can be used. Give it a name, L3_Service1 in this example. Uncheck the box to Auto Manage Addresses For the To Service Configuration select Use Existing then click the down arrow to expand the dialog box. Select the Egress IP address for Service1, 10.0.0.1/24 in this example. Under Security Devices click Add. Enter the IP address of your L3 Security device, 10.0.0.25 in this example. Click Done. For the From Service Configuration select Use Existing then click the down arrow to expand the dialog box. Select the Ingress IP address for Service1, 90.0.0.1/24 in this example. Click Save at the bottom. For the Services Chain you can configure it by clicking Add. Give it a name, Service_Chain in this example. Select the Service under Services Available and click the right arrow to move it under Selected Service Chain Order. Click Save at the bottom. Click Save & Next at the bottom of the next page. The Security Policy screen is where you enable/disable SSL Proxy and specify the Service Chain to use. Click the pencil (edit) icon on the bottom rule to set the Service Chain. Click OK. Click Save & Next at the bottom of the page. For the Interception Rule optionally specify the Source Address. The Destination Address/Mask field is required. In this example the policy is configured to intercept connections from and to any IP address. Select the correct vlan from the Available options, Outbound_Vlan in this example, and click the right arrow to move it to Selected. Click Save & Next at the bottom of the page. For SNAT Settings select Auto Map. Click Save & Next at the bottom of the page. Click Save & Next at the bottom of the page. Click Deploy at the bottom of the page. You should see a Success message. Click OK. Test Connectivity from a Client Computer The Default Gateway of the client computer is set to 10.1.20.100 which is the Self IP of the BIG-IP. The client computer has already been configured to trust the SSL certificates emulated by BIG-IP SSL Orchestrator. Test the SSL decryption capabilities by connecting to an HTTPS site, espn.com in this example. The connection to the site is secure, there are no certificate errors and the certificate was Issued By subrsa.f5labs.com. Conclusion You have successfully configured BIG-IP SSL Orchestrator with only 3 network interfaces. For more information on that see the SSL Orchestrator series: Orchestrated Infrastructure Security951Views2likes2CommentsSSL Orchestrator Advanced Use Cases: Fun with SaaS Tenant Isolation
Introduction Introduced in SSL Orchestrator 10.1, you can now seemlessly integrate Microsoft Office 365 Tenant Restrictions as a service function in the decrypted service chain. Before I go any further, you may be asking, what exactly are Tenant Restrictions? And why would I want to use them? Well, I'm so glad you asked. Think of a tenant restriction as a way to isolate a tenant (i.e., a set of enterprise accounts) on a SaaS platform. This is super useful for SaaS resources like Office 365, where your enterprise users will have corporate access to Office 365, but may also have their own personal O365 accounts, or accounts with another corporate entity. An Office 365 Tenant Restriction essentially prevents users from accessing any O365 accounts other than those specifically allowed. Most important, a tenant restriction is a really good way to prevent some forms of data exfiltration -i.e., by preventing users from saving proprietary information to a personal or other non-sanctioned Office 365 account. A tenant restriction essentially works by injecting one or more HTTP headers into an HTTP request for a specific set of request URLs, and enabling this feature in SSL Orchestrator 10.1 is super easy. You just create the service object, apply that service to a service chain, and put that service chain in the path of decrypted traffic. It's important to highlight here that injecting an HTTP header requires decrypted access to the traffic, so your SSL Orchestrator policy configuration must put this in a decrypted (intercept) path. To give you a quick example, for Office 365, you'll look for the following three request URLs: "login.microsoftonline.com" "login.microsoft.com" "login.windows.net" And if you see one of these, you'll inject the following two headers: "Restrict-Access-To-Tenants" "<permitted-tenant-list>" "Restrict-Access-Context" "<directory-id>" The above is all described in great and glorious detail here:https://learn.microsoft.com/en-us/azure/active-directory/manage-apps/tenant-restrictions. Okay, so now that we've established what it is, and how it works, we can now get to the FUN part of this article. As it turns out, there are actually a few SaaS applications that support "tenant isolation", and they all do so in more or less the same way - inject one or more HTTP headers for a specified set of URLs. The common ones include: Webex Google G-Suite Dropbox Youtube Slack I'm sure there are more out there, but the above are what we'll focus on here. Let's see exactly how to set this up. SSL Orchestrator Advanced Use Case: Fun with SaaS Tenant Isolation The basic idea is to perform the following three steps: Deploy Office 365 Tenant Restrictions in SSL Orchestrator 10.1 Replace the iRule that the service generates with a new iRule Configure that iRule with the SaaS tenant isolation values that you require Step 1: Deploy Office 365 Tenant Restrictions in SSL Orchestrator 10.1 Starting in SSL Orchestrator 10.1, in the UI go to Services and click the Add button. Navigate to the F5 tab, click on "Office 365 Tenant Restrictions" and then hit the Add button. You won't actually be using the iRule that this service creates, so put anything you want into the two required header fields and click Save & Next. On the subsequent Service Chains List page, select or create a service chain and add this new service to that service chain. Click Save & Next. At this point, just make sure this service chain is assigned to a security policy rule that intercepts (decrypts) traffic. Deploy and move on to the next step. Step 2: Replace the iRule that the service generates with a new iRule Head over to the following Github repo to get the new iRule:https://github.com/f5devcentral/sslo-script-tools/tree/main/saas-tenant-isolation. In the BIG-IP UI, under Local Traffic, iRules, create a new iRule and paste the content there. Now back in the SSL Orchestrator UI, go to the Services tab, select your Office 365 Tenant Restrictions service to edit, and then at the bottom of the page, replace the selected iRule with your new tenant isolation iRule. Deploy and move on to the next step. Step 3: Configure the new iRule with the SaaS tenant isolation values that you require You're now going to need to make a few modifications to the new iRule. In the BIG-IP UI, under Local Traffic, iRules, click on your new tenant isolation iRule to edit. The iRule comes pre-built to support all of the aforementioned SaaS applications. Step 3a: In the RULE_INIT section, there is a separate array defined for each SaaS application. Inside each array is the required tenant isolation header(s) for that application. If you need to deploy tenant isolation headers for a given SaaS application, replace the "enter-value-here" string next to each header name with the required value. I've provided additional references below to help with those values. Step 3b: At the bottom of the RULE_INIT section, there are a set of static variables that enable or disable header injection for each SaaS application. To enable, set the value to 1. Otherwise to disable set the value to 0. That's basically it. If you've configured the header values correctly, and the service is in the direct path of decrypted outbound traffic through SSL Orchestrator, then the iRule should be doing it's job to prevent data exfiltration in your environment. Good job! Summary With an iRule and just a few configuration changes we have been able to implement a capability on top of SSL Orchestrator to extend the built-in Office 365 Tenant Restrictions service to support a set of additional SaaS applications. This flexibility is just one of the many interesting benefits of and SSL Orchestrator solution. Additional Resources As previously mentioned, there are more than just the described SaaS applications out in the wild that support tenant isolation, but these are the most common. If you know of any that might be useful to add, please let me know. Below is a quick reference for each of the included SaaS applications and the required match-on and send values. Office 365 Ref:https://learn.microsoft.com/en-us/azure/active-directory/manage-apps/tenant-restrictions Match on: "login.microsoftonline.com" "login.microsoft.com" "login.windows.net" Send: "Restrict-Access-To-Tenants" "<permitted-tenant-list>" "Restrict-Access-Context" "<directory-id>" _________________________________________________ Webex Ref: https://help.webex.com/en-us/article/m0jby2/Configure-a-list-of-allowed-domains-to-access-Webex-while-on-your-corporate-network- Match on: identity.webex.com identity-eu.webex.com idbroker.webex.com idbroker-secondary.webex.com idbroker-b-us.webex.com idbroker-au.webex.comatlas-a.wbx2.com Send: CiscoSpark-Allowed-Domains = <enterprise domain> Ex. CiscoSpark-Allowed-Domains:example.com,example1.com,example2.com _________________________________________________ Google / G-Suite Ref: https://support.google.com/a/answer/1668854?hl=en Match on: *.google.com *.googleusercontent.com *.gstatic.com Send: X-GooGApps-Allowed-Domains = <comma separated list of allowed domains> Ex. X-GoogApps-Allowed-Domains: mydomain1.com, mydomain2.com _________________________________________________ Dropbox Ref: https://learn.akamai.com/en-us/webhelp/enterprise-threat-protector/enterprise-threat-protector/GUID-634616ED-28D3-4B23-B2C7-1E12ABE47E4A.html Match on: dropbox.com *.dropbox.com Send: X-Dropbox-allowed-Team-Ids = <dropbox team ID> _________________________________________________ Youtube Ref: https://support.google.com/a/answer/6214622?hl=en Match on: www.youtube.com m.youtube.com youtubei.googleapis.com youtube.googleapis.com www.youtube-nocookie.com Send: YouTube-Restrict = Strict. Provides access to a limited collection of video content. This is the most restricted mode. Moderate. Provides some restricted access but is less strict than Strict mode. Moderate mode allows users to access a larger collection of video content. _________________________________________________ Slack Ref: https://slack.com/help/articles/360024821873-Approve-Slack-workspaces-for-your-network Match on: *.slack.com Send: X-Slack-Allowed-Workspaces-Requester = <workspace or org ID (one value)> X-Slack-Allowed-Workspaces = <comma separated list of allowed workspaces and/or org IDs>1.7KViews1like0Comments
