mqtt

6 Topics

What is Message Queue Telemetry Transport (MQTT)? How to secure MQTT?
MQTT is a messaging protocol broadly used in IoT and connected services, very lightweight and reliable even over poor quality networks. It is designed lightweight so it can work on constrained devices but, even in its latest version MQTTv5, the attack surface is very large.
Fouad_Chmainy
Jan 30, 2025 Place Technical Articles
314Views
0likes
1Comment
F5 BIG-IP MQTT protocol support and use cases in an IoT environment

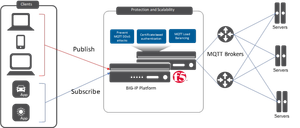

The Internet-of-Things is a system of physical devices, vehicles, buildings, and any other items each provided with a unique identifier allowing them to communicate with one another without any human intervention. MQTT is a widely-used machine-to-machine connectivity protocol that helps these devices communicate and exchange messages. The wide adoption and popularity of the MQTT protocol led to its support in the BIG-IP version 13.0. MQTT is a publish/subscribe messaging protocol. A device such as a camera, heat sensor, lP-enabled light bulb, etc. can publish data to an intermediary module using the MQTT protocol. An application can then subscribe to this intermediary module and retrieve the published data. Intermediary modules are also known as message brokers. The BIG-IP with MQTT awareness can sit in front of the MQTT message brokers to provide scalability, security, visibility, and availability. Fig. 1 – Basic architecture of using the BIG-IP platform in an IoT environment. In an MQTT configuration, clients publish messages and the BIG-IP system parses those MQTT messages based on which it invokes MQTT specific iRule events if defined and performs connection based load balancing on the MQTT messages to a pool of message brokers. The message brokers then transport and route the messages to subscribing servers A typical BIG-IP MQTT configuration includes: MQTT pool of message brokers Are grouped together to receive and process traffic. After the pool is created, associate the pool with a virtual server. Some common open source message brokers examples are Mosquitto and VerneMQ iRules for MQTT Use iRules to exercise MQTT functionality, for example to log the messages that the BIG-IP system passes, or to pass the client certificate's common name in the CONNECT message Client SSL profile Use a Client SSL profile when you want the BIG-IP ® system to authenticate and decrypt/encrypt client-side application traffic Virtual server configured to use MQTT functionality For more details please refer to: https://support.f5.com/kb/en-us/products/big-ip_ltm/manuals/product/ltm-iot-administration-13-0-0/1.html BIG-IP natively supports the MQTT protocol. BIG-IP has a full proxy architecture which makes BIG-IP itself an endpoint and an originator of the MQTT protocol. iRules take advantage of the deep understanding of the protocol and can be used at different events (specific moments within the session flow of a network connection, such as MQTT_CLIENT_INGRESS, MQTT_SERVER_INGRESS) to intelligently parse the MQTT protocol and make traffic decisions. Let’s explore some of the use cases using iRules such as load balancing and steering traffic based on a unique identified present within the MQTT protocol, preventing attacks based on TOPICS/LENGTH of a PUBLISH message, client authentication based on CN name present in the client certificate. Use Case: prevent MQTT DDoS attacks based on the below parameters Topic validation Validate the ‘TOPIC’ of a PUBLISH message and if it does not fit the validation criteria then drop the connection. This will prevent messages with bogus TOPICS from reaching the message brokers. And help in preventing MQTT DDoS attacks based on TOPIC. when MQTT_CLIENT_INGRESS { log local0. "CLIENT [MQTT::type]" if {[MQTT::type] eq "PUBLISH" } { # Check against a allowed topic. if { [MQTT::topic] eq "bogus/bogus" } { # Invalid topic log local0. " Topic is Invalid. Potential DDoS Attack -> Dropping Topic: [MQTT::topic]" drop } } } The above iRule can be enhanced to use data groups where the data groups will have the entire list of TOPICS and the [MQTT::TOPIC] can be checked against the data group MQTT PUBLISH message length validation An application will typically have knowledge about the size of the data that is being transmitted. Taking advantage of that knowledge the length of a PUBLISH message can be validated and if it does not satisfy the expected length then drop the connection. This will prevent large messages from reaching the message brokers and not overload the broker. when MQTT_CLIENT_INGRESS { log local0. "CLIENT [MQTT::type]" if {[MQTT::type] eq "PUBLISH" } { # Check length of message. if { [MQTT::length] > 100 } { # Invalid length log local0. " Length is Invalid. Potential DDoS Attack -> Dropping message: [MQTT::topic] : [MQTT::length]" drop } } } Use Case: pool selection/load balancing based on username as a unique identifier Use the username as a unique identifier to steer traffic to a message broker. This enables stickiness between an end user and a message broker by mapping a device/end user to a pool in the load balancer. The mapping helps in conditions where in a device needs to reconnect to the message broker on which the active client session lives and can use the state information present on the message broker to make decisions. when MQTT_CLIENT_INGRESS { log local0. "CLIENT [MQTT::type]" if {[MQTT::type] eq "CONNECT" } { # Select pool based on username, example license ID if { [MQTT::username] eq "D1111111" } { log local0. "Load balancing to pool MQTT-BrokerPool1" pool MQTT-BrokerPool1 } if { [MQTT::username] eq "D1111112" } { log local0. "Load balancing to pool MQTT-BrokerPool2" pool MQTT-BrokerPool2 } } } The above iRule can be enhanced to use data groups where the data groups will have the list of unique usernames. Multiple data groups can be defined, each one representing users for multiple Pools. The [MQTT::username] can be checked against the data group and based on that the pool selection can be made. Use Case: client certificate authentication over TLS BIG-IP can terminate MQTT encrypted SSL/TLS messages and then send the un-encrypted traffic to the backend Broker. This allows the Broker to scale as it can offload all SSL/TLS functions and configuration to the BIG-IP. In addition to terminating SSL/TLS the BIG-IP can use iRules to perform Client Certificate Authentication. The BIG-IP can embed the client CN name from the client certificate into the backend connection along with the username for authentication by the back-end Broker. when CLIENT_ACCEPTED { set cn "" } when CLIENTSSL_CLIENTCERT { log local0. " Parsing X509 Info for SSL Client Cert CN Name" set cn [findstr [X509::subject [SSL::cert 0]] "CN=" 3 ","] log local0. "Found Client Cert Common Name (CN) : $cn" } when MQTT_CLIENT_INGRESS { log local0. "MQTT Client MmessageTtype [MQTT::type]" if {[MQTT::type] == "CONNECT"} { log local0. "Connecting to Broker" if {$cn == ""} { # if we didn't see a client cert, return an authentication error MQTT::drop MQTT::respond type CONNACK return_code 5 MQTT::disconnect } else { log local0. "Passing Username and CN to Backend for Authentication" log local0. "MQTT Username: [MQTT::username]" log local0. "Username: [MQTT::username] CN: $cn" set mqttuser [MQTT::username] MQTT::username "$mqttuser $cn" } } } Conclusion Bookmark this page if you are interested in learning more. We will be update this blog with new compelling IoT features developed by F5 for the upcoming BIG-IP releases. Do you have a suggestion for an IoT related topic that you would like for us to cover? Please leave a comment on this post if you do. References https://support.f5.com/kb/en-us/products/big-ip_ltm/manuals/product/ltm-iot-administration-13-0-0/1.print.html https://devcentral.f5.com/s/articles/lightboard-lessons-iot-on-big-ip-24923?tag=lbl https://devcentral.f5.com/s/articles/the-iot-ready-platform https://f5.com/resources/white-papers/tmos-redefining-the-solution https://devcentral.f5.com/s/articles/the101-irules-101-events-amp-priorities https://en.wikipedia.org/wiki/MQTT https://mosquitto.org/
Payal_S
Sep 17, 2019 Place Technical Articles
3.4KViews
0likes
1Comment
Lightboard Lessons: Connecting Cars with BIG-IP
I light up how BIG-IP and Solace work together in a MQTT connected car infrastructure. ps Related: Using F5 BIG-IP and Solace Open Data Movement technology for MQTT message routing and delivery Lightboard Lessons: What is MQTT? Solace and F5: Partnering for Better IoT
PSilva
Oct 04, 2017 Place Technical Articles
471Views
0likes
0Comments
Using F5 BIG-IP and Solace Open Data Movement technology for MQTT message routing and delivery
The "Internet of Things" (IoT) has the potential to not just impact the way we live and work, but to disrupt entire industries. Some of the major industries that are driving innovation in IoT include manufacturing, transportation, and utilities. In this post I’ll talk about an example of how digital manufacturing is helping automobiles be more intelligent. There are millions of connected automobiles that have software running on them: from programs that keep GPS maps up to date to sensors sending vehicle speeds or temperature information. This information typically is being sent to a centralized management system that enables intelligent decisions, and those back-end systems also need to send data, instructions, and updates to the cars. We are actively working with a leading multinational automotive company. In this deployment the management system uses MQTT to send notifications to cars that a new software update is available for download. It is critical that these messages are received by the connected cars, but message delivery can be delayed if the car can’t be reached because it’s out of range, or driving through a tunnel, or even if cellular networks are congested. Using the Solace message broker To ensure eventual delivery in such situations, you can have the management system send messages to a message broker that in turn distributes them to intended recipients. This decouples your architecture so the many elements of the management system don’t need to worry about the specific destinations to which each message must be delivered, nor track delivery status. They simply send a message to the broker which A) takes care of routing it to requisite destinations, and B) stores a copy of it until every vehicle that needs it has confirmed receipt. Basic IIoT architecture for connected automobiles Before diving deeper, let’s look at the architecture that is used in the above use case. The idea is the same, but to support the numbers of connected vehicles and volume of data involved, it’s necessary to implement multiple message brokers. This architecture is provided by Solace which uses a novel architecture that enables efficient publish/subscribe distribution of data and can scale to millions of connected devices. (see Fig 1.). Back-end applications connect to a single broker (core message broker) to send a message to any vehicle, and can use messaging techniques preferred by IT applications such as JMS, AMQP and Node.js. The core message broker is communicating to several edge message brokers through internal messaging. The data for a particular vehicle is routed through one edge message broker and delivered to the vehicle in the matter conducive for it, in this case MQTT. In the diagram, Vehicle 1 connects to Message Broker 1. That means that messages sent from the management system to the core message broker that are intended for Vehicle 1 only need to go to Message Broker 1 Fig. 1 – Basic IIoT architecture for connected automobiles This two-tier approach provides a simple and powerful scaling architecture for north-south communication, since more connected cars can be added by adding more edge message routers without affecting the existing system. BIG-IP and persistence For this architecture, we’re aiming to achieve two things: First, we want to relieve the management system of the burden of keeping track of message delivery to potentially millions of vehicles. The Solace message broker uses MQTT QoS Level 1 which guarantees that a message will be delivered at least once to the receiver. The message is persisted in the edge message broker which allows the backend IoT application to publish messages with confidence that they will eventually reach their destination, but without needing to keep track of message delivery status. Second, we need to make sure that the vehicle connects to the right message broker so it can receive its messages. This can be achieved by managing a 1:1 mapping between the edge message broker and the vehicle. Fig. 2 – F5 BIG-IP in the IoT architecture BIG-IP version 13+ helps to achieve the 1:1 mapping with support for MQTT message parsing. It sits in front of the message broker and parses the MQTT messages – using iRules – exchanged between the vehicle to the message broker. Data groups on the BIG-IP are used to map a vehicle using a unique Identifier to a pool of message brokers. Using iRules every MQTT message is parsed, then the data group lookup routes the data to the correct pool of message brokers. This helps to achieve a “sticky” load balancing solution so that when a vehicle comes back online it will always get routed and connected to the correct message brokers where the connection state for that vehicle is known to be maintained. We say a “pool of message brokers” in order for the brokers to provide a highly-available service. Here is some sample code of an iRule that helps with achieving persistence or sticky load balancing: when MQTT_CLIENT_INGRESS { log local0. "CLIENT [MQTT::type]" if {[MQTT::type] eq "CONNECT" } { # Select pool based on vehicle ID if { [MQTT::username] eq "D1111111" } { log local0. "Load balancing to pool MQTT-BrokerPool1" pool MQTT-BrokerPool1 } if { [MQTT::username] eq "D1111112" } { log local0. "Load balancing to pool MQTT-BrokerPool2" pool MQTT-BrokerPool2 } } } Conclusion IoT use cases which benefit from having a guaranteed delivery of messages can take advantage of F5’s persistence capabilities. The architecture described above means that specific edge broker instances will maintain 'state' for specific connected vehicles. This requires the MQTT load-balancing to be sticky across sessions. BIG-IP version 13+ supports MQTT message parsing using iRules and thereby provides a key functionality in achieving the end-to-end goal of the solution for this type of architecture. The industries that are embracing “Internet of Things” applications are still in the early stages of innovation, but market leaders are architecting now for scale and resilience so they can automate more and more processes with a single infrastructure. The automaker in this example has chosen F5’s BIG-IP solution for 1:1 mapping of cars to message brokers, and Solace’s Open Data Movement technology as the MQTT infrastructure for message routing and delivery. The combination provides an elegant solution that can scale to millions of connections to support an increasing number of message exchanges between the vehicles and back end systems as their telematics and in-car services get more sophisticated.
Payal_S
Oct 03, 2017 Place Technical Articles
685Views
0likes
0Comments
Lightboard Lessons: IoT on BIG-IP
As more organizations deploy IoT applications in their data centers and clouds, they're going to need their ADC to understand the unique protocols these devices use to communicate. In this Lightboard Lesson, I light up how IoT protocol MQTT (Message Queuing Telemetry Transport) works on BIG-IP v13. iRules allow you to do Topic based load balancing along with sensor authentication. And if you missed it, here is the #LBL on What is MQTT? ps Related: Lightboard Lessons: What is MQTT? Security Trends in 2016: Securing the Internet of Things The Intruders of Things The IoT Ready Platform Using F5 BIG-IP with IBM MessageSight
PSilva
Feb 08, 2017 Place Technical Articles
405Views
0likes
0Comments
Lightboard Lessons: What is MQTT?
The mad dash to connect virtually every noun to the internet or The Internet of Things, is creating a massive M2M network for all the devices, systems, sensors and actuators to connect & communicate on the Internet. With that, they need a communications protocol to understand each other. One of those is Message Queue Telemetry Transport (MQTT). MQTT is a “subscribe and publish” messaging protocol designed for lightweight machine-to-machine (or IoT) communications. In this episode of Lightboard Lessons, I light up how MQTT works. ps Related: IoT Ready Infrastructure IoT Effect on Applications IoT Influence on Society What are These "Things? The Intruders of Things
PSilva
Jan 11, 2017 Place Technical Articles
336Views
0likes
0Comments
