F5 BIG-IP Multi-Site Dashboard v1.7
A comprehensive real-time monitoring dashboard for F5 BIG-IP Application Delivery Controllers featuring multi-site support, DNS hostname resolution, member state tracking, and advanced filtering capabilities. A 170KB modular JavaScript application runs entirely in your browser, served directly from the F5's high-speed operational dataplane. One or more sites operate as Dashboard Front-Ends serving the dashboard interface (HTML, JavaScript, CSS) via iFiles, while other sites operate as API Hosts providing pool data through optimized JSON-based dashboard API calls. This provides unified visibility across multiple sites from a single interface without requiring even a read-only account on any of the BIG-IPs, allowing you to switch between locations and see consistent pool, member, and health status data with almost no latency and very little overhead. Think of it as an extension of the F5 GUI: near real-time state tracking, DNS hostname resolution (if configured), advanced search/filtering, and the ability to see exactly what changed and when. It gives application teams and operations teams direct visibility into application pool state without needing to wait for answers from F5 engineers, eliminating the organizational bottleneck that slows down troubleshooting when every minute counts. https://github.com/hauptem/F5-Multisite-Dashboard
TLS Server Name Indication
Problem this snippet solves: Extensions to TLS encryption protocols after TLS v1.0 have added support for passing the desired servername as part of the initial encryption negotiation. This functionality makes it possible to use different SSL certificates with a single IP address by changing the server's response based on this field. This process is called Server Name Indication (http://en.wikipedia.org/wiki/Server_Name_Indication). It is not supported on all browsers, but has a high level of support among widely-used browsers. Only use this functionality if you know the bulk of the browsers accessing your site support SNI - the fact that IE on Windows XP does not precludes the wide use of this functionality for most sites, but only for now. As older browsers begin to die off, SNI will be a good weapon in your arsenal of virtual hosting tools. You can test if your browser supports SNI by clicking here: https://alice.sni.velox.ch/ Supported Browsers: * Internet Explorer 7 or later, on Windows Vista or higher * Mozilla Firefox 2.0 or later * Opera 8.0 or later (the TLS 1.1 protocol must be enabled) * Opera Mobile at least version 10.1 beta on Android * Google Chrome (Vista or higher. XP on Chrome 6 or newer) * Safari 2.1 or later (Mac OS X 10.5.6 or higher and Windows Vista or higher) * MobileSafari in Apple iOS 4.0 or later (8) * Windows Phone 7 * MicroB on Maemo Unsupported Browsers: * Konqueror/KDE in any version * Internet Explorer (any version) on Windows XP * Safari on Windows XP * wget * BlackBerry Browser * Windows Mobile up to 6.5 * Android default browser (Targeted for Honeycomb but won't be fixed until next version for phone users as Honeycomb will be reserved to tablets only) * Oracle Java JSSE Note: The iRule listed here is only supported on v10 and above. Note: Support for SNI was added in 11.1.0. See SOL13452 for more information. How to use this snippet: Create a string-type datagroup to be called "tls_servername". Each hostname that needs to be supported on the VIP must be input along with its matching clientssl profile. For example, for the site "testsite.site.com" with a ClientSSL profile named "clientssl_testsite", you should add the following values to the datagroup. String: testsite.site.com Value: clientssl_testsite If you wish to switch pool context at the time the servername is detected in TLS, then you need to create a string-type datagroup called "tls_servername_pool". You will input each hostname to be supported by the VIP and the pool to direct the traffic towards. For the site "testsite.site.com" to be directed to the pool "testsite_pool_80", add the following to the datagroup: String: testsite.site.com Value: testsite_pool_80 Apply the iRule below to a chosen VIP. When applied, this iRule will detect if an SNI field is present and dynamically switch the SSL profile and pool to use the configured certificate. Important: The VIP must have a clientSSL profile AND a default pool set. If you don't set this, the iRule will likely break. There is also no real errorhandling for incorrect/inaccurate entries in the datagroup lists -- if you enter a bad value, it'll fail. This allows you to support multiple certificates and multiple pools per VS IP address. when CLIENT_ACCEPTED { if { [PROFILE::exists clientssl] } { # We have a clientssl profile attached to this VIP but we need # to find an SNI record in the client handshake. To do so, we'll # disable SSL processing and collect the initial TCP payload. set default_tls_pool [LB::server pool] set detect_handshake 1 SSL::disable TCP::collect } else { # No clientssl profile means we're not going to work. log local0. "This iRule is applied to a VS that has no clientssl profile." set detect_handshake 0 } } when CLIENT_DATA { if { ($detect_handshake) } { # If we're in a handshake detection, look for an SSL/TLS header. binary scan [TCP::payload] cSS tls_xacttype tls_version tls_recordlen # TLS is the only thing we want to process because it's the only # version that allows the servername extension to be present. When we # find a supported TLS version, we'll check to make sure we're getting # only a Client Hello transaction -- those are the only ones we can pull # the servername from prior to connection establishment. switch $tls_version { "769" - "770" - "771" { if { ($tls_xacttype == 22) } { binary scan [TCP::payload] @5c tls_action if { not (($tls_action == 1) && ([TCP::payload length] > $tls_recordlen)) } { set detect_handshake 0 } } } default { set detect_handshake 0 } } if { ($detect_handshake) } { # If we made it this far, we're still processing a TLS client hello. # # Skip the TLS header (43 bytes in) and process the record body. For TLS/1.0 we # expect this to contain only the session ID, cipher list, and compression # list. All but the cipher list will be null since we're handling a new transaction # (client hello) here. We have to determine how far out to parse the initial record # so we can find the TLS extensions if they exist. set record_offset 43 binary scan [TCP::payload] @${record_offset}c tls_sessidlen set record_offset [expr {$record_offset + 1 + $tls_sessidlen}] binary scan [TCP::payload] @${record_offset}S tls_ciphlen set record_offset [expr {$record_offset + 2 + $tls_ciphlen}] binary scan [TCP::payload] @${record_offset}c tls_complen set record_offset [expr {$record_offset + 1 + $tls_complen}] # If we're in TLS and we've not parsed all the payload in the record # at this point, then we have TLS extensions to process. We will detect # the TLS extension package and parse each record individually. if { ([TCP::payload length] >= $record_offset) } { binary scan [TCP::payload] @${record_offset}S tls_extenlen set record_offset [expr {$record_offset + 2}] binary scan [TCP::payload] @${record_offset}a* tls_extensions # Loop through the TLS extension data looking for a type 00 extension # record. This is the IANA code for server_name in the TLS transaction. for { set x 0 } { $x < $tls_extenlen } { incr x 4 } { set start [expr {$x}] binary scan $tls_extensions @${start}SS etype elen if { ($etype == "00") } { # A servername record is present. Pull this value out of the packet data # and save it for later use. We start 9 bytes into the record to bypass # type, length, and SNI encoding header (which is itself 5 bytes long), and # capture the servername text (minus the header). set grabstart [expr {$start + 9}] set grabend [expr {$elen - 5}] binary scan $tls_extensions @${grabstart}A${grabend} tls_servername set start [expr {$start + $elen}] } else { # Bypass all other TLS extensions. set start [expr {$start + $elen}] } set x $start } # Check to see whether we got a servername indication from TLS. If so, # make the appropriate changes. if { ([info exists tls_servername] ) } { # Look for a matching servername in the Data Group and pool. set ssl_profile [class match -value [string tolower $tls_servername] equals tls_servername] set tls_pool [class match -value [string tolower $tls_servername] equals tls_servername_pool] if { $ssl_profile == "" } { # No match, so we allow this to fall through to the "default" # clientssl profile. SSL::enable } else { # A match was found in the Data Group, so we will change the SSL # profile to the one we found. Hide this activity from the iRules # parser. set ssl_profile_enable "SSL::profile $ssl_profile" catch { eval $ssl_profile_enable } if { not ($tls_pool == "") } { pool $tls_pool } else { pool $default_tls_pool } SSL::enable } } else { # No match because no SNI field was present. Fall through to the # "default" SSL profile. SSL::enable } } else { # We're not in a handshake. Keep on using the currently set SSL profile # for this transaction. SSL::enable } # Hold down any further processing and release the TCP session further # down the event loop. set detect_handshake 0 TCP::release } else { # We've not been able to match an SNI field to an SSL profile. We will # fall back to the "default" SSL profile selected (this might lead to # certificate validation errors on non SNI-capable browsers. set detect_handshake 0 SSL::enable TCP::release } } }Command Performance
Problem this snippet solves: The article Ten Steps to iRules Optimization illustrates some ways to optimize your iRules. I took a look at the control statements and built a little iRule that will test those assertions and generate performance graphs using Google Charts to present the findings. How to use this snippet: Dependencies This iRule relies on external Class files for the test on the "class match" command. The class names should be in the form of "class_xxx" where xxx is the list size you want to test. Include xxx number of entries with values from 0 to xxx-1. For a list size of 10, the class should look like this: # Snippet in bigip.conf class calc_10 { "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" } I used perl to generate larger classes of size 100, 1000, 5000, and 10000 for my tests. Usage Assign the iRule to a virtual server and then browse to the url http://virtualserver/calccommands. I've included query string arguments to override the default test parameters as follows ls=nnn - List Size. You will need a class defined titled calc_10 for a value of ls=10. i=nnn - Number of iterations. This will be how many times the test is performed for each list size. gw=nnn - Graph Width (default value of 300) gh=nnn - Graph Height (default value of 200) ym=nnn - Graph Y Max value (default 500) An example usage is: http://virtualserver/calccommands?ls=1000&i=500. This will work on a list size of 1000 with 500 iterations per test. Code : when HTTP_REQUEST { #-------------------------------------------------------------------------- # read in parameters #-------------------------------------------------------------------------- set listsize [URI::query [HTTP::uri] "ls"]; set iterations [URI::query [HTTP::uri] "i"]; set graphwidth [URI::query [HTTP::uri] "gw"]; set graphheight [URI::query [HTTP::uri] "gh"]; set ymax [URI::query [HTTP::uri] "ym"]; #-------------------------------------------------------------------------- # set defaults #-------------------------------------------------------------------------- if { ("" == $iterations) || ($iterations > 10000) } { set iterations 500; } if { "" == $listsize } { set listsize 5000; } if { "" == $graphwidth } { set graphwidth 300; } if { "" == $graphheight } { set graphheight 200; } if { "" == $ymax } { set ymax 500; } set modulus [expr $listsize / 5]; set autosize 0; #-------------------------------------------------------------------------- # build lookup list #-------------------------------------------------------------------------- set matchlist "0"; for {set i 1} {$i < $listsize} {incr i} { lappend matchlist "$i"; } set luri [string tolower [HTTP::path]] switch -glob $luri { "/calccommands" { #---------------------------------------------------------------------- # check for existence of class file. If it doesn't exist # print out a nice error message. Otherwise, generate a page of # embedded graphs that route back to this iRule for processing #---------------------------------------------------------------------- if { [catch { class match "1" equals calc_$listsize } ] } { # error set content "<CENTER>BIG-IP Version $static::tcl_platform(tmmVersion)" append content "<H1 id="community-286142-toc-hId-1039316030"><FONT color="red">ERROR: class file 'calc_$listsize' not found</FONT></H1>"; append content ""; } else { # Build the html and send requests back in for the graphs... set content "<CENTER>BIG-IP Version $static::tcl_platform(tmmVersion)" append content "<P>List Size: ${listsize}</P><P></P><HR size="3" width="75%" /><P>" set c 0; foreach item $matchlist { set mod [expr $c % $modulus]; if { $mod == 0 } { append content "<IMG src="$luri/$item" append content "?ls=${listsize}&i=${iterations}&gw=${graphwidth}&gh=${graphheight}&ym=${ymax}" />"; } incr c; } append content "</P></CENTER>"; } HTTP::respond 200 content $content; } "/calccommands/*" { #---------------------------------------------------------------------- # Time various commands (switch, switch -glob, if/elseif, matchclass, # class match) and generate redirect to a Google Bar Chart #---------------------------------------------------------------------- set item [getfield $luri "/" 3] set labels "|" set values "" #---------------------------------------------------------------------- # Switch #---------------------------------------------------------------------- set expression "set t1 \[clock clicks -milliseconds\]; \n" append expression "for { set y 0 } { \$y < $iterations } { incr y } { " append expression "switch $item {" foreach i $matchlist { append expression "\"$i\" { } "; } append expression " } " append expression " } \n" append expression "set t2 \[clock clicks -milliseconds\]"; eval $expression; set duration [expr {$t2 - $t1}] if { [expr {$duration < 0}] } { log local0. "NEGATIVE TIME ($item, matchclass: $t1 -> $t2"; } append labels "s|"; if { $values ne "" } { append values ","; } append values "$duration"; if { $autosize && ($duration > $ymax) } { set ymax $duration } #---------------------------------------------------------------------- # Switch -glob #---------------------------------------------------------------------- set expression "set t1 \[clock clicks -milliseconds\]; \n" append expression "for { set y 0 } { \$y < $iterations } { incr y } { " append expression "switch -glob $item {" foreach i $matchlist { append expression "\"$i\" { } "; } append expression " } " append expression " } \n" append expression "set t2 \[clock clicks -milliseconds\]"; eval $expression; set duration [expr {$t2 - $t1}] if { [expr {$duration < 0}] } { log local0. "NEGATIVE TIME ($item, matchclass: $t1 -> $t2"; } append labels "s-g|"; if { $values ne "" } { append values ","; } append values "$duration"; if { $autosize && ($duration > $ymax) } { set ymax $duration } #---------------------------------------------------------------------- # If/Elseif #---------------------------------------------------------------------- set z 0; set y 0; set expression "set t1 \[clock clicks -milliseconds\]; \n" append expression "for { set y 0 } { \$y < $iterations } { incr y } { " foreach i $matchlist { if { $z > 0 } { append expression "else"; } append expression "if { $item eq \"$i\" } { } "; incr z; } append expression " } \n"; append expression "set t2 \[clock clicks -milliseconds\]"; eval $expression; set duration [expr {$t2 - $t1}] if { [expr {$duration < 0}] } { log local0. "NEGATIVE TIME ($item, matchclass: $t1 -> $t2"; } append labels "If|"; if { $values ne "" } { append values ","; } append values "$duration"; if { $autosize && ($duration > $ymax) } { set ymax $duration } #---------------------------------------------------------------------- # Matchclass on list #---------------------------------------------------------------------- set expression "set t1 \[clock clicks -milliseconds\]; \n" append expression "for { set y 0 } { \$y < $iterations } { incr y } { " append expression "if { \[matchclass $item equals \$matchlist \] } { }" append expression " } \n"; append expression "set t2 \[clock clicks -milliseconds\]"; eval $expression; set duration [expr {$t2 - $t1}] if { [expr {$duration < 0}] } { log local0. "NEGATIVE TIME ($item, matchclass: $t1 -> $t2"; } append labels "mc|"; if { $values ne "" } { append values ","; } append values "$duration"; if { $autosize && ($duration > $ymax) } { set ymax $duration } #---------------------------------------------------------------------- # class match (with class) #---------------------------------------------------------------------- set expression "set t1 \[clock clicks -milliseconds\]; \n" append expression "for { set y 0 } { \$y < $iterations } { incr y } { " append expression "if { \[class match $item equals calc_$listsize \] } { }" append expression " } \n"; append expression "set t2 \[clock clicks -milliseconds\]"; log local0. $expression; eval $expression; set duration [expr {$t2 - $t1}] if { [expr {$duration < 0}] } { log local0. "NEGATIVE TIME ($item, matchclass: $t1 -> $t2"; } append labels "c|"; if { $values ne "" } { append values ","; } append values "$duration"; if { $autosize && ($duration > $ymax) } { set ymax $duration } #---------------------------------------------------------------------- # build redirect for the google chart and issue a redirect #---------------------------------------------------------------------- set mod [expr $item % 10] set newuri "http://${mod}.chart.apis.google.com/chart?chxl=0:${labels}&chxr=1,0,${ymax}&chxt=x,y" append newuri "&chbh=a&chs=${graphwidth}x${graphheight}&cht=bvg&chco=A2C180&chds=0,${ymax}&chd=t:${values}" append newuri "&chdl=(in+ms)&chtt=Perf+(${iterations}-${item}/${listsize})&chg=0,2&chm=D,0000FF,0,0,3,1" HTTP::redirect $newuri; } } }Trigger js challenge/Captcha for ip reputation/ip intelligence categories

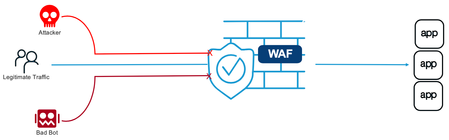

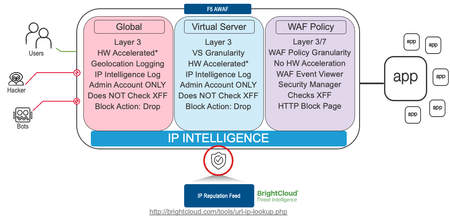

Problem solved by this Code Snippet Because some ISP or cloud providers do not monitor their users a lot of times client ip addresses are marked as "spam sources" or "windows exploits" and as the ip addresses are dynamic and after time a legitimate user can use this ip addresses the categories are often stopped in the IP intelligence profile or under the ASM/AWAF policy. This usually happens in Public Clouds that do not monitor what their users do and the IP gets marked as bad then another good user after a day or two has this ip address and this causes the issue. For many of my clients I had to stop the ip reputation/ip intelligence category "spam sources" and in some cases "windows exploits" so having a javascript/captcha checks seems a nice compromise 😎 To still make use of this categories the users coming from those ip addresses can be forced to solve captcha checks or at least to be checked for javascript support! How to use this Code Snippet Have AWAF/ASM and ip intelligence licensed Add AWAF/ASM policy with irule support option (by default not enabled under the policy) or/and Bot profile under the Virtual server Optionally add IP intelligence profile or enable the Ip intelligence under the WAF policy without the categories that cause a lot of false positives, Add the irule and if needed modify the categories for which it triggers Do not forget to first create the data group, used in the code or delete that part of the code and to uncomment the Bot part of the code, if you plan to do js check and not captcha and maybe comment the captcha part ! Code Snippet Meta Information Version: 17.1.3 Coding Language: TCL Code You can find the code and further documentation in my GitHub repository: reputation-javascript-captcha-challlenge/ at main · Nikoolayy1/reputation-javascript-captcha-challlenge when HTTP_REQUEST { # Take the ip address for ip reputation/intelligence check from the XFF header if it comes from the whitelisted source ip addresses in data group "client_ip_class" if { [HTTP::header exists "X-Forwarded-For"] && [class match [IP::client_addr] equals "/Common/client_ip_class"] } { set trueIP [HTTP::header "X-Forwarded-For"] } else { set trueIP [IP::client_addr] } # Check if IP reputation is triggered and it is containing "Spam Sources" if { ([llength [IP::reputation $trueIP]] != 0) && ([IP::reputation $trueIP] contains "Spam Sources") }{ log local0. "The category is [IP::reputation $trueIP] from [IP::client_addr]" # Set the variable 1 or bulean true as to trigger ASM captcha or bot defense javascript set js_ch 1 } else { set js_ch 0 } # Custom response page just for testing if there is no real backend origin server for testing if {!$js_ch} { HTTP::respond 200 content { <html> <head> <title>Apology Page</title> </head> <body> We are sorry, but the site you are looking for is temporarily out of service<br> If you feel you have reached this page in error, please try again. </body> </html> } } } # when BOTDEFENSE_ACTION { # Trigger bot defense action javascript check for Spam Sources # if {$js_ch && (not ([BOTDEFENSE::reason] starts_with "passed browser challenge")) && ([BOTDEFENSE::action] eq "allow") }{ # BOTDEFENSE::action browser_challenge # } # } when ASM_REQUEST_DONE { # Trigger ASM captcha check only for users comming from Spam sources that have not already passed the captcha check (don't have the captcha cookie) if {$js_ch && [ASM::captcha_status] ne "correct"} { set res [ASM::captcha] if {$res ne "ok"} { log local0. "Cannot send captcha_challenge: \"$res\"" } } } Extra References: BOTDEFENSE::action ASM::captcha ASM::captcha_statusF5 ASM/AWAF Preventing unauthorized users accessing admin path​ using iRule script
The below code uses the new BIG-IP variables " [ASM::is_authenticated] " and " [ASM::username] " and the code is simple enough as if you are authenticated but not admin then you will not get access to the url path " /about.php " and this is logged in the /var/log/asm logs because " log local3. ". At the end of the article I have shown how with APM you can accomplish AD group limit for specific urls but then the Authentication is moved on the APM while the AWAF iRule example the authentication is on the origin web server and the AWAF just handles the URL Authorization. when ASM_REQUEST_DONE { if { [ASM::is_authenticated] && [HTTP::path] equals "/about.php" } { log local3. "This request was sent by user [ASM::username]." if {[ASM::username] equals "admin"} { log local3. "The admin has logged!" return } else { drop } } } Github link: Nikoolayy1/F5_AWAF-ASM-ADMIN-Access: F5 BIG-IP iRule code for limiting users by to access urls! The harder part is that you need to do several prerequisites that I will explain here: Enable iRule support in the ASM policy. Configure a login page and optionally login enforcement (if " /about.php " is not blocked by the origin server to not be accessible before login this is a needed step!) Enable session tracking by login page Attach the irule Test and see Example logs: cat /var/log/asm ......... Jun 25 03:59:33 bigip1.com info tmm2[11400]: Rule /Common/f5-asm-allow-admin <ASM_REQUEST_DONE>: This request was sent by user admin. Jun 25 03:59:33 bigip1.com info tmm2[11400]: Rule /Common/f5-asm-allow-admin <ASM_REQUEST_DONE>: The admin has logged! [root@bigip1:Active:Standalone] config # The DVWA app was used for this demo that is old but gold and there are many F5 demos how to configure login enforcement for it! Here is a youtube video for assistance: BIG-IP AWAF Demo 32 - Use Login Page Enforcement with F5 BIG-IP Adv WAF (formerly ASM) Extra links (there is also a new event "ASM_RESPONSE_LOGIN"): ASM::username ASM::is_authenticated https://clouddocs.f5.com/api/irules/ASM.html AD group url enforcement: If you want to control access to URLs based on AD groups I suggest seeing the F5 APM/Acess module that will take of the authentication and with Layer 7 ACL each AD group could be limited what it has access to. APM and AWAF can work together as with layered virtual server AWAF can be before the APM as by default is after it and then to get the username you need to use the login page feature and not "Use APM username and Session ID" feature in the AWAF policy. Configuring Access Control Lists https://my.f5.com/manage/s/article/K00363504 https://my.f5.com/manage/s/article/K03113285 https://my.f5.com/manage/s/article/K54217479 Example APM profile of type LTM+APM and the APM policy for anyone interested where the APM uses AD to authenticate the users and query for group data and the members for of the guest group have an ACL assigned that limits their access 😜 Summary: This probably will be seen as well in F5 NEXT with many more cool features !Hey DeepSeek, can you write iRules?
Back in time... Two years ago I asked ChatGPT whether it could write iRules. My conclusion after giving several tasks to ChatGPT was, that it can help with simple tasks but it cannot write intermediate or complex iRules. A new AI enters the competition Two weeks ago DeepSeek entered the scene and thought it's a good idea to ask it about its capabilities to write iRules. Spoiler alert: It cannot. New AI, same challenges I asked DeepSeek the same questions I asked ChatGPT 2 years ago. Write me an iRule that redirects HTTP to HTTPS Can you write an iRule that rewrites the host header in HTTP Request and Response? Can you write an iRule that will make a loadbalancing decision based on the HTTP Host header? Can you write an iRule that will make a loadbalancing decision based on the HTTP URI header? Write me an iRule that shows different ASM blocking pages based on the host header. The response should include the support ID. I stopped DeepSeek asking after the 5th question, DeepSeek is clueless about iRules. The answer I got from DeepSeek to 1, 2, 4 and 5 was always the same: when HTTP_REQUEST { # Check if the request is coming to port 80 (HTTP) if { [TCP::local_port] equals 80 } { # Construct the HTTPS URL set host [HTTP::host] set uri [HTTP::uri] set redirect_url "https://${host}${uri}" # Perform the redirect HTTP::redirect $redirect_url } } While this is a solution to task 1, it is plain wrong for 2, 3, 4 and 5. And even for the first challenge this is not a good. Actually it hurts me reading this iRule... Here for example task 2, just wrong... For task 3 DeepSeeks answer was: ChatGPT in 2025 For completeness, I gave the same tasks from 2023 to ChatGPT again. Briefly said - ChatGPT was OK in solving tasks 1-4 in 2023 and still is. It improved it's solution for task 5, the ASM iRule challenge. In 2023 I had two more tasks related to rewriting and redirecting. ChatGPT still failed to provide a solid solution for those two tasks. Conclusion DeepSeek cannot write iRules and ChatGPT still isn't good at it. Write your own iRules or ask the friendly people here on devcentral to help you.Ultimate irule debug - Capture and investigate
Problem this snippet solves: I decided to share this Irule for different reasons. When I help our community on devcentral, I regularly see people making recurring requests: How do I do to capture the queries header. How do I do to capture the response header. How do I check the information in the POST Request. How do I check response data (body). What cypher/protocol I use (SSL/TLS). I set up client certificate authentication but I do not know if it works and if I pass my certificate auth. I want to retrieve information from my authentication certificate (subject, issuer, …). My authenticating by certificate does not work and I get an error of what I have to do. I have latencies when dealing with my request. where does the latency come from (F5, server,..). I set up sso (kerberos delegation, json post, Form sso). I do not feel that my request is sent to the backend (or the kerberos token). Does F5 add information or modify the request/response. Which pool member has been selected My VS don’t answer (where does the problem come from) … instead of having an Irule for each request why not consolidate everything and provide a compact Irule. this Irule can help you greatly during your investigations and allows you to capture these different items: How to use this snippet: you have a function that allows you to activate the desired logs (1 to activate and 0 to disable) as describe below: array set app_arrway_referer { client_dest_ip_port 1 client_cert 1 http_request 1 http_request_release 1 http_request_payload 0 http_lb_selected 1 http_response 0 http_response_release 0 http_response_payload 0 http_time_process 0 } the posted logs will be preceded by a UID which will allow you to follow from the beginning to the end of the process of your request / answer. you can for example make a grep on the log to follow the complete process (request / answer). the UID is generated in the following way: `set uid [string range [AES::key 256] 15 23] client_dest_ip_port: this section will allow you to see source IP/Port and destination IP/Port. <CLIENT_ACCEPTED>: ----------- client_dest_ip_port ----------- <CLIENT_ACCEPTED>: uid: 382951fe9 - Client IP Src: 10.20.30.4:60419 <CLIENT_ACCEPTED>: uid: 382951fe9 - Client IP Dest:192.168.30.45:443 <CLIENT_ACCEPTED>: ----------- client_dest_ip_port ----------- client_cert: this section will allow you to check the result code for peer certificate verification ( and also if you have provide a certificate auth). moreover you will be able to recover the information of your authentication certficat (issuer, subject, …). if your authentication certificate that you provid is not valid an error message will be returned (ex: certificate chain too long, invalid CA certificate, …). all errors are listed in the link below: https://devcentral.f5.com/wiki/iRules.SSL__verify_result.ashx <HTTP_REQUEST>: ----------- client_cert ----------- <HTTP_REQUEST>: uid: 382951fe9 - cert number: 0 <HTTP_REQUEST>: uid: 382951fe9 - subject: OU=myOu, CN=youssef <HTTP_REQUEST>: uid: 382951fe9 - Issuer Info: DC=com, DC=domain, CN=MobIssuer <HTTP_REQUEST>: uid: 382951fe9 - cert serial: 22:00:30:5c:de:dd:ec:23:6e:b5:e6:77:bj:01:00:00:22:3c:dc <HTTP_REQUEST>: ----------- client_cert ----------- OR <HTTP_REQUEST>: ----------- client_cert ----------- <HTTP_REQUEST>: uid: 382951fe9 - No client certificate provided <HTTP_REQUEST>: ----------- client_cert ----------- http_request: This section allow you to retrieve the complete client HTTP request headers (that is, the method, URI, version, and all headers). I also added the protocol, the ciphers and the name of the vs used. <HTTP_REQUEST>: ----------- http_request ----------- <HTTP_REQUEST>: uid: 382951fe9 - protocol: https <HTTP_REQUEST>: uid: 382951fe9 - cipher name: ECDHE-RSA-AES128-GCM-SHA256 <HTTP_REQUEST>: uid: 382951fe9 - cipher version: TLSv1.2 <HTTP_REQUEST>: uid: 382951fe9 - VS Name: /Common/vs-myapp-443 <HTTP_REQUEST>: uid: 382951fe9 - Request: POST myapp.mydomain.com/browser-management/users/552462/playlist/play/api <HTTP_REQUEST>: uid: 382951fe9 - Host: myapp.mydomain.com <HTTP_REQUEST>: uid: 382951fe9 - Connection: keep-alive <HTTP_REQUEST>: uid: 382951fe9 - Content-Length: 290 <HTTP_REQUEST>: uid: 382951fe9 - Accept: application/json, text/javascript, */*; q=0.01 <HTTP_REQUEST>: uid: 382951fe9 - X-Requested-With: XMLHttpRequest <HTTP_REQUEST>: uid: 382951fe9 - User-Agent: Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/51.0.2704.106 Safari/537.36 <HTTP_REQUEST>: uid: 382951fe9 - Referer: https://myapp.mydomain.com/ <HTTP_REQUEST>: uid: 382951fe9 - Accept-Encoding: gzip, deflate, sdch, br <HTTP_REQUEST>: uid: 382951fe9 - Accept-Language: en-US,en;q=0.8 <HTTP_REQUEST>: uid: 382951fe9 - Cookie: RLT=SKjpfdkFDKjkufd976HJhldds=; secureauth=true; STT="LKJSDKJpjslkdjslkjKJSHjfdskjhoLHkjh78dshjhd980szKJH"; ASP.SessionId=dsliulpoiukj908798dsjkh <HTTP_REQUEST>: uid: 382951fe9 - X-Forwarded-For: 10.10.10.22 <HTTP_REQUEST>: ----------- http_request ----------- http_request_release: This section triggered when the system is about to release HTTP data on the serverside of the connection. This event is triggered after modules process the HTTP request. So it will allow you to check request after F5 process. suppose that you have put APM with SSO kerberos, you will be able to see the kerberos token insert by F5. Or XFF insert by HTTP profile… <HTTP_REQUEST_RELEASE>: ----------- http_request_release ----------- <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - VS Name: /Common/vs-myapp-443 <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - Request: GET myapp.mydomain.com/browser-management/users/552462/playlist/play/api <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - Host: myapp.mydomain.com <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - Connection: keep-alive <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - Accept: application/json, text/javascript, */*; q=0.01 <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - X-Requested-With: XMLHttpRequest <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - User-Agent: Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/51.0.2704.106 Safari/537.36 <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - Referer: https://myapp.mydomain.com/ <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - Accept-Encoding: gzip, deflate, sdch, br <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - Accept-Language: en-US,en;q=0.8 <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - Cookie: RLT=SKjpfdkFDKjkufd976HJhldds=; secureauth=true; STT="LKJSDKJpjslkdjslkjKJSHjfdskjhoLHkjh78dshjhd980szKJH"; ASP.SessionId=dsliulpoiukj908798dsjkh <HTTP_REQUEST_RELEASE>: uid: 382951fe9 - X-Forwarded-For: 10.10.10.22 <HTTP_REQUEST_RELEASE>: ----------- http_request_release ----------- http_request_payload: This section will allow you to retrieve the HTTP request body. <HTTP_REQUEST>: ----------- http_request_payload ----------- <HTTP_REQUEST>: uid: 382951fe9 - Content-Length header null in request If GET or POST withtout content) <HTTP_REQUEST>: ----------- http_request_payload ----------- or <HTTP_REQUEST>: ----------- http_request_payload ----------- <HTTP_REQUEST>: uid: 382951fe9 - post payload: { id: 24, retrive: 'identity', service: 'IT'} <HTTP_REQUEST>: ----------- http_request_payload ----------- http_lb_selected This section will allow you to you to see which pool member has been selected. Once the pool memeber has been selected, you will not see this logs again until another load balancing decision will be made. If you want to see the selected pool memeber for each request you can see this information in "http_response". <HTTP_REQUEST>: ----------- http_lb_selected ----------- <LB_SELECTED>: uid: 382951fe9 - pool member IP: /Common/pool-name 10.22.33.54 443 <HTTP_REQUEST>: ----------- http_lb_selected ----------- http_response: This section will allow you to retrieve the response status and header lines from the server response. You can also see which pool member has been selected. <HTTP_RESPONSE>: ----------- http_response ----------- <HTTP_RESPONSE>: uid: 382951fe9 - status: 200 <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - pool member IP: /Common/pool-name 10.22.33.54 443 <HTTP_RESPONSE>: uid: 382951fe9 - Cache-Control: no-cache <HTTP_RESPONSE>: uid: 382951fe9 - Pragma: no-cache <HTTP_RESPONSE>: uid: 382951fe9 - Content-Type: application/json; charset=utf-8 <HTTP_RESPONSE>: uid: 382951fe9 - Expires: -1 <HTTP_RESPONSE>: uid: 382951fe9 - Server: Microsoft-IIS/8.5 <HTTP_RESPONSE>: uid: 382951fe9 - X-Powered-By: ASP.NET <HTTP_RESPONSE>: uid: 382951fe9 - Date: Fri, 28 Oct 2018 06:46:59 GMT <HTTP_RESPONSE>: uid: 382951fe9 - Content-Length: 302 <HTTP_RESPONSE>: ----------- http_response ----------- http_response_release: This section triggered when the system is about to release HTTP data on the clientside of the connection. This event is triggered after modules process the HTTP response. you can make sure that the answer has not been altering after the f5 process. You can also see which pool member has been selected. <HTTP_RESPONSE_RELEASE>: ----------- http_response_release ----------- <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - status: 200 <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - pool member IP: /Common/pool-name 10.22.33.54 443 <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Cache-Control: no-cache <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Pragma: no-cache <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Content-Type: application/json; charset=utf-8 <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Expires: -1 <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Server: Microsoft-IIS/8.5 <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - X-Powered-By: ASP.NET <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Date: Fri, 28 Oct 2018 06:46:59 GMT <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Content-Length: 302 <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Strict-Transport-Security: max-age=16070400; includeSubDomains <HTTP_RESPONSE_RELEASE>: ----------- http_response_release ----------- http_response_payload: This section will allow you to Collects an amount of HTTP body data that you specify. <HTTP_RESPONSE_DATA>: ----------- http_response_payload ----------- <HTTP_RESPONSE_DATA>: uid: 382951fe9 - Response (Body) payload: { "username" : "youssef", "genre" : "unknown", "validation-factors" : { "validationFactors" : [ { "name" : "remote_address", "value" : "127.0.0.1" } ] }} <HTTP_RESPONSE_DATA>: ----------- http_response_payload ----------- http_time_process: this part will allow you to put back information which can be useful to you to target the latency problematic. it is clear that it is not precise and that f5 offers other tools for that. but you will be able to quickly see which elements take the most time to be processed. you will be able to see how long f5 takes to process the request, the response and how long the backend server takes time to respond. <HTTP_RESPONSE_RELEASE>: ----------- http_time_process ----------- <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Time to request (F5 request time) = 5 (ms) <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Time to response (F5 response time) = 0 (ms) <HTTP_RESPONSE_RELEASE>: uid: 382951fe9 - Time to server (server backend process time) = 4 (ms) <HTTP_RESPONSE_RELEASE>: ----------- http_time_process ----------- Code : when CLIENT_ACCEPTED { # set a unique id for transaction set uid [string range [AES::key 256] 15 23] # set what's you want to retrieve 0 or 1 array set app_arrway_referer { client_dest_ip_port 1 client_cert 1 http_request 1 http_request_release 1 http_request_payload 1 http_lb_selected 1 http_response 1 http_response_release 1 http_response_payload 1 http_time_process 1 } if {$app_arrway_referer(client_dest_ip_port)} { log local0. " ----------- client_dest_ip_port ----------- " clientside { log local0. "uid: $uid - Client IP Src: [IP::client_addr]:[TCP::client_port]" } log local0. "uid: $uid - Client IP Dest:[IP::local_addr]:[TCP::local_port]" log local0. " ----------- client_dest_ip_port ----------- " log local0. " " } } when HTTP_REQUEST { set http_request_time [clock clicks -milliseconds] # Triggered when the system receives a certificate message from the client. The message may contain zero or more certificates. if {$app_arrway_referer(client_cert)} { log local0. " ----------- client_cert ----------- " # SSL::cert count - Returns the total number of certificates that the peer has offered. if {[SSL::cert count] > 0}{ # Check if there was no error in validating the client cert against LTM's server cert if { [SSL::verify_result] == 0 }{ for {set i 0} {$i < [SSL::cert count]} {incr i}{ log local0. "uid: $uid - cert number: $i" log local0. "uid: $uid - subject: [X509::subject [SSL::cert $i]]" log local0. "uid: $uid - Issuer Info: [X509::issuer [SSL::cert $i]]" log local0. "uid: $uid - cert serial: [X509::serial_number [SSL::cert $i]]" } } else { # https://devcentral.f5.com/s/wiki/iRules.SSL__verify_result.ashx (OpenSSL verify result codes) log local0. "uid: $uid - Cert Info: [X509::verify_cert_error_string [SSL::verify_result]]" } } else { log local0. "uid: $uid - No client certificate provided" } log local0. " ----------- client_cert ----------- " log local0. " " } if {$app_arrway_referer(http_request)} { log local0. " ----------- http_request ----------- " if { [PROFILE::exists clientssl] == 1 } { log local0. "uid: $uid - protocol: https" log local0. "uid: $uid - cipher name: [SSL::cipher name]" log local0. "uid: $uid - cipher version: [SSL::cipher version]" } log local0. "uid: $uid - VS Name: [virtual]" log local0. "uid: $uid - Request: [HTTP::method] [HTTP::host][HTTP::uri]" foreach aHeader [HTTP::header names] { log local0. "uid: $uid - $aHeader: [HTTP::header value $aHeader]" } log local0. " ----------- http_request ----------- " log local0. " " } set collect_length_request [HTTP::header value "Content-Length"] set contentlength 1 if {$app_arrway_referer(http_request_payload)} { if { [catch { if { $collect_length_request > 0 && $collect_length_request < 1048577 } { set collect_length $collect_length_request } else { set collect_length 1048576 } if { $collect_length > 0 } { HTTP::collect $collect_length_request set contentlength 1 } }] } { # no DATA in POST Request log local0. " ----------- http_request_payload ----------- " log local0. "uid: $uid - Content-Length header null in request" log local0. " ----------- http_request_payload ----------- " log local0. " " set contentlength 0 } } } when HTTP_REQUEST_DATA { if {$app_arrway_referer(http_request_payload)} { log local0. " ----------- http_request_payload ----------- " if {$contentlength} { set postpayload [HTTP::payload] log local0. "uid: $uid - post payload: $postpayload" #HTTP::release } log local0. " ----------- http_request_payload ----------- " log local0. " " } } when HTTP_REQUEST_RELEASE { if {$app_arrway_referer(http_request_release)} { log local0. " ----------- http_request_release ----------- " if { [PROFILE::exists clientssl] == 1 } { log local0. "uid: $uid - cipher protocol: https" log local0. "uid: $uid - cipher name: [SSL::cipher name]" log local0. "uid: $uid - cipher version: [SSL::cipher version]" } log local0. "uid: $uid - VS Name: [virtual]" log local0. "uid: $uid - Request: [HTTP::method] [HTTP::host][HTTP::uri]" foreach aHeader [HTTP::header names] { log local0. "uid: $uid - $aHeader: [HTTP::header value $aHeader]" } log local0. " ----------- http_request_release ----------- " log local0. " " } set http_request_time_release [clock clicks -milliseconds] } when LB_SELECTED { if {$app_arrway_referer(http_lb_selected)} { log local0. " ----------- http_lb_selected ----------- " log local0. "uid: $uid - pool member IP: [LB::server]" log local0. " ----------- http_lb_selected ----------- " log local0. " " } } when HTTP_RESPONSE { set http_response_time [clock clicks -milliseconds] set content_length [HTTP::header "Content-Length"] if {$app_arrway_referer(http_response)} { log local0. " ----------- http_response ----------- " log local0. "uid: $uid - status: [HTTP::status]" log local0. "uid: $uid - pool member IP: [LB::server]" foreach aHeader [HTTP::header names] { log local0. "uid: $uid - $aHeader: [HTTP::header value $aHeader]" } log local0. " ----------- http_response ----------- " log local0. " " } if {$app_arrway_referer(http_response_payload)} { if { $content_length > 0 && $content_length < 1048577 } { set collect_length $content_length } else { set collect_length 1048576 } if { $collect_length > 0 } { HTTP::collect $collect_length } } } when HTTP_RESPONSE_DATA { if {$app_arrway_referer(http_response_payload)} { log local0. " ----------- http_response_payload ----------- " set payload [HTTP::payload] log local0. "uid: $uid - Response (Body) payload: $payload" log local0. " ----------- http_response_payload ----------- " log local0. " " } } when HTTP_RESPONSE_RELEASE { set http_response_time_release [clock clicks -milliseconds] if {$app_arrway_referer(http_response_release)} { log local0. " ----------- http_response_release ----------- " log local0. "uid: $uid - status: [HTTP::status]" log local0. "uid: $uid - pool member IP: [LB::server]" foreach aHeader [HTTP::header names] { log local0. "uid: $uid - $aHeader: [HTTP::header value $aHeader]" } log local0. " ----------- http_response_release ----------- " log local0. " " } if {$app_arrway_referer(http_time_process)} { log local0. " ----------- http_time_process ----------- " log local0.info "uid: $uid - Time to request (F5 request time) = [expr $http_request_time - $http_request_time_release] (ms)" log local0.info "uid: $uid - Time to response (F5 response time) = [expr $http_response_time - $http_response_time_release] (ms)" log local0.info "uid: $uid - Time to server (server backend process time) = [expr $http_request_time_release - $http_response_time] (ms)" log local0. " ----------- http_time_process ----------- " log local0. " " } } Tested this on version: 13.0
Proxy Protocol v2 Initiator
Problem this snippet solves: Proxy Protocol v1 related articles have already been posted on DevCentral, but there is no v2 support iRule code available. A customer wanted to support Proxy Protocol v2, so I wrote an iRule code for supporting v2. Proxy protocol for the BIG-IP (f5.com) How to use this snippet: Back-end server must handle Proxy header prior data exchange. Code : when CLIENT_ACCEPTED { # DEBUG On/Off set DEBUG 0 set v2_proxy_header "0d0a0d0a000d0a515549540a" # v2 version and command : 0x21 - version 2 & PROXY command set v2_ver_command "21" # v2 address family and transport protocol : 0x11 - AF_INET (IPv4) & TCP protocol set v2_af_tp "11" # v2 Address Size : 0x000C - 12 bytes for IPv4 + TCP set v2_address_length "000c" # Get TCP port - 2 byte hexadecimal format set src_port [format "%04x" [TCP::client_port]] set dst_port [format "%04x" [TCP::local_port]] # Get Src Address and convert to 4 byte hexadecimal format foreach val [split [IP::client_addr] "."] { append src_addr [format "%02x" $val] } # Get Dst Address and convert to 4 byte hexadecimal format foreach val [split [IP::local_addr] "."] { append dst_addr [format "%02x" $val] } # Build proxy v2 data set proxy_data [binary format H* "${v2_proxy_header}${v2_ver_command}${v2_af_tp}${v2_address_length}${src_addr}${dst_addr}${src_port}${dst_port}"] if { $DEBUG } { binary scan $proxy_data H* proxy_dump log local0. "[IP::client_addr]:[TCP::client_port]_[IP::local_addr]:[TCP::local_port] - proxy_data dump : $proxy_dump" } } when SERVER_CONNECTED { TCP::respond $proxy_data }
Request Client Certificate And Pass To Application
Problem this snippet solves: We are using BigIP to dynamically request a client certificate. This example differs from the others available in that it actually passes the x509 certificate to the server for processing using a custom http header. The sequence of event listeners required to accomplish this feat is: HTTP_REQUEST, which invokes CLIENTSSL_HANDSHAKE, which is followed by HTTP_REQUEST_SEND The reason is that CLIENTSSL_HANDSHAKE occurs after HTTP_REQUEST event is processed entirely, but HTTP_REQUEST_SEND occurs after it. The certificate appears in PEM encoding and is slightly mangled; you need to emit newlines to get back into proper PEM format: -----BEGIN CERTIFICATE------ Mabcdefghj... -----END CERTIFICATE----- This certificate can be converted to DER encoding by jettisoning the BEGIN and END markers and doing base64 decode on the string. Code : # Initialize the variables on new client tcp session. when CLIENT_ACCEPTED { set collecting 0 set renegtried 0 } # Runs for each new http request when HTTP_REQUEST { # /_hst name and ?_hst=1 parameter triggers client cert renegotiation if { $renegtried == 0 and [SSL::cert count] == 0 and ([HTTP::uri] matches_regex {^[^?]*/_hst(\?|/|$)} or [HTTP::uri] matches_regex {[?&]_hst=1(&|$)}) } { # Collecting means buffering the request. The collection goes on # until SSL::renegotiate occurs, which happens after the HTTP # request has been received. The maximum data buffered by collect # is 1-4 MB. HTTP::collect set collecting 1 SSL::cert mode request SSL::renegotiate } } # After a handshake, we log that we have tried it. This is to prevent # constant attempts to renegotiate the SSL session. I'm not sure of this # feature; this may in fact be a mistake, but we can change it at any time. # It is transparent if we do: the connections only work slower. It would, # however, make BigIP detect inserted smartcards immediately. Right answer # depends on the way the feature is used by applications. when CLIENTSSL_HANDSHAKE { if { $collecting == 1 } { set renegtried 1 # Release allows the request processing to occur normally from this # point forwards. The next event to fire is HTTP_REQUEST_SEND. HTTP::release } } # Inject headers based on earlier renegotiations, if any. when HTTP_REQUEST_SEND { clientside { # Security: reject any user-submitted headers by our magic names. HTTP::header remove "X-ENV-SSL_CLIENT_CERTIFICATE" HTTP::header remove "X-ENV-SSL_CLIENT_CERTIFICATE_FAILED" # if certificate is available, send it. Otherwise, send a header # indicating a failure, if we have already attempted a renegotiate. if { [SSL::cert count] > 0 } { HTTP::header insert "X-ENV-SSL_CLIENT_CERTIFICATE" [X509::whole [SSL::cert 0]] } elseif { $renegtried == 1 } { # This header has some debug value: if the FAILED header is not # present, BigIP is probably not configured to do client certs # at all. HTTP::header insert "X-ENV-SSL_CLIENT_CERTIFICATE_FAILED" "true" } } }
