Traffic Intelligence in AFM

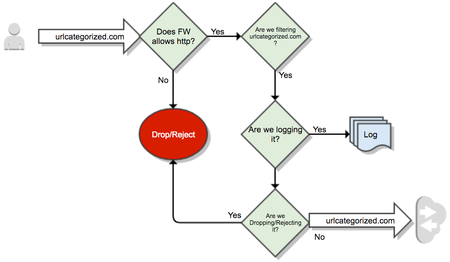

Introduction Traffic Intelligence is a feature created for PEM module years ago, and therefore used typically for integrations into Service Providers. But we can also integrate it with AFM in order to provide more granularity to our firewall policies by including URL classification into our firewall rules. In this way we can, as a typical example, allow Internet traffic from internal company clients while, at the same time, we can control this traffic by filtering it using different parameters like the type of application this traffic belongs to, or the category associated to this traffic. How to In order to filtering traffic attending to the category it belongs to, we have two options, using existing categories or creating our own categories. This is a very important difference since in fact for the former option we do need access to Webroot because we will need to download the classification DB (also called im package), whilst the latter option does not require access to this DB. Regardless above described options we choose, in both cases the flow is the same, let's see it with a simple example: We work for a company that wants to avoid their employees access to gaming webs, so we create a classification policy to reject this type of traffic. At some point an employee tries to access to a gaming web during work time. The request reaches AFM and pass through different internal modules. At some point packet reaches Global FW rules and packet is matched against its configured rules. If there is not any match then packet moves forward to other modules. Let's imagine that we have configured a virtual server that allows http/s traffic to Internet from internal clients, and this virtual server has a firewall rule which allows this specific traffic. But also this firewall rule it has been configured for logging and rejecting packets requesting access to gaming websites. Once packet reaches the firewall policy configured in this virtual server it matches the rule that allows http/s traffic. Traffic is allowed by commented firewall rule. Now AFM checks classification policy applied to this rule and it confirms that client request match the configured category (Games). AFM applies the configured action for this classification policy, it sends specific log to /var/log/ltm and it rejects the packet. Using webroot categories For this option to work we need to download the im package: # tmsh run ltm classification updates ⚠Warning: If our device has not at least 16GB RAM im package will not be downloaded and we will see the following log in/var/log/wr_urldbd.out once we restart wr_urldbd daemon: nInterprocInit: Zeroed out common structs. BcSdkInit() setting F5 callback func to 0x4160e0 process_license: webroot_licensed=1; m_wr_licensed=0 process_license: webroot license added/renewed Module afm is provisioned. process_provisioning: afm_provisioned=1 Host memory less than 16GB, database will not be downloaded Marking webroot related process for termination. sig 0 Also we will see Webroot license Absent/Expired when we try to run an URL lookup: # tmsh show ltm urlcat-query www.facebook.com --------------------------------------------------------------------- URL : www.facebook.com --------------------------------------------------------------------- URL-CATEGORIES(Combined) :Uncategorized URL-CATEGORIES(Webroot):Skipped - Webroot License Absent/Expired URL-CATEGORIES(Custom): URL-CATEGORIES(Cloud):Uncategorized Once we have im package downloaded we can start to configure. In our example we will instruct AFM to allow http/s traffic from internal clients to Internet but we will reject traffic to any gaming web. Also we will log in /var/log/ltm when a client tries to access to a gaming web. In order to do this we need to follow three simple steps: Create a classification profile. This profile will be the base profile for any classification configuration: ltm profile classification classifficationProfile { app-detection on avr-publisher varLogLtm avr-stat-collect on defaults-from classification irule-event on log-publisher varLogLtm log-unclassified-domain on preset ce urlcat on } *Note that varLogLtm is a Publisher that includes local-syslog as destination for logs since I want to confirm functioning by checking /var/log/ltm logs. Create a classification policy defining desired actions when traffic includes a request to Game category: ltm policy ClassificationPolicy { controls { classification } requires { classification } rules { R1 { actions { 0 { log classification-detected write facility local0 message "An employee tried to access to a gaming website!" priority info } 1 { classification classification-detected reject } } conditions { 0 { classification classification-detected url-category contains values { Games } } } } } status published strategy best-match } Finally we just need to add this classification policy into a firewall rule, for example: security firewall policy InternetAccess { rules { R0 { action accept classification-policy /Common/ClassificationPolicy ip-protocol tcp log yes rule-number 1 } [....] At this point all needed configuration has been done. Now we can try to access from a client to a gaming web and see the result. If we want we can run a URL category lookup first in order to confirm that website belongs to Games category: # tmsh show ltm urlcat-querygamespot.com ------------------------------------------ URL : gamespot.com ------------------------------------------ URL-CATEGORIES(Combined):Games URL-CATEGORIES(Webroot):Games URL-CATEGORIES(Custom): URL-CATEGORIES(Cloud):Uncategorized # curl gamespot.com curl: (56) Recv failure: Connection reset by peer AFM will show that firewall policy is Accepting the traffic, since it is http, but also the subsequent expected log and reject defined in the classification policy: May 28 06:35:55 bigip1 info tmm[18809]: 23003137 "10.201.198.77","bigip1","Virtual Server","/Common/VS_FWD","No-lookup","10.10.10.10","No-lookup","10.10.20.209","32996","80","/Common/External","TCP","0","","","","","","","","Enforced","/Common/InternetAccess","R0","","Accept","","","","0000000000000000","unknown","unknown","unknown","unknown","","","","","No-lookup","No-lookup" May 28 06:35:55 bigip1 info tmm1[18809]: [/Common/ClassificationPolicy/R1]: An employee tried to access to a gaming website! May 28 06:35:55 bigip1 info tmm[18809]: 27656193 "27656193","bigip1","10.10.10.10","32996","10.10.20.209","80","/Common/External","","","","","","Unknown","Unknown","TCP","00015657058d4ea0","/Common/VS_FWD","/Common/ClassificationPolicy","/Common/InternetAccess","R0","May 28 2020 06:35:55","reject","","tcp","http","","","","","","","1","Network_Management_and_Services","Network_Management_and_Services","","","","","","","Games","","","" May 28 06:35:55 bigip1 info tmm[18809]: 27131905 "27131905","bigip1","10.10.10.10","32996","10.10.20.209","80","TCP","/Common/VS_FWD","/Common/classifficationProfile","","","allow","tcp","","","","","","","","1","Network_Management_and_Services","","","","","","","","","","","","331","112","4","","","","","","" Using own categories In this case we are going to create our own category and we are going to feed this category with our own URLs. When clients try to access to one these URLs then traffic will be rejected and logged. In order to do this we need to follow below steps: Create a new category. Note we have to define an ID between 28672 and 32768: ltm classification category velasco { category-id 28673 } Create a Category Feed list and associate the above category to it ltm classification url-category velasco { urlcat-id 28673 } Create a URL DB feed list in a TXT/CSV file with the URLs I am going to test with my client. The format is: URL, category-id: cat /var/local/pem/velascoFeed.txt velasco.com, 28673 test.velasco.com, 28673 In above Category Feed list I assign this TXT file. This step is shown in config as below: ltm classification urldb-feed-list velascoFeed { default-url-category velasco enabled url file:///var/local/pem/velascoFeed.txt } Create a policy: "IF url-category CONTAINS 'velasco' THEN reject and log": ltm policy ClassificationPolicy2 { controls { classification } requires { classification } rules { R1 { actions { 0 { log classification-detected write facility local0 message "I am watching you!!!" priority info } 1 { classification classification-detected reject } } conditions { 0 { classification classification-detected url-category contains values { velasco } } } } } status published strategy best-match } No we just need to apply classification policy to firewall rule and try to access from clients as we did before for Webroot categories. We will see in logs how we categorize traffic from clients and apply classification policy action: tmctl gpa_urlcat_stats namecount irule customdb wrdb cloud srdb bytes_in bytes_out pkts_in ------------- ----- ----- -------- ---- ----- ---- -------- --------- ------- Uncategorized5600520447679589104731 Unknown000000000 velasco1201200010834138432168 Basic usage Besides AFM configurations described above we can just use classification profile as described in PEM manuals. Since this is not the intention of this article I will just comment briefly the most simple usage, for more information check related manuals. Only requirements to control classified traffic is creating a classification profile as described in previous steps and apply it to a virtual server directly, instead to an AFM firewall rule: ltm virtual VS_FWD { destination 0.0.0.0:any fw-enforced-policy InternetAccess ip-protocol tcp mask any profiles { classifficationProfile { context clientside } tcp { } } security-log-profiles { varLogLtm } security-nat-policy { policy NAT } serverssl-use-sni disabled source 10.10.10.0/24 translate-address enabled translate-port disabled } Just with this basic configuration we can start to check classified traffic passing through this virtual server: # tmctl -w 200 gpa_classification_stats resultcount cec flbl srdb custom bytes_in bytes_out pkts_in pkts_out ------------------ ----- --- ---- ---- ------ -------- --------- ------- -------- tcp32320001062035849664 tcp.http232300020746265328322253 tcp.http.actvision220001810230722822 tcp.http.adcolony660005366693728369 tcp.http.gamespot220001806230722822 udp000000000 # tmctl -w 200 gpa_urlcat_stats namecount irule customdb wrdb cloud srdb bytes_in bytes_out pkts_in pkts_out -------------------- ----- ----- -------- ---- ----- ---- -------- --------- ------- -------- Advertisements6006005366693728369 Business_and_Economy2200022019844253792308242 Games2002001806230722822 Uncategorized3003002712346084233 Unknown0000000000 Summary Now you can start to create as complex as needed configuration for filtering traffic at different layers using the same AFM firewall rule.
