Configure the F5 BIG-IP as an Explicit Forward Web Proxy Using LTM
In a previous article, I provided a guide on using F5's Access Policy Manager (APM) and Secure Web Gateway (SWG) to provide forward web proxy services. While that guide was for organizations that are looking to provide secure internet access for their internal users, URL filtering as well as securing against both inbound and outbound malware, this guide will use only F5's Local Traffic Manager to allow internal clients external internet access. This week I was working with F5's very talented professional services team and we were presented with a requirement to allow workstation agents internet access to known secure sites to provide logs and analytics. Of course, this capability can be used to meet a number of other use cases, this was a real-world use case I wanted to share. So with that, let's get to it! Creating a DNS Resolver Navigate to Network > DNS Resolvers > click Create Name: DemoDNSResolver Leave all other settings at their defaults and click Finished Click the newly created DNS resolver object Click Forward Zones Click Add In this use case, we will be forwarding all requests to this DNS resolver. Name: . Address: 8.8.8.8 Note: Please use the correct DNS server for your use case. Service Port: 53 Click Add and Finished Creating a Network Tunnel Navigate to Network > Tunnels > Tunnel List > click Create Name: DemoTunnel Profile: tcp-forward Leave all other settings default and click Finished Create an http Profile Navigate to Local Traffic > Profiles > Services > HTTP > click Create Name: DemoExplicitHTTP Proxy Mode: Explicit Parent Profile: http-explict Scroll until you reach Explicit Proxy settings. DNS Resolver: DemoDNSResolver Tunnel Name: DemoTunnel Leave all other settings default and click Finish Create an Explicit Proxy Virtual Server Navigate to Local Traffic > Virtual Servers > click Create Name: explicit_proxy_vs Type: Standard Destination Address/Mask: 10.1.20.254 Note: This must be an IP address the internal clients can reach. Service Port: 8080 Protocol: TCP Note: This use case was for TCP traffic directed at known hosts on the internet. If you require other protocols or all, select the correct option for your use case from the drop-down menu. Protocol Profile (Client): f5-tcp-progressive Protocol Profile (Server): f5-tcp-wan HTTP Profile: DemoExplicitHTTP VLAN and Tunnel Traffic Enabled on: Internal Source Address Translation: Auto Map Leave all other settings at their defaults and click Finish. Create a Fast L4 Profile Navigate to Local Traffic > Profiles: Protocol: Fast L4 > click Create Name: demo_fastl4 Parent Profile: fastL4 Enable Loose Initiation and Loose Close as shown in the screenshot below. Click Finished Create a Wild Card Virtual Server In order to catch and forward all traffic to the BIG-IP's default gateway, we will create a virtual server to accept traffic from our explicit proxy virtual server created in the previous steps. Navigate to Local Traffic > Virtual Servers > Virtual Server List > click Create Name: wildcard_VS Type: Forwarding (IP) Source Address: 0.0.0.0/0 Destination Address: 0.0.0.0/0 Protocol: *All Protocols Service Port: 0 *All Ports Protocol Profile: demo_fastl4 VLAN and Tunnel Traffic: Enabled on...DemoTunnel Source Address Translation: Auto Map Leave all other settings at their defaults and click Finished. Testing and Validation Navigate to a workstation on your internal network. Launch Internet Explorer or the browser of your preference. Modify the proxy settings to reflect the explicit_proxy_VS created in previous steps. Attempt to access several sites and validate you are able to reach them. Whether successful or unsuccessful, navigate to Local Traffic > Virtual Servers > Virtual Server List > click the Statistics tab. Validate traffic is hitting both of the virtual servers created above. If it is not, for troubleshooting purposes only configure to the virtual servers to accept traffic on All VLANs and Tunnels as well as useful tools such as curl and tcpdump. You have now successfully configured your F5 BIG-IP to act as an explicit forward web proxy using LTM only. As stated above, this use case is not meant to fulfill all forward proxy use cases. If URL filtering and malware protection are required, APM and SWG integration should be considered. Until next time!SSL Profiles Part 8: Client Authentication
This is the eighth article in a series of Tech Tips that highlight SSL Profiles on the BIG-IP LTM. SSL Overview and Handshake SSL Certificates Certificate Chain Implementation Cipher Suites SSL Options SSL Renegotiation Server Name Indication Client Authentication Server Authentication All the "Little" Options This article will discuss the concept of Client Authentication, how it works, and how the BIG-IP system allows you to configure it for your environment. Client Authentication In a TLS handshake, the client and the server exchange several messages that ultimately result in an encrypted channel for secure communication. During this handshake, the client authenticates the server's identity by verifying the server certificate (for more on the TLS handshake, see SSL Overview and Handshake - Article 1in this series). Although the client always authenticates the server's identity, the server is not required to authenticate the client's identity. However, there are some situations that call for the server to authenticate the client. Client authentication is a feature that lets you authenticate users that are accessing a server. In client authentication, a certificate is passed from the client to the server and is verified by the server. Client authentication allow you to rest assured that the person represented by the certificate is the person you expect. Many companies want to ensure that only authorized users can gain access to the services and content they provide. As more personal and access-controlled information moves online, client authentication becomes more of a reality and a necessity. How Does Client Authentication Work? Before we jump into client authentication, let's make sure we understand server authentication. During the TLS handshake, the client authenticates the identity of the server by verifying the server's certificate and using the server's public key to encrypt data that will be used to compute the shared symmetric key. The server can only generate the symmetric key used in the TLS session if it can decrypt that data with its private key. The following diagram shows an abbreviated version of the TLS handshake that highlights some of these concepts. Ultimately, the client and server need to use a symmetric key to encrypt all communication during their TLS session. In order to calculate that key, the server shares its certificate with the client (the certificate includes the server's public key), and the client sends a random string of data to the server (encrypted with the server's public key). Now that the client and server each have the random string of data, they can each calculate (independently) the symmetric key that will be used to encrypt all remaining communication for the duration of that specific TLS session. In fact, the client and server both send a "Finished' message at the end of the handshake...and that message is encrypted with the symmetric key that they have both calculated on their own. So, if all that stuff works and they can both read each other's "Finished" message, then the server has been authenticated by the client and they proceed along with smiles on their collective faces (encrypted smiles, of course). You'll notice in the diagram above that the server sent its certificate to the client, but the client never sent its certificate to the server. When client authentication is used, the server still sends its certificate to the client, but it also sends a "Certificate Request" message to the client. This lets the client know that it needs to get its certificate ready because the next message from the client to the server (during the handshake) will need to include the client certificate. The following diagram shows the added steps needed during the TLS handshake for client authentication. So, you can see that when client authentication is enabled, the public and private keys are still used to encrypt and decrypt critical information that leads to the shared symmetric key. In addition to the public and private keys being used for authentication, the client and server both send certificates and each verifies the certificate of the other. This certificate verification is also part of the authentication process for both the client and the server. The certificate verification process includes four important checks. If any of these checks do not return a valid response, the certificate verification fails (which makes the TLS handshake fail) and the session will terminate. These checks are as follows: Check digital signature Check certificate chain Check expiration date and validity period Check certificate revocation status Here's how the client and server accomplish each of the checks for client authentication: Digital Signature: The client sends a "Certificate Verify" message that contains a digitally signed copy of the previous handshake message. This message is signed using the client certificate's private key. The server can validate the message digest of the digital signature by using the client's public key (which is found in the client certificate). Once the digital signature is validated, the server knows that public key belonging to the client matches the private key used to create the signature. Certificate Chain: The server maintains a list of trusted CAs, and this list determines which certificates the server will accept. The server will use the public key from the CA certificate (which it has in its list of trusted CAs) to validate the CA's digital signature on the certificate being presented. If the message digest has changed or if the public key doesn't correspond to the CA's private key used to sign the certificate, the verification fails and the handshake terminates. Expiration Date and Validity Period: The server compares the current date to the validity period listed in the certificate. If the expiration date has not passed and the current date is within the period, everything is good. If it's not, then the verification fails and the handshake terminates. Certificate Revocation Status: The server compares the client certificate to the list of revoked certificates on the system. If the client certificate is on the list, the verification fails and the handshake terminates. As you can see, a bunch of stuff has to happen in just the right way for the Client-Authenticated TLS handshake to finalize correctly. But, all this is in place for your own protection. After all, you want to make sure that no one else can steal your identity and impersonate you on a critically important website! BIG-IP Configuration Now that we've established the foundation for client authentication in a TLS handshake, let's figure out how the BIG-IP is set up to handle this feature. The following screenshot shows the user interface for configuring Client Authentication. To get here, navigate to Local Traffic > Profiles > SSL > Client. The Client Certificate drop down menu has three settings: Ignore (default), Require, and Request. The "Ignore" setting specifies that the system will ignore any certificate presented and will not authenticate the client before establishing the SSL session. This effectively turns off client authentication. The "Require" setting enforces client authentication. When this setting is enabled, the BIG-IP will request a client certificate and attempt to verify it. An SSL session is established only if a valid client certificate from a trusted CA is presented. Finally, the "Request" setting enables optional client authentication. When this setting is enabled, the BIG-IP will request a client certificate and attempt to verify it. However, an SSL session will be established regardless of whether or not a valid client certificate from a trusted CA is presented. The Request option is often used in conjunction with iRules in order to provide selective access depending on the certificate that is presented. For example: let's say you would like to allow clients who present a certificate from a trusted CA to gain access to the application while clients who do not provide the required certificate be redirected to a page detailing the access requirements. If you are not using iRules to enforce a different outcome based on the certificate details, there is no significant benefit to using the "Request" setting versus the default "Ignore" setting. In both cases, an SSL session will be established regardless of the certificate presented. Frequency specifies the frequency of client authentication for an SSL session. This menu offers two options: Once (default) and Always. The "Once" setting specifies that the system will authenticate the client only once for an SSL session. The "Always"setting specifies that the system will authenticate the client once when the SSL session is established as well as each time that session is reused. The Retain Certificate box is checked by default. When checked, the client certificate is retained for the SSL session. Certificate Chain Traversal Depth specifies the maximum number of certificates that can be traversed in a client certificate chain. The default for this setting is 9. Remember that "Certificate Chain" part of the verification checks? This setting is where you configure the depth that you allow the server to dig for a trusted CA. For more on certificate chains, see article 2 of this SSL series. Trusted Certificate Authorities setting is used to specify the BIG-IP's Trusted Certificate Authorities store. These are the CAs that the BIG-IP trusts when it verifies a client certificate that is presented during client authentication. The default value for the Trusted Certificate Authorities setting is None, indicating that no CAs are trusted. Don't forget...if the BIG-IP Client Certificate menu is set to Require but the Trusted Certificate Authorities is set to None, clients will not be able to establish SSL sessions with the virtual server. The drop down list in this setting includes the name of all the SSL certificates installed in the BIG-IP's /config/ssl/ssl.crt directory. A newly-installed BIG-IP system will include the following certificates: default certificate and ca-bundle certificate. The default certificate is a self-signed server certificate used when testing SSL profiles. This certificate is not appropriate for use as a Trusted Certificate Authorities certificate bundle. The ca-bundle certificate is a bundle of CA certificates from most of the well-known PKIs around the world. This certificate may be appropriate for use as a Trusted Certificate Authorities certificate bundle. However, if this bundle is specified as the Trusted Certificate Authorities certificate store, any valid client certificate that is signed by one of the popular Root CAs included in the default ca-bundle.crt will be authenticated. This provides some level of identification, but it provides very little access control since almost any valid client certificate could be authenticated. If you want to trust only certificates signed by a specific CA or set of CAs, you should create and install a bundle containing the certificates of the CAs whose certificates you trust. The bundle must also include the entire chain of CA certificates necessary to establish a chain of trust. Once you create this new certificate bundle, you can select it in the Trusted Certificate Authorities drop down menu. The Advertised Certificate Authorities setting is used to specify the CAs that the BIG-IP advertises as trusted when soliciting a client certificate for client authentication. The default value for the Advertised Certificate Authorities setting is None, indicating that no CAs are advertised. When set to None, no list of trusted CAs is sent to a client with the certificate request. If the Client Certificate menu is set to Require or Request, you can configure the Advertised Certificate Authorities setting to send clients a list of CAs that the server is likely to trust. Like the Trusted Certificate Authorities list, the Advertised Certificate Authorities drop down list includes the name of all the SSL certificates installed in the BIG-IP /config/ssl/ssl.crt directory. A newly-installed BIG-IP system includes the following certificates: default certificate and ca-bundle certificate. The default certificate is a self-signed server certificate used for testing SSL profiles. This certificate is not appropriate for use as an Advertised Certificate Authorities certificate bundle. The ca-bundle certificate is a bundle of CA certificates from most of the well-known PKIs around the world. This certificate may be appropriate for use as an Advertised Certificate Authorities certificate bundle. If you want to advertise only a specific CA or set of CAs, you should create and install a bundle containing the certificates of the CA to advertise. Once you create this new certificate bundle, you can select it in the Advertised Certificate Authorities setting drop down menu. You are allowed to configure the Advertised Certificate Authorities setting to send a different list of CAs than that specified for the Trusted Certificate Authorities. This allows greater control over the configuration information shared with unknown clients. You might not want to reveal the entire list of trusted CAs to a client that does not automatically present a valid client certificate from a trusted CA. Finally, you should avoid specifying a bundle that contains a large number of certificates when you configure the Advertised Certificate Authorities setting. This will cut down on the number of certificates exchanged during a client SSL handshake. The maximum size allowed by the BIG-IP for native SSL handshake messages is 14,304 bytes. Most handshakes don't result in large message lengths, but if the SSL handshake is negotiating a native cipher and the total length of all messages in the handshake exceeds the 14,304 byte threshold, the handshake will fail. The Certificate Revocation List (CRL) setting allows you to specify a CRL that the BIG-IP will use to check revocation status of a certificate prior to authenticating a client. If you want to use a CRL, you must upload it to the /config/ssl/ssl.crl directory on the BIG-IP. The name of the CRL file may then be entered in the CRL setting dialog box. Note that this box will offer no drop down menu options until you upload a CRL file to the BIG-IP. Since CRLs can quickly become outdated, you should use either OCSP or CRLDP profiles for more robust and current verification functionality. Conclusion Well, that wraps up our discussion on Client Authentication. I hope the information helped, and I hope you can use this to configure your BIG-IP to meet the needs of your specific network environment. Be sure to come back for our next article in the SSL series. As always, if you have any other questions, feel free to post a question here or Contact Us directly. See you next time!SSL Profiles Part 7: Server Name Indication
This is the seventh article in a series of Tech Tips that highlight SSL Profiles on the BIG-IP LTM. The other articles are: SSL Overview and Handshake SSL Certificates Certificate Chain Implementation Cipher Suites SSL Options SSL Renegotiation Server Name Indication Client Authentication Server Authentication All the "Little" Options This article will discuss the concept of Server Name Indication (SNI) and how the BIG-IP system allows you to configure it for your environment. What is Server Name Indication? SNI (listed in RFC 4366) is an extension to the TLS protocol that allows the client to include the requested hostname in the first message of the SSL handshake (Client Hello). This allows the server to determine the correct named host for the request and setup the connection accordingly from the start. Prior to the introduction of SNI, the client could not establish secure connections to multiple virtual servers hosted on a single IP address. This happened because the destination server name can only be decoded from the HTTP request header after the SSL connection has been established. As you can see from the following diagram (taken from Jason Rahm's first articlein this series), the standard TLS handshake involves several messages between the client and the server. The server sends the certificate (step 3) to the client long before the handshake is complete. If a web server is used to host multiple DNS hostnames on a single IP address, the certificate passing between the server and the client could get problematic. Using the standard TLS protocol, the server might send the wrong certificate to the client because it does not yet know which certificate the client is looking for. Then, if the client receives a certificate with the wrong name, it will either abort the connection (assuming a Man-in-the-Middle attack) or at least display a warning page to the user stating that there is a problem with the certificate. This scenario is shown in the following figure. A client wants to visit https://www.securesite1.com, but the virtual web server doesn't know to pass the certificate for securesite1.com until it finishes the TLS handshake and reads the HTTP request header from the client. This is where SNI comes in really handy. With the introduction of SNI, the client can indicate the name of the server to which he is attempting to connect as part of the "Client Hello" message in the handshake process. The server then uses this information to select the appropriate certificate to return to the client when it sends back the "Server Hello" packet during the handshake. This allows a server to present multiple certificates on the same IP address and port number and thus allows multiple secure (HTTPS) sites to be served off the same IP address without requiring all the sites to use the same certificate. Having this extension available (per RFC 4366) is a great feature, but it does no good if a client is using a browser that doesn't send the correct SNI message to the server. So, to make SNI practical, the vast majority of your users must use web browsers that support it. Browsers that do not support SNI will be presented with the server's default certificate and are likely to receive a certificate warning. According to Wikipedia, the following browsers support SNI: Internet Explorer 7 or later, on Windows Vista or higher. Does not work on Windows XP, even Internet Explorer 8 (the support of this feature is not browser version dependent, it depends on SChannel system component which introduced the support of TLS SNI extension, starting from Windows Vista, not XP). Mozilla Firefox 2.0 or later Opera 8.0 (2005) or later (the TLS 1.1 protocol must be enabled) Opera Mobile at least version 10.1 beta on Android Google Chrome (Vista or higher. XP on Chrome 6 or newer. OS X 10.5.7 or higher on Chrome 5.0.342.1 or newer) Safari 3.0 or later (Mac OS X 10.5.6 or higher and Windows Vista or higher) Konqueror/KDE 4.7 or later MobileSafari in Apple iOS 4.0 or later Android default browser on Honeycomb (v3.x) or newer Windows Phone 7 MicroB on Maemo Odyssey on MorphOS Now that you know the background of SNI, let's dig into how the BIG-IP is set up for SNI configuration. BIG-IP Configuration Beginning in v11.1.0, the BIG-IP allows you to assign multiple SSL profiles to a virtual server for supporting the use of the TLS SNI feature. The TLS SNI feature is not available in previous BIG-IP versions, so you'll want to upgrade if you are not on v11.1.0 or higher! To support this feature, a virtual server must be assigned a default SSL profile for fallback as well as one SSL profile per HTTPS site. The fallback SSL profile is used when the server name does not match the client request or when the browser does not support the SNI extensions. Using the example from the figures above, suppose you need to host the three domains securesite1.com, securesite2.com, and securesite3.com on the same HTTPS virtual server. Each domain has its own server certificate to use, such as securesite1.crt, securesite2.crt, and securesite3.crt, and each has different security requirements. To ensure that the BIG-IP presents the correct certificate to the browser, you enable SNI, which sends the name of a domain as part of the TLS negotiation. To enable SNI, you configure the Server Name and other settings on an SSL profile, and then assign the profile to a virtual server. For SSL profiles (Client and Server), you type the name for the HTTPS site in the Server Name box. SNI configuration is found by navigating to Local Traffic > Profiles > SSL > Client | Server. The following screenshot shows the three settings used for SNI in the BIG-IP. Server Name specifies the fully qualified DNS hostname of the server that is used in SNI communications. Using the server name, the Local Traffic Manager can choose from multiple SSL profiles prior to the SSL Handshake. If no value is specified, the system uses the Common Name value from the default certificate. The default for this setting leaves the name blank. Default SSL Profile for SNI indicates that the system uses this profile as the default SSL profile when there is no match to the server name, or when the client provides no SNI extension support. Note that when assigning multiple SSL profiles to a single virtual server, you can enable this setting on one Client SSL profile only and on one Server SSL profile only. The default for this setting is unchecked. Require Peer SNI support requires that all network peers provide SNI support as well. If you enable both "Default SSL Profile for SNI" and "Require Peer SNI Support," the system terminates the connection when the client provides no SNI extension. The default for this setting is unchecked. Conclusion I hope this helps with setting up this great feature in your environment. SNI is a powerful tool, and it could go a long way in saving you precious IP addresses for your secure sites! As we noted before, this feature is only supported in BIG-IP version 11.1.0 and later. If you are using a version prior to 11.1.0, you can read this articleon DevCentral that shows how you can use an iRule to take advantage of SNI on previous versions. Finally, you can read more on our DevCentral Wiki about using iRules for SNI. Well, thanks for reading about SNI. Be sure to come back for the next article in the SSL series where I will talk about SSL Forward Proxy. See you then!SNI Routing with BIG-IP
In the previous article, The Three HTTP Routing Patterns, Lori MacVittie covers 3 methods of routing. Today we will look at Server Name Indication (SNI) routing as an additional method of routing HTTPS or any protocol that uses TLS and SNI. Using SNI we can route traffic to a destination without having to terminate the SSL connection. This enables several benefits including: Reduced number of Public IPs Simplified configuration More intelligent routing of TLS traffic Terminating SSL Connections When you havea SSL certificate and key you can perform the cryptographic actions required to encrypt traffic using TLS. This is what I refer to as “terminating the SSL connection” throughout this article. When you want to route traffic this is a chickenand an egg problem, becausefor TLS traffic you want to be able to route the traffic by being able to inspect the contents, but this normally requires being able to “terminate the SSL connection”. The goal of this article is to layer in traffic routing for TLS traffic without having to require having/knowing the original SSL certificate and key. Server Name Indication (SNI) SNI is a TLS extension that makes it possible to "share" certificates on a single IP address. This is possible due to a client using a TLS extension that requests a specific name before the server responds with a SSL certificate. Prior to SNI, the other options would be a wildcard certificate or Subject Alternative Name (SAN) that allows you to specify multiple names with a single certificate. SNI with Virtual Servers It has been possible to use SNI on F5 BIG-IP since TMOS 11.3.0. The following KB13452 outlines how it can be configured. In this scenario (from the KB article) the BIG-IP is terminating the SSL connection. Not all clients support SNI and you will always need to specify a “fallback” profile that will be used if a SNI name is not used or matched. The next example will look at how to use SNI without terminating the SSL connection. SNI Routing Occasionally you may have the need to have a hybrid configuration of terminating SSL connections on the BIG-IP and sending connections without terminating SSL. One method is to create two separate virtual servers, one for SSL connections that the BIG-IP will handle (using clientssl profile) and one that it will not handle SSL (just TCP). This works OK for a small number of backends, but does not scale well if you have many backends (run out of Public IP addresses). Using SNI Routing we can handle everything on a single virtual server / Public IP address. There are 3 methods for performing SNI Routing with BIG-IP iRule with binary scan a. Article by Colin Walker code attribute to Joel Moses b. Code Share by Stanislas Piron iRule with SSL::extensions Local Traffic Policy Option #1 is for folks that prefer complete control of the TLS protocol. It only requires the use of a TCP profile. Options #2 and #3 only require the use of a SSL persistence profile and TCP profile. SNI Routing with Local Traffic Policy We will skip option #1 and #2 in this article and look at using a Local Traffic Policy for SNI Routing. For a review of Local Traffic Policies check out the following DevCentral articles: LTM Policy Jan 2015 Simplifying Local Traffic Policies in BIG-IP 12.1 June 2016 In previous articles about Local Traffic Policiesthe focus was on routing HTTP traffic, but today we will use it to route SSL connections using SNI. In the following example, using a Local Traffic Policy named “sni_routing”, we are setting a condition on the SSL Extension “servername” and sending the traffic to a pool without terminating the SSL connection. The pool member could be another server or another BIG-IP device. The next example will forward the traffic to another virtual server that is configured with a clientssl profile. This uses VIP targeting to send traffic to another virtual server on the same device. In both examples it is important to note that the “condition”/“action” has been changed from occurring on “request” (that maps to a HTTP L7 request) to “ssl client hello”. By performing the action prior to any L7 functions occurring, we can forward the traffic without terminating the SSL connection. The previous example policy, “sni_routing”, can be attached to a Virtual Server that only has a TCP profile and SSL persistence profile. No HTTP or clientssl profile is required! This method can also be used to solve the issue of how to consolidate multiple SSL virtual servers behind a single virtual server that have different APM and/or ASM policies. This is similar to the architecture that is used by the Container Connector for Cloud Foundry; in creating a two-tier load balancing solution on a single device. Routed Correctly? TLS 1.3 has interesting proposals on how to obscure the servername (TLS in TLS?), but for now this is a useful and practical method of handling multiple SSL certs on a single IP. In the future this may still be possible as well with TLS 1.3. For example the use of a HTTP Fronting service could be a tier 1 virtual server (this is just my personal speculation, I have not tried, at the time of publishing this was still a draft proposal). In other news it has been demonstrated that a combination of using SNI and a different host header can be used for “domain fronting”. A method to enforce consistent policy (prevent domain fronting) would be to layer in additional conditions that match requested SNI servername (TLS extension) with requested HOST header (L7 HTTP header). This would help enforce that a tenant is using a certificate that is associated with their application and not “borrowing” the name and certificate that is being used by an adjacent service. We don’t think of a TLS extension as an attribute that can be used to route application traffic, but it is useful and possible on BIG-IP.
Understanding IPSec IKEv1 negotiation on Wireshark
Related Articles: Understanding IPSec IKEv2 negotiation on Wireshark 1. The Big Picture First 6 Identity Protection (Main Mode) messages negotiate security parameters to protect the next 3 messages (Quick Mode) and whatever is negotiated in Phase 2 is used to protect production traffic (ESP or AH, normally ESP for site-site VPN). We call first 6 messages Phase 1 and last 3 messages as Phase 2. Sample pcap:IPSEC-tunnel-capture-1.pcap(for instructions on how to decrypt it just go to website where I got this sample capture:http://ruwanindikaprasanna.blogspot.com/2017/04/ipsec-capture-with-decryption.html) 2. Phase 1 2.1 Policy Negotiation Both peers add a unique SPI just to uniquely identify each side's Security Association (SA): Inframe #1, the Initiator (.70) sends a set of Proposals containing a set of security parameters (Transforms) that Responder (.71) can pick if it matches its local policies: Fair enough, in frame #2 the Responder (.71) picks one of theTransforms: 2.2 DH Key Exchange Then, next 2 Identity Protection packets both peers exchange Diffie-Hellman public key values and nonces (random numbers) which will then allow both peers to agree on a shared secret key: With DH public key value and the nonce both peers will generate a seed key called SKEYID. A further 3 session keys will be generated using this seed key for different purposes: SKEYID_d(d for derivative): not used by Phase 1. It is used as seed key for Phase2 keys, i.e. seed key for production traffic keys in Plain English. SKEYID_a(a for authentication): this key is used to protect message integrity in every subsequent packets as soon as both peers are authenticated (peers will authenticate each other in next 2 packets). Yes, I know, we verify the integrity by using a hash but throwing a key into a hash adds stronger security to hash and it's called HMAC. SKEYID_e(e for encryption): you'll see that the next 2 packets are also encrypted. As selected encryption algorithm for this phase was AES-CBC (128-bits) then we use AES with this key to symmetrically encrypt further data. Nonceis just to protect against replay attacks by adding some randomness to key generation 2.3 Authentication The purpose of this exchange is to confirm each other's identity. If we said we're going to do this using pre-shared keys then verification consists of checking whether both sides has the same pre-shared key. If it is RSA certificate then peers exchange RSA certificates and assuming the CA that signed each side is trusted then verification complete successfully. In our case, this is done via pre-shared keys: In packet #5 the Initiator sends a hash generated using pre-shared key set as key material so that only those who possess pre-master key can do it: The responder performs the same calculation and confirms the hash is correct. Responder also sends a similar packet back to Initiator in frame #6 but I skipped for brevity. Now we're ready for Phase 2. 3. Phase 2 The purpose of this phase is to establish the security parameters that will be used for production traffic (IPSec SA): Now, Initiator sends its proposals to negotiate the security parameters for production traffic as mentioned (the highlighted yellow proposal is just a sample as the rest is collapsed -this is frame #7): Note:Identification payload carries source and destination tunnel IP addresses and if this doesn't match what is configured on both peers then IPSec negotiation will not proceed. Then, in frame #8 we see that Responder picked one of the Proposals: Frame #9 is just an ACK to the picked proposal confirming that Initiator accepted it: I just highlighted the Hash here to reinforce the fact that since both peers were authenticated in Phase 1, all subsequent messages are authenticated and a new hash (HMAC) is generated for each packet.SSL Profiles Part 6: SSL Renegotiation

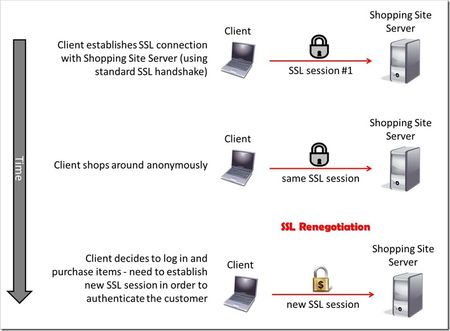

This is the sixth article in a series of Tech Tips that highlight SSL Profiles on the BIG-IP LTM. SSL Overview and Handshake SSL Certificates Certificate Chain Implementation Cipher Suites SSL Options SSL Renegotiation Server Name Indication Client Authentication Server Authentication All the "Little" Options This article will discuss SSL renegotiation, some OpenSSL features, some of the attack vectors against SSL renegotiation, and then how the BIG-IP is configured to handle this feature. What Is SSL Renegotiation? Before we get into the details of SSL renegotiation, let me start by outlining a quick scenario. Let's say a user visits an online shopping site that is SSL encrypted. Initially, the user shops around anonymously, but after some time on the site, the user decides to log in and make a purchase. The user will need to authenticate to the site before making the purchase, so the SSL connection will need to be adjusted to allow the authentication. Ideally, all the information the user collected as an anonymous visitor will be maintained and protected after the status change to an authenticated customer. This basic (yet frequent) scenario outlines the need for SSL renegotiation. The figure below shows a representation of this scenario and shows that a new SSL session must be established in order to authenticate the user. This new session completes the full handshake, but it does it using the security of the already-established SSL connection. SSL renegotiation messages (including types of ciphers and encryption keys) are encrypted and then sent over the existing SSL connection. This feature is nice because it can create a secure SSL session based on the fact that a secure connection is already established. SSL renegotiation is useful in several situations where an ordinary SSL session is already established. Here are a few examples: Client authentication is required A different set of encryption and decryption keys are needed A different set of encryption and hashing algorithms are used The client or the server can request renegotiation at any time. For the client to request renegotiation, the client sends a "Client Hello" message in the already-established encrypted channel and the server responds with a "Server Hello" and then the negotiation follows the normal handshake process. The server can initiate the renegotiation by sending the client a Hello Request message. When the client receives the request, the client sends the "Client Hello" message and the handshake process takes place. One quick note of clarification: the client and server can also complete a session resumption vice a session renegotiation. A session resumption basically resumes a previous session (using a previous session ID), and it saves the client and server the computing work of generating new encryption keys. Renegotiation is a process by which the full handshake process takes place over an already existing SSL connection. A Fly In The Ointment... Life would be much easier if the bad guys weren't out there doing their thing, but I guess it would also be less interesting. Nonetheless, some pretty smart guys were working with SSL renegotiation back in the old days (circa 2009) and found out that they could exploit a vulnerability in its design. The Common Vulnerabilities and Exposures (CVE) database outlines the details behind this SSL renegotiation vulnerability in CVE-2009-3555. You can read the details for yourself, but here's what the CVE basically says: TLS and SSLv3 do not properly associate renegotiation handshakes with an existing connection, and this allows attackers to insert data into existing sessions by sending an unauthenticated request that is processed retroactively by a server in a post-renegotiation context related to a "plaintext injection" attack. Essentially, this means that bad guys can hijack the SSL session and start using your "secure" communications on your behalf. Houston, we have a problem. Fortunately, the good folks at the Internet Engineering Task Force (IETF) found out about this problem, and they responded with a little magic of their own. It's outlined in Request for Comments (RFC) 5746. Here's what they had to say: "Secure Socket Layer (SSL) and Transport Layer Security (TLS) renegotiation are vulnerable to an attack in which the attacker forms a TLS connection with the target server, injects content of his choice, and then splices in a new TLS connection from a client. The server treats the client's initial TLS handshake as a renegotiation and thus believes that the initial data transmitted by the attacker is from the same entity as the subsequent client data. This specification defines a TLS extension to cryptographically tie renegotiations to the TLS connections they are being performed over, thus preventing this attack." Well, take that bad guys!! A Few Notes About OpenSSL Now that we have a basic understanding of RFC 5746, let's spend some time on OpenSSL and how it relates to F5's BIG-IP. After all, how can you have an article on SSL and not talk about OpenSSL? This stuff is free (Apache style) and it's awesome! The BIG-IP supports the popular OpenSSL toolkit, and it even has a built-in OpenSSL utility. It's important to understand how OpenSSL handles the behavior of clients and servers regarding the feature of SSL renegotiation. OpenSSL 0.9.8m and later always attempts to use secure renegotiation as described in RFC 5746. On the BIG-IP side of the house, versions prior to 10.2.3 do not support this RFC. However, beginning in version 10.2.3 and 11.x, the BIG-IP SSL profiles do support it. So, pause for a few minutes from reading this article and upgrade your BIG-IP! Patching When describing SSL implementations, systems that support secure renegotiation (per RFC 5746) are referred to as "patched" and systems that do not support secure renegotiation are referred to as "unpatched." If a client and server are both patched, connections and renegotiation are always permitted by OpenSSL implementations. If a server is patched but the client is unpatched, the initial connection will succeed but client renegotiation will be denied by the server with a no_renegotiation warning alert if TLS v1.0 is used or a fatal handshake_failure alert if SSL v3.0 is used. If the patched server attempts to renegotiate with the unpatched client, a fatal handshake_failure alert is sent. This is because the server code may be unaware of the unpatched nature of the client. Here's what happens if a client is patched but the server is unpatched. If the option "SSL_OP_LEGACY_SERVER_CONNECT" or "SSL_OP_ALLOW_UNSAFE_LEGACY_RENEGOTIATION" is set then initial connections as well as all renegotiations between patched clients and unpatched servers will succeed. However, if neither option is set then initial connections to unpatched servers will fail. (note: the option "SSL_OP_LEGACY_SERVER_CONNECT" is currently set by default, but as more servers become patched, this option will not be set by default in future versions of OpenSSL). Renegotiation Attacks Speaking of highly broken...let's spend a little time on SSL renegotiation attacks before we dive into the BIG-IP configurations. Here are two fairly well known attacks that are targeted at the SSL renegotiation feature. And, guess what? I'm starting with the..."Man in the Middle" (sung to Michael Jackson's hit song) Man In The Middle Since we discussed RFC 5746 earlier, why not go over the details of what it fixed? As we've discussed, SSL allows both servers and clients to initiate a complete renegotiation of the encryption parameters used for SSL connections. However, the design of the initial handshake and the renegotiation process had a gap that could allow an attacker to send a “Client Hello” and insert content into a client’s SSL session and then intercept secure communications between the server and the client. The following illustration shows how a bad guy could exploit the Man in the Middle vulnerability. In this example, the client sends a "Client Hello" to start an SSL session with his bank's server. The bad guy temporarily blocks the "Client Hello" and then creates an SSL connection of his own with the server. After the SSL session is created between the bad guy and the bank server, the bad guy asks for a money transfer. The bank server needs to authenticate the user, so it requests a renegotiation by sending a "Hello Request" to the bad guy...which is exactly what he wanted. This is where the bad guy sends the client's initial "Client Hello" to the server. The client thinks he is beginning a new SSL session, and the server thinks an SSL renegotiation has just taken place. But, nonetheless, all parties are happy with everything...especially the bad guy! See, now you know why you should be using a "patched" system! Denial of Service Last year, the IETF posted a paper that outlines a Denial of Service (DoS) attack against a server using the SSL renegotiation feature. The DoS attack is based on the fact that an SSL handshake requires up to 10 times more processing power on the server than on the client. Therein lies the problem...and the ability to exploit it! When SSL renegotiation is enabled on the server, a user is allowed to send a renegotiation request any time he wants...and this request initiates a new handshake. Since it takes much fewer resources for a client to perform a handshake than a server, the client can request multiple handshakes per second and cause a DoS on the server side SSL interface. Therefore, if a malicious user requests multiple renegotiation requests it will exhaust the server’s resources and not allow any other user to establish a connection. This attack is different than a Distributed Denial of Service (DDoS) as it does not require a large amounts of network volume to exhaust the network connection. Instead, it exhausts the server resources from a single host requiring only a single TCP/IP socket. A single server can perform between 150-300 handshakes per second while a single client can request up to 1,000 handshakes per second. By the way, Openssl doesn't consider this DoS exploit an actual vulnerability (which is why they haven't done anything about it in their latest releases). Their response is that this exploit is a way of DoS'ing a server by requesting lots of expensive crypto operations. Any app that allows an operation like SSL renegotiation to an untrusted host is subject to resource exhaustion. They would say the correct answer is to restrict hosts if this is an issue. Note also that if the OS firewall is not enabled, any OS is subject to a DoS through resource exhaustion, even if it's just TCP port exhaustion. For more information on a great SSL renegotiation DoS countermeasure, see this DevCentral article. David Holmes and Jason Rahm teamed up to talk about the DoS vulnerability, and then they wrote an iRule that elegantly defeats the attack...really cool and useful stuff!! In addition, here's a quick video clip that talks about the same issue...F5 knocks it out of the park with this iRule stuff! F5 Security Vignette: SSL Renegotiation BIG-IP Configuration Now that we've talked through this SSL renegotiation thing, let's finish up with the features of the BIG-IP and how it handles SSL renegotiation. The following screenshot shows the different options for SSL renegotiation on the BIG-IP. You can find this screen by navigating to Local Traffic > Profiles > SSL > Client | Server. Notice that you can either enable or disable SSL renegotiation altogether. By default, it is enabled. Renegotiation controls (on a per-connection basis) how the BIG-IP responds to mid-stream SSL reconnection requests. When enabled, the system processes mid-stream SSL renegotiation requests. When disabled, the system terminates the connection, or ignores the request, depending on system configuration. The Renegotiate Period setting specifies the number of seconds from the initial connect time that the system renegotiates an SSL session. The options are "Specify" (in seconds) and "Indefinite" with "Indefinite" being the default. The "Indefinite" setting means that you never want the system to force an SSL renegotiation. The system will renegotiate the session after the specified period of time...that's why the "Indefinite" setting never forces a renegotiation. For example, setting the renegotiate period to 3600 seconds triggers session renegotiation at least once an hour. The Renegotiate Size setting forces the BIG-IP to renegotiate an SSL session after a specified number of megabytes of application data have been transmitted over the secure channel. The values for this setting are "Indefinite" and "Specify" (in megabytes) with "Indefinite" being the default. This setting follows the same premise as the Renegotiate Period but it uses data size to determine when it will force a renegotiation vice a period of time. The Renegotiate Max Record Delay setting forces the BIG-IP to terminate an SSL session after receiving the specified maximum number of SSL records. The number of records are counted while the BIG-IP system waits for the client to initiate a renegotiation. If the BIG-IP system receives more than the maximum number of SSL records, it closes the connection. The values for this setting are "Indefinite" and "Specify" (number of records). The default setting is "Specify" 10 records. Secure Renegotiation is a fairly new feature in the BIG-IP (not available prior to v10.2.3). This setting handles the RFC 5746 problem, and it allows the user to specify the method of secure renegotiation for SSL connections. The values for this setting are "Request," "Require," and "Require Strict" with "Require" being the default value for the Client-side SSL profile. The default value for the Server-side SSL profile depends on the BIG-IP version: in v10.2.3 and v10.2.4, the default value for the Server-side SSL profile is "Require" and the default value in v11.x is "Require Strict." The "Request" value specifies that the system simply requests secure renegotiation of SSL connections. The "Require" value specifies that the system requires secure renegotiation of SSL connections. In this mode, the system permits initial SSL handshakes from clients, but terminates renegotiations from unpatched clients. The "Require Strict" value specifies that the system requires strict secure renegotiation of SSL connections. In this mode, the system does not accept new SSL connections from unpatched clients. Within the context of the Server-side SSL profile, there is no behavioral difference between "Require" and "Require Strict." In either mode, initial SSL connections from the BIG-IP to unpatched servers will fail. Conclusion Well, I think that about does it for SSL Renegotiation. Come back for more great SSL discussion in our next article that will feature Server Name Indication (SNI). As always, if you have any questions (about SSL, iRules, or any other F5 technology), feel free to comment here or contact the DevCentral team directly. See you soon!SSL Profiles Part 1: Handshakes
This is the first in a series of tech tips on the F5 BIG-IP LTM SSL profiles. SSL Overview and Handshake SSL Certificates Certificate Chain Implementation Cipher Suites SSL Options SSL Renegotiation Server Name Indication Client Authentication Server Authentication All the "Little" Options SSL, or the Secure Socket Layer, was developed by Netscape back in the ‘90s to secure the transport of web content. While adopted globally, the standards body defined the Transport Layer Security, or TLS 1.0, a few years later. Commonly interchanged in discussions, the final version of SSL (v3) and the initial version of TLS (v1) do not interoperate, though TLS includes the capabality to downgrade to SSLv3 if necessary. Before we dive into the options within the SSL profiles, we’ll start in this installment with a look at the SSL certificate exchanges and take a look at what makes a client versus a server ssl profile. Server-Only Authentication This is the basic TLS handshake, where the only certificate required is on the serverside of the connection. The exchange is shown in Figure 1 below. In the first step. the client sends a ClientHello message containing the cipher suites (I did a tech tip a while back on manipulating profiles that has a good breakdown of the fields in a ClientHello message), a random number, the TLS version it supports (highest), and compression methods. The ServerHello message is then sent by the server with the version, a random number, the ciphersuite, and a compression method from the clients list. The server then sends its Certificate and follows that with the ServerDone message. The client responds with key material (depending on cipher selected) and then begins computing the master secret, as does the server upon receipt of the clients key material. The client then sends the ChangeCipherSpec message informing the server that future messages will be authenticated and encrypted (encryption is optional and dependent on parameters in server certificate, but most implementations include encryption). The client finally sends its Finished message, which the server will decrypt and verify. The server then sends its ChangeCipherSpec and Finished messages, with the client performing the same decryption and verification. The application messages then start flowing and when complete (or there are SSL record errors) the session will be torn down. Question—Is it possible to host multiple domains on a single IP and still protect with SSL/TLS without certificate errors? This question is asked quite often in the forums. The answer is in the details we’ve already discussed, but perhaps this isn’t immediately obvious. Because the application messages—such as an HTTP GET—are not received until AFTER this handshake, there is no ability on the server side to switch profiles, so the default domain will work just fine, but the others will receive certificate errors. There is hope, however. In the TLSv1 standard, there is an option called Server Name Indication, or SNI, which will allow you to extract the server name and switch profiles accordingly. This could work today—if you control the client base. The problem is most browsers don’t default to TLS, but rather SSLv3. Also, TLS SNI is not natively supported in the profiles, so you’ll need to get your hands dirty with some serious iRule-fu (more on this later in the series). Anyway, I digress. Client-Authenticated Handshake The next handshake is the client-authenticated handshake, shown below in Figure 2. This handshake adds a few steps (in bold above), inserting the CertificateRequest by the server in between the Certificate and ServerHelloDone messages, and the client starting off with sending its Certificate and after sending its key material in the ClientKeyExchange message, sends the CertificateVerify message which contains a signature of the previous handshake messages using the client certificate’s private key. The server, upon receipt, verifies using the client’s public key and begins the heavy compute for the master key before both finish out the handshake in like fashion to the basic handshake. Resumed Handshake Figure 3 shows the abbreviated handshake that allows the performance gains of not requiring the recomputing of keys. The steps passed over from the full handshake are greyed out. It’s after step 5 that ordinarily both server and client would be working hard to compute the master key, and as this step is eliminated, bulk encryption of the application messages is far less costly than the full handshake. The resumed session works by the client submitting the existing session ID from previous connections in the ClientHello and the server responding with same session ID (if the ID is different, a full handshake is initiated) in the ServerHello and off they go. Profile Context As with many things, context is everything. There are two SSL profiles on the LTM, clientssl and serverssl. The clientssl profile is for acting as the SSL server, and the serverssl profile is for acting as the SSL client. Not sure why it worked out that way, but there you go. So if you will be offloading SSL for your applications, you’ll need a clientssl profile. If you will be offloading SSL to make decisions/optimizations/inspects, but still require secured transport to your servers, you’ll need a clientssl and a serverssl profile. Figure 4 details the context. Conclusion Hopefully this background on the handshake process and the profile context is beneficial to the profile options we’ll cover in this series. For a deeper dive into the handshakes (and more on TLS), you can check out RFC 2246 and this presentation on SSL and TLS cryptography. Next up, we’ll take a look at Certificates.BIG-IP Solutions: Simple URL Redirects
Check out our "BIG-IP Solutions" series where we will dive into all kinds of cool features related to the BIG-IP. In this edition, I'll take a look at simple URL redirects where I'll show how to redirect traffic from one web page to another. Many people use iRules for URL redirects, but the BIG-IP offers policies to do this for you. Policies are faster than iRules, they are easier to manage, and you don't have to know the exact scripting language code to use them. Check out this video to learn more about how to redirect URLs with policies!
Power of tmsh commands using Ansible
Why is data important Having accurate data has become an integral part of decision making. The data could be for making simple decisions like purchasing the newest electronic gadget in the market or for complex decisions on what hardware and/or software platform works best for your highly demanding application which would provide the best user experience for your customer. In either case research and data collection becomes essential. Using what kind of F5 hardware and/or software in your environment follows the same principals where your IT team would require data to make the right decision. Data could vary from CPU, Throughput and/or Memory utilization etc. of your F5 gear. It could also be data just for a period of a day, a month or a year depending the application usage patterns. Ansible to the rescue Your environment could have 10's or maybe 100 or even 1000's of F5 BIG-IP's in your environment, manually logging into each one to gather data would be a highly inefficient method. One way which is a great and simple way could be to use Ansible as an automation framework to perform this task, relieving you to perform your other job functions. Let's take a look at some of the components needed to use Ansible. An inventory file in Ansible defines the hosts against which your playbook is going to run. Below is an example of a file defining F5 hosts which can be expanded to represent your 10'/100's or 1000's of BIG-IP's. Inventory file: 'inventory.yml' [f5] ltm01 password=admin server=10.192.73.xxx user=admin validate_certs=no server_port=443 ltm02 password=admin server=10.192.73.xxx user=admin validate_certs=no server_port=443 ltm03 password=admin server=10.192.73.xxx user=admin validate_certs=no server_port=443 ltm04 password=admin server=10.192.73.xxx user=admin validate_certs=no server_port=443 ltm05 password=admin server=10.192.73.xxx user=admin validate_certs=no server_port=443 A playbook defines the tasks that are going to be executed. In this playbook we are using the bigip_command module which can take as input any BIG-IP tmsh command and provide the output. Here we are going to use the tmsh commands to gather performance data from the BIG-IP's. The output from each of the BIG-IP's is going to be stored in a file that can be referenced after the playbook finished execution. Playbook: 'performance-data/yml' --- - name: Create empty file hosts: localhost gather_facts: false tasks: - name: Creating an empty file file: path: "./{{filename}}" state: touch - name: Gather stats using tmsh command hosts: f5 connection: local gather_facts: false serial: 1 tasks: - name: Gather performance stats bigip_command: provider: server: "{{server}}" user: "{{user}}" password: "{{password}}" server_port: "{{server_port}}" validate_certs: "{{validate_certs}}" commands: - show sys performance throughput historical - show sys performance system historical register: result - lineinfile: line: "\n###BIG-IP hostname => {{ inventory_hostname }} ###\n" insertafter: EOF dest: "./{{filename}}" - lineinfile: line: "{{ result.stdout_lines }}" insertafter: EOF dest: "./{{filename}}" - name: Format the file shell: cmd: sed 's/,/\n/g' ./{{filename}} > ./{{filename}}_formatted - pause: seconds: 10 - name: Delete file hosts: localhost gather_facts: false tasks: - name: Delete extra file created (delete file) file: path: ./{{filename}} state: absent Execution: The execution command will take as input the playbook name, the inventory file as well as the filename where the output will be stored. (There are different ways of defining and passing parameters to a playbook, below is one such example) ansible-playbook performance_data.yml -i inventory.yml --extra-vars "filename=perf_output" Snippet of expected output: ###BIG-IP hostname => ltm01 ### [['Sys::Performance Throughput' '-----------------------------------------------------------------------' 'Throughput(bits)(bits/sec)Current3 hrs24 hrs7 days30 days' '-----------------------------------------------------------------------' 'Service223.8K258.8K279.2K297.4K112.5K' 'In212.1K209.7K210.5K243.6K89.5K' 'Out21.4K21.0K21.1K57.4K30.1K' '' '-----------------------------------------------------------------------' 'SSL TransactionsCurrent3 hrs24 hrs7 days30 days' '-----------------------------------------------------------------------' 'SSL TPS00000' '' '-----------------------------------------------------------------------' 'Throughput(packets)(pkts/sec)Current3 hrs24 hrs7 days30 days' '-----------------------------------------------------------------------' 'Service7982836362' 'In4140403432' 'Out4140403234'] ['Sys::Performance System' '------------------------------------------------------------' 'System CPU Usage(%)Current3 hrs24 hrs7 days30 days' '------------------------------------------------------------' 'Utilization1718181817' '' '------------------------------------------------------------' 'Memory Used(%)Current3 hrs24 hrs7 days30 days' '------------------------------------------------------------' 'TMM Memory Used1010101010' 'Other Memory Used5555545453' 'Swap Used00000']] ###BIG-IP hostname => ltm02 ### [['Sys::Performance Throughput' '-----------------------------------------------------------------------' 'Throughput(bits)(bits/sec)Current3 hrs24 hrs7 days30 days' '-----------------------------------------------------------------------' 'Service202.3K258.7K279.2K297.4K112.5K' 'In190.8K209.7K210.5K243.6K89.5K' 'Out19.6K21.0K21.1K57.4K30.1K' '' '-----------------------------------------------------------------------' 'SSL TransactionsCurrent3 hrs24 hrs7 days30 days' '-----------------------------------------------------------------------' 'SSL TPS00000' '' '-----------------------------------------------------------------------' 'Throughput(packets)(pkts/sec)Current3 hrs24 hrs7 days30 days' '-----------------------------------------------------------------------' 'Service7782836362' 'In3940403432' 'Out3740403234'] ['Sys::Performance System' '------------------------------------------------------------' 'System CPU Usage(%)Current3 hrs24 hrs7 days30 days' '------------------------------------------------------------' 'Utilization2118181817' '' '------------------------------------------------------------' 'Memory Used(%)Current3 hrs24 hrs7 days30 days' '------------------------------------------------------------' 'TMM Memory Used1010101010' 'Other Memory Used5555545453' 'Swap Used00000']] The data obtained is historical data over a period of time. Sometimes it is also important to gather the peak usage of throughout/memory/cpu over time and not the average. Stay tuned as we will discuss on how to obtain that information in a upcoming article. Conclusion Use the output of the data to learn the traffic patterns and propose the most appropriate BIG-IP hardware/software in your environment. This could be data collected directly in your production environment or a staging environment, which would help you make the decision on what purchasing strategy gives you the most value from your BIG-IP's. For reference: https://www.f5.com/pdf/products/big-ip-local-traffic-manager-ds.pdf The above is one example of how you can get started with using Ansible and tmsh commands. Using this method you can potentially achieve close to 100% automation on the BIG-IP.Cipher Rules And Groups in BIG-IP v13

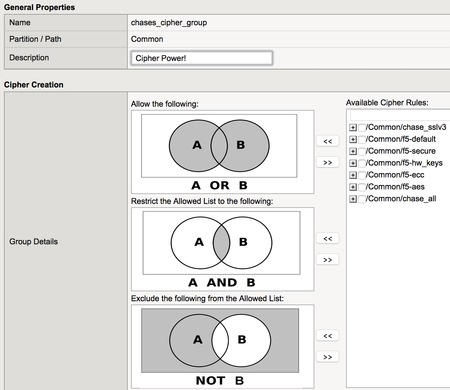

My mother used to always tell me two things before I left for school in the morning. Be wary of what ciphers your application supports Never use the Default cipher list unless you have compatibility concerns You may have had a different upbringing from me but my mom's lessons still apply to anyone using SSL/TLS enabled systems. We know from Señor Wagnon's Security Sidebar: Improving Your SSL Labs Test Grade how cumbersome modifying lengthy cipher strings can be to keep your SSL Labs A grade. We know as BIG-IP matures we update the DEFAULT cipher list to remove deprecated entries and introduce fancy new ones. This causes negative affects on those legacy applications we like to keep lying around. Lastly, we know that not everyone appreciates meditating in SSH sessions; pondering countless tmm --clientciphers commands to figure out what cipher string they'll need in order to get achieve an SSL Labs A+ grade. We have a solution for you. Cipher Rules & Groups BIG-IP version 13 introduces Cipher Rules & Groups; an alternate way to visualize, organize, and apply cipher suites to your client and ssl profiles. You still need a basic understanding of cipher strings and I recommend you review Megazone's article: Cipher Suite Practices and Pitfallsarticle before gallivanting through Cipher Rules & Groups; you'll stub a toe. Cipher rules and the subsequent groups that contain them allow the same boolean operators used in tmm cipher strings. Boolean Operations in Cipher Groups UNION = Allow the following: INTERSECT = Restrict the Allowed List to the following: DIFFERENCE =Exclude the following from the Allowed List: F5 includes 5 default cipher rules and applies them via 5 default cipher groups of the same name (included is the tmm command to view each cipher list used): f5-aes = tmm --clientciphers AES f5-default = tmm --clientciphers DEFAULT f5-ecc = tmm --clientciphers ECDHE:ECDHE_ECDSA f5-secure = tmm --clientciphers ECDHE:RSA:!SSLV3:!RC4:!EXP:!DES f5-hw_keys = tmm --clientciphers 'ECDHE-RSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-SHA384:ECDHE-RSA-AES256-CBC-SHA:DHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES256-SHA256:DHE-RSA-AES256-SHA:ECDH-RSA-AES256-GCM-SHA384:ECDH-RSA-AES256-SHA384:ECDH-RSA-AES256-SHA:AES256-GCM-SHA384:AES256-SHA256:AES256-SHA:ECDHE-RSA-DES-CBC3-SHA:DHE-RSA-DES-CBC3-SHA:ECDH-RSA-DES-CBC3-SHA:DES-CBC3-SHA:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-SHA256:ECDHE-RSA-AES128-CBC-SHA:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:ECDH-RSA-AES128-GCM-SHA256:ECDH-RSA-AES128-SHA256:ECDH-RSA-AES128-SHA:AES128-GCM-SHA256:AES128-SHA256:AES128-SHA:RC4-SHA:RC4-MD5:DHE-RSA-DES-CBC-SHA:DHE-RSA-CAMELLIA256-SHA:CAMELLIA256-SHA:DHE-RSA-CAMELLIA128-SHA:!TLSv1:!TLSv1_1:!SSLv3:!DTLSv1 The last one related to HSM ciphers was crazy long wasn't it. This is why we built cipher rules and groups; to prevent you from banging your head on the table because you got the operand wrong somewhere after ECDHE-RSA-AES128-GCM-SHA256. The F5 provided rules and groups are read-only and should used as a reference or starting template. If you rely only on the default F5 cipher rules/groups they will change as our cryptographic requirements change and you could end up with a bunch of incompatible legacy clients. Building A Cipher Rule Because Cipher Rules and Groups are applied to SSL Profiles, you can find them under Local Traffic in the web GUI. Clicking into Local Traffic => Ciphers gives you two options: Cipher Rules and Cipher Groups. I'll create one Cipher Rule based on tmm cipher string ALL:SSLv3:EXPORT. This is only for display purposes to better illustrate the boolean operations when we build the Cipher Group. Current ciphers based on BIG-IP version and Hotfix are listed in the NATIVE cipher list. Remember, we have to support a lot of ciphers that may not be appropriate for public consumption. Building Cipher Groups Now we'll build a Cipher Group starting with the chase_all Cipher Rule, because we're gluttons for punishment. Clicking the + expands the ciphers allowed under each Cipher Rule. Adding it to the "Allow the following" element, the Cipher Audit element below will automatically update to reflect the ciphers this group will provide the Client or Server Profile. Remember, anything added in that window is performing a Boolean Union operation. Adding the f5-aes Cipher Rule to the "Restrict the Allowed List to the following:" element which will reduce the chase_all cipher list to only ciphers common to both ALL:SSLv3:EXPORT and AES lists; performing a Boolean Intersection operation. The Cipher Audit element shows the results and we can see those pesky RC4-MD5 suites from EXPORT are gone, but ew... we have some SSLv3-enabled ciphers and we want those out. I'll create a new Cipher Rule called chase_sslv3 with the cipher string only being SSlv3. I'll add this new Cipher Rule to the "Exclude the following from the Allowed List:"; performing a Boolean Difference operation. We can also change the cipher sorting based on speed, strength, FIPS, or hardware accelerated via the Order dropdown. Ahh.... better, now we've paired down a horribly insecure cipher list with the intersection of the AES ciphers and exclusion of the SSlv3s. Yea, we could have started with the AES Cipher Rule as the base list but that's not as fun for this demonstration. The lifecycle of a BIG-IP SSL profile requires active management of cipher suites. This demo illustrates the flexability of additive/subtractive cipher management which reduces the complexity of recreating the wheel every time someone nullifies the security of existing algorithms or hash functions. Applying Cipher Groups to Client/Server Profiles Open an SSL Client or Server Profile and change the configuration to advanced. The cipher list becomes available and is defaulted to a Cipher String. Now you have a radio button for Cipher Group, selecting the newly created object or click the + button to create one from scratch. TMSH Support for Cipher Rules and Groups We have support for tmsh commands so you can take advantage of adding cipher groups to existing profiles. # tmsh list ltm cipher rule f5-secure all-properties ltm cipher rule f5-secure { app-service none cipher ECDHE:RSA:!SSLV3:!RC4:!EXP:!DES description "Cipher suites that maximize regulatory compliance." partition Common } # tmsh show ltm cipher rule f5-secure ----------------- Ltm::Cipher::Rule ----------------- Name Result ----------------- f5-secure ECDHE-RSA-AES128-GCM-SHA256/TLS1.2:ECDHE-RSA-AES128-CBC-SHA/TLS1.0:ECDHE-RSA-AES128-CBC-SHA/TLS1.1:ECDHE-RSA-AES128-CBC-SHA/TLS1.2:ECDHE-RSA-AES128-SHA256/TLS1.2:ECDHE-RSA-AES256-GCM-SHA384/TLS1.2:ECDHE-RSA-AES256-CBC-SHA/TLS1.0:ECDHE-RSA-AES256-CBC-SHA/TLS1.1:ECDHE-RSA-AES256-CBC-SHA/TLS1.2:ECDHE-RSA-AES256-SHA384/TLS1.2:ECDHE-RSA-DES-CBC3-SHA/TLS1.0:ECDHE-RSA-DES-CBC3-SHA/TLS1.1:ECDHE-RSA-DES-CBC3-SHA/TLS1.2:AES128-GCM-SHA256/TLS1.2:AES128-SHA/TLS1.0:AES128-SHA/TLS1.1:AES128-SHA/TLS1.2:AES128-SHA/DTLS1.0:AES128-SHA256/TLS1.2:AES256-GCM-SHA384/TLS1.2:AES256-SHA/TLS1.0:AES256-SHA/TLS1.1:AES256-SHA/TLS1.2:AES256-SHA/DTLS1.0:AES256-SHA256/TLS1.2:CAMELLIA128-SHA/TLS1.0:CAMELLIA128-SHA/TLS1.1:CAMELLIA128-SHA/TLS1.2:CAMELLIA256-SHA/TLS1.0:CAMELLIA256-SHA/TLS1.1:CAMELLIA256-SHA/TLS1.2:DES-CBC3-SHA/TLS1.0:DES-CBC3-SHA/TLS1.1:DES-CBC3-SHA/TLS1.2:DES-CBC3-SHA/DTLS1.0 # tmsh list ltm cipher group chases_cipher_group all-properties ltm cipher group chases_cipher_group { allow { chase_all { } } app-service none description "MY CIPHERS ARE THE BEST CIPHERS" exclude { chase_sslv3 { } } ordering default partition Common require { f5-aes { } } } # tmsh show ltm cipher group chases_cipher_group --------------------------- Ltm::Cipher::Group --------------------------- Name Result --------------------------- chases_cipher_group ECDHE-RSA-AES128-CBC-SHA/TLS1.0:ECDHE-RSA-AES128-CBC-SHA/TLS1.1:ECDHE-RSA-AES128-CBC-SHA/TLS1.2:ECDHE-RSA-AES128-SHA256/TLS1.2:ECDHE-RSA-AES256-CBC-SHA/TLS1.0:ECDHE-RSA-AES256-CBC-SHA/TLS1.1:ECDHE-RSA-AES256-CBC-SHA/TLS1.2:ECDHE-RSA-AES256-SHA384/TLS1.2:ECDH-RSA-AES128-SHA256/TLS1.2:ECDH-RSA-AES128-SHA/TLS1.0:ECDH-RSA-AES128-SHA/TLS1.1:ECDH-RSA-AES128-SHA/TLS1.2:ECDH-RSA-AES256-SHA384/TLS1.2:ECDH-RSA-AES256-SHA/TLS1.0:ECDH-RSA-AES256-SHA/TLS1.1:ECDH-RSA-AES256-SHA/TLS1.2:AES128-SHA/TLS1.0:AES128-SHA/TLS1.1:AES128-SHA/TLS1.2:AES128-SHA/DTLS1.0:AES128-SHA256/TLS1.2:AES256-SHA/TLS1.0:AES256-SHA/TLS1.1:AES256-SHA/TLS1.2:AES256-SHA/DTLS1.0:AES256-SHA256/TLS1.2:ECDHE-ECDSA-AES128-SHA/TLS1.0:ECDHE-ECDSA-AES128-SHA/TLS1.1:ECDHE-ECDSA-AES128-SHA/TLS1.2:ECDHE-ECDSA-AES128-SHA256/TLS1.2:ECDHE-ECDSA-AES256-SHA/TLS1.0:ECDHE-ECDSA-AES256-SHA/TLS1.1:ECDHE-ECDSA-AES256-SHA/TLS1.2:ECDHE-ECDSA-AES256-SHA384/TLS1.2:ECDH-ECDSA-AES128-SHA/TLS1.0:ECDH-ECDSA-AES128-SHA/TLS1.1:ECDH-ECDSA-AES128-SHA/TLS1.2:ECDH-ECDSA-AES128-SHA256/TLS1.2:ECDH-ECDSA-AES256-SHA/TLS1.0:ECDH-ECDSA-AES256-SHA/TLS1.1:ECDH-ECDSA-AES256-SHA/TLS1.2:ECDH-ECDSA-AES256-SHA384/TLS1.2:DHE-RSA-AES128-SHA/TLS1.0:DHE-RSA-AES128-SHA/TLS1.1:DHE-RSA-AES128-SHA/TLS1.2:DHE-RSA-AES128-SHA/DTLS1.0:DHE-RSA-AES128-SHA256/TLS1.2:DHE-RSA-AES256-SHA/TLS1.0:DHE-RSA-AES256-SHA/TLS1.1:DHE-RSA-AES256-SHA/TLS1.2:DHE-RSA-AES256-SHA/DTLS1.0:DHE-RSA-AES256-SHA256/TLS1.2:DHE-DSS-AES128-SHA/TLS1.0:DHE-DSS-AES128-SHA/TLS1.1:DHE-DSS-AES128-SHA/TLS1.2:DHE-DSS-AES128-SHA/DTLS1.0:DHE-DSS-AES128-SHA256/TLS1.2:DHE-DSS-AES256-SHA/TLS1.0:DHE-DSS-AES256-SHA/TLS1.1:DHE-DSS-AES256-SHA/TLS1.2:DHE-DSS-AES256-SHA/DTLS1.0:DHE-DSS-AES256-SHA256/TLS1.2:ADH-AES128-SHA/TLS1.0:ADH-AES256-SHA/TLS1.0 # tmsh list ltm profile client-ssl chases_ssl_client_profile ltm profile client-ssl chases_ssl_client_profile { app-service none cert default.crt cert-key-chain { default { cert default.crt key default.key } } chain none cipher-group chases_cipher_group ciphers none defaults-from clientssl inherit-certkeychain true key default.key passphrase none } # tmsh list ltm profile server-ssl chases_ssl_server_profile ltm profile server-ssl chases_ssl_server_profile { app-service none cipher-group chases_cipher_group ciphers none defaults-from serverssl } Validating Your Ciphers With NMAP A lot of users are not always comfortable with how we output our cipher lists. NMAP provides a user-preferred display using the ssl-enum-ciphers script. In this case, we'll check out SSL Labs web server's ciphers. Run the following: $ nmap -Pn -sT www.ssllabs.com -p 443 --script ssl-enum-ciphers Starting Nmap 6.40 at 2017-02-24 11:22 PST Nmap scan report for www.ssllabs.com (64.41.200.100) Host is up (0.035s latency). PORT STATE SERVICE 443/tcp open https | ssl-enum-ciphers: | SSLv3: No supported ciphers found | TLSv1.0: | ciphers: | TLS_DHE_RSA_WITH_3DES_EDE_CBC_SHA - strong | TLS_DHE_RSA_WITH_AES_128_CBC_SHA - strong | TLS_DHE_RSA_WITH_AES_256_CBC_SHA - strong | TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA - strong | TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA - strong | TLS_RSA_WITH_3DES_EDE_CBC_SHA - strong | compressors: | NULL | TLSv1.1: | ciphers: | TLS_DHE_RSA_WITH_3DES_EDE_CBC_SHA - strong | TLS_DHE_RSA_WITH_AES_128_CBC_SHA - strong | TLS_DHE_RSA_WITH_AES_256_CBC_SHA - strong | TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA - strong | TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA - strong | TLS_RSA_WITH_3DES_EDE_CBC_SHA - strong | compressors: | NULL | TLSv1.2: | ciphers: | TLS_DHE_RSA_WITH_3DES_EDE_CBC_SHA - strong | TLS_DHE_RSA_WITH_AES_128_CBC_SHA - strong | TLS_DHE_RSA_WITH_AES_128_CBC_SHA256 - strong | TLS_DHE_RSA_WITH_AES_128_GCM_SHA256 - strong | TLS_DHE_RSA_WITH_AES_256_CBC_SHA - strong | TLS_DHE_RSA_WITH_AES_256_CBC_SHA256 - strong | TLS_DHE_RSA_WITH_AES_256_GCM_SHA384 - strong | TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA - strong | TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256 - strong | TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256 - strong | TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA - strong | TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384 - strong | TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 - strong | TLS_RSA_WITH_3DES_EDE_CBC_SHA - strong | compressors: | NULL |_ least strength: strong Nmap done: 1 IP address (1 host up) scanned in 2.73 seconds Hopefully this overview and mini-demo got you pondering how you can improve cipher management in your infrastructure. As the crypto world discovers new ways to compromise math, we have to keep on our toes more than ever. Google Research and CWI Amsterdam just published the first real world hash collision for SHA-1 proving we need to stay informed. The idea is simple, create Cipher Rules based on your needs and reuse them against application or security policy-centric Cipher Groups. Segregating Cipher management from Client and Server SSL Profiles creates a more flexibility for application owners and should reduce the cipher string headache every time there's a new vulnerability. Drop us a line on your thoughts and let us know if we're going down the right path or if ther are other things you wish to see related to cipher management. Keep it real.
