What is HTTP Part VIII - Compression and Caching

In the last article of this What is HTTP? series we covered the nuances of OneConnect on HTTP traffic through the BIG-IP. In this article, we’ll cover caching and compression. We’ll deal with compression first, and then move on to caching.

Compression

 In the very early days of the internet, much of the content was text based. This meant that the majority of resources were very small in nature. As popularity grew, the desire for more rich content filled with images grew as well, and resource sized began to explode. What had not yet exploded yet, however, was the bandwidth available to handle all that rich content (and you could argue that’s still the case in mobile and remote terrestrial networks as well.)

This intersection of more resources without more bandwidth led to HTTP development in a few different areas:

• Methods for getting or sending partial resources
• Methods for identifying if resources needed to be retrieved at all
• Methods for reducing resources during transit that could be successfully reproduced after receipt

The various range headers were developed to handle the first case, caching, which we will discuss later in this article, was developed to handle the second case, and compression was developed to handle the third case. The basic definition of data compression is simply reducing the bits necessary to accurately represent the resource. This is done not only to save network bandwidth, but also on storage devices to save space. And of course money in both areas as well.

In HTTP/1.0, end-to-end compression was possible, but not hop-by-hop as it does not have a distinguishing mechanism between the two. That is addressed in HTTP/1.1, so intermediaries can use complex algorithms unknown to the server or client to compress data between them and translate accordingly when speaking to the clients and servers respectively.

In 11.x forward, compression is managed in its own profile. Prior to 11.x, it was included in the http profile. The httpcompression profile overview on AskF5 is very thorough, so I won’t repeat that information here, but you will want to pay attention to the compression level if you are using gzip (default.) The default of level 1 is fast from the perspective of the act of compressing on BIG-IP, but having done minimal compressing, reaps the least amount of benefit on the wire. If a particular application has great need for less bandwidth utilization toward the clientside of the network footprint, bumping up to level 6 will increase the reduction in bandwidth without overly taxing the BIG-IP to perform the operation. Also, it’s best to avoid compressing data that has already been compressed, like images and pdfs. Compressing them actually makes the resource larger, and wastes BIG-IP resources doing it! SVG format would be an exception to that rule. Also, don’t compress small files. The profile default is 1M for minimum content length.

For BIG-IP hardware platforms, compression can be performed in hardware to offload that function. There is a database variable that you can configure to select the data compression strategy via

sys modify db compression.strategy

. The default value is latency, but there are four other strategies you can employ as covered in the manual.

Caching

 Web caching could (and probably should) be its own multi-part series. The complexities are numerous, and the details plentiful. We did a series called Project Acceleration that covered some of the TCP optimization and compression topics, as well as the larger product we used to call Web Accelerator but is now the Application Acceleration Manager or AAM. AAM is caching and application optimization on steroids and we are not going to dive that deep here. We are going to focus specifically on HTTP caching and how the default functionality of the ramcache works on the BIG-IP. Consider the situation where there is no caching:

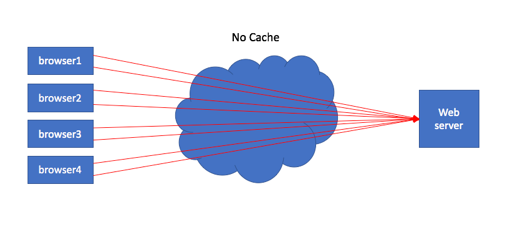

In this scenario, every request from the browser communicates with the web server, no matter how infrequently the content changes. This is a wasteful use of resources on the server, the network, and even the client itself. The most important resource to our short attention span end users is time! The more objects and distance from the server, the longer the end user waits for that page to render. One way to help is to allow local caching in the browser:

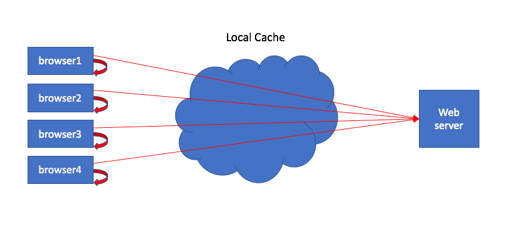

This way, the first request will hit the web server, and repeat requests for that same resource will be pulled from the cache (assuming the resource is still valid, more on that below.) Finally, there is the intermediary cache. This can live immediately in front of the end users like in an enterprise LAN, in a content distribution network, immediately in front of the servers in a datacenter, or all of the above!

In this case, the browser1 client requests an object not yet in the cache serving all the browser clients shown. Once the cache has the object from the server, it will serve it to all the browser clients, which offloads the requests to server, saves the time in doing so, and brings the response closer to the browser clients as well.

Given the benefits of a caching solution, let’s talk briefly of the risks. If you take the control of what’s served away from the server and put it in the hands of an intermediary, especially an intermediary the administrators of the origin server might not have authority over, how do you control then what content the browsers ultimately are loading? That’s where the HTTP standards on caching control come into play.

HTTP/1.0 introduced the Pragma, If-Modified-Since, Last-Modified, and Expires headers for cache control. The Cache-Control and ETag headers along with a slew of “If-“ conditional headers were introduced in HTTP/1.1, but you will see many of the HTTP/1.0 cache headers in responses alongside the HTTP/1.1 headers for backwards compatibility.

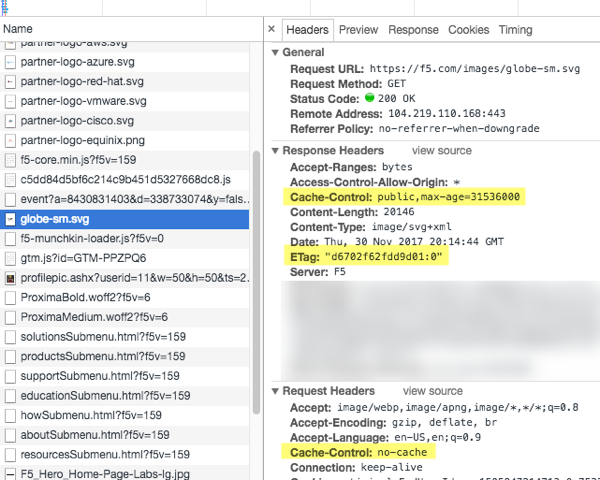

Rather than try to cover the breadth of caching here, I’ll leave it to the reader to dig into the quite good resources linked at the bottom (start with "Things Caches Do") for detailed understanding. However, there's a lot to glean from your browser developer tools and tools like Fiddler and HttpWatch. Consider this request from my browser for the globe-sm.svg file on f5.com.

Near the bottom of the image, I’ve highlighted the request Cache-Control header, which has a value of no-cache. This isn’t a very intuitive name, but what the client is directing the cache is that it must submit the request to the origin server every time, even if the content is fresh. This assures authentication is respected while still allowing for the cache to be utilized for content delivery. In the response, the Cache-Control header has two values: public and max-age. The max-age here is quite large, so this is obviously an asset that is not expected to change much. The public directive means the resource can be stored in a shared cache.

Now that we have a basic idea what caching is, how does the BIG-IP handle it? The basic caching available in LTM is handled in the same profile that AAM uses, but there are some features missing when AAM is not provisioned. It used to be called ramcache, but now is the webacceleration profile.

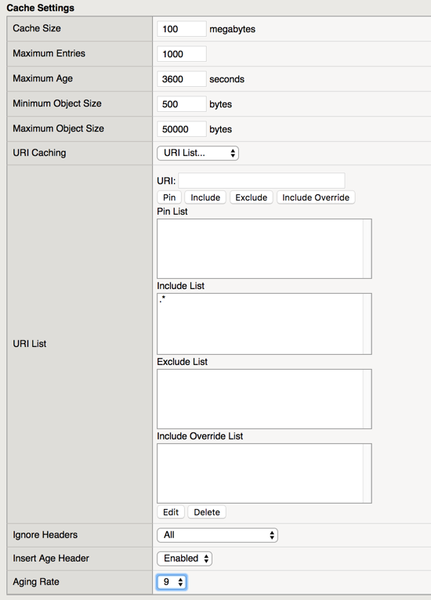

Solution K14903 provides the overview of the webacceleration profile but we’ll discuss the cache size briefly. Unlike the Web Accelerator, there is no disk associated with the ramcache. As the name implies, this is “hot” cache in memory. So if you are memory limited on your BIG-IP, 100MB might be a little too large to keep locally.

Managing the items in cache can be done via the tmsh command line with the ltm profile ramcache command. tmsh show/delete operations can be used against this method. An example show on my local test box:

root@(ltm3)(cfg-sync Standalone)(Active)(/Common)(tmos)# show ltm profile ramcache webacceleration
Ltm::Ramcaches /Common/webacceleration

Host: 192.168.102.62
URI : /
--------------------------------------
  Source Slot/TMM  1/1
  Owner Slot/TMM   1/1
  Rank             1

  Size (bytes)     3545
  Hits             5
  Received         2017-11-30 22:16:47
  Last Sent        2017-11-30 22:56:33
  Expires          2017-11-30 23:16:47
  Vary Type        encoding
  Vary Count       1
  Vary User Agent  none
  Vary Encoding    gzip,deflate

Again, if you have AAM licensed, you can provision it and then additional fields will be shown in the webacceleration profile above to allow for an acceleration policy to be applied against your virtual server.

Resources

• RFC 2616 - The standard fine print.
• Things Caches Do - Excellent napkin diagrams that provide simple explanations of caching operations.
• Caching Tutorial - Comprehensive walk through of caching.
• HTTP Caching - Brief but informative look at caching from a webdev perspective.
• HTTP Caching - Google develops page with examples, flowcharts, and advice on caching strategies.
• Project Acceleration - Our 10 part series on web acceleration technology available on the BIG-IP platform in LTM and/or AAM modules.
• Solution K5157 - BIG-IP caching and the Vary header
• Make Your Cache Work For You - Article by Dawn Parzych here on DevCentral on tuning techniques
