Modern Application Architecture - Cloud-Native Architecture Platform - Part 1 of 3


In this multi part series of articles, I will be sharing with you on how to leverage F5’s BIG-IP (BIG-IP), Aspen Mesh service mesh and NGINX ingress controller to create a cloud-agnostic, resilient and secure cloud-native architecture platform to support your cloud-native applications requirement. Cloud-native is a term used to describe container-based environment. Microservices is an architectural pattern/approach/style where application are structured into multiple loosely couple, independent services delivered in a containerized form factor. Hence, for simplicity, in this series of articles, cloud-native architecture and microservices architecture platform (cPaaS) are use interchangeably.


Although BIG-IP is not in the category of a cloud-native apps (in comparison with F5's Service Proxy for Kubernetes (SPK) - which is cloud-native), currently, BIG-IP is feature rich and play a key role in this reference architecture pattern. For existing customer who has BIG-IP, this could be a first step for an organic transition from existing BIG-IP to cloud-native SPK.

Part 1 – Cloud-Native Architecture Platform

  • Formulate a cloud-agnostic architecture pattern.
  • Architect/Build Kubernetes Platform for development (based on k3d with k3s).
  • Architect and integrate keys technologies for this pattern.
  • BIG-IP
  • Aspen Mesh Service Mesh + Jaeger distributed tracing
  • NGINX Ingress Controller
  • Container Ingress Services (CIS)
  • Application Services v3 (AS3)
  • Grafana/Prometheus Monitoring

Part 2 – Traffic Management, Security and Observability

  • Establish common ingress/egress architecture pattern
  • For HTTP based application (e.g., http/http2 web application)
  • For non-HTTP (e.g. TCP/UDP) based application (e.g., MQTT)
  • Uplift cloud-native apps protection with Web Application Firewall.
  • Aspen Mesh Service Mesh
  • Bookinfo apps
  • Httpbin apps
  • NGINX Ingress controller
  • Grafana apps
  • Grafana and Prometheus monitoring for Aspen Mesh and NGINX

Part 3 – Unified Authentication (AuthN) and Authorization (AuthZ) for cloud-native apps.

  • OAUTH authentication (Azure AD and Google)
  • Legacy Windows AD Authentication

Why cloud-native architecture platform?

The proliferation of Internet based applications, software and usage on mobile devices has grown substantially over the years. It is no longer a prediction. It is a fact. According to 2021 Global Digital suite of reports from “We Are Social” and “Hootsuite”, there are over 5 billion unique mobile users and over 4 billion users actively connected to the Internet. This excludes connected devices such as Internet of Things, servers that power the internet and etc. With COVID-19 and the rise of 5G rollout, edge and cloud computing, connected technologies became and event more important and part of people’s lives. As the saying goes, “Application/Software powered the Internet and Internet is the backbone of the world economy”.

Today organization business leaders require their IT and digital transformation teams to be more innovative by supporting the creation of business-enabling applications, which means they are no longer just responsible for availability of the networks and servers, but also building a robust platform to support the software development and application delivery that are secure, reliable and innovative. To support that vision, organization need a robust platform to support and deliver application portfolio that are able to support the business. Because a strong application portfolio is crucial for the success of the business and increase market value, IT or Digital transformation team may need to ask:

"What can we do to embrace and support the proliferation of applications, empower those with creative leadership, foster innovative development, and ultimately help create market value?"

Robust and secure cloud-native platform for modern application architecture and frictionless consumption of application services are some of the requirement for success. As of this writing (April 2021), cloud-native / microservices architecture is an architecture pattern of choice for modern developer and Kubernetes Platform is the industry de-facto standard for microservices/containers orchestration.

What is the GOAL in this series of articles?

Strategies, formulate and build a common, resilient and scalable cloud-native reference architecture and Platform as a Service to handle modern applications workload. This architecture pattern is modular and cloud-agnostic and deliver a consistent security and application services.

To established the reference architecture, we are leveraging an open source upstream Kubernetes platform on a single Linux VM with multitude of open source and commercial tools and integrate that with F5's BIG-IP as the unified Ingress/Egress and unified access to cloud-native application hosted on the following type of workload:-

  • Service Mesh workload
  • Non-Service Mesh workload
  • TCP/UDP workload


  • We can leverage F5's Service Proxy for Kubernetes (SPK) as the unified ingress/egress. However, F5's BIG-IP will be used in this article.
  • You can skip steps of building Kubernetes cluster if you already have an existing multi-node Kubernetes cluster, minikube or any public cloud hosted Kubernetes (e.g. EKS/AKS/GKE)


  • 1 x Ubuntu VM (ensure you have a working Ubuntu 20.x with docker installed)
  • vCPU: 8 (can runs with 4 or 6 vCPU with reduce functionality)
  • HDD: Ideal 80G. (Only required for persistent storage. Can run with 40G). Need to update persistent volume size appropriately.


Modern Application Architecture (cPaaS) - Reference Architecture

BIG-IP - Service Proxy

  • Central ingress and/or egress for cloud-native workload.
  • For applications deployed in service mesh namespaces, F5 service proxy, proxied ingress traffic to Aspen Mesh ingressgateway.
  • For applications deployed in non-service mesh namespaces, F5 service proxy, proxied ingress traffic to NGINX ingress controller.
  • For applications that required bypass of ingress (e.g. TCP/UDP apps), F5 service proxy, proxied directly to those pods IP.
  • F5 Service Proxy provides centralized security protection by enforcing Web Application and API Protection (WAAP) firewall policy on cloud-native workloads.
  • F5 Service Proxy provided SSL inspection (SSL bridge and/or offload) to Aspen Mesh ingressgateway and/or NGINX ingress controller.
  • F5 Service Proxy can be deploy to send to multiple Kubernetes cluster - for inter and/or intra cluster resiliency.
  • Global Server Load Balancing (F5's DNS) can be enabled on F5 Service Proxy to provides geo-redundancy for multi-cloud workload.
  • F5 Service Proxy act as the unified access management with F5's Access Policy Manager (APM). Cloud-native application can delegate AuthN to F5 Service Proxy (multiple AuthN mechanism such as OIDC/OAuth/NTLM/SAML and etc) and cloud-native application perform AuthZ.
  • F5 Service-Proxy ingress are only need to setup once. Cloud-native apps FQDN are all mapped to the same ingress.

Aspen Mesh Service Mesh

  • Centralized ingress for service mesh namespaces
  • Enterprise ready, hardened and fully supported Istio-based service mesh by F5.
  • Provides all capabilities delivered by Istio (Connect, Secure, Control and Observe).
  • Provide traffic management and security for East-West communication.
  • Reduce operational complexities of managing service mesh
  • Aspen Mesh Rapid Resolve / MTTR - Mean Time To Resolution - quickly detect and identify causes of cluster and application errors.
  • Service and Health indicator Graph for service visibility and observability.
  • ISTIO Vet
  • Enhance security
  • Secure by Default with zero trust policy
  • Secure Ingress
  • Enhance RBAC
  • Carrier-grade feature
  • Aspen Mesh Packet Inspector

NGINX Ingress Controller

  • Centralized ingress for non-service mesh namespaces
  • Works with both NGINX and NGINX Plus and supports the standard ingress features - content-based routing and TLS/SSL termination
  • Support load balancing WebSocket, gRPC, TCP and UDP applications

Container Ingress Services (CIS)

  • Works with container orchestration environment (e.g. Kubernetes) to dynamically create L4/L7 services on BIG-IP and load balance network traffic across those services.
  • It monitor the orchestration API server (e.g. lifecycle of Kubernetes pods) and dynamically update BIG-IP configuration based on changes made on containerized application.
  • In this setup, it monitor Aspen Mesh ingressgateway, NGINX ingress controller and TCP/UDP based apps and dynamically updates BIG-IP configuration.


  • Application Services 3 extension is a flexible, low-overhead mechanism for managing application-specific configuration on BIG-IP system.
  • Leveraging a declarative model with a single JSON declaration.

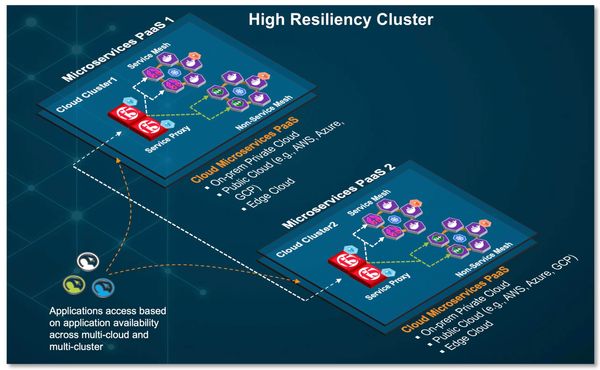

High Resiliency Cloud-Native Apps

The reference architecture above can be treated as an "atomic" unit or a "repeatable pattern". This "atomic" unit can be deploy in multiple public cloud (e.g. EKS/AKS/GKE and etc) or private cloud. Multiple "atomic" unit can be constructed to form a high service resiliency clusters.

F5 DNS/GSLB can be deploy to monitor health of each individual cloud-native apps inside each individual "atomic" cluster and dynamically redirect user to a healthy apps. Each cluster can runs as active-active and application can be distributed to both clusters.


How applications achieve high resiliency with F5 DNS.


Multi-Cloud, Multi-Cluster Service Resiliency

Conceptual view on how an "atomic" unit / cPaaS can be deployed in multi-cloud and each of this clusters can be constructed to form a service resiliency mesh by leveraging F5 DNS and F5 BIG-IP.

Note: Subsequent section will be a hands-on guide to build the reference architecture describe above (the "atomic" unit) with the exception of multi-cloud, multi-cluster service resiliency mesh. K3D + K3S will be use for the sole purpose of development and testing.

Conceptual Architecture for this setup



  • The following instructions are use as a quick start guide. Please refer to respective installation guide for details.
  • Scripts use in this setup can be found on github

Install Docker

sudo apt-get update

sudo apt-get -y install \
    apt-transport-https \
    ca-certificates \
    curl \
    gnupg-agent \

curl -fsSL | sudo apt-key add -

sudo add-apt-repository \
   "deb [arch=amd64] \
   $(lsb_release -cs) \

sudo apt-get update -y

sudo apt-get install docker-ce=5:19.03.15~3-0~ubuntu-focal docker-ce-cli=5:19.03.15~3-0~ubuntu-focal -y

fbchan@sky:~$ docker ps

sudo systemctl enable --now docker.service

Install Helm

curl -fsSL -o
chmod 700

Install calico binary

curl -O -L
chmod u+x calicoctl
sudo mv calicoctl /usr/local/bin/

Install kubectl binary

curl -LO
chmod u+x kubectl
sudo mv kubectl /usr/local/bin

Install supporting tools

sudo apt install jq -y
sudo apt install net-tools -y

Install k9s

This component is optional. It is a terminal based UI to interact with Kubernetes clusters.

tar zxvf k9s_Linux_x86_64.tar.gz
sudo mv k9s /usr/local/bin/

Ensure Linux volume group expanded

Depend on your setup, by default, your Ubuntu 20.x VM may not expand all your allocated volume. Hence, this setup is to expand all allocated disk space.

fbchan@sky:~$ sudo lvm
lvm> lvextend -l +100%FREE /dev/ubuntu-vg/ubuntu-lv
  Size of logical volume ubuntu-vg/ubuntu-lv changed from 39.50 GiB (10112 extents) to <79.00 GiB (20223 extents).
  Logical volume ubuntu-vg/ubuntu-lv successfully resized.
lvm> quit

fbchan@sky:~$ sudo resize2fs /dev/ubuntu-vg/ubuntu-lv
resize2fs 1.45.5 (07-Jan-2020)
Filesystem at /dev/ubuntu-vg/ubuntu-lv is mounted on /; on-line resizing required
old_desc_blocks = 5, new_desc_blocks = 10
The filesystem on /dev/ubuntu-vg/ubuntu-lv is now 20708352 (4k) blocks long.

fbchan@sky:~$ df -kh
Filesystem                         Size  Used Avail Use% Mounted on
udev                               7.8G     0  7.8G   0% /dev
tmpfs                              1.6G  1.2M  1.6G   1% /run
/dev/mapper/ubuntu--vg-ubuntu--lv   78G  7.1G   67G  10% /

Disable Ubuntu Firewall

sudo ufw disable
sudo apt-get remove ufw -y

Ubuntu VM

fbchan@sky:~$ ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:0c:29:6c:ab:0b brd ff:ff:ff:ff:ff:ff
    inet brd scope global ens160
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe6c:ab0b/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:4c:15:2e:1e brd ff:ff:ff:ff:ff:ff
    inet brd scope global docker0
       valid_lft forever preferred_lft forever

fbchan@sky:~$ ip r
default via dev ens160 proto static dev ens160 proto kernel scope link src dev docker0 proto kernel scope link src linkdown

Install k3d + k3s

K3D in a nutshell.

K3D is a lightweight wrapper to run k3s (Rancher Lab's minimal Kubernetes distribution) in docker. K3D makes it very easy to create single- and multi-node K3S clusters in docker, e.g. for local development on Kubernetes. For details please refer to here


Install k3d

wget -q -O - | TAG=v4.2.0 bash

Create k3s cluster

  • Spin up 1 x server/master and 3 x agent/worker nodes
  • Disable traefik and service load balancer as we don't need it as we are leveraging BIG-IP as the unified ingress/egress.
  • Replace with calico CNI instead of default flannel CNI
  • Setup TLS SAN certificate so that we can access K3S api remotely.

k3d cluster create cpaas1 --image \
--k3s-server-arg "--disable=servicelb" \
--k3s-server-arg "--disable=traefik" \
--k3s-server-arg --tls-san="" \
--k3s-server-arg --tls-san="" \
--k3s-server-arg '--flannel-backend=none' \
--volume "$(pwd)/calico-k3d.yaml:/var/lib/rancher/k3s/server/manifests/calico.yaml" \
--no-lb --servers 1 --agents 3

### Run above command or script provided ###

fbchan@sky:~/Part-1$ ./
WARN[0000] No node filter specified
INFO[0000] Prep: Network
INFO[0000] Created network 'k3d-cpaas1'
INFO[0000] Created volume 'k3d-cpaas1-images'
INFO[0001] Creating node 'k3d-cpaas1-server-0'
INFO[0001] Creating node 'k3d-cpaas1-agent-0'
INFO[0001] Creating node 'k3d-cpaas1-agent-1'
INFO[0001] Creating node 'k3d-cpaas1-agent-2'
INFO[0001] Starting cluster 'cpaas1'
INFO[0001] Starting servers...
INFO[0001] Starting Node 'k3d-cpaas1-server-0'
INFO[0014] Starting agents...
INFO[0014] Starting Node 'k3d-cpaas1-agent-0'
INFO[0024] Starting Node 'k3d-cpaas1-agent-1'
INFO[0034] Starting Node 'k3d-cpaas1-agent-2'
INFO[0045] Starting helpers...
INFO[0045] (Optional) Trying to get IP of the docker host and inject it into the cluster as 'host.k3d.internal' for easy access
INFO[0052] Successfully added host record to /etc/hosts in 4/4 nodes and to the CoreDNS ConfigMap
INFO[0052] Cluster 'cpaas1' created successfully!
INFO[0052] --kubeconfig-update-default=false --> sets --kubeconfig-switch-context=false
INFO[0052] You can now use it like this:
kubectl config use-context k3d-cpaas1
kubectl cluster-info

### Docker k3d spun up multi-node Kubernetes using docker ###
fbchan@sky:~/Part-1$ docker ps
CONTAINER ID        IMAGE                      COMMAND                  CREATED              STATUS              PORTS                     NAMES
2cf40dca2b0a        rancher/k3s:v1.19.9-k3s1   "/bin/k3s agent"         About a minute ago   Up 52 seconds                                 k3d-cpaas1-agent-2
d5c49bb65b1a        rancher/k3s:v1.19.9-k3s1   "/bin/k3s agent"         About a minute ago   Up About a minute                             k3d-cpaas1-agent-1
6e5bb6119b61        rancher/k3s:v1.19.9-k3s1   "/bin/k3s agent"         About a minute ago   Up About a minute                             k3d-cpaas1-agent-0
ea154b36e00b        rancher/k3s:v1.19.9-k3s1   "/bin/k3s server --d…"   About a minute ago   Up About a minute>6443/tcp   k3d-cpaas1-server-0

### All Kubernetes pods are in running states ###
fbchan@sky:~/Part-1$ kubectl get pod -A
NAMESPACE     NAME                                       READY   STATUS    RESTARTS   AGE
kube-system   calico-node-95gqb                          1/1     Running   0          5m11s
kube-system   calico-node-fdg9f                          1/1     Running   0          5m11s
kube-system   calico-node-klwlq                          1/1     Running   0          5m6s
kube-system   local-path-provisioner-7ff9579c6-mf85f     1/1     Running   0          5m11s
kube-system   metrics-server-7b4f8b595-7z9vk             1/1     Running   0          5m11s
kube-system   coredns-66c464876b-hjblc                   1/1     Running   0          5m11s
kube-system   calico-node-shvs5                          1/1     Running   0          4m56s
kube-system   calico-kube-controllers-5dc5c9f744-7j6gb   1/1     Running   0          5m11s

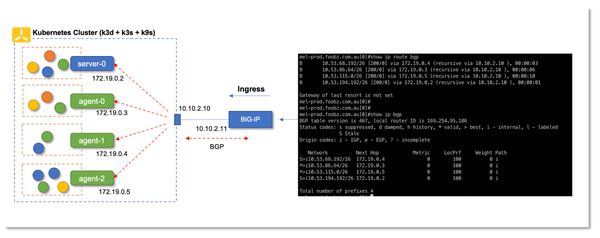

Setup Calico on Kubernetes

For details please refer to another devcentral article.


You do not need to setup calico for Kubernetes in EKS, AKS (Azure CNI with advance networking mode) or GKE deployment. Cloud Provider managed Kubernetes underlay will provides the required connectivity from BIG-IP to Kubernetes pods.

sudo mkdir /etc/calico
sudo vi /etc/calico/calicoctl.cfg

Content of calicoctl.cfg. (replace /home/xxxx/.kube/config with the location of you kubeconfig file)
kind: CalicoAPIConfig
  datastoreType: "kubernetes"
  kubeconfig: "/home/xxxx/.kube/config"

fbchan@sky:~/Part-1$ sudo calicoctl create -f 01-bgpconfig.yml
Successfully created 1 'BGPConfiguration' resource(s)

fbchan@sky:~/Part-1$ sudo calicoctl create -f 02-bgp-peer.yml
Successfully created 1 'BGPPeer' resource(s)

fbchan@sky:~/Part-1$ sudo calicoctl get node -o wide
NAME                  ASN       IPV4            IPV6
k3d-cpaas1-agent-1    (64512)
k3d-cpaas1-server-0   (64512)
k3d-cpaas1-agent-2    (64512)
k3d-cpaas1-agent-0    (64512)


Setup BGP peering with Calico

Ensure you enabled Advance Networking on BIG-IP (Network >> Route Domains >> 0, under "Dynamic Routing Protocol", Enabled: BGP)

[root@mel-prod:Active:Standalone] config #
[root@mel-prod:Active:Standalone] config # imish[0]>en[0]#config t
Enter configuration commands, one per line.  End with CNTL/Z.[0](config)#router bgp 64512[0](config-router)#bgp graceful-restart restart-time 120[0](config-router)#neighbor calico-k8s peer-group[0](config-router)#neighbor calico-k8s remote-as 64512[0](config-router)#neighbor peer-group calico-k8s[0](config-router)#neighbor peer-group calico-k8s[0](config-router)#neighbor peer-group calico-k8s[0](config-router)#neighbor peer-group calico-k8s[0](config-router)#wr
Building configuration...
[OK][0](config-router)#end[0]#show running-config
no service password-encryption
router bgp 64512
 bgp graceful-restart restart-time 120
 neighbor calico-k8s peer-group
 neighbor calico-k8s remote-as 64512
 neighbor peer-group calico-k8s
 neighbor peer-group calico-k8s
 neighbor peer-group calico-k8s
 neighbor peer-group calico-k8s
line con 0
line vty 0 39


Validate Calico pod network advertised to BIG-IP via BGP

Calico pod network routes advertised onto BIG-IP routing table.

Because BIG-IP route every pods network to single Ubuntu VM ( , we need to ensure that Ubuntu VM route those respective pod networks to the right docker container agent/worker nodes. In an environment where master/worker on a dedicated VM/physical host with different IP, BIG-IP BGP will send to the designated host. Hence, the following only require for this setup, where all Kubernetes nodes running on the same VM.

Base on my environment, here are the additional route I need to add on my Ubuntu VM.

fbchan@sky:~/Part-1$ sudo ip route add via
fbchan@sky:~/Part-1$ sudo ip route add via
fbchan@sky:~/Part-1$ sudo ip route add via
fbchan@sky:~/Part-1$ sudo ip route add via

If everything working properly, from BIG-IP, you should be able to ping Kubernetes pods IP directly. You can find those pods network IP via 'kubectl get pod -A -o wide'

root@(mel-prod)(cfg-sync Standalone)(Active)(/Common)(tmos)# ping -c 2
PING ( 56(84) bytes of data.
64 bytes from icmp_seq=1 ttl=62 time=1.59 ms
64 bytes from icmp_seq=2 ttl=62 time=1.33 ms

--- ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1000ms
rtt min/avg/max/mdev = 1.336/1.463/1.591/0.133 ms
root@(mel-prod)(cfg-sync Standalone)(Active)(/Common)(tmos)# ping -c 2
PING ( 56(84) bytes of data.
64 bytes from icmp_seq=1 ttl=62 time=1.03 ms
64 bytes from icmp_seq=2 ttl=62 time=24.5 ms

--- ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 1.036/12.786/24.537/11.751 ms

Note: Do not persist those Linux route on the VM. The routing will change when you reboot or restart your VM. You required to query the new route distribution and re-create the Linux route whenever you reboot your VM.

Summary on Part-1

What we achieved so far:

  1. Basic understanding on why cloud-native architecture platform so important.
  2. Established a cloud-agnostic and cloud-native reference architecture and understand those key components and it roles.
  3. Have a working environment for our Part 2 series - Traffic Management, Security and Observability.


Published May 04, 2021
Version 1.0

Was this article helpful?

No CommentsBe the first to comment
