Mitigate OWASP LLM Security Risk: Sensitive Information Disclosure Using F5 NGINX App Protect

Introduction:

This article covers the basics of the rise of AI (Gen AI) and how F5 products can protect these AI backends. The rise of Large Language Models (LLMs) has marked a transformative era in AI, enabling machines to produce and comprehend text with human-like proficiency. These sophisticated models are now integral to applications in customer support, content creation, and even scientific research. However, their advanced capabilities also cause big security worries, especially around accidentally sharing sensitive information. These models can sometimes share private data from their training data. This means we need strong protection systems to reduce these risks. Addressing these challenges, the OWASP LLM Top 10 project has been created to identify and prioritize the most critical security threats associated with LLMs. Out of this top 10, LLM-06 risk specifically focuses on sensitive information disclosure, emphasizing the importance of stringent data handling protocols and privacy safeguards to prevent unintended data leaks to ensure the secure and ethical use of LLM technology. In this article, we are going to see how F5 Nginx App Protect v5 can protect the LLM backends from LLM06: Sensitive Information Disclosure risk.

Use case:

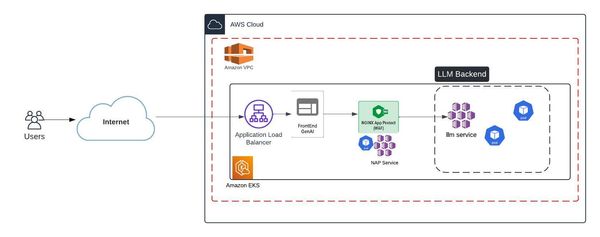

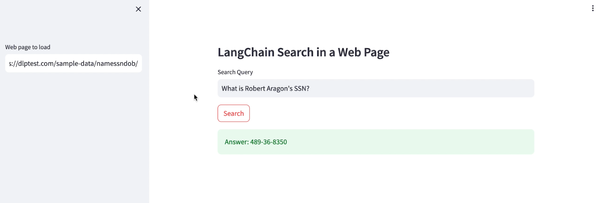

We are going to deploy a Gen AI application which takes URL hosting data and is passed on to a backend LLM application. Once data is analyzed by LLM, users can ask questions about this data and LLM will come back with the right answers. We have deployed this application inside AWS EKS cluster and 2 application services are running inside this cluster. Front-end services serve the UI, and the backend hosts the LLM model. How and what of this application with its internal tools and LLM model is not of importance and can find many free tools online. Since this article focusses on LLM06: Sensitive Information Disclosure risk, we will pass a website URL containing some dummy SSN of random users. Once this website data is loaded to LLM, we can ask for the SSN of a user and LLM will return the SSN from this data. SSNs are sensitive information and should always be protected as it will lead to personal data exploitation. In this case, LLM model does not have security rules to find and protect this data. So, it will be directly shown in the response as shown below.

To protect this LLM backend service, we are going to deploy and configure NGINX App Protect Version 5 as a k8s workload in the data path. The latest release of NGINX App Protect v5 has made the WAF process more ridiculously easy, thereby making it more efficient and optimized. All data traffic will be validated by the NGINX App Protect before being exposed in the response. In this use case, since we want to mask the SSN, we are going to configure the data-guard feature with its appropriate configuration files onboarded to this container.

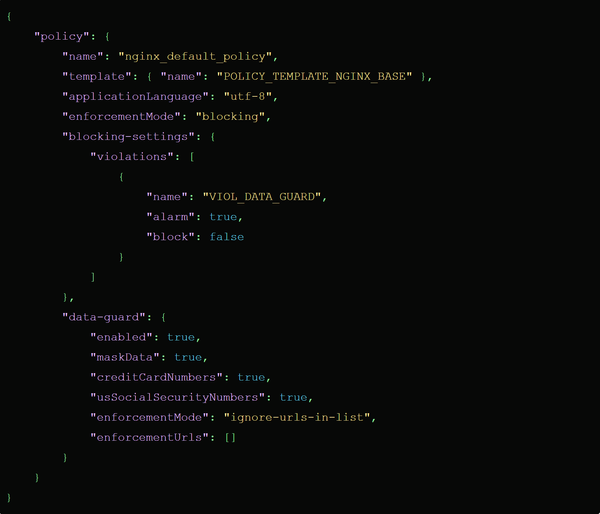

Above configuration file can be downloaded from NGINX App Protect WAF configuration guide.

Data guard is a WAF feature which detects and masks Credit Card Number (CCN) and/or U.S. Social Security Number (SSN) and/or custom patterns in HTTP responses. Since data-guard feature is enabled, SSNs of users in the LLM backend response are detected and masked by the NGINX App Protect thereby protecting the personal data. For more info on NGINX App Protect data guard feature, check this link.

NOTE: Since this is just for demo and focuses only on LLM workload protection, we are using NGINX App Protect v5. But as per customer practices, users can configure NGINX Ingress Controller, Secure Mesh, etc.

Deployment Steps:

1. Check the service cluster IP of backend LLM service and update it in below yaml file upstream server to create nginx config file configmap


   apiVersion: v1
   kind: ConfigMap
   metadata:
     name: nginx-conf-map-api
     namespace: default
   data:
     nginx.conf: |
       user nginx;

       worker_processes auto;
       load_module modules/ngx_http_app_protect_module.so;

       error_log /var/log/nginx/error.log debug;

       events {
           worker_connections 10240;
       }

       http {
           include /etc/nginx/mime.types;
           default_type application/octet-stream;
           sendfile on;
           keepalive_timeout 65;

           # NGINX App Protect WAF
           app_protect_enforcer_address 127.0.0.1:50000;

           upstream main_DNS_name {
               server 172.20.41.242:8000;
           }
           server {
               listen 80;
               proxy_http_version 1.1;
               proxy_read_timeout 600;
               proxy_connect_timeout 600;
               proxy_send_timeout 600;

               app_protect_enable on;
               app_protect_policy_file "/etc/app_protect/bundles/NAP_API_Policy.tgz";
               app_protect_security_log_enable on;
               app_protect_security_log log_all /etc/app_protect/bundles/security.log;

               location / {
                   client_max_body_size 0;
                   default_type text/html;
                   # set your backend here
                   proxy_pass http://main_DNS_name;
                   proxy_set_header Host $host;
               }
           }
       }



2. Build and push a NGINX Plus docker image to your private registry by following this link
3. Copy your JWT token and run below command to create a k8s secret
   # kubectl create secret docker-registry regcred --docker-server=private-registry.nginx.com --docker-username=<JWT Token> --docker-password=none


4. Check the below file, update API policy bundle URL in init container and docker image info in nginx container. Apply this file to install nginx deployment and pods.


   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: nap5-deployment
   spec:
     selector:
       matchLabels:
         app: nap5
     replicas: 1
     template:
       metadata:
         labels:
           app: nap5
       spec:
         imagePullSecrets:
           - name: regcred
         initContainers:
         - name: init-fetchbundle
           image: curlimages/curl:8.9.1
           command:
           - sh
           - -c
           - |
             echo "Downloading file..."
             curl -vvv -L https://github.com/f5devcentral/f5-xc-terraform-examples/raw/main/workflow-guides/NAP_API_Policy.tgz -o /etc/app_protect/bundles/NAP_API_Policy.tgz
           volumeMounts:
           - name: app-protect-bundles
             mountPath: /etc/app_protect/bundles
         containers:
           - name: nginx
             image: <registry-url>:tag-name
             imagePullPolicy: IfNotPresent
             volumeMounts:
               - name: app-protect-bd-config
                 mountPath: /opt/app_protect/bd_config
               - name: app-protect-config
                 mountPath: /opt/app_protect/config
               - name: nginx-conf-map-api-volume
                 mountPath: /etc/nginx/nginx.conf
                 subPath: nginx.conf
               - name: nap-api-policy-volume
                 mountPath: /etc/nginx/NAP_API_Policy.json
                 subPath: NAP_API_Policy.json

           - name: waf-enforcer
             image: private-registry.nginx.com/nap/waf-enforcer:5.2.0
             imagePullPolicy: IfNotPresent
             env:
               - name: ENFORCER_PORT
                 value: "50000"
             volumeMounts:
               - name: app-protect-bd-config
                 mountPath: /opt/app_protect/bd_config

           - name: waf-config-mgr
             image: private-registry.nginx.com/nap/waf-config-mgr:5.2.0
             imagePullPolicy: IfNotPresent
             securityContext:
               allowPrivilegeEscalation: false
               capabilities:
                 drop:
                   - all
             volumeMounts:
               - name: app-protect-bd-config
                 mountPath: /opt/app_protect/bd_config
               - name: app-protect-config
                 mountPath: /opt/app_protect/config
               - name: app-protect-bundles
                 mountPath: /etc/app_protect/bundles

         volumes:
           - name: app-protect-bd-config
             emptyDir: {}
           - name: app-protect-config
             emptyDir: {}
           - name: app-protect-bundles
             emptyDir: {}
           - name: nginx-conf-map-api-volume
             configMap:
               name: nginx-conf-map-api
           - name: nap-api-policy-volume
             configMap:
               name: nap-api-policy




5. Next deploy NGINX App Protect service using below file


   apiVersion: v1
   kind: Service
   metadata:
     name: nap5
     labels:
       app: nap5
       service: nap5
   spec:
     ports:
       - protocol: TCP
         port: 80
         targetPort: 80
     selector:
       app: nap5
     type: ClusterIP

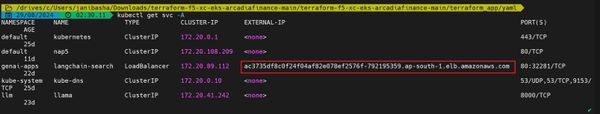

6. Check the cluster services and copy the NGINX App Protect service cluster ip
7. Update App Protect cluster ip address in your Gen AI application frontend yaml file openAI address to create deployment and load balancer service



Testing:

• Once setup is complete, check the cluster services command and open the Gen AI front end load balancer service URL in a browser

• Enter the web page input as https://dlptest.com/sample-data/namessndob/ and in query provide "What is Robert Aragon's SSN?"

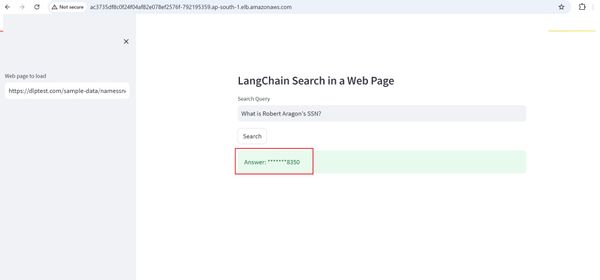

• After some time, validate that SSN number is masked in the response



Conclusion:

This article highlights the critical security gaps present in current Gen AI applications, emphasizing the urgent need for robust protection measures in LLM design deployments. In the latter half, we demonstrated how F5 NGINX App Protect v5, with its advanced security features, offers an effective solution to mitigate the OWASP LLM Top 10 risks. By leveraging these capabilities, organizations can significantly enhance the security and resilience of their AI applications.

References:

• https://genai.owasp.org/llm-top-10/
• https://genai.owasp.org/llmrisk/llm06-sensitive-information-disclosure/
• https://docs.nginx.com/nginx-app-protect-waf/v5/admin-guide/deploy-on-kubernetes/
• https://docs.nginx.com/nginx-app-protect-waf/v5/admin-guide/compiler/

NOTE: This article covered only one risk and stay tuned for more exciting articles on remaining OWASP LLM Top 10 risks prevention using F5 products.
