iCall - All New Event-Based Automation System

The community has long requested the ability to affect change to the BIG-IP configuration by some external factor, be it iRules trigger, process or system failure event, or even monitor results. Well, rest easy folks, among the many features arriving with BIG-IP version 11.4 is iCall, a completely new event-based granular internal automation system. iCall gives you comprehensive control over BIG-IP configuration, leveraging the TMSH control plane and seamlessly integrating the data plane as well.

Components

The iCall system has three components: events, handlers, and scripts. At a high level, an event is "the message," some named object that has context (key value pairs), scope (pool, virtual, etc), origin (daemon, iRules), and a timestamp. Events occur when specific, configurable, pre-defined conditions are met. A handler initiates a script and is the decision mechanism for event data. There are three types of handlers:

• Triggered - reacts to a specific event
• Periodic - reacts to a timer
• Perpetual - runs under the control of a daemon

Finally, there are scripts. Scripts perform the action as a result of event and handler. The scripts are TMSH Tcl scripts organized under the /sys icall section of the system.

Flow

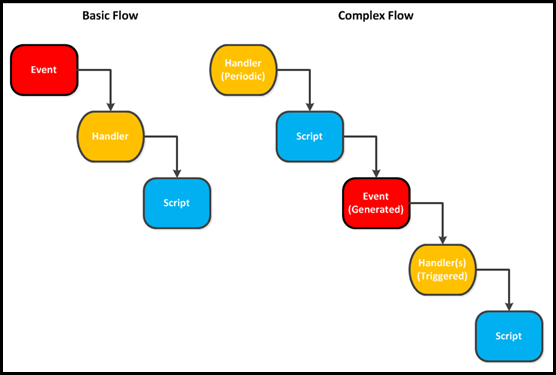

Basic flows for iCall configurations start with an event followed by a handler kicking off a script. A more complex example might start with a periodic handler that kicks off a script that generates an event that another handler picks up and generates another script. These flows are shown in the image below.

A Brief Example

We'll release a few tech tips on the development aspect of iCall in the coming weeks, but in the interim here's a prime use case. Often an event will happen that an operator will want to grab a tcpdump on the interesting traffic occurring during that event, but the reaction time isn't quick enough. Enter iCall! First, configure an alert in /config/user_alert.conf for a pool member down:

alert local-http-10-2-80-1-80-DOWN "Pool /Common/my_pool member /Common/10.2.80.1:80 monitor status down" {
   exec command="tmsh generate sys icall event tcpdump context { { name ip value 10.2.80.1 } { name port value 80 } { name vlan value internal } { name count value 20 } }"
}

You'll need one of these stanzas for each pool member you want to monitor in this way. Next, Create the iCall script:

modify script tcpdump {
    app-service none
    definition {
        set date [clock format [clock seconds] -format "%Y%m%d%H%M%S"]
        foreach var { ip port count vlan } {
            set $var $EVENT::context($var)
        }
        exec tcpdump -ni $vlan -s0 -w /var/tmp/${ip}_${port}-${date}.pcap -c $count host $ip and port $port
    }
    description none
    events none
}

Finally, create the iCall handler to trigger the script:

sys icall handler triggered tcpdump {
    script tcpdump
    subscriptions {
        tcpdump {
            event-name tcpdump
        }
    }
}

Ready. Set. Go!

That's one example of a triggered handler. We have many more examples of perpetual and periodic handlers in a variety of use cases in the newly created a iCall wiki, and the codeshare is pre-populated with several use cases for your immediate use and testing. Get ready to jump aboard the iCall automation/orchestration train!
