SSO with SAP BI ( APM )
Hello Team, I have a problem with SSO on SAP BI. My SAP APP have the same URL ( Form Action and Login ), and when i execute SSO its Failed. This is my Parameters and the wich contain form is the same URL that contain de login. So, in my sso_form, i config this. And in my logs, i see that aparently is working But i cannot make this work. Somebody can help me ?
F5 APM/SSL VPN/Lease IP's range routing
Hello , We have a requirement with the routing based on the lease-ip range for 2 SSL VPN URL's. We have 2 VLANS (External and Internal). External VLAN listens to the traffic from the internet and VIP's are in that range. The Internal VLAN is where the user's traffic will be routed to (Default route) to the internal network. We have a requirement to provision a new VPN URL on the same APM with a different lease ip range and the traffic must be routed to a different IP other than the one in the default route. The new internal VLAN & Self-IP's are created where the traffic must be routed to. We have created a FWD VIP with an irule (policy based routing) to select the next hop based on the lease-ip's. Looks like its not working, the new lease IP's are still getting routed via the default route. I wonder how we can make this irule to trigger ahead of the default route. Any help would be greatly appreciated -ThanksF5 APM DHCP instead of leasepool
Hello, I'm looking to configure the APM to use an upstream DHCP server instead of the locally defined leasepool. I have seen in other posts a link to an article for just this, but the link is no longer around and I cannot find the iapps template associated. iApp, documentation, and example APM Policy to get IP addresses from DHCP for APM VPN clients Can someone point me to the correct link, or can someone tell me the proper way to do this? When i remove the leasepool from the APM policy it says no leasepool assigned and the connections fail. Thank you.
F5 APM RDP

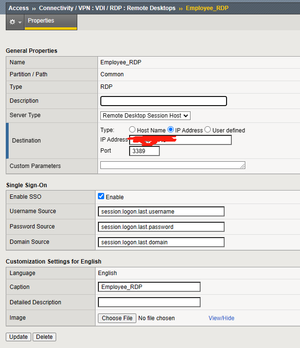

Hi Guys, Recently we have deployed F5 APM as SSL VPN solution for our company laptops (only for Windows within domain), all runs well. However, there is a new requirement that if other OS laptops like Mac or non-domain Windows computer clients can also get secure RDP to their company Win laptops and then control the Win laptops to access internal network etc? If yes, how to deploy it in detail? I tried to add one test laptop into "VDI/RDP" also add the existing Access_Policy as below. After authentication from logon page, I can this RDP icon and click it, it would automatically download one RDP file, then I clicked it and it will try to connect, and then it failed as below. the last is existing access_policy for non-domail windows for testing RDP. Please help review and guide me how to configure since I am not familiar with APM product. Best Regards.F5 APM Network Access route domain -- specific gateway for vpn clients
I have setup a virtual server listening on the wan for vpn requests on port 443. I have a specific vlan configured for vpn clients 10.12.200.0/23. I have created a new route domain, and i have added the vlan into the route domain. In the VPE i added route domain and selected the correct one after authentication and before advanced resource assign. I created self ips of 10.12.200.3%200 and 10.12.200.4%200 (floating). I am able to ping the gateway on the upstream switch 10.12.200.1. If i add a default route 0.0.0.0%200 0.0.0.0 10.12.200.1%200 i cant get to anything on the vpn. it hits the self ip 10.12.200.3 and stops. If i turn on proxyarp, i get full connectivity, but the vpn client disconnects almost immediately (usually between 1-10 seconds after connecting) with no log messages other than client request to disconnect vpn session in the windows logs and in the APM it just says session deleted due to user logout request. I deleted the default route and created an l4 forwarding server source 10.12.200.0%200/23 and destination 0.0.0.0%200/0 with source address translation turned off as well as address and port translation turned off and set the pool to the gateway 10.12.200.1%200. I bound this to the vlan as well as to the connection profile vlan. This also cannot get past 10.12.200.3. If i turn on proxy arp, same thing, it works perfectly for a few seconds and then abruptly disconnects. if i turn off proxy arp but set snat to automap, i can ping everything, but nothing works in browser, rdp, ssh, etc, they all just come back saying connection refused. I cannot figure out why this is failing to work. I have seen several articles about this, and I have set this up as others have suggested and have not been able to successfully route via a default route from that vlan once connected to vpn.Need to log the VPN Pool IP Address on the Edge Firewall Logs
Dears Greeting I am Using the F5 APM as a VPN Solution On the Edge Firewall Logs i can see ONLY the SELF IP Addresses and NOT the the Assigned VPN Pool IP Address that is configured under the Network Access Profile on the APM Config, I am Using a One Arm Deployment When i am try to remove the SNAT from the Virtual Server , and Network Access Profile on the APM interchangeably and with each other , I cannot reach the services
