Orchestrated Infrastructure Security - Change at the speed of Business

Editor's Note: The F5 Beacon capabilities referenced in this article hosted on F5 Cloud Services are planning a migration to a new SaaS Platform - Check out the latest here

Introduction

This article is part of a series on implementing Orchestrated Infrastructure Security. It includes High Availability, Central Management with BIG-IQ, Application Visibility with Beacon and the protection of critical assets using F5 Advanced WAF and Protocol Inspection (IPS) with AFM. It is assumed that SSL Orchestrator is already deployed, and basic network connectivity is working.

If you need help setting up SSL Orchestrator for the first time, refer to the Dev/Central article series on Implementing SSL Orchestrator here or the CloudDocs Deployment Guide here.

This article focuses on using SSL Orchestrator as a tool to assist with simplifying Change Management processes, procedures and shortening the duration of the entire process.

Configuration files of BIG-IP deployed as Advanced WAF and AFM and can be downloaded from here from GitLab.

Please forgive me for using SSL and TLS interchangeably in this article.

This article is divided into the following high level sections:

·     Create a new Topology to perform testing

·     Monitor server statistics – change the weight ratio – check server stats again

·     Remove a single AFM device from the Service

·     Perform maintenance on the AFM device

·     Add the AFM device to the new Topology

·     Test functionality with a single client

·     Add AFM device back to the original Topology

·     Test functionality again

·     Repeat to perform maintenance on the other AFM device



Create a new Topology to perform testing

A new Topology will be used to safely test the Service after maintenance is performed. The Topology should be similar to the one used for production traffic. This Topology can be re-used in the future.

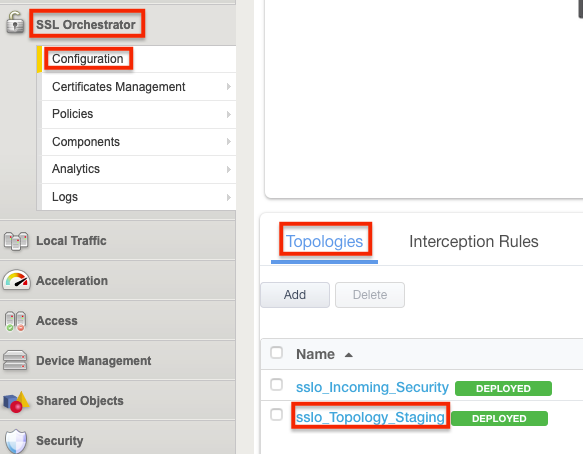

From the BIG-IP Configuration Utility select SSL Orchestrator > Configuration. Click Add under Topologies.

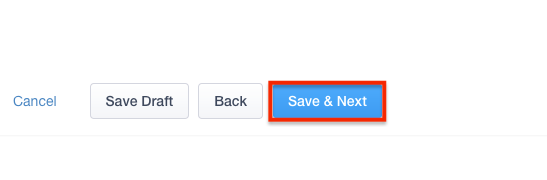

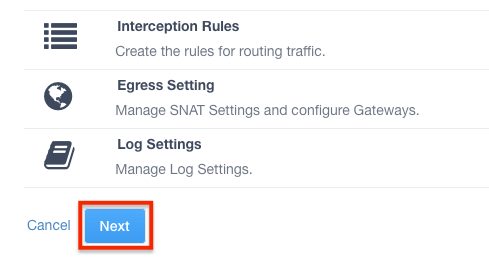

Scroll to the bottom of the next screen and click Next.

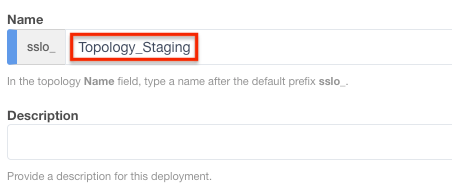

Give it a name, Topology_Staging in this example.

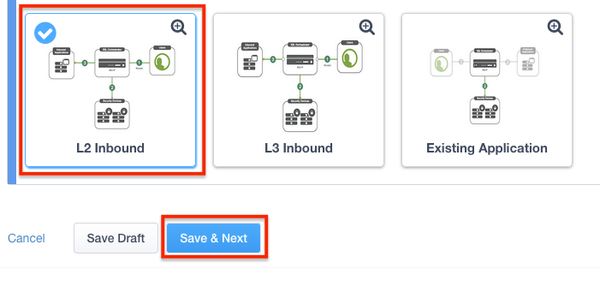

Select L2 Inbound as the Topology type then click Save & Next.

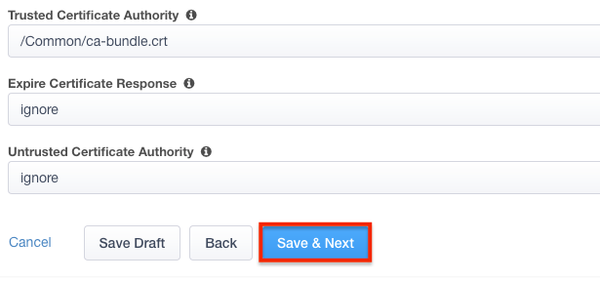

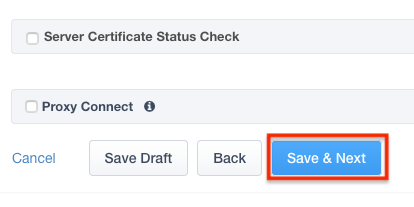

For the SSL Configurations you can leave the default settings. Click Save & Next at the bottom.

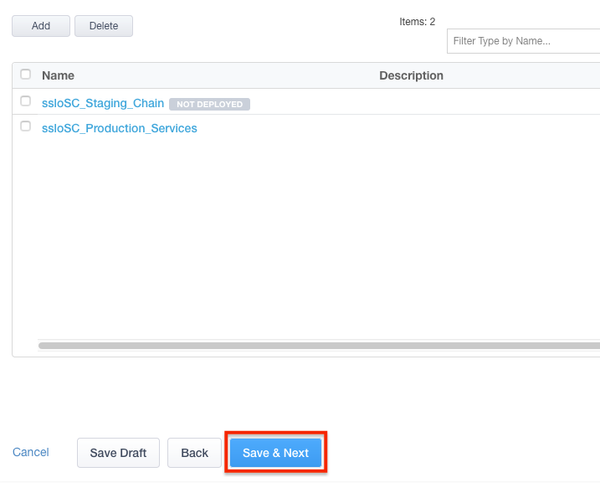

Click Save & Next at the bottom of the Services List.

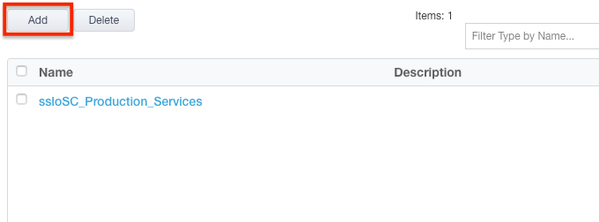

Click the Add button under Services Chain List. A new Service Chain is needed so we can remove AFM2 from the Production Service and add it here.

Give the Service Chain a name, Staging_Chain in this example. Click Save at the bottom.

Note: The Service will be added to this Service Chain later.

Click Save & Next.

Click the Add button on the right to add a new rule.

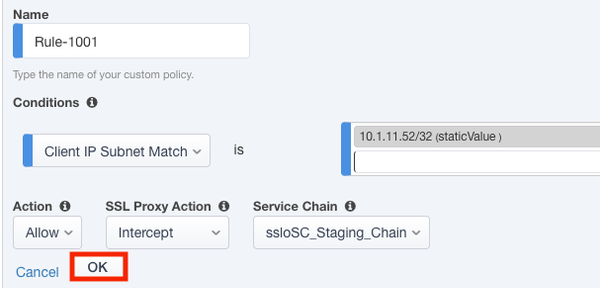

For Conditions select Client IP Subnet Match.

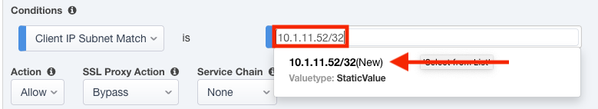

Enter the Client IP and mask, 10.1.11.52/32 in this example. Click New to add the IP/Subnet.

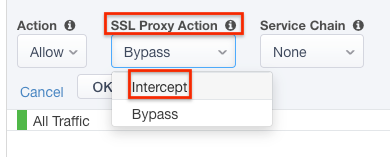

Set the SSL Proxy Action to Intercept.

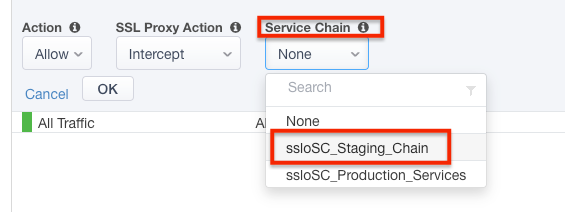

Set the Service Chain to the one created previously.

Click OK.

Note: This rule is written so that a single client computer (10.1.11.52) will match and can be used for testing.

Select Save & Next at the bottom.

For the Interception Rule set the Source Address to 10.1.11.52/32. Set the Destination Address/Mask to 10.4.11.0/24. Set the port to 443.

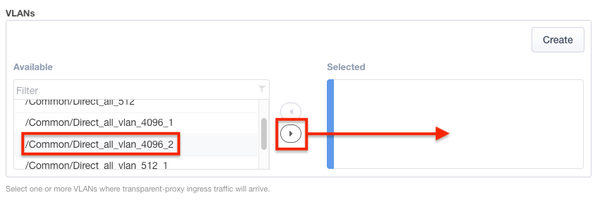

Select the VLAN for your Ingress Network and move it to Selected.

Set the L7 Profile to Common/http.

Click Save & Next.

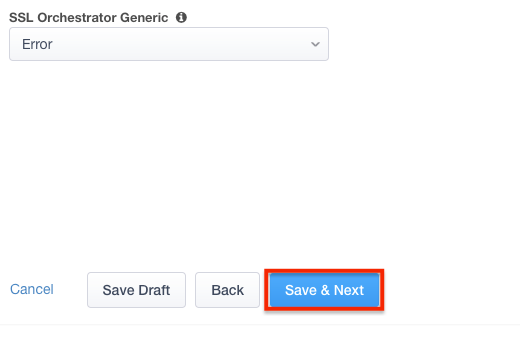

For Log Settings, scroll to the bottom and select Save & Next.

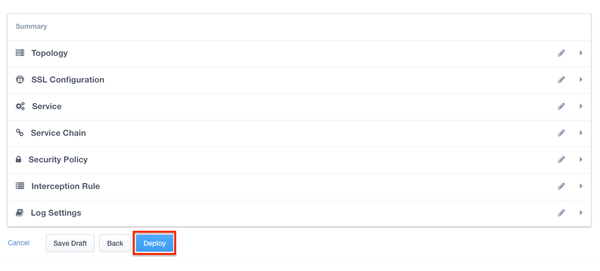

Click Deploy.



Monitor server statistics – change the weight ratio – check server statistics again

Check the Virtual Server statistics on the BIG-IP we will be performing maintenance on. It’s “AFM2” in this example.

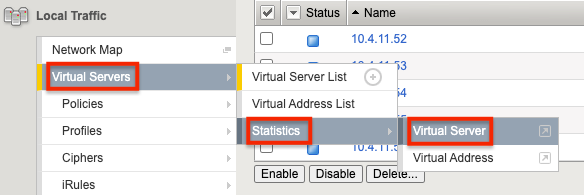

Under Local Traffic click Virtual Servers.

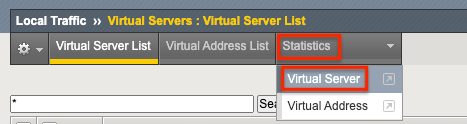

Then select Statistics > Virtual Server.

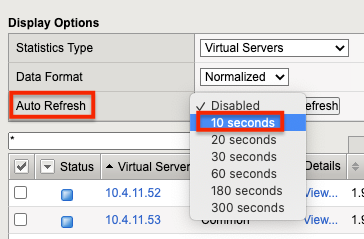

Set Auto Refresh to 10 seconds.

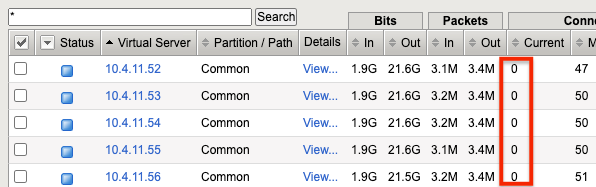

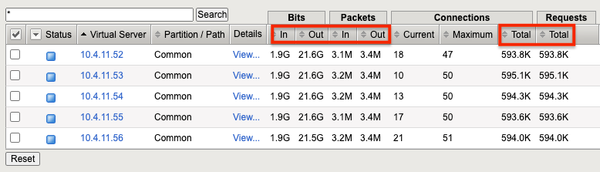

In this example you can see we have 5 Virtual Servers. The statistic counters should increment every time the screen refreshes. These servers appear to be healthy.

Change the Weight Ratio

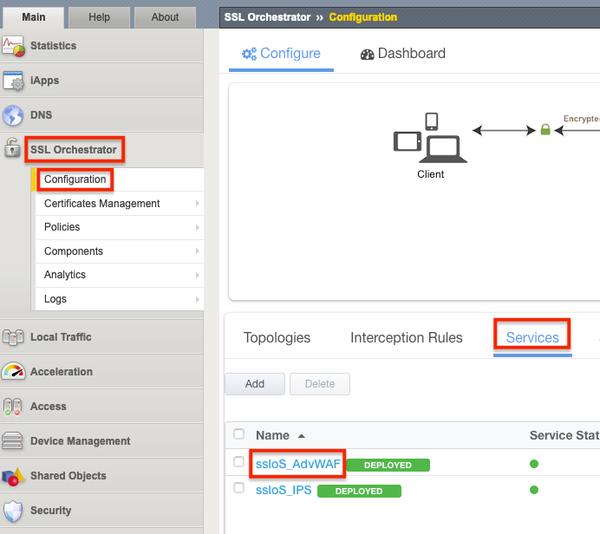

Back to the SSL Orchestrator Configuration Utility. Click SSL Orchestrator > Configuration > Services > then the Service name, ssloS_IPS in this example.

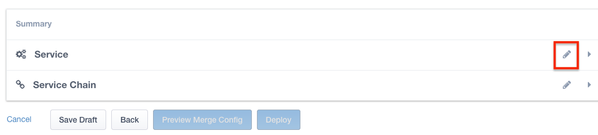

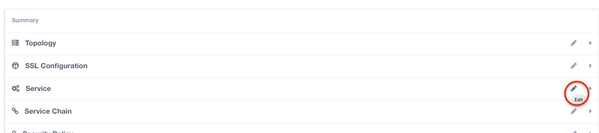

Click the pencil icon to edit the Service.

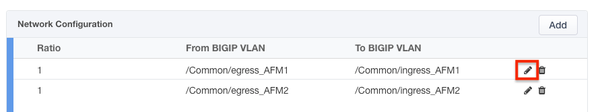

Click the pencil icon to edit the Network Configuration for AFM1.

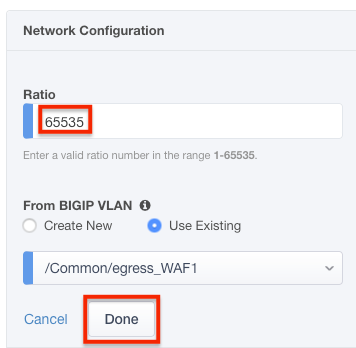

Set the ratio to 65535 and click Done.

Note: Alternately you could disable the Pool Member from LTM > Pools.

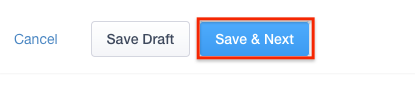

Click Save & Next at the bottom.

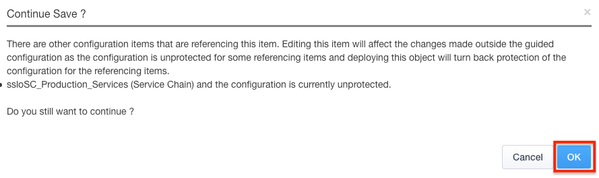

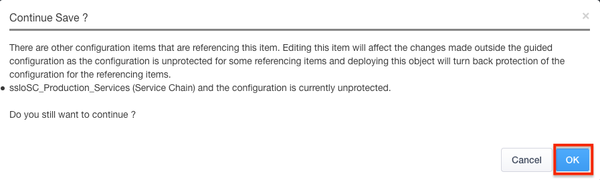

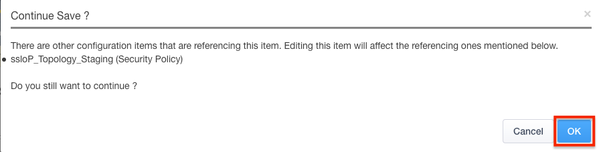

Click OK if presented with the following warning.

Click Deploy.

Click OK when presented with the Success message.

Check Server Statistics Again

Check the Virtual Server statistics on “AFM2” again. With Auto Refresh on, the statistics should no longer increment. Current Connections should eventually reach zero for all Virtual Servers.

Remove a single AFM device from the Service

Back to the SSL Orchestrator Configuration Utility. Click SSL Orchestrator > Configuration > Services > then the Service name, ssloS_IPS in this example.

Click the pencil icon to edit the Service.

Under Network Configuration, delete AFM2.

Click Save & Next at the bottom.

Click OK if presented with the following warning.



Click Deploy.

Click OK when presented with the Success message.



Perform maintenance on the AFM device

At this point AFM2 has been removed from the Incoming_Security Topology and is no longer handling production traffic. AFM1 is now handling all of the production traffic.

We can now perform a variety of maintenance tasks on AFM2 without disrupting production traffic. When done with the task(s) we can then safely test/verify the health of AFM2 prior to moving it back into production.

Some examples of maintenance tasks:

·     Perform a software upgrade to a newer version.

·     Make policy changes and verify they work as expected.

·     Physically move the device.

·     Replace a hard drive, fan, and/or power supply.



Add the AFM device to the new Topology

This will allow us to test its functionality with a single client computer, prior to moving it back to production.

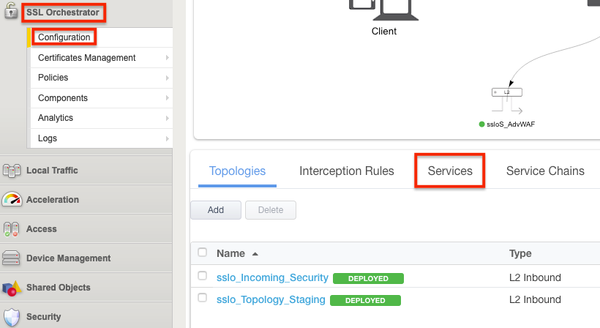

From the SSL Orchestrator Configuration Utility click SSL Orchestrator > Configuration > Topologies > sslo_Topology_Staging.

Click the pencil icon on the right to edit the Service.

Click Add Service.

Select the Generic Inline Layer 2 Service and click Add.

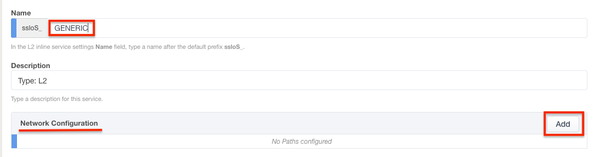

Give it a name or leave the default. Click Add under Network Configuration.

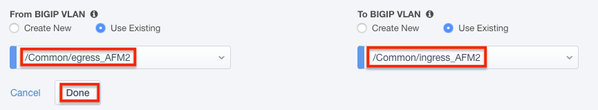

Set the FROM and TO VLANS to the following and click Done.

Click Save at the bottom.

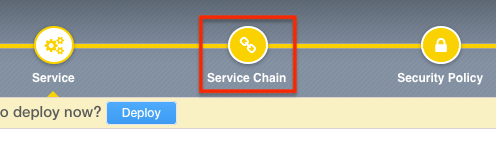

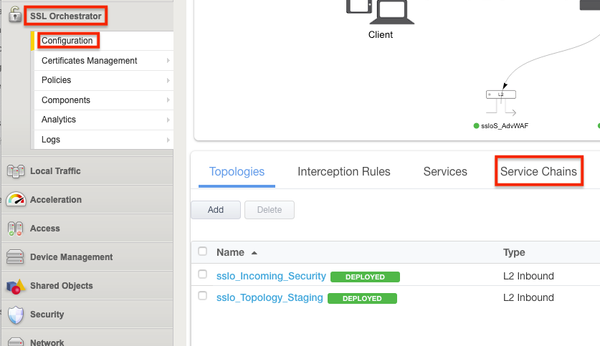

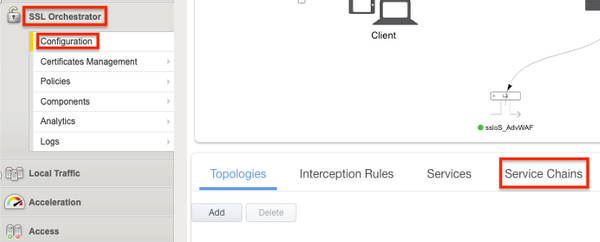

Click the Service Chain icon.

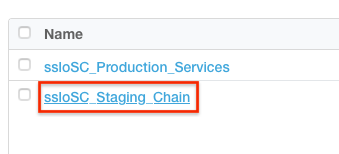

Click the Staging_Chain.

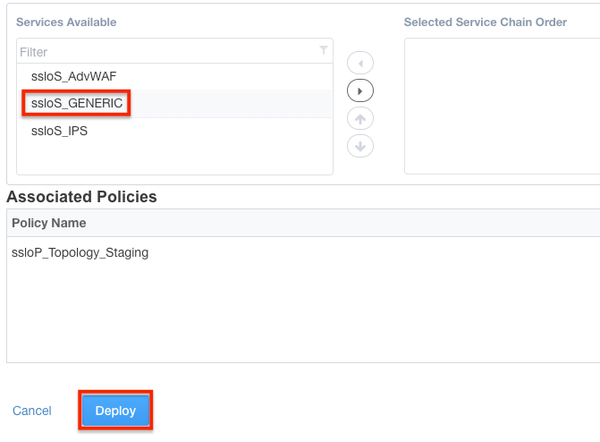

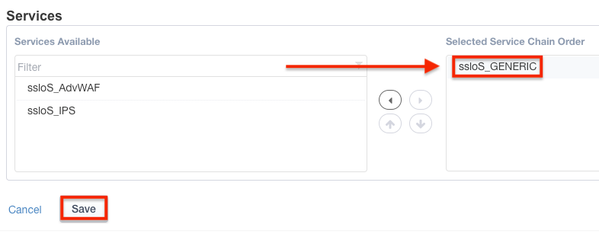

Move the GENERIC Service from Available to Selected and click Save.

Click OK.

Click Deploy.

Click OK.



Test functionality with a single client

We created a policy with source IP = 10.1.11.52 to use the new AFM Service that we just performed maintenance on.

Go to that client computer and verify that everything is still working as expected.

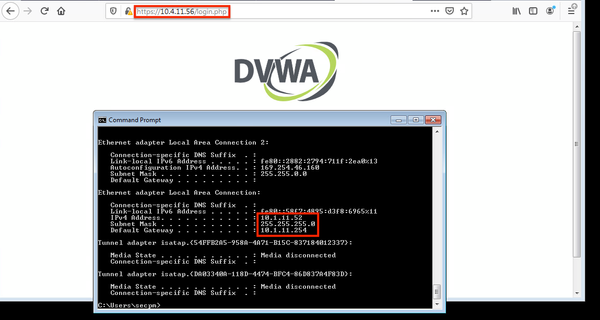

As you can see this is the test client with IP 10.1.11.52. The page still loads for one of the web servers.

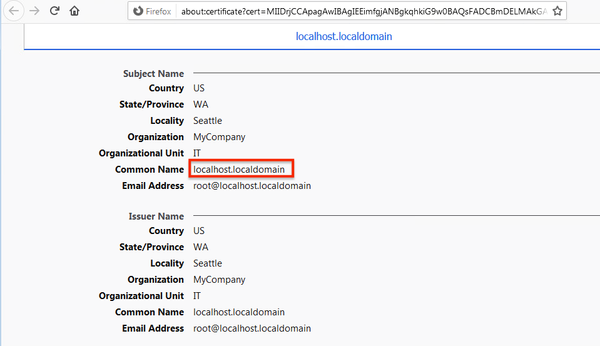

You can view the Certificate and see that it is not the same as the Production Certificate.

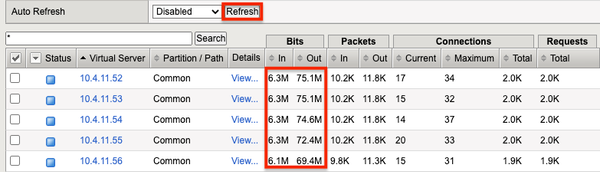

To ensure that everything is working as expected you can view the Virtual Server Statistics on AFM2, which was the AFM device removed from the Production network.

From Local Traffic select Virtual Servers > Statistics > Virtual Server.

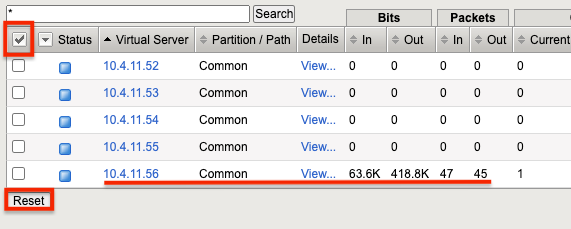

Statistics can be cleared by checking the box and selecting Reset. After a reset, you should see Bits and Packets for 10.4.11.56, assuming you reload the browser a few times from the test client.

It is advisable to check that all of the Virtual Servers are working this way.



Add AFM device back to the original Topology

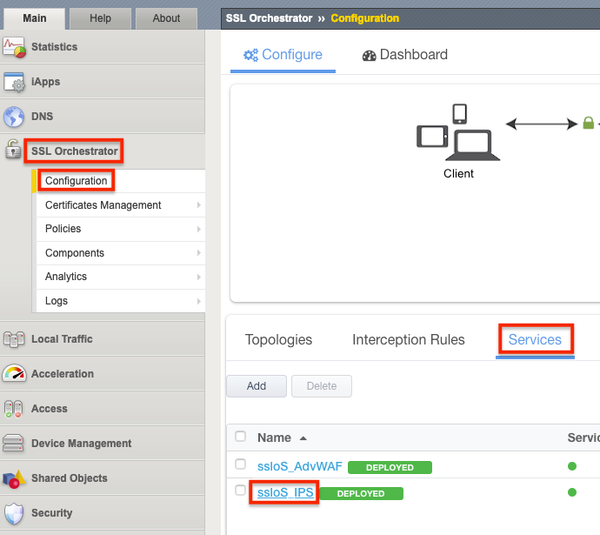

From the SSL Orchestrator GUI select SSL Orchestrator > Configuration > Service Chains.

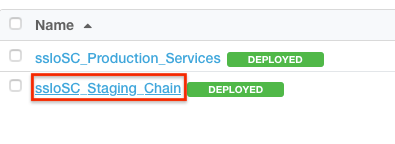

Select the Staging_Chain.

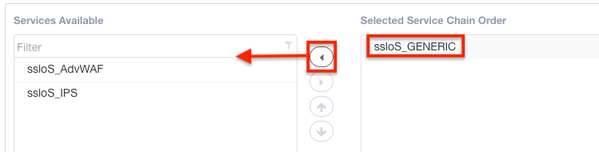

Select ssloS_Generic on the right and click the left arrow to remove it from Selected.

Click Deploy when done.

Click OK.

Click OK to the Success message.

From the SSL Orchestrator Guided Configuration select SSL Orchestrator > Configuration > Services.

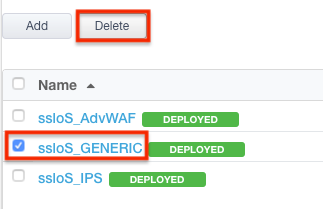

Select the GENERIC Service and click Delete.

Click OK to the Warning.

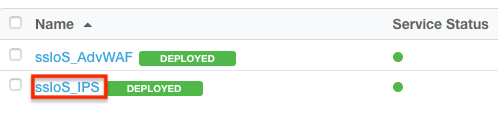

When that is done click the ssloS_IPS Service.

Click the Pencil icon to edit the Service.

Under Network Configuration click Add.

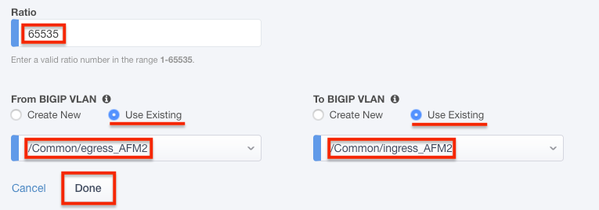

Set the Ratio to the same value as AFM1, 65535 in this example. Set the From and To VLAN the following and click Done.

Click Save & Next at the bottom.

Click OK.

Click Deploy.

Click OK.



Test functionality again

Make sure AFM2 is working properly.

To ensure that everything is working as expected you can view the Virtual Server Statistics on AFM2.

From Local Traffic select Virtual Servers > Statistics > Virtual Server.

Click Refresh or set Auto Refresh to 10 seconds. When the statistics reload it should look something like the following.

Repeat these steps to perform maintenance on the other AFM device (not covered in this guide)



Remove a single Adv.WAF device from the Service

Monitor server statistics – change the weight ratio – check server statistics again

·     Remove a single Adv.WAF device from the Service

·     Perform maintenance on the Adv.WAF device

·     Add the Adv.WAF device to the new Topology

·     Test functionality with a single client

·     Add Adv.WAF device back to the original Topology

·     Test functionality again

·     Repeat to perform maintenance on the other Adv.WAF device

Check the Virtual Server statistics on the BIG-IP we will be performing maintenance on. It’s “Adv.WAF2” in this example.

Under Local Traffic click Virtual Servers.

Then select Statistics > Virtual Server.

Set Auto Refresh to 10 seconds.

In this example you can see we have 5 Virtual Servers. The statistic counters should increment every time the screen refreshes. These servers appear to be healthy.

Change the Weight Ratio

Back to the SSL Orchestrator Configuration Utility. Click SSL Orchestrator > Configuration > Services > then the Service name, ssloS_AdvWAF in this example.

Click the pencil icon to edit the Service.

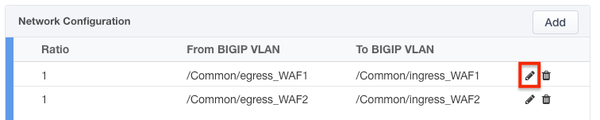

Click the pencil icon to edit the Network Configuration for WAF1.

Set the ratio to 65535 and click Done.

Click Save & Next at the bottom.

Click OK if presented with the following warning.

Click Deploy.

Click OK when presented with the Success message.

Check Server Statistics Again

Check the Virtual Server statistics on “Adv.WAF2” again. With Auto Refresh on, the statistics should no longer increment. Current Connections should eventually reach zero for all Virtual Servers.



Remove a single Adv.WAF device from the Service

Back to the SSL Orchestrator Configuration Utility. Click SSL Orchestrator > Configuration > Services > then the Service name, ssloS_AdvWAF in this example.

Click the pencil icon to edit the Service.

Under Network Configuration, delete WAF2.

Click Save & Next at the bottom.

Click OK if presented with the following warning.

Click Deploy.

Click OK when presented with the Success message.



Perform maintenance on the Adv.WAF device

At this point Adv.WAF2 has been removed from the Incoming_Security Topology and is no longer handling production traffic. Adv.WAF1 is now handling all of the production traffic.

We can now perform a variety of maintenance tasks on Adv.WAF2 without disrupting production traffic. When done with the task(s) we can then safely test/verify the health of Adv.WAF2 prior to moving it back into production.

Some examples of maintenance tasks:

·     Perform a software upgrade to a newer version.

·     Make policy changes and verify they work as expected.

·     Physically move the device.

·     Replace a hard drive, fan, and/or power supply.



Add the Adv.WAF device to the new Topology

This will allow us to test its functionality with a single client computer, prior to moving it back to production.

From the SSL Orchestrator Configuration Utility click SSL Orchestrator > Configuration > Topologies > sslo_Topology_Staging.

Click the pencil icon on the right to edit the Service.

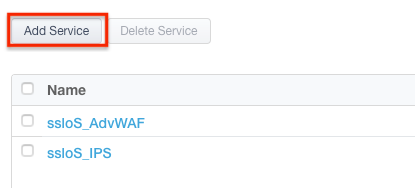

Click Add Service.

Select the Generic Inline Layer 2 Service and click Add.

Give it a name or leave the default. Click Add under Network Configuration.

Set the FROM and TO VLANS to the following and click Done.

Click Save at the bottom.

Click the Service Chain icon.

Click the Staging_Chain.

Move the GENERIC Service from Available to Selected and click Save.

Click OK.

Click Deploy.

Click OK.



Test functionality with a single client

We created a policy with source IP = 10.1.11.52 to use the new Adv.WAF Service that we just performed maintenance on.

Go to that client computer and verify that everything is still working as expected.

As you can see this is the test client with IP 10.1.11.52. The page still loads for one of the web servers.

You can view the Certificate and see that it is not the same as the Production Certificate.

To ensure that everything is working as expected you can view the Virtual Server Statistics on Adv.WAF2, which was the Adv.WAF device removed from the Production network.

From Local Traffic select Virtual Servers > Statistics > Virtual Server.

Statistics can be cleared by checking the box and selecting Reset. After a reset, you should see Bits and Packets for 10.4.11.56, assuming you reload the browser a few times from the test client.

It is advisable to check that all of the Virtual Servers are working this way.



Add Adv.WAF device back to the original Topology

From the SSL Orchestrator GUI select SSL Orchestrator > Configuration > Service Chains.

Select the Staging_Chain.

Select ssloS_Generic on the right and click the left arrow to remove it from Selected.

Click Deploy when done.

Click OK.

Click OK to the Success message.

From the SSL Orchestrator Guided Configuration select SSL Orchestrator > Configuration > Services.

Select the GENERIC Service and click Delete.

Click OK to the Warning.

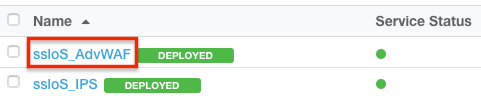

When that is done click the ssloS_AdvWAF Service.

Click the Pencil icon to edit the Service.

Under Network Configuration click Add.

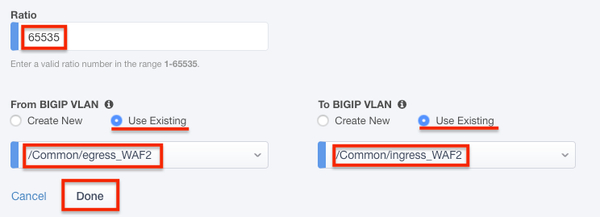

Set the Ratio to the same value as Adv.WAF1, 65535 in this example. Set the From and To VLAN the following and click Done.

Click Save & Next at the bottom.

Click OK.

Click Deploy.

Click OK.



Test functionality again

Make sure Adv.WAF2 is working properly.

To ensure that everything is working as expected you can view the Virtual Server Statistics on Adv.WAF.

From Local Traffic select Virtual Servers > Statistics > Virtual Server.

Click Refresh or set Auto Refresh to 10 seconds. When the statistics reload it should look something like the following.

Repeat these steps to perform maintenance on the other Adv.WAF device (not covered in this guide)



Summary

In this article you learned how to use SSL Orchestrator as a tool to assist with simplifying Change Management processes, procedures and shortening the duration of the entire process.

Next Steps

That's it, you're done!
