Microsoft Exchange 2010 iRule Workflow Visualized

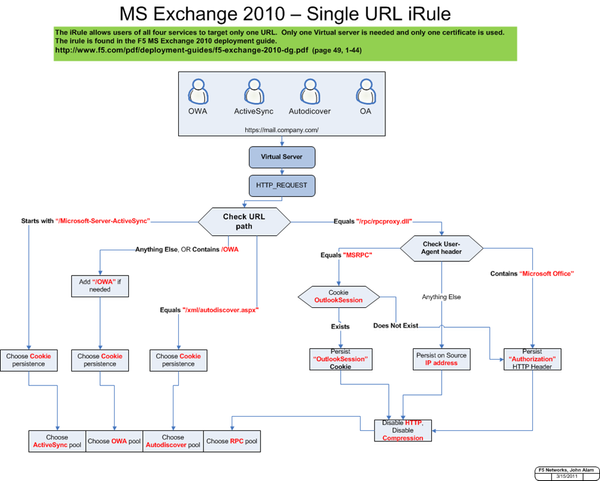

F5’s own John Alam sent over his latest Visio creation to share with the DevCentral community.  This diagram details the workflow of the comprehensive exchange services iRule described in the Microsoft Exchange 2010 Deployment Guide. Enjoy.

For visio, pdf, png, & svg versions of this image, click here.
