iRules HTTP Event Order Update

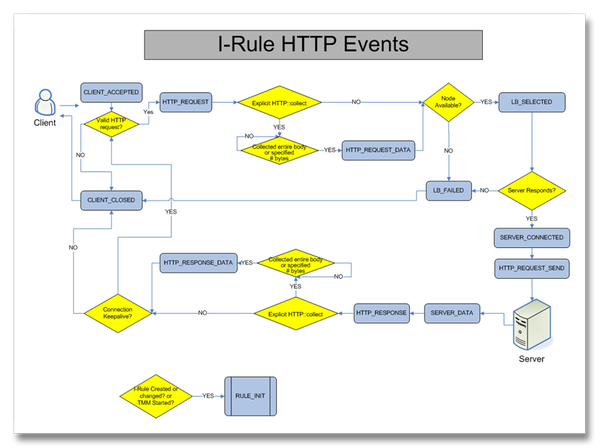

I received an update to the HTTP Event Order diagram last night from the excellent F5er John Alam.  Here it is, in all its glory!

Fire up the printer, the laminator, whatever, and get this on your cubicle wall pronto! For comparison, the original drawing is in the second link below. For visio, pdf, and svg versions of this image, click here.

Published Feb 01, 2011
Version 1.0
application delivery
dev
devops
http
iRules
us
  • JRahm's avatar
    JRahm
    Icon for Admin rankAdmin
    Feb 01, 2011
    Ben, I updated the post with a link towards the bottom that has the visio drawing with pdf and svg exports of said drawing. Hope this helps.





    Jason
  • gsharri's avatar
    gsharri
    Icon for Altostratus rankAltostratus
    Dec 14, 2012
    Hmmm...the page is blank. Lost in the move to the new platform maybe?
  • Sake_Blok's avatar
    Sake_Blok
    Icon for Nimbostratus rankNimbostratus
    Dec 18, 2014
    Hi Jason, Great flow chart! One small addition though. When there is no need to select a new server in a keep-alive connection, the LB_SELECTED and SERVER_CONNECTED events won't be triggered. Sake
