F5 BIG-IP SSL Orchestrator and Reversing Labs Integration Guide

An integrated F5 and Reversing Labs solution eliminates the blind spots introduced by SSL/TLS encrypted content.



Introduction

F5 BIG-IP SSL Orchestrator centralizes & manages decryption of SSL/TLS traffic.  This enables security and monitoring tools to view the decrypted content and analyze it for threats and other anomalies.  SSL Orchestrator removes the burden of decrypting content from your security tools, so they perform better and are more scalable.

An integrated F5 and Reversing Labs solution eliminates the blind spots introduced by SSL/TLS encrypted content.

Reversing Labs (RL) Spectra Detect provides comprehensive, enterprise-wide visibility into malicious files and objects to identify threats wherever they reside. High-volume, high-speed file inspection and definitive threat classification empowers security operations teams with real-time, context-rich intelligence to drive faster, more effective threat detection and response, along with more powerful and precise hunting, so dangerous malware can no longer hide and dwell within the organization.



Demo Video



Deployment Prerequisites

This guide was tested with the following software versions:

  • F5 BIG-IP version 17.5
  • SSL Orchestrator version 12.1.5
  • Reversing Labs Spectra Detect version 5.5.1-24
  • Reversing Labs Hub version 5.5.1
  • Reversing Labs Worker version 5.5.1

This article assumes you have SSL Orchestrator configured with a Topology and Service Chain.



Reversing Labs Configuration

The Spectra Detect Manager, Worker and Hub nodes should be deployed and working.  The Hub and Worker need to be members of the same Configuration Group.  The Dashboard should look like the following:



NOTE: Proceed to the section on “Add the Connector” if the Worker and Hub are already in the same Configuration Group.

If they are not in the same Configuration Group you can resolve this from the Central Configuration screen by clicking Add New Group.





Give it a name, Hub-Group in this example.

Set the Group Type to Hub Group by clicking the down arrow on the right.

Set the Primary Host by clicking the down arrow on the right.

Enter 1 for the Router ID.





Click Add at the bottom





Click Confirm





Set the Configuration Group to Hub Group





Under Appliances select All then Save





Click Save and Apply





The Hub and the Worker should now be visible





Add the ICAP Connector

Go back to the Dashboard





Click on the Hub appliance





On the right select Actions then Connectors





Select ICAP Server on the left and then click Enable Connector





Optionally configure Max File Size and other settings on this page



Specify the REQMOD Block Page URL





NOTE: Replace 172.16.60 202 with the IP address of your Spectra Detect Manager



Disable the Use TLS option.  The port should default to 1344

Click Start Connector





Click Yes





Back on the Dashboard click the green arrow next to Integrations

It should look like the following:





NOTE: you can come back later and configure the ICAP Server TLS option



SSL Orchestrator Configuration



From the SSL Orchestrator Configuration screen select the Services tab then click Add





Select the ICAP tab then double click on the Generic ICAP Service





Give it a name, RL_SpectraDetect in this example

Click the Add button for ICAP Devices





Enter the IP address of your Reversing Labs Hub, 172.16.60.201 in this example

Click Done





Set the Request and Response Modification URI to “spectraconnector”





Scroll down then click Save & Next





From the Services Chain List screen click on the name of your Service Chain, ServiceChain1 in this example





Select the RL_SpectraDetect Service and click the right arrow to move it to the right.





It should look like the following

Click Save





Click OK





Click Save & Next

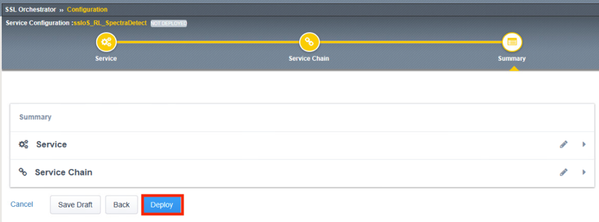

Click Deploy





Click OK





Afterwards it should look like this:





Test the Solution



Access the internet from a client computer that connects through BIG-IP SSL Orchestrator.  Note that the connection to www.f5.com is secure and the certificate has been verified by f5labs.com instead of Entrust, Inc.  This indicates that SSL Orchestrator is decrypting and encrypting the connection.

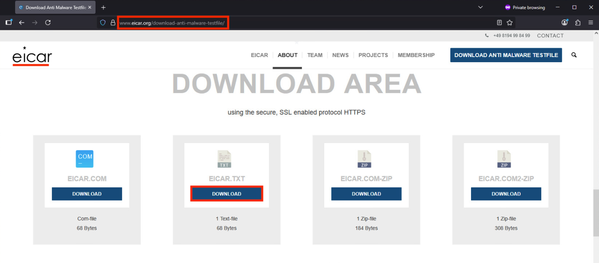

Next I will connect to the eicar.org web site which hosts a test virus.  I’ll attempt to download the EICAR.TXT file.





The test virus is successfully blocked by Reversing Labs!





The Analytics Dashboard on the Spectra Detect Manager shows more details about the files processed.





Conclusion



F5 BIG-IP SSL Orchestrator is a great solution for managing encrypted traffic.  Traffic can be selectively steered to one or more security solutions to check for threats.  Reversing Labs Spectra Detect works in tandem with SSO Orchestrator to protect Enterprise networks from malicious threats.
