Equinix and F5 Distributed Cloud Services: Business Partner Application Exchanges

As organizations adopt hybrid and multicloud architectures, one of the challenges they face is how they can securely connect their partners to specific applications while maintaining control over cost and limiting complexity. Unfortunately, traditional private connectivity models tend to struggle with complex setups, slow on-boarding, and rigid policies that make it hard to adapt to changing business needs.

F5 Distributed Cloud Services on Equinix Network Edge provides a solution that makes partner connectivity process easier, enhances security with integrated WAF and API protection, and enables consistent policy enforcement across hybrid and multicloud environments. This integration allows businesses to modernize their connectivity strategies, ensuring faster access to applications while maintaining robust security and compliance.

Key Benefits

The benefits of using Distributed Cloud Services with Equinix Network Edge include:
• Seamless Delivery: Deploy apps close to partners for faster access.
• API & App Security: Protect data with integrated security features.
• Hybrid Cloud Support: Enforce consistent policies in multi-cloud setups.
• Compliance Readiness: Meet data protection regulations with built-in security features.
• Proven Integration: F5 + Equinix connectivity is optimized for performance and security.

Before: Traditional Private Connectivity Challenges

Many organizations still rely on traditional private connectivity models that are complex, rigid, and difficult to scale.

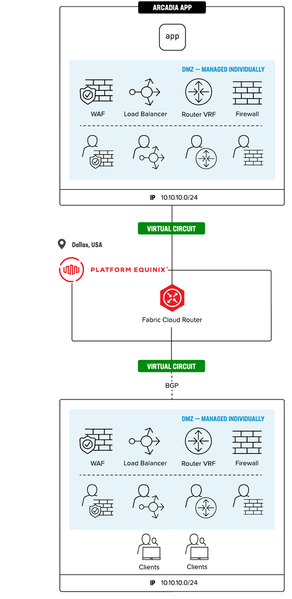

In a traditional architecture using Equinix, setting up infrastructure is complex and time-consuming. For every connection, an engineer must manually configure circuits through Equinix Fabric, set up BGP routing, apply load balancing, and define firewall rules. These steps are repeated for each partner or application, which adds a lot of overhead and slows down the onboarding process.

Each DMZ is managed separately with its own set of WAFs, routers, firewalls, and load balancers. This makes the environment harder to maintain and scale. If something changes, such as moving an app to a different region or giving a new partner access, it often requires redoing the configuration from scratch. This rigid approach limits how fast a business can respond to new needs.

Manual setups also increase the risk of mistakes. Missing or misconfigured firewall rules can accidentally expose sensitive applications, creating security and compliance risks. Overall, this traditional model is slow, inflexible, and difficult to manage as environments grow and change.

After: F5 Distributed Cloud Services with Equinix

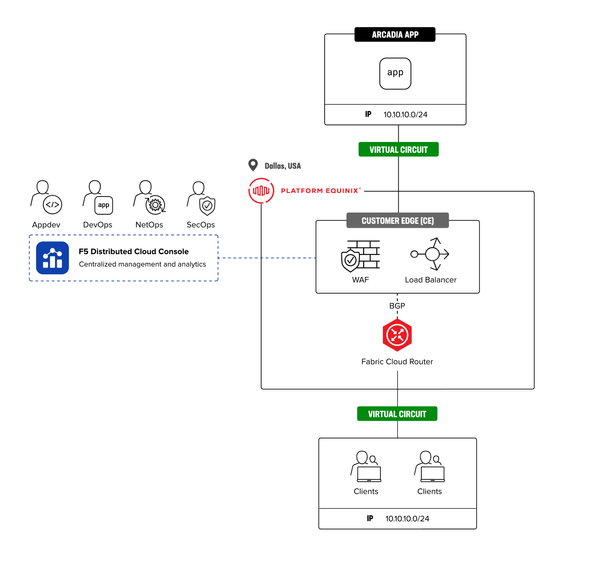

Deploying F5 Distributed Cloud Customer Edge (CE) software on Equinix Network Edge addresses these pain points with a modern, simplified model, enabling the creation of secure business partner app exchanges.

By integrating Distributed Cloud Services with Equinix, connecting partners to internal applications is faster and simpler. Instead of manually configuring each connection, Distributed Cloud Services automates the process through a centralized management console.

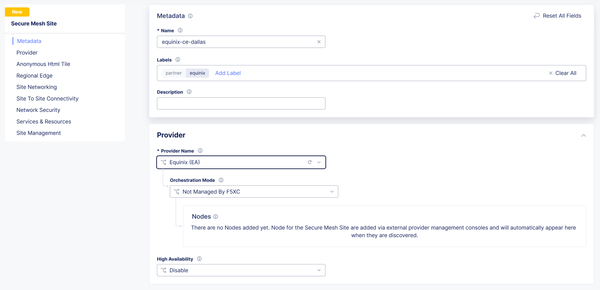

Deploying a CE is straightforward and can be done in minutes. From the Distributed Cloud Console, open "Multi-Cloud Network Connect" and create a "Secure Mesh Site" where you can select Equinix as a Provider.

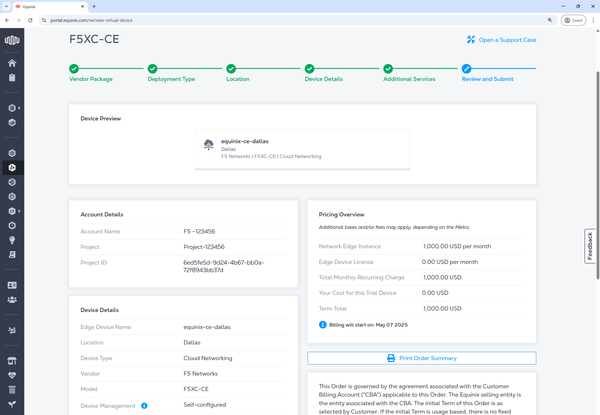

Next, open the Equinix Console and deploy the CE image. This can be done through the Equinix Marketplace, where you can select the F5 Distributed Cloud Services and deploy it to your desired location.

A CE can replace the need for multiple components like routers, firewalls, and load balancers. It handles BGP routing, traffic inspection through a built-in WAF, and load balancing. All of this is managed through a single web interface.

In this case, the CE connects directly to the Arcadia application in the customer’s data center using at least two IPsec tunnels. BGP peering is quickly established with partner environments, allowing dynamic route exchange without manual setup of static routes. Adding a new partner is as simple as configuring another BGP session and applying the correct policy from the central Distributed Cloud Console.

Instead of opening up large network subnets, security is enforced at Layer 7, and this app-aware connectivity is inherently zero trust. Each partner only sees and connects to the exact application they’re supposed to, without accessing anything else. Policies are reusable and consistent, so they can be applied across multiple partners with no duplication.

The built-in observability gives real-time visibility into traffic and security events. DevOps, NetOps, and SecOps teams can monitor everything from the Distributed Cloud Console, reducing troubleshooting time and improving incident response. This setup avoids the delays and complexity of traditional connectivity methods, while making the entire process more secure and easier to operate.

Simplified Partner Onboarding with Segments

The integration of F5 and Equinix allows for simplified partner onboarding using Network Segments. This approach enables organizations to create logical groupings of partners, each with its own set of access rules and policies, all managed centrally.

With Distributed Cloud Services and Equinix, onboarding multiple partners is fast, secure, and easy to manage. Instead of creating separate configurations for each partner, a single centralized service policy is used to control access. Different partner groups can be assigned to segments with specific rules, which are all managed from the Distributed Cloud Console. This means one unified policy can control access across many Network Segments, reducing complexity and speeding up the onboarding process.

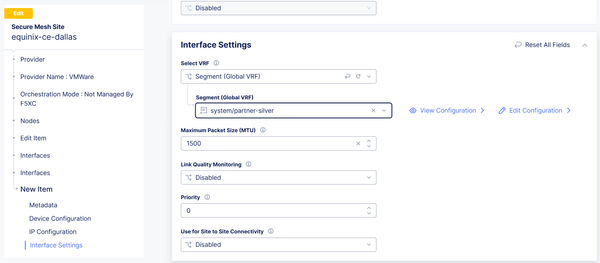

To configure a Segment, you can simply attach an interface to a CE and assign it to a specific segment. Each segment can have its own set of policies, such as which applications are accessible, what security measures are in place, and how traffic is routed.

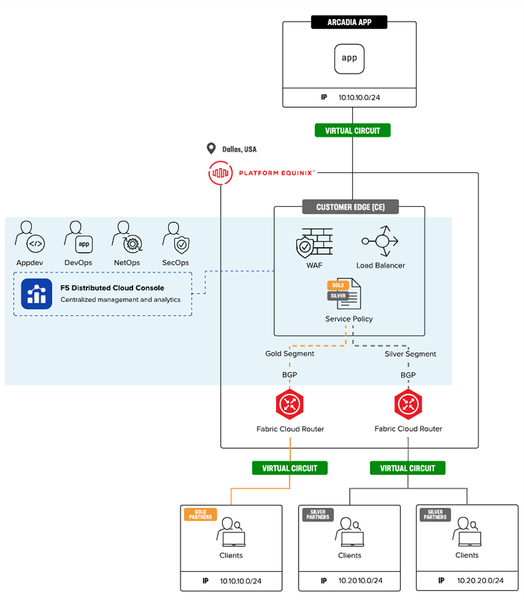

Each partner tier gets access only to the applications allowed by the policy. In this example, Gold partners might get access to more services than Silver partners. Security policies are enforced at Layer 7, so partners interact only with the allowed applications. There is no low-level network access and no direct IP-level reachability. WAF, load balancing, and API protection are also controlled centrally, ensuring consistent security for all partners. BGP routing through Equinix Fabric makes it simple to connect multiple partner networks quickly, with minimal configuration steps. This approach scales much better than traditional setups and keeps the environment organized, secure, and transparent.

Scalable and Secure Connectivity

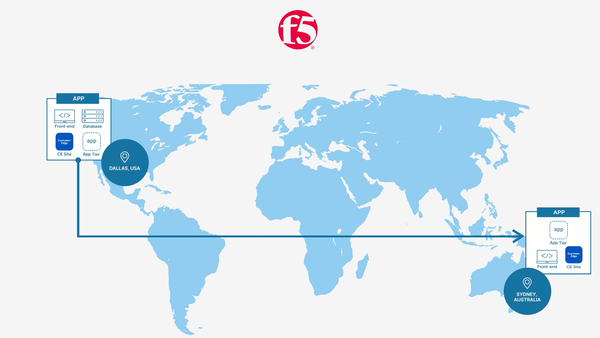

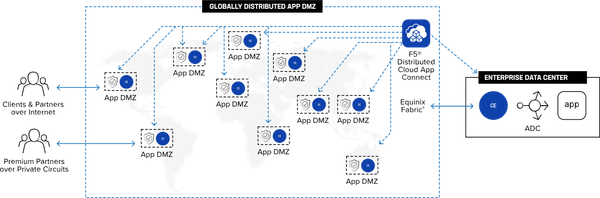

F5 Distributed Cloud Services makes it simple to expand application connectivity and security across multiple regions using Equinix Network Edge. CE nodes can be quickly deployed at any Equinix location from the Equinix Marketplace. This allows teams to extend app delivery closer to end users and partners, reducing latency and improving performance without building new infrastructure from scratch.

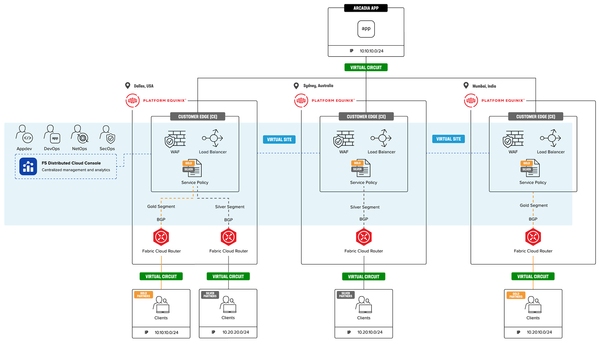

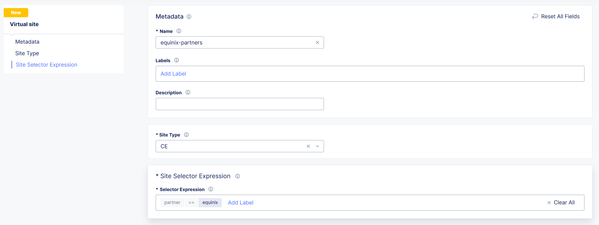

Distributed Cloud Services allows you to organize your CE nodes into a "Virtual Site". This Virtual Site can span multiple Equinix locations, enabling you to manage all your CE nodes as a single entity. When you need to add a new region, you can deploy a new CE node in that location and all configurations are automatically applied from the associated Virtual Site.

Once a new CE is deployed, existing application and security policies can be automatically replicated to the new site. This standardized approach ensures that all regions follow the same configurations for routing, load balancing, WAF protection, and Layer 7 access control. Policies for different partner tiers are centrally managed and applied consistently across all locations.

Built-in observability gives full visibility into traffic flows, segment performance, and app access from every site - all from the Distributed Cloud Console. Operations teams can monitor and troubleshoot with a unified view, without needing to log into each region separately. This centralized control greatly reduces operational overhead and allows the business to scale out quickly while maintaining security and compliance.

Service Policy Management

When scaling out to multiple regions, centralized management of service policies becomes crucial. Distributed Cloud Services allows you to define service policies that can be applied across all CE nodes in a Virtual Site. This means you can create a single policy that governs how applications are accessed, secured, and monitored, regardless of where they are deployed.

For example, you can define a service policy that adds a specific HTTP header to all incoming requests for a particular segment. This can be useful for tracking, logging, or enforcing security measures.

Another example is setting up a policy that rate-limits API calls from partners to prevent abuse. This policy can be applied across all CE nodes in the Virtual Site, ensuring that all partners are subject to the same rate limits without needing to configure each node individually.

The policy works on the L7 level, meaning it passes only HTTP traffic and blocks any non-HTTP traffic. This ensures that only legitimate web requests are processed, enhancing security and reducing the risk of attacks.

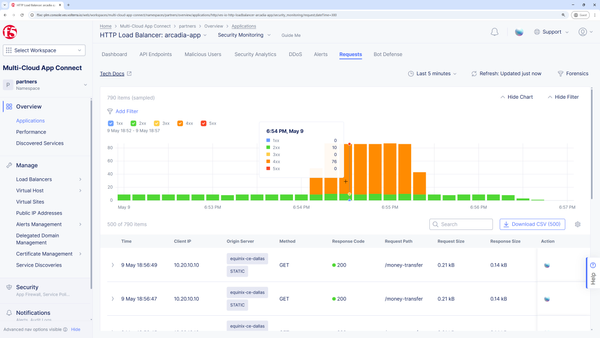

Distributed Cloud Services provides different types of dashboards to monitor the performance and security of your applications across all regions. This allows you to monitor security incidents, such as WAF alerts or API abuse, from a single dashboard.

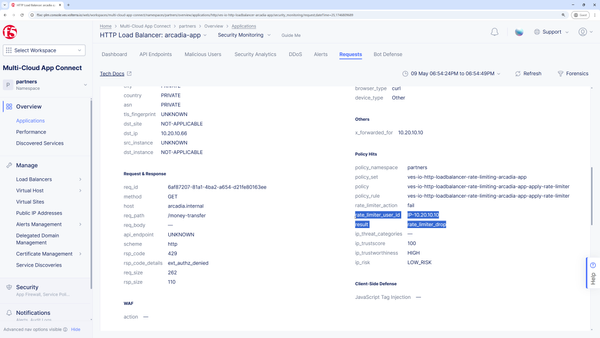

The Distributed Cloud Console provides detailed logs with information about each request, including the source IP, HTTP method, response status, and any applied policies. If a request is blocked by a WAF or security policy, the logs will show the reason for the block, making it easier to troubleshoot issues and maintain compliance.

The centralized management of service policies and observability features in Distributed Cloud Services allows organizations to save costs and time when managing their hybrid and multi-cloud environments. By applying consistent policies across all regions, businesses can reduce the need for manual configurations and minimize the risk of misconfigurations. This not only enhances security but also simplifies operations, allowing teams to focus on delivering value rather than managing complex network setups.

Offload Services to Equinix Network Edge

For organizations that require edge compute capabilities, Distributed Cloud Services provides a Virtual Kubernetes Cluster (vK8s) that can be deployed on Equinix Network Edge in combination with F5 Distributed Cloud Regional Edge (RE) nodes. This solution allows you to run containerized applications in a distributed manner, close to your partners and end users to reduce latency. For example, you can deploy frontend services closer to your partners while your backend services can remain in your data center or in a cloud provider.

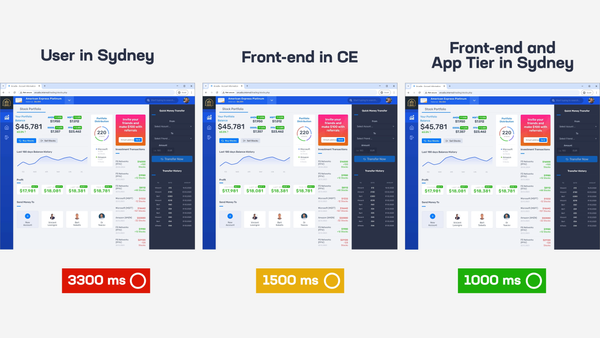

The more services you move to the edge, the more you can benefit from reduced latency and improved performance. You can use vK8s like a regular Kubernetes cluster, deploying applications, managing resources, and scaling as needed. The F5 Distributed Cloud Console provides a CLI and web interface to manage your vK8s clusters, making it easy to deploy and manage applications across multiple regions.

Demos

Example use-case part 1 - F5 Distributed Cloud & Equinix: Business Partner App Exchange for Edge Services

Video link TBD

Example use-case part 2 - Go beyond the network with Zero Trust Application Access from F5 and Equinix

Video link TBD

Standalone Setup, Configuration, Walkthrough, & Tutorial

Conclusion

F5 Distributed Cloud on Equinix Network Edge transforms how organizations connect partners and applications. With its centralized management, automated connectivity, and built-in security features, it becomes a solid foundation for modern hybrid and multi-cloud environments. This integration simplifies partner onboarding, enhances security, and enables consistent policy enforcement across regions.

Learn more about how F5 Distributed Cloud Services and Equinix can help your organization increase agility while reducing complexity and avoiding the pitfalls of traditional private connectivity models.
