BIG-IP L2 Virtual Wire LACP Mode Deployment with Gigamon Network Packet Broker

Introduction

This article is part of a series on deploying BIG-IPs with bypass switches and network packet brokers. These devices allow for the transparent integration of network security tools with little to no network redesign and configuration change. For more information about bypass switch devices refer to https://en.wikipedia.org/wiki/Bypass_switch; for network packet brokers, refer to https://www.ixiacom.com/company/blog/network-packet-brokers-abcs-network-visibility and https://www.gigamon.com/campaigns/next-generation-network-packet-broker.html. The article series introduces network designs to forward traffic to the inline tools at layer 2 (L2).

This article covers the design and implementation of the Gigamon Bypass Switch / Network Packet Broker in conjunction with the BIG-IP i5800 appliance and Virtual Wire (vWire) with LACP Mode. This article covers LACP Mode deployment mentioned in article https://devcentral.f5.com/s/articles/L2-Deployment-of-BIG-IP-with-Gigamon.

Network Topology

Below diagram is a representation of the actual lab network. This shows deployment of BIG-IP with Gigamon.

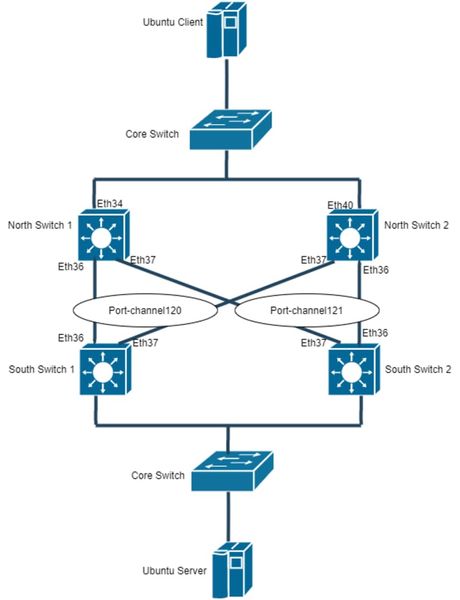

Figure 1 - Topology with MLAG and LAG before deployment of Gigamon and BIG-IP

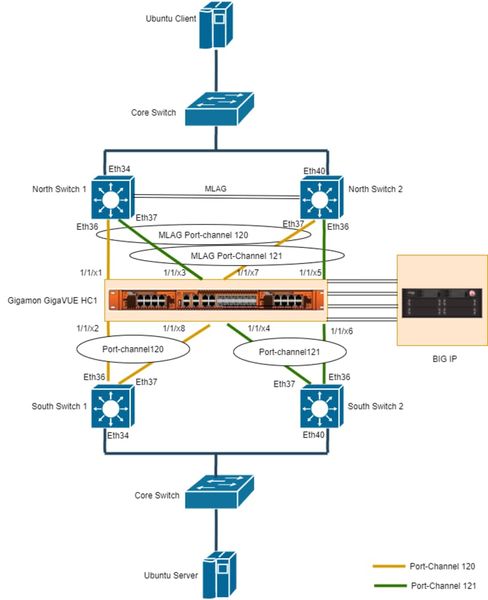

Figure 2 - Topology with MLAG and LAG after deployment of Gigamon and BIG-IP

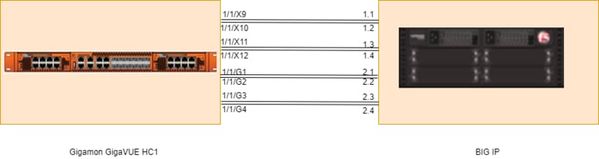

Figure 3 - Connection between Gigamon and BIG-IP



Hardware Specification

Hardware used in this article are

• BIG-IP i5800
• GigaVUE-HC1
• Arista DCS-7010T-48 (all the four switches)

Note: All the Interfaces/Ports are 1G speed

Software Specification

Software used in this article are

• BIG-IP 16.1.0
• GigaVUE-OS 5.7.01
• Arista 4.21.3F (North Switches)
• Arista 4.19.2F (South Switches)

Switch Configuration

Switch Configuration is same as previous article https://devcentral.f5.com/s/articles/BIG-IP-L2-V-Wire-LACP-Passthorugh-Deployment-with-Gigamon

Note: In above mentioned configuration switch ports are configured as access port to allow vlan 120, so BIG-IP will receive untagged frames. In case to have tagged frame, configure switch ports as trunk ports. In this article, below scenarios are tested with Tagged frames.

Gigamon Configuration

Gigamon Configuration is same as previous article https://devcentral.f5.com/s/articles/BIG-IP-L2-vWire-LACP-Passthrough-Deployment-with-1-to-1-mapping-of-Gigamon-NPS

BIG-IP Configuration

BIG-IP configuration is exactly same as configuration mentioned in https://devcentral.f5.com/s/articles/L2-Deployment-of-BIG-IP-with-Gigamon

This article is specific to LACP Mode, find below trunk configuration with LACP mode enabled.



Figure 4 - Trunk configuration with LACP enabled

Note: For LACP mode, in vWire configuration Propagate Virtual Wire Link Status should be disabled.

Scenarios

As per Figure 2 and 3, setup is completely up and functional. As LACP passthrough mode configured in BIG-IP, LACP frames will passthrough BIG-IP. LACP will be established between North and South Switches. ICMP traffic is used to represent network traffic from the north switches to the south switches.

Scenario 1: Traffic flow through BIG-IP with North and South Switches configured in LACP active mode

Above configurations shows that all the four switches are configured with LACP active mode.

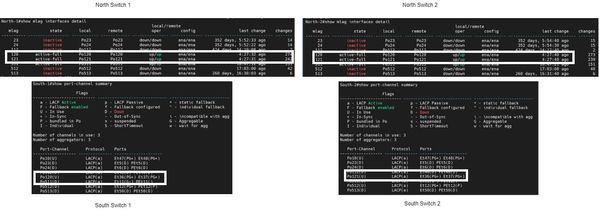

Figure 5 - MLAG and LAG status after deployment of BIG-IP and Gigamon with Switches configured in LACP AC TIVE mode

Figure 5 shows that port-channels 120 and 121 are active at both North Switches and South Switches. Above configuration shows MLAG configured at North Switches and LAG configured at South Switches.

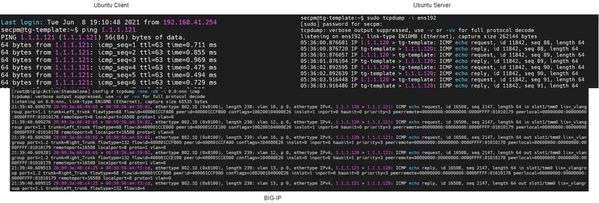

Figure 6 - ICMP traffic flow from client to server through BIG-IP Figure 6 shows ICMP is reachable from client to server through BIG-IP. Here LACP is established between Switches and BIG-IP, whereas in passthrough mode LACP will be established between switches

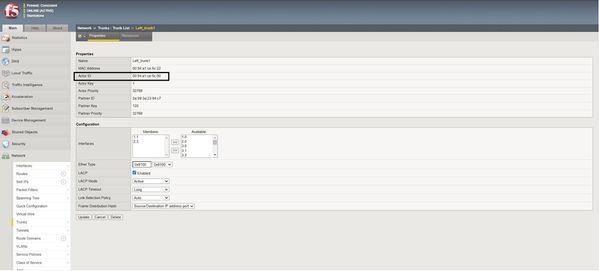

Figure 7 - Actor ID of BIG-IP



Figure 8 - LACP neighbor details in switches

Figure 7 and Figure 8 shows LACP is established between Switches and BIG-IP.

Scenario 2: Traffic flow through BIG-IP with North and South Switches configured in LACP Passive mode

North Switch 1:

interface Ethernet36
  channel-group 120 mode passive
interface Ethernet37
  channel-group 121 mode passive



North Switch 2:

interface Ethernet37
  channel-group 120 mode passive
interface Ethernet36
  channel-group 121 mode passive



South Switch 1:

interface Ethernet36
  channel-group 120 mode passive
interface Ethernet37
  channel-group 120 mode passive



South Switch 2:

interface Ethernet36
  channel-group 121 mode passive
interface Ethernet37
  channel-group 121 mode passive



Figure 9 - MLAG and LAG status after deployment of BIG-IP and Gigamon with Switches configured in LACP Passive mode

Figure 9 shows that port-channels 120 and 121 are active at both North Switches and South Switches. Above configuration shows MLAG configured at North Switches and LAG configured at South Switches.

Figure 10 - ICMP traffic flow from client to server through BIG-IP Figure 10 shows ICMP is reachable from client to server through BIG-IP. BIG-IP configured with LACP in Active mode and Switches configured with LACP in Passive mode, thus LACP got established successfully. This behavior will not occur when BIG-IP configured in Passthrough mode, in that case both the North and South will be in LACP passive mode and LACP will not get established.

Scenario 3: Active BIG-IP link goes down in BIG-IP

 Figure 10 shows that interface 1.1 of BIG-IP is active incoming interface and interface 1.2 of BIG-IP is active outgoing interface. Disabling BIG-IP interface 1.1 will make active link down as below

Figure 11 - BIG-IP interface 1.1 disabled

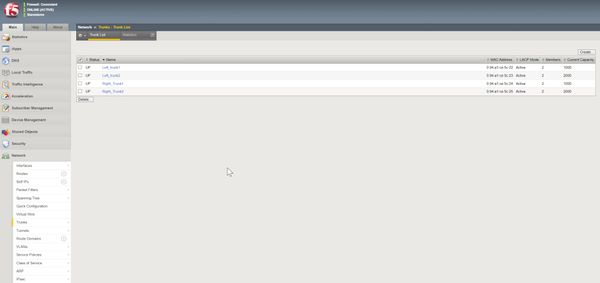

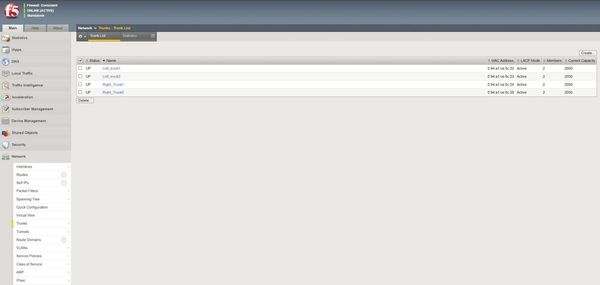

Figure 12 - Trunk state after BIG-IP interface 1.1 disabled

Figure 12 shows that all the trunks are up even though interface 1.1 is down. As per configuration, Left_Trunk1 has 2 interfaces connected to it 1.1 and 2.3 and one of the interface is still up, so Left_Trunk1 status is active. In previous article https://devcentral.f5.com/s/articles/BIG-IP-L2-V-Wire-LACP-Passthorugh-Deployment-with-Gigamon, individual trunks got configured and status of Left_Trunk1 was down.



Figure 13 - MLAG and LAG status with interface 1.1 down

Figure 13 shows that port-channels 120 and 121 are active at both North Switches and South Switches. This shows that switches are not aware of link failure and it is been handled by Gigamon configuration.



Figure 14 - One of Inline Tool goes down after link failure

Figure 14 shows Inline Tool which is connected to interface 1.1 of BIG-IP goes down.

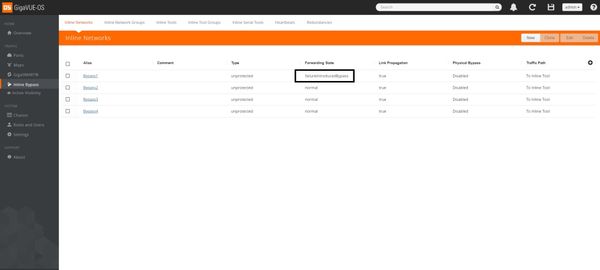

Figure 15 - Bypass enabled for specific flow

Figure 15 shows tool failure introduced bypass for Inline-network pair Bypass1 ( Interface 1.1 and 1.2)

If traffic hits interface 1.1 then Gigamon will send traffic directly to interface 1.2. This shows traffic bypassed BIG-IP.



Figure 16 - ICMP traffic flow from client to server bypassing BIG-IPFigure 16 shows client is reaching server and no traffic passing through BIG-IP which means traffic bypassed BIG-IP.

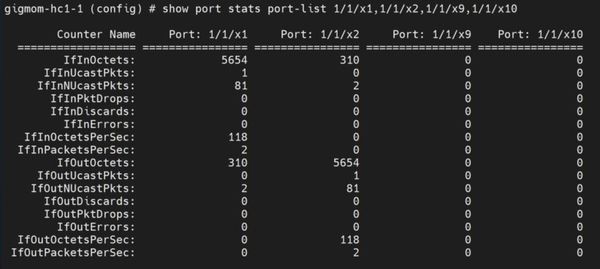

Figure 17 - Port Statistics of Gigamon

Figure 17 shows traffic reaches interface 1.1 of Gigamon and forwards to interface 1.2. Traffic is not routed to tool, as specific Inline-Network enabled with bypass.

In the same scenario, if traffic hits any other interface apart from interface 1.1 of Gigamon then traffic will be route to BIG-IP. Please note that only one Inline-network pair enables bypass, remaining 3 Inline-network pairs are still in normal forwarding state.

Scenario 4: BIG-IP goes down and bypass enabled in Gigamon

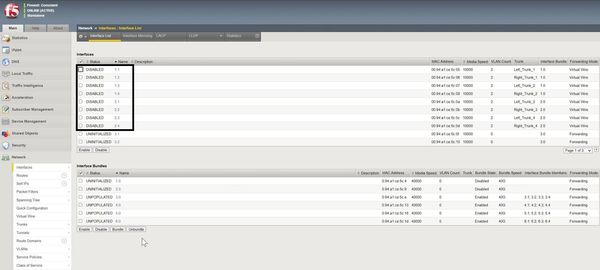

Figure 18 - All the BIG-IP interfaces disabled

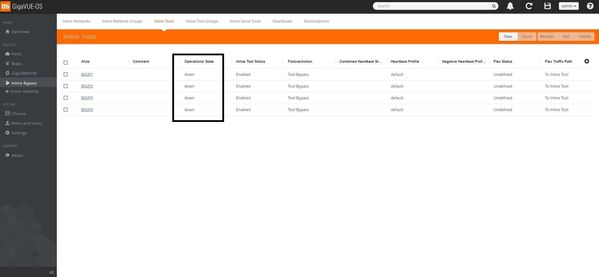

Figure 19 - Inline tool status after BIG-IP goes down

Figure 19 shows that all the Inline Tool pair goes down once BIG-IP is down.

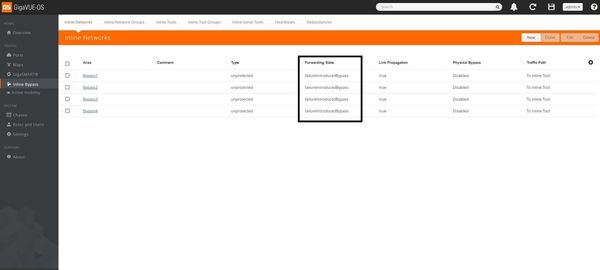

Figure 20 - Bypass enabled in Gigamon

Figure 20 shows bypass enabled in Gigamon and ensures there is no network failure. ICMP traffic still flows between ubuntu client and ubuntu server as below



Figure 21 - ICMP traffic flow from client to server bypassing BIG-IP



Conclusion

This article covers BIG-IP L2 Virtual Wire LACP mode deployment with Gigamon. Gigamon configured with one to one mapping between Inline-network and Inline-tool. No Inline-network group and Inline-tool group configured in Gigamon.

Observations of this deployment are as below

1. As one to one mapping configured between Inline-network and Inline-tool, no additional tag inserted by Gigamon.
2. As there is no additional tag in frames when reaching BIG-IP, this configuration works for both Tagged and Untagged packets.
3. If any of the Inline Tool link goes down, Gigamon handles bypass. Switches will be still unware of the changes.
4. If any of the Inline Tool Pairs goes down, then specific Inline-network enables bypass.
5. If traffic hits bypass enabled Inline-network, then traffic will be bypassing BIG IP.
6. If traffic hits Normal forward state Inline-Network, the traffic will be forwarded to BIG-IP.
7. If BIG-IP goes down, Gigamon enables bypass and ensures there is no packet drop.
8. Propagate Virtual Wire Link State should be disabled for LACP Mode in Virtual Wire Configuration
