Beyond Five Nines: SRE Practices for BIG-IP Cloud-Native Network Functions



Introduction

Five nines (99.999%) availability gets the headline. But any SRE who has been on-call for a telecom user-plane incident knows that uptime percentages don’t capture the full picture. A NAT pool exhausted at 99.98% availability can still affect millions of subscribers. A DNS cache miss storm at 99.99% uptime can still degrade application performance across an entire region.

This article explores how SRE principles (specifically SLIs, SLOs, error budgets, and toil reduction) apply to cloud-native network functions (CNFs) deployed with F5 BIG-IP Cloud-Native Edition. The goal is practical: give SRE teams and platform engineers the vocabulary and patterns to instrument, operate, and evolve these functions the same way they operate any other Kubernetes workload.



Why subscriber-centric SLIs beat infrastructure metrics

Traditional network operations relies on infrastructure health metrics: CPU utilisation, interface counters, and process uptime. These metrics are necessary, but they answer the wrong question. They tell you the system’s perspective, not the subscriber’s.

SRE flips this. An SLI is a direct quantitative measurement of user-visible service behavior. For a CNF in the 5G user plane, subscriber-centric SLIs look like:

• GTP-U flow forwarding success rate (not just firewall process uptime)
• NAT session establishment latency at P95 (not just CPU idle)
• DNS query response rate and cache hit ratio (not just resolver process health)
• Packet drop rate at the N6/Gi-LAN boundary (not just interface RX errors)

BIG-IP CNE exposes these metrics natively through Prometheus-compatible endpoints on each CNF pod, meaning your existing Kubernetes observability stack, whether that is Prometheus + Grafana, Datadog, or a vendor-managed observability platform, can consume them without custom instrumentation.

As a consultant, if your monitoring today alerts on CNF pod restarts before it alerts on subscriber-impacting packet drops, your SLI hierarchy is inverted. Fix the SLI definition first, then tune your alerting.

SLIs and SLOs: the measurement-to-promise pipeline

The distinction between SLIs and SLOs is operational, not semantic. An SLI is what you observe; an SLO is what you commit to. Together, they create an error budget (your explicit allowance for controlled unreliability).

Table 1 gives a quick summary to further highlight the relation between SLI, SLO and why it matters to SREs.

Table 1: SLI vs SLO — what each term means operationally



The gap between your SLI (what you measure) and your SLO (what you target) is the error budget. For a DNS CNF with an SLO of 99.99% queries answered within 20ms over 30 days, the error budget is 4.38 minutes of allowable degradation per month. That budget governs rollout velocity: when the budget is healthy, teams can ship faster; when it burns through, all changes halt until the system stabilizes.

Example: Set your SLO as "99.99% of GTP-U flows processed within 2ms." Your error budget is 0.01% of flows, or roughly 52 minutes of allowable impact per year. A CNF upgrade that introduces a 0.005% flow drop during rollout consumes half your annual budget. That’s the signal your CI/CD pipeline should be gating on — not deployment success.



Golden signals mapped to BIG-IP CNE metrics

The SRE golden signals (latency, traffic, errors, saturation) map directly to BIG-IP CNE telemetry. The table below gives practical SLI examples, SLO targets, and the operator’s actions each signal should trigger.

Table 2 shows an example with the relation to the SLO concepts and the actions to be taken.

Table 2: Golden signals as operational SLIs for BIG-IP CNE



These SLIs flow into the same Prometheus/Grafana stack your Kubernetes platform team already operates. A single dashboard can surface both pod-level Kubernetes metrics and CNF user-plane metrics, creating a shared view of reliability that eliminates the classic “my side is green” response to incidents.



Observability implementation: metrics, logs, and traces

BIG-IP CNE exports telemetry natively into Kubernetes observability pipelines. Here is what that looks like in practice for each pillar of observability:



Config note:  To wire CNF metrics into an existing Prometheus stack, annotate the CNF pod spec with prometheus.io/scrape:“true”" and prometheus.io/port matching the CNF metrics port. No additional expertise required.

Error budgets as a deployment gate

SRE uses error budgets to make deployment velocity a function of reliability, not a function of the change calendar. Here is how this applies to CNF operations with BIG-IP CNE:

• Healthy budget (burn rate < 1x): Teams can accelerate CNF feature delivery. New CRD configurations, Helm chart upgrades, and policy changes proceed with normal review cycles.
• Elevated burn (burn rate 1–5x): All non-emergency CNF changes require additional review. Automated rollback thresholds tighten.
• Budget exhausted: CNF changes halt. The SRE team shifts 100% focus to reliability work until the budget recovers. This is a policy decision, not a technical one.



In practice, BIG-IP CNE supports this through Kubernetes-native mechanisms: Helm-managed upgrades can be gated by pre-upgrade hooks that query current SLI state; CRD-based configuration changes can be rolled out with canary patterns using standard Kubernetes deployment strategies; HPA (Horizontal Pod Autoscaler) rules can be tied directly to CNF-emitted metrics rather than generic CPU thresholds.



Toil reduction: from runbooks to controllers

SRE defines toil as manual, repetitive, automatable operational work that scales with traffic volume but produces no enduring value. In telecom CNF operations, toil accumulates fast:

• Manual NAT pool expansion during traffic peaks
• SSH-based policy pushes for firewall rule updates
• Ticket-driven DNS configuration changes
• Manual health checks before and after maintenance windows

BIG-IP CNE addresses this through Kubernetes-native control loops. Configuration is declarative — CNF policies are expressed as Custom Resource Definitions (CRDs) applied via kubectl or GitOps pipelines. Kubernetes controllers reconcile the actual CNF state to the desired state defined in Git, eliminating configuration drift and manual intervention.

Example: Instead of a runbook step that says “SSH to the CGNAT CNF and add 1000 ports to poolX,” your GitOps pipeline applies a CRD update that the CNF controller reconciles automatically. The audit trail is a Git commit, not a change ticket.

SRE teams typically target a 50/50 split between operational work and engineering work. CNF operations that rely on manual runbooks push this ratio toward 70–80% operations. Declarative CNF management via CRDs and Helm shifts it back, freeing SRE capacity for SLO definition, observability improvement, and automation engineering.



Dissolving the platform/network operations boundary

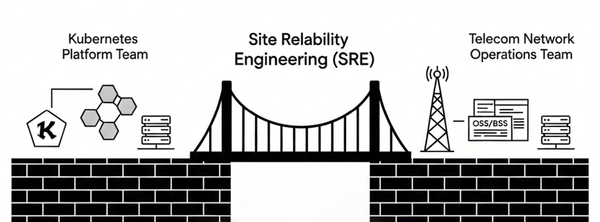

Figure 1: SRE bridges the Kubernetes platform team and telecom network operations team through shared SLIs and a unified observability stack.



The most persistent operational problem in cloud-native telecom is not technical; it is organizational. Kubernetes platform teams and telecom network operations teams measure different things, escalate through different processes, and use different tooling. When a GTP-U latency spike occurs, Kubernetes teams check pod health and cluster metrics; telecom teams check interface counters and policy logs. Neither has the full picture.

The SRE resolves this by requiring both teams to operate against the same SLIs. When CNF and cluster metrics flow into the same observability stack:

• A single SLI can span pods, nodes, and network functions
• Rollouts, autoscaling, and maintenance windows are gated by shared error budgets rather than siloed change calendars
• Kubernetes engineers declare CNF configurations as code; telecom teams define SLOs that consume those functions as building blocks



The result is that when an SLI burns through an error budget (for example, a 0.02% GTP-U drop rate) both teams respond to the same signal. Kubernetes teams scale pods; telecom teams tune policies. No finger-pointing. Shared accountability for the packet-level truth that subscribers experience.



5G N6/Gi-LAN consolidation: a concrete SRE use case

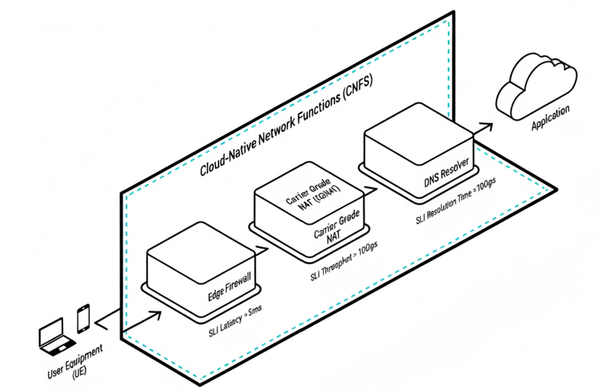

Figure 2: BIG-IP CNE consolidating SGi-LAN/N6 functions (Edge Firewall, CGNAT, DNS) as Kubernetes-native CNFs alongside the 5G core.

A common deployment pattern for BIG-IP CNE is N6/Gi-LAN consolidation, where edge firewalling, CGNAT, DNS, and DDoS protection are deployed as CNFs alongside the 5G core rather than as discrete physical or virtual appliances.

From an SRE perspective, this architecture enables composite SLOs that span multiple CNFs in a single traffic chain:

• Edge Firewall CNF: SLI = packet drop rate at N6 boundary. SLO = <0.001% drops over 30 days.
• CGNAT CNF: SLI = NAT session establishment success rate. SLO = 99.99% sessions established within 5ms.
• DNS CNF: SLI = query response latency at P95. SLO = P95 < 20ms with >80% cache hit ratio.

Composite SLOs then drive autoscaling and routing decisions based on real service behavior rather than static capacity plans. When the DNS cache hit ratio drops below threshold, the autoscaler adds DNS CNF replicas driven by the CNF-emitted metric, not a manual capacity review.



Conclusion: Path to AI-native 6G

The 6G architecture direction (disaggregated, software-defined network functions dynamically placed across distributed edge locations) requires SRE disciplines at the foundation, not bolted on later. Networks that must adapt in near-real time cannot be operated by humans with runbooks.

BIG-IP CNE was designed with this trajectory in mind. The same Kubernetes-native architecture that enables SRE practices for 5G today (declarative configuration, horizontal scaling, native observability) is the foundation for AI-driven traffic steering, dynamic policy enforcement, and intent-based networking in 6G environments.

For platform teams making architecture decisions now: investing in SLO definition and observability instrumentation for current CNF deployments is not just operational hygiene. It is building the data infrastructure that AI-native operations will require.

Key takeaways,

• Define SLIs at the subscriber boundary, not the infrastructure boundary
• Use error budgets to gate CNF rollout velocity. Make it a CI/CD policy, not a manual decision
• Consume CNF Prometheus metrics in your existing Kubernetes observability stack, no separate tooling required
• Declarative CRD-based CNF management via GitOps is the primary toil-reduction lever
• Shared SLIs between Kubernetes platform and telecom operations teams eliminate the organizational boundary that causes most major incidents
