TurboFlex & i5800 & AFM

Question

I am provisioning an i5800 I have set up the vCMP guest and two hosts. I am trying to provision the AFM firewall on one of the hosts but I get this error "The provision module afm requires TurboFlex profile turboflex-security." It seems as if the i5800 should have TurboFlex but there is no tab for it in the provisioning. So my questions are can I provison the AFM with out the TurboFlex and why am I not seeing any TurboFlex CLI comands or GUI options ?

daniel_wolf · Answer

Hi &nbsp;&nbsp;This is not configured at the level of the vCMP host, but at the level of the guest. This is how it worked in my i5800 vCMP Guest.&nbsp;Go to System&nbsp;››&nbsp;Resource Provisioning : TurboFlex and enable "turboflex-security-v1".Next go to System&nbsp;››&nbsp;Resource Provisioning : Module Allocation and enable "Advanced Firewall (AFM)"&nbsp;Beware there is a bug in 15.1.3 and 16.x:K35135904: Error message: "profile.Features is undefined" via turboflex on GUI after upgraded to 15.1.3Bug ID 1020129: Turboflex page in GUI reports 'profile.Features is undefined' error&nbsp;But you can still change it via TMSHhttps://techdocs.f5.com/en-us/hw-platforms/f5-platforms--turboflex-profiles/1.html&nbsp;KRDaniel

s_pollok · Answer

Hi Daniel Thanks for my problem was the options only appears after the initial setup has been completed, you can not configure it from the setup wizard.

daniel_wolf · Answer

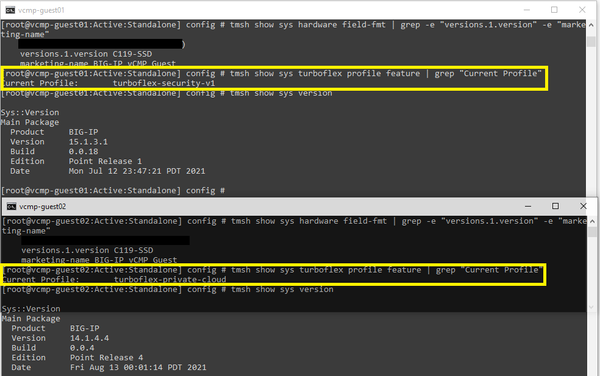

For the sake of completeness. You can have multiple guests and you can assign different Turboflex profiles to each guest.
