ASM L7 DoS email alert

Hi Nishal_Rai ,

>> For your first Question : about Logs regarding L7Dos >>>

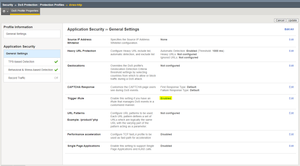

I see that you are using CS ( Client side integrity Defense ) as a prevention/mitigation method.
But using this Prevention method doesn't trigger your event "IN_DOSL7_ATTACK"
According this : https://clouddocs.f5.com/api/irules/IN_DOSL7_ATTACK.html

So First try to change it to rate limit for example , and monitor again.

>> For your second Question about Behavioral DoS :

Well ,
Behavioral method : is an intelligent way to identify and mitigate DOS Attacks by creating good baseline from normal traffic ( users normal traffic ) , you should give your bigip sufficient time to create it's baseline of learning the good traffic ( Not DoS attack ) one.
use this command to monitor your bigip and making sure that Bigip ip creates the baseline well from traffic :
Should be like this >>>

admd -s vs./Common/vs_hackazon_http+/Common/hackazon_bados.info.learning

Where ( vs_hackazon_http is the virtual server & hackazon_bados is the Dos profile that Behavioral Dos Enabled in)
For more details for baiseline , Please Follow this Article:

 https://clouddocs.f5.com/training/community/ddos/html/class7/bados/module1.html

After that you will change the enforcement mode to Blocking in ( Behavioral & stress based ) , try your Dos Traffic against Bigip ( don't forget to attach your Behaioral Dos profile to the virtual server that you test the attack against )

Behaivoral Detection & mitigation statge :

• when bigip feel upnormal patterns of traffic violates it's learnt baseline , and observe the latency increases in Servers >>> it starts to create signatures for this attack patterns and start to slow down/ rate limiting the requests according to the used mitigation technique ( Standard protection , Aggressive protection ....)
  Note ( Use the Help Tab in bigip GUI to know the differences between Protection methods in Behavioral DoS )
• Okay , What is the role of Signature and what are the parameters which these signatures depend on :
  Bigip Behavioral Take some headers from the violating/attack requests "upnormal ones I mean " and store it in a signature , these headers are ANDed with each other within a single signature to identify the attacked request. >>> and these are the parameter that you asked about.
• After that >> if you are using  the "use approved signature only " enabled check box >>> That's mean you should open the signture and review it's headers and inforamtion to approve it ( if you feel that is an attack request )or disable it ( if you feel it's a normal request and valid)
• After approving signatures >>> Any request match any signature will be blocked immediately and quickly , so this keeps your servers safe and powerful also cleaned from attacking requests.
• If you disable / uncheck "use approved signature only" Bigip will use the created signatures immediately without your approval , and will start to block any request matchs any signature.



That's all , you can monitor the DoS >> by viewing Reporting / DOS Visibility or navigate ( Statistics >> Dashboad and choose Behavioral Dos if you expect a live attack )

I hope I explained Behavioral Dos well and use this Article as a starting point :

 https://techdocs.f5.com/en-us/bigiq-7-1-0/managing-ddos-attacks-using-big-iq/monitoring-bados-protection.html

Thanks and Goodluck 🙂
